The KYA SR8 Hog Ring Plier is a manual auto-feed C-ring fastening tool designed for fencing, wire mesh, netting, poultry cages, shade cloth, nursery applications, bag closures and other repetitive wire-joining work.
The built-in magazine holds up to 50 SR8 C-rings, allowing multiple fastening cycles without loading each ring individually. The tool is designed for compatible C-rings with a 20.0mm crown, 1.6mm wire thickness and 10.4mm height. At approximately 0.4kg / 0.88lb, it provides a portable fastening solution without an air compressor, hose, battery or electrical supply.
| Specification | Details |
|---|---|
| Model | SR8 |
| Tool Type | Manual Hog Ring Plier / C-Ring Plier |
| Feed System | Auto-Feed Magazine |
| Magazine Capacity | Up to 50 SR8 C-Rings |
| Tool Dimensions | 185mm × 105mm × 25mm / 7.3 × 4.1 × 1 in. |
| Net Weight | 0.4kg / 0.88lb |
| Tool Body | Galvanized Steel |
| Compatible Fastener | SR8 C-Ring / Hog Ring |
| C-Ring Crown | 20.0mm / 0.79 in. |
| C-Ring Wire Thickness | 1.6mm / 0.063 in. |
| C-Ring Height | 10.4mm / 0.41 in. |
| Power Requirement | Manual – No Air Compressor or Electricity Required |
| Main Applications | Fencing, Wire Mesh, Netting, Poultry Cages, Shade Cloth, Nursery Work, Bag Closures and Selected Upholstery Applications |
Fastener compatibility: use SR8 C-rings that match the complete fastener profile. Before ordering replacement rings, confirm crown width, wire thickness, ring height, strip format and magazine/feed compatibility. A 20mm crown alone does not confirm compatibility.

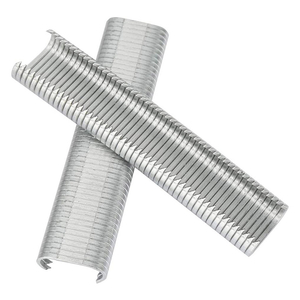

The magazine holds up to 50 compatible SR8 C-rings. After each fastening cycle, the feed system positions the next ring, reducing the need to handle loose rings individually during repetitive fencing, mesh and cage work.
The SR8 is manually operated, so it does not require pneumatic equipment, an air hose, battery or electrical power. This makes it practical for field repairs, farms, fencing projects, nurseries and mobile installation work.
At approximately 0.4kg / 0.88lb, the SR8 is compact and easy to transport between installation locations.
The galvanized steel construction provides practical durability for agricultural, fencing, workshop and general fastening environments.
Compared with pliers that require an individual loose ring to be positioned before every fastening cycle, the magazine-fed design can reduce repeated ring handling during longer fastening jobs.
The SR8 plier is designed around a specific C-ring profile. Matching the complete fastener dimensions is important for correct magazine feeding, jaw positioning and ring closure.

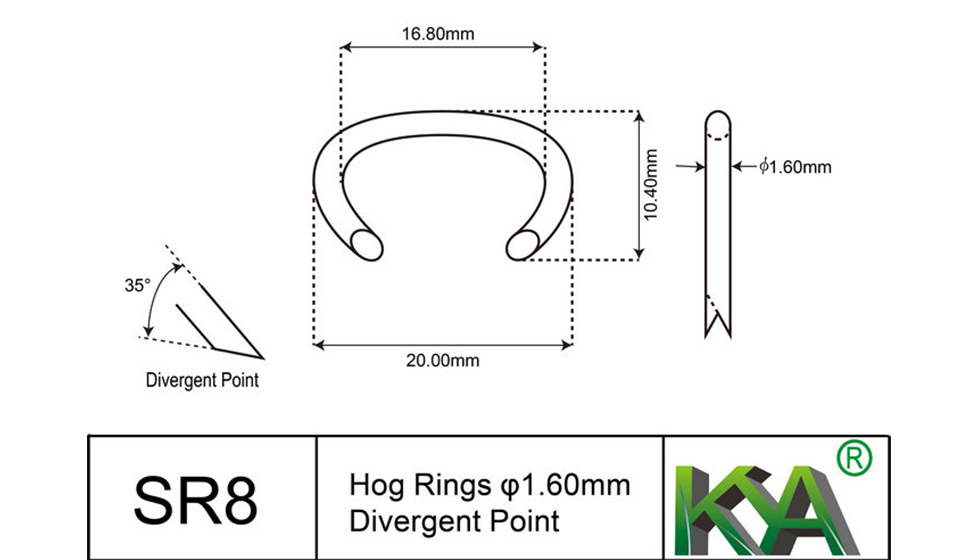

| C-Ring Parameter | SR8 Specification |
|---|---|
| Fastener Type | C-Ring / Hog Ring |
| Crown | 20.0mm |
| Wire Thickness | 1.6mm |
| Ring Height | 10.4mm |
| Magazine Load | Up to 50 Rings |
| Tool Type | SR8 Manual Auto-Feed Hog Ring Plier |
A 20mm crown alone does not confirm compatibility. Other C-ring systems can use different wire diameters, ring heights, strip formats or closure geometries. Match the complete ring specification before using replacement fasteners in the SR8.
SR8 hog ring pliers can be used to join mesh wire to supporting or tension wire in suitable fencing and wire-mesh installations. The C-ring wraps around the materials being joined and is closed by the plier jaws.
The tool is suitable for connecting mesh sections during poultry cage, chicken coop and other compatible wire-cage assembly and repair work.
Applications include attaching netting or shade cloth to supporting wire in nurseries, agricultural installations and garden structures where the SR8 C-ring dimensions suit the materials being joined.
Because the SR8 requires no compressor or electrical supply, it can be useful for portable agricultural, nursery, netting and maintenance work away from a fixed workshop.
C-rings can also be used for suitable mesh bag and industrial bag-closing applications where the ring dimensions provide the required closure.
The SR8 can also be used in selected furniture and automotive upholstery applications where compatible C-rings are used to secure upholstery materials, wire or frame components. For continuous high-volume upholstery production, a pneumatic hog ring tool may provide higher productivity.
| Feature | Manual SR8 Hog Ring Plier | Pneumatic Hog Ring Gun |
|---|---|---|
| Power Source | Manual | Compressed Air |
| Portability | No hose or compressor required | Depends on pneumatic system |
| Typical Work Volume | Repair, field work and moderate repetitive fastening | Continuous high-volume production |
| Operator Effort | Manual handle force required | Lower hand-closing effort during repetitive production |
| Typical Applications | Fencing, Cages, Netting, Repairs and Agriculture | Industrial Upholstery, Mattresses, Cages and Production Lines |
The manual SR8 is useful when portability and simple setup are important. For continuous industrial fastening, a pneumatic hog ring gun can reduce repetitive hand effort and increase production speed.
Load a strip of compatible SR8 C-rings into the magazine. Confirm that the rings sit correctly in the feed track and move toward the jaws.
Place the wire, mesh, netting, fabric edge or other materials to be connected inside the open C-ring and between the tool jaws.
Squeeze the handles until the C-ring closes around the materials. Keep fingers away from the closing jaws during operation.
Release the handles and allow the magazine to advance the next ring into fastening position.
Inspect the closed ring and confirm that it holds the materials securely. Ring closure performance should be tested on the actual wire, mesh or application material before large-scale use.
| Buying Factor | What to Confirm |
|---|---|
| Ring Crown | SR8: 20.0mm |
| Ring Wire Thickness | SR8: 1.6mm |
| Ring Height | SR8: 10.4mm |
| Feed Type | Auto-Feed Magazine |
| Magazine Capacity | Up to 50 Rings |
| Work Volume | Manual SR8 for portable and moderate-volume work; pneumatic tools for higher-volume production |
| Application | Fencing, Netting, Cages, Shade Cloth, Bag Closure or Selected Upholstery Work |
| Material Being Joined | Confirm wire diameter, mesh size or upholstery construction before bulk use |
The SR8 is used for fastening wire mesh, fencing, netting, poultry cages, shade cloth, nursery materials, mesh bags and selected upholstery applications with compatible C-rings.
It is a manual hog ring plier. No air compressor, battery or electricity is required.
The SR8 specification uses C-rings with a 20.0mm crown, 1.6mm wire thickness and 10.4mm height. Strip and feed geometry must also match the SR8 magazine.
The auto-feed magazine holds up to 50 SR8 C-rings.
The magazine keeps multiple C-rings ready for fastening, reducing the need to manually position a loose ring before every cycle during repetitive work.
Yes. Poultry cages and compatible wire-mesh assemblies are common applications for this type of manual C-ring fastening tool.
Yes. It can be used to join mesh to supporting wire in compatible fencing and netting applications. Test the ring closure on the actual wire size before large-scale installation.
They can be used for fastening suitable shade cloth or netting to supporting wires where the SR8 C-ring configuration fits the materials being joined.
Selected furniture and automotive upholstery applications can use compatible hog rings. For continuous high-volume factory production, a pneumatic hog ring tool may provide greater productivity.
No. Crown width alone is not enough to confirm compatibility. Ring wire thickness, height, strip configuration and tool feed geometry should also match the SR8 specification.
Hog ring pliers have jaws designed to form and close C-shaped hog rings. Standard general-purpose pliers are not designed to feed and consistently close collated C-rings.
Choose a manual tool such as the SR8 when portability, simple setup and field use are important. Consider a pneumatic hog ring gun for high-volume repetitive factory production.
Provide the required tool quantity, matching C-ring requirements, application, destination market, packaging requirements and whether the tools and rings are required together.
Contact KYA Fasteners to confirm sample availability. For distributor or industrial evaluation, test the tool and rings on the actual mesh, wire or application material before bulk purchasing.
KYA supplies manual and pneumatic hog ring tools for fencing suppliers, wire-mesh manufacturers, poultry equipment manufacturers, agricultural distributors, hardware wholesalers, upholstery factories and professional fastening users.
For quotations on the SR8 manual auto-feed hog ring plier, provide the required tool quantity, matching ring quantity, fastening application, destination market and packaging requirements.
