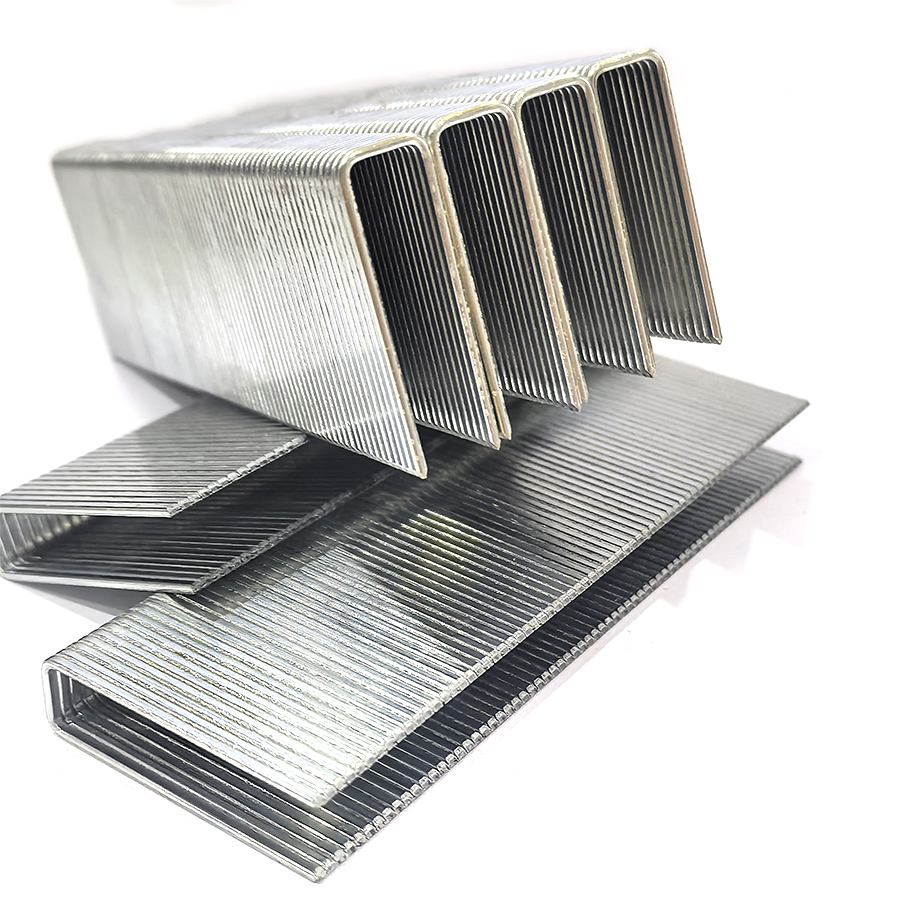

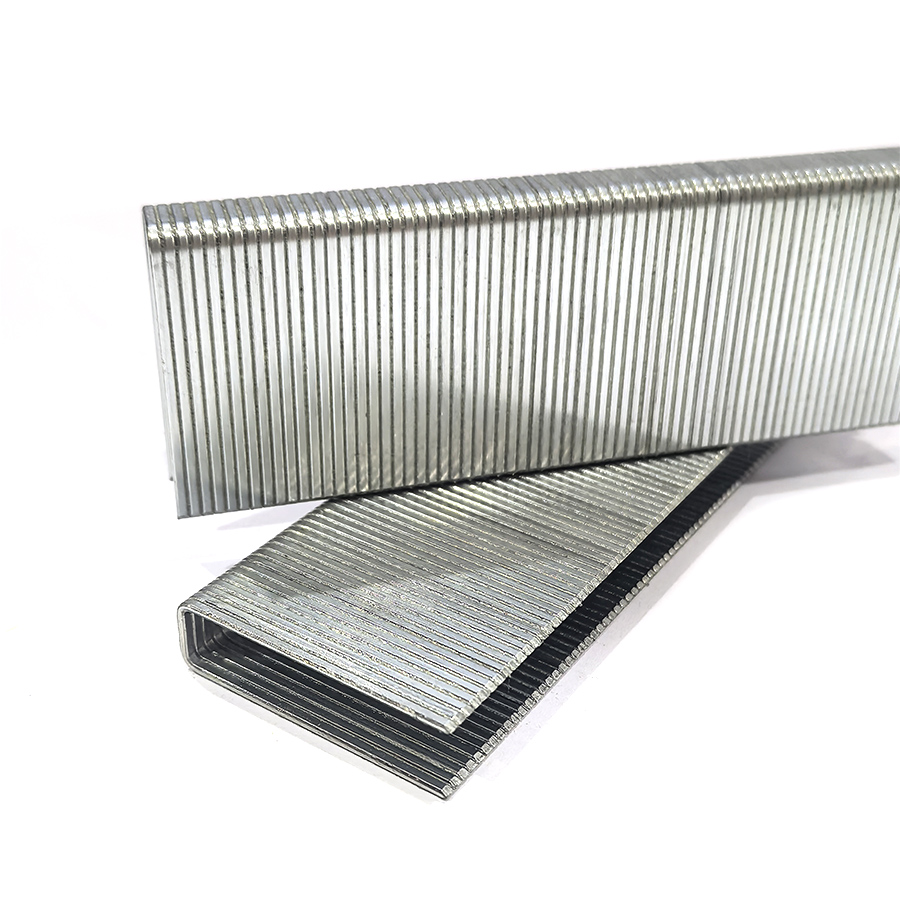

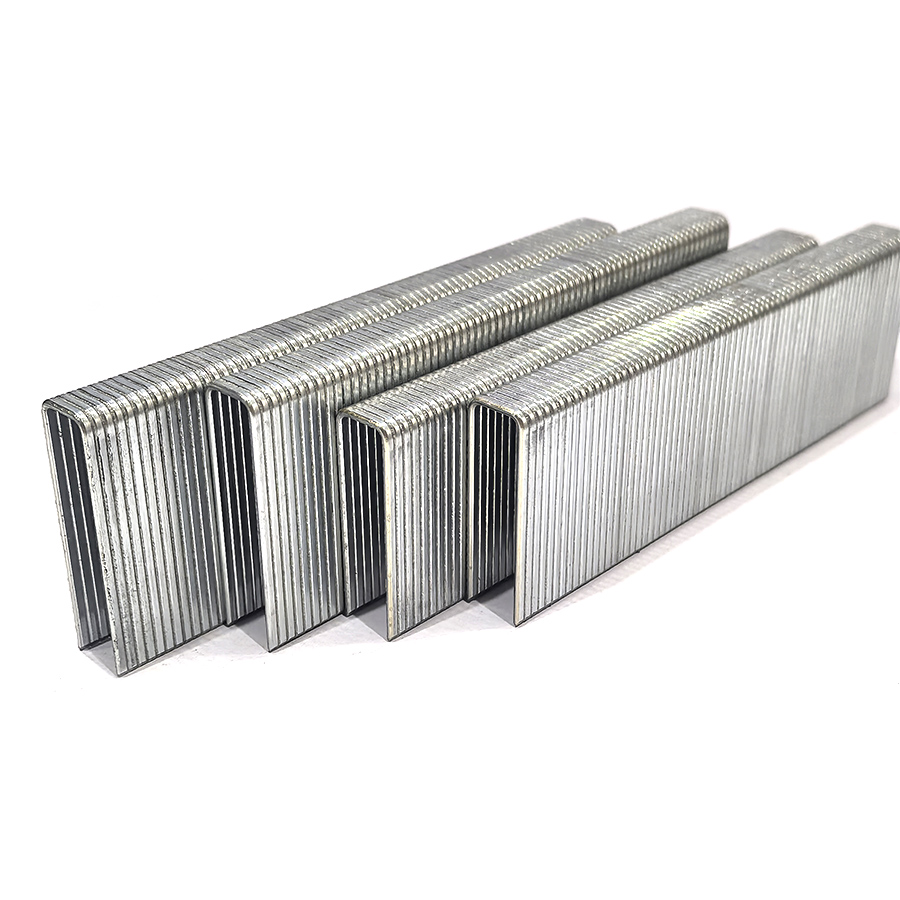

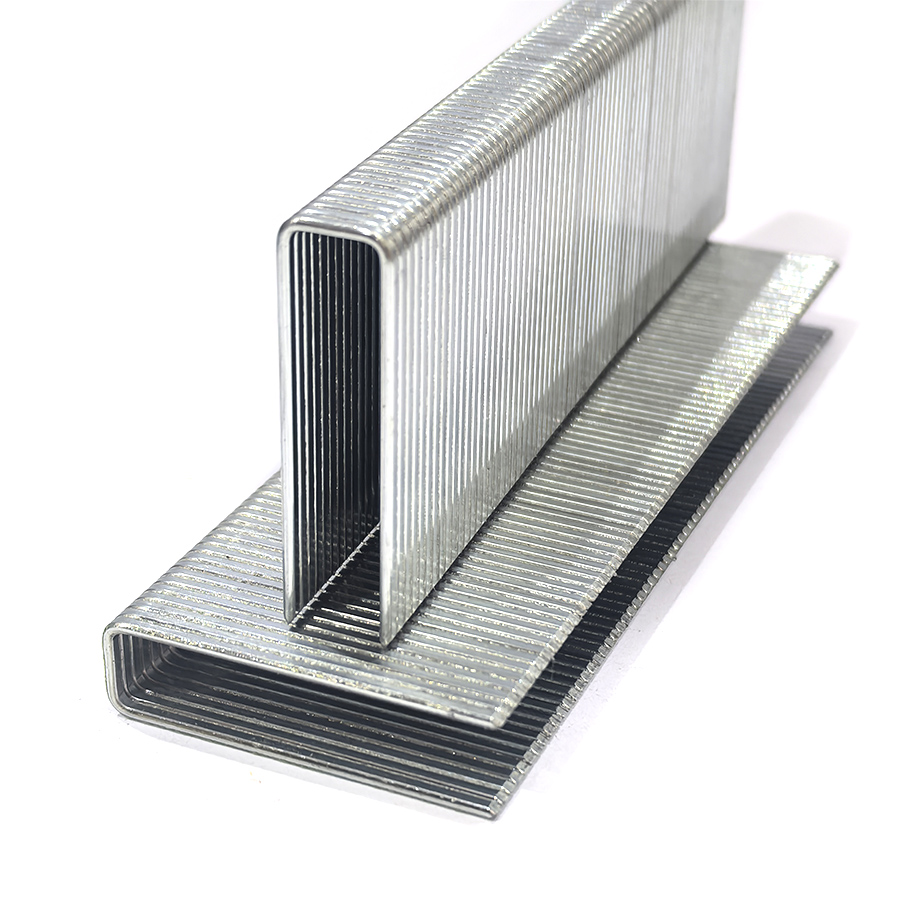

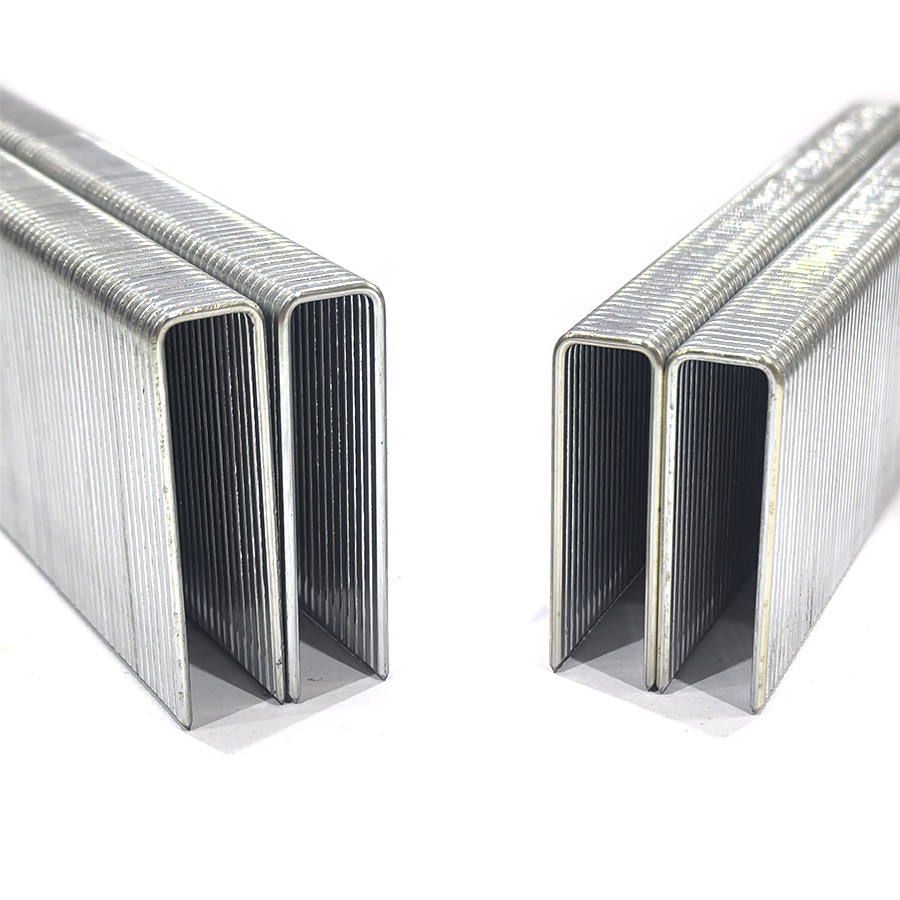

KYA 16 Gauge 7/16 Inch Crown N Series Heavy Duty Staples are designed for professional construction, woodworking, packaging and industrial fastening applications. The N Series configuration features a 10.8mm crown and 1.60 × 1.40mm heavy wire section for use with compatible 16 gauge medium crown staplers.
Galvanized wire and stainless steel options are listed for this product family. Multiple leg lengths are available for sheathing, subflooring, roof decking, siding, fencing, pallets, crates and other compatible fastening applications. Buyers should confirm the required staple length, material, point type and stapler model before ordering.
16 Gauge Heavy Wire: Heavy wire construction for demanding professional fastening applications.
7/16 Inch Crown: Published crown width is 10.8mm, approximately 7/16 inch.
1.60 × 1.40mm Wire: Clearly defined wire dimensions help buyers check staple and tool compatibility.
Multiple Leg Lengths: A wide range of N Series sizes is listed for different material thicknesses and fastening requirements.
Galvanized and Stainless Options: Material and finish options can be selected according to the application and purchasing specification.
Chisel Point: Chisel point is listed for the standard product configuration.
Industrial Packaging: The supplied product specification lists 10,000 staples per box for the models shown.
Use the following dimensions when comparing KYA N Series staples with your pneumatic stapler and existing fastener specification.
| Parameter | Specification |
|---|---|
| Product | N Series Heavy Duty Staples |
| Gauge | 16 Gauge |
| Crown | 10.8mm / approximately 7/16" |
| Wire Diameter Reference | N - Wire Dia: 1.52# |
| Wire Width | 1.60mm |
| Wire Thickness | 1.40mm |
| Material Options | Galvanized Wire / Stainless Steel |
| Point | Chisel |
| Published Packing | 10,000 pcs per box for listed sizes |
| Typical Applications | Sheathing, Subflooring, Roof Decking, Siding, Fencing, Pallets, Crates and Compatible Wood Assemblies |
The supplied product information lists the following N Series sizes. Material and current production availability should be confirmed for the specific item required.
| Item | Length | Crown | Wire | Material Options | Pcs/Box |
|---|---|---|---|---|---|
| N/12 | 12mm (1/2") | 10.8mm | 1.60 × 1.40mm | Galvanized / Stainless Steel | 10,000 |
| N/16 | 16mm (5/8") | 10.8mm | 1.60 × 1.40mm | Galvanized / Stainless Steel | 10,000 |
| N/19 | 19mm (3/4") | 10.8mm | 1.60 × 1.40mm | Galvanized / Stainless Steel | 10,000 |
| N/20 | 20mm (13/16") | 10.8mm | 1.60 × 1.40mm | Galvanized / Stainless Steel | 10,000 |
| N/22 | 22mm (7/8") | 10.8mm | 1.60 × 1.40mm | Galvanized / Stainless Steel | 10,000 |
| N/25 | 25mm (1") | 10.8mm | 1.60 × 1.40mm | Galvanized / Stainless Steel | 10,000 |
| N/28 | 28mm (1-1/8") | 10.8mm | 1.60 × 1.40mm | Galvanized / Stainless Steel | 10,000 |
| N/30 | 30mm (1-3/16") | 10.8mm | 1.60 × 1.40mm | Galvanized / Stainless Steel | 10,000 |
| N/32 | 32mm (1-1/4") | 10.8mm | 1.60 × 1.40mm | Galvanized / Stainless Steel | 10,000 |
| N/35 | 35mm (1-3/8") | 10.8mm | 1.60 × 1.40mm | Galvanized / Stainless Steel | 10,000 |
| N/38 | 38mm (1-1/2") | 10.8mm | 1.60 × 1.40mm | Galvanized / Stainless Steel | 10,000 |
| N/40 | 40mm (1-9/16") | 10.8mm | 1.60 × 1.40mm | Galvanized / Stainless Steel | 10,000 |
| N/45 | 45mm (1-3/4") | 10.8mm | 1.60 × 1.40mm | Galvanized / Stainless Steel | 10,000 |
| N/50 | 50mm (2") | 10.8mm | 1.60 × 1.40mm | Galvanized / Stainless Steel | 10,000 |
| N/57 | 57mm (2-1/4") | 10.8mm | 1.60 × 1.40mm | Confirm Availability | 10,000 |
| N/64 | 64mm (2-1/2") | 10.8mm | 1.60 × 1.40mm | Confirm Availability | 10,000 |
The exact material, finish and available length should be confirmed for the required model when placing an order. N/57 and N/64 appear in the supplied size information and should be confirmed before purchase.
16 Gauge medium crown heavy wire staples are widely used in construction and industrial wood fastening. Typical applications for this product family include:
Wall sheathing
Roof decking
Subfloor installation
Floor underlayment
Fascia and soffit installation
Wood fencing and lattice
Pallet manufacturing
Crate and shipping-box assembly
Compatible siding installation
General heavy-duty wood fastening
Choose the staple length according to the material thickness, required penetration depth, substrate and fastening specification. Not every N Series length is suitable for every application or pneumatic stapler.
Galvanized N Series staples use a zinc-coated steel wire to provide corrosion protection compared with untreated bright steel. They are commonly selected for construction and wood fastening where a galvanized fastener is specified.
The required coating and corrosion-resistance level should be selected according to the installation environment, substrate and project requirements. For exterior or treated-wood applications, confirm that the specified fastener material and coating are suitable for the intended service conditions.
Stainless steel is also listed as an available material for this product family. Stainless fasteners can be selected where additional corrosion resistance is required.
Because the published product information does not specify a stainless steel grade for every N Series size, buyers requiring a particular stainless grade should provide that requirement when requesting a quotation.
KYA lists the following tool-series references for N Series staples: PREBENA L, BOSTITCH B100, FASCO G, KIHLBERG 783, MAX 16GA, NIKEMA G5562, OMER M2, SENCO N, SPOTNAILS 66 and ATRO 100.
These references should be treated as a starting point for compatibility checking rather than confirmation that every tool in each brand or series accepts every N Series size. Different staplers can have different accepted leg-length ranges even when they use 16 gauge 7/16 inch crown staples.
Before ordering, confirm that the stapler accepts the required 16 Gauge format, 10.8mm crown, 1.60 × 1.40mm wire section and selected leg length. Providing the exact tool model is recommended.
First confirm that your pneumatic stapler is designed for an N Series or equivalent compatible heavy wire staple configuration.
This product is specified as 16 Gauge with a 10.8mm crown, approximately 7/16 inch. Matching only the crown width is not sufficient to confirm tool compatibility.
The published wire dimensions are 1.60mm wide and 1.40mm thick. Compare these dimensions with the fastener specification for your stapler.
Choose a leg length that is accepted by your stapler and appropriate for the materials being joined. Longer staples are not automatically suitable for every tool or fastening application.
Choose galvanized or stainless steel according to the required service environment, corrosion resistance and project specification.
For faster product confirmation, provide the following purchasing information:
Required N Series item or leg length
Galvanized or stainless steel requirement
Required point type
Stapler brand and exact model
Material and application being fastened
Required quantity
Delivery destination
N Series staples are a heavy wire staple format used with compatible pneumatic staplers in construction, woodworking and industrial fastening. This KYA product is specified as 16 Gauge with a 10.8mm crown and 1.60 × 1.40mm wire section.
The published crown width is 10.8mm, commonly described as approximately 7/16 inch.
The published wire section is 1.60mm wide × 1.40mm thick. The product page also lists an N-wire diameter reference of 1.52#.
The supplied product information lists N/12, N/16, N/19, N/20, N/22, N/25, N/28, N/30, N/32, N/35, N/38, N/40, N/45, N/50, N/57 and N/64. Confirm current production availability for the specific size required.
Yes. Galvanized wire is listed as a material option for this product family. Confirm the required length and finish when requesting a quotation.
Stainless steel is also listed as an available option. If a specific stainless steel grade is required, include the grade in your inquiry so availability can be confirmed.
SENCO N is listed among the applicable tool references, but compatibility must be checked against the exact stapler model and staple length. Different SENCO tools that use 16 Gauge 7/16 inch crown staples can accept different length ranges.
No. Crown width alone does not confirm compatibility. Gauge, wire dimensions, staple geometry, collation and leg length must also match the stapler manufacturer's specification.
Typical applications include sheathing, roof decking, subflooring, underlayment, fencing, lattice, pallets, crates, fascia, soffits and other compatible construction or industrial wood fastening.
The supplied KYA specification table lists 10,000 pieces per box for the models shown. Confirm the packaging for your selected model when ordering.
Provide the stapler manufacturer, exact model number and required staple length. The fastener should match the tool's specified gauge, crown, wire dimensions and leg-length range.
The product information lists a free 10,000-piece sample box shipped worldwide; the recipient pays freight. Please confirm sample eligibility and shipping arrangements before dispatch.
The listed MOQ is 50 boxes (one pallet). Confirm the minimum for your selected staple length, material and finish with KYA.
OEM branding is listed as available. Share your logo or packaging artwork and confirm the production requirements with KYA.
Fast delivery is mentioned for this product. Confirm the production and shipping schedule for your selected specifications and delivery destination when ordering.
KYA supplies 16 Gauge N Series staples for fastener distributors, wholesalers, construction suppliers, manufacturers and professional industrial users. Send your required staple size, material, tool model, quantity and delivery destination for product confirmation and quotation.
