The KYA-D80B High-Speed Wire Nail Making Machine is designed for automatic production of loose steel wire nails from coil wire. The published machine specification provides a production speed of 800 nails per minute, a nail length range of 25mm to 70mm and a wire diameter range of 1.8mm to 2.8mm.
The machine feeds wire, forms the nail head, controls nail length and cuts the finished nail during continuous production. Finished loose nails can then be transferred to additional thread-rolling or collating equipment when manufacturing ring-shank nails, screw-shank nails, coil nails or paper-collated nails.
| Specification | D80B |
|---|---|
| Model | D80B |
| KYA Code | KYA-D80B |
| Machine Type | High-Speed Wire Nail Making Machine |
| Production Speed | 800 pcs/minute |
| Nail Length Range | 25mm–70mm |
| Wire Diameter Range | 1.8mm–2.8mm |
| Power Supply | AC 380V |
| Motor Power | 7kW |
| Lubrication | 32# Gear Oil |
| Machine Weight | 3200kg |
| Machine Dimensions | 1850 × 1100 × 1100mm |
| Published Nail Length Tolerance | ±0.2mm |
| Main Input | Steel wire of the required diameter |
| Main Output | Loose formed wire nails for direct use or downstream processing |
Nail diameter is determined by the wire diameter supplied to the machine. Nail length can be adjusted within the published operating range, with the corresponding mould, cutter, punch and machine setup selected for the required nail specification.

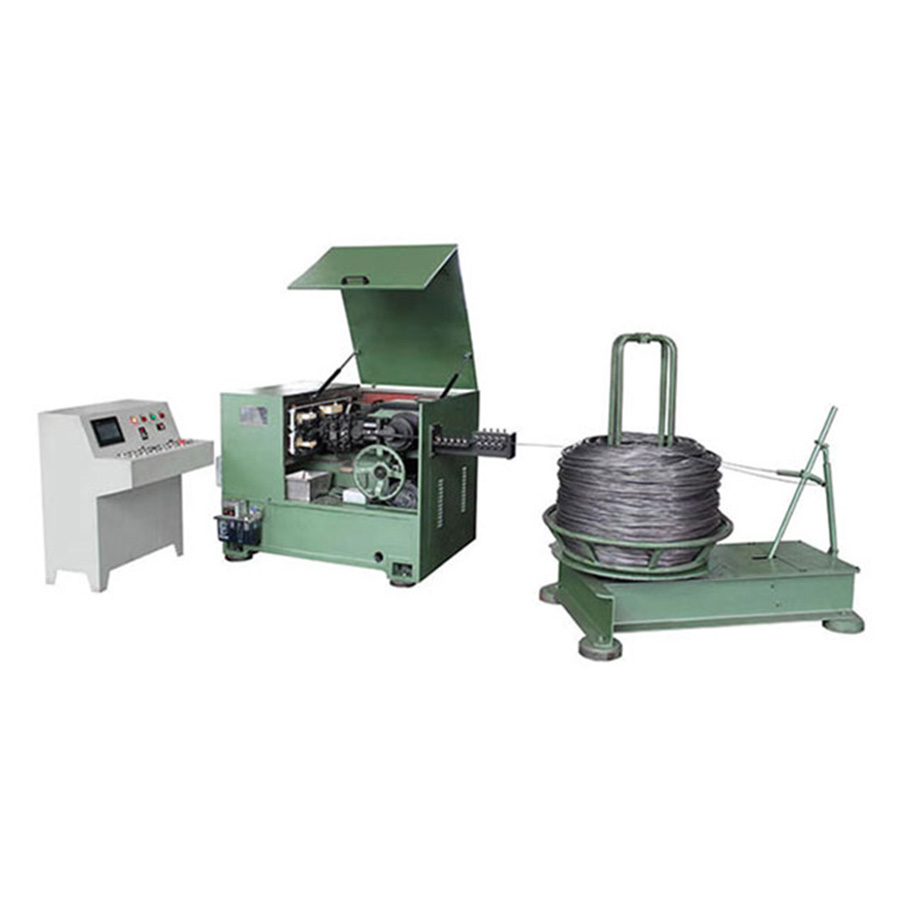

Related model reference: The following three original product-range images are labeled KYA-X50 in their file names. Confirm the exact machine model and configuration with KYA before ordering.
The D80B is the nail-forming stage of a nail production system. It converts suitable steel wire into individual finished wire nails within its supported diameter and length range.
| Production Requirement | Required Process |
|---|---|
| Smooth Loose Wire Nails | D80B forms the individual nails from suitable wire. |
| Ring-Shank Nails | Loose nails normally require an additional thread-rolling process after nail forming. |
| Screw-Shank Nails | Additional shank-forming or thread-rolling equipment is required after nail production. |
| Wire-Collated Coil Nails | Finished loose nails require a separate coil nail collating and welding process. |
| Paper Tape Collated Nails | Finished nails require separate paper-tape collating equipment. |
Buyers planning a complete coil nail or paper-collated nail production line should specify the required finished nail type so the upstream nail-forming machine and downstream processing equipment can be matched correctly.
A complete production process can include several separate machines depending on the required finished fastener.
| Stage | Process |
|---|---|
| 1 | Prepare wire with the required diameter. |
| 2 | Feed wire into the D80B nail making machine. |
| 3 | Cut wire to the required nail length. |
| 4 | Form the nail head and point. |
| 5 | Discharge the finished loose nail. |
| 6 | Add thread rolling where ring or screw shanks are required. |
| 7 | Use dedicated collating equipment where coil nails, paper-tape nails or other collated formats are required. |
The published D80B production speed is 800 pieces per minute. Actual production planning should also consider the nail specification, wire quality, tooling condition, setup, operator practices and downstream process capacity.
When integrating the D80B into a larger production line, downstream equipment should have sufficient capacity to handle the required output or appropriate buffer and material-handling arrangements should be included.
KYA publishes a 25mm to 70mm nail length range for the D80B. The required nail length is set through the machine configuration and matched tooling.
Before purchasing, provide the exact nail lengths you intend to manufacture. This allows the required moulds, nail knives, punch pins and production setup to be confirmed for the target products.
The D80B uses wire from 1.8mm to 2.8mm diameter according to the published product specification. Nail diameter is therefore determined by the incoming wire diameter rather than by a simple machine adjustment.
Buyers should provide the intended wire diameter and finished nail specification when requesting a machine configuration.
KYA describes the D80B as using a twice-stamping structure for nail-head forming. The system is intended to support repeatable nail-head formation during high-speed production.
When specifying a machine, buyers should provide the required nail-head diameter, head profile and finished nail drawing where these dimensions are critical to downstream use or collating.
The published D80B design uses a pendulum-type structure together with replaceable forming and cutting components. Nail knives, moulds and punch pins are tooling items associated with the required nail specification.
Tooling condition directly affects finished nail dimensions and should be included in routine machine inspection and maintenance planning.
The D80B product information specifies an automatic lubrication arrangement using 32# gear oil. Proper lubrication should follow the operating and maintenance instructions supplied for the machine.
KYA also publishes a seven-sensor alarm arrangement for machine monitoring. Buyers should review the actual machine configuration, electrical control system and safety requirements before commissioning.
| Factory Item | Published D80B Information |
|---|---|
| Standard Power Supply | AC 380V |
| Motor Power | 7kW |
| Machine Footprint | 1850 × 1100 × 1100mm |
| Machine Weight | 3200kg |
| Lubrication | 32# Gear Oil |
Before installation, confirm the factory power supply, machine foundation or floor loading, unloading equipment, maintenance clearance, raw-wire handling area and space required for downstream equipment.
KYA publishes related nail moulds, nail knives and punch pins for its automatic wire nail making machines. The required tooling depends on the nail diameter, nail length and head specification being manufactured.
When requesting a quotation, provide the complete target nail specification so the correct tooling requirement can be confirmed together with the machine.
For coil nail manufacturing, the D80B can be used as the upstream nail-forming machine. A complete production flow may require additional equipment after loose nails leave the D80B.
| Equipment | Purpose |
|---|---|
| Wire Preparation Equipment | Prepare wire to the required diameter and condition. |
| D80B Nail Making Machine | Form individual loose nails from wire. |
| Thread Rolling Machine | Form ring or screw shanks where required. |
| Coil Nail Collating Machine | Arrange, weld and roll individual nails into finished coil nails. |
| Paper Tape Collating Equipment | Collate suitable finished nails into paper strips where required. |
The exact production-line layout depends on the finished fastener specification. Buyers should provide sample nails or drawings, nail diameter, length, shank type, collation type and required capacity before selecting a complete line.
Common wire nail manufacturing
Steel nail manufacturing within the supported size range
Loose nails for subsequent coil-nail production
Loose nails for subsequent paper-tape collating
Loose nails for subsequent ring-shank or screw-shank processing
High-volume industrial nail production lines
Target nail length or length range
Required nail diameter
Nail head diameter and head type
Smooth, ring or screw shank requirement
Target production capacity
Required finished product: loose nails, coil nails or paper-collated nails
Local factory voltage and frequency
Available workshop space
Required tooling and spare parts
Delivery destination
Send Your Nail Production Requirements
The published D80B production speed is 800 nails per minute.
KYA publishes a nail length range of 25mm to 70mm.
The published wire diameter range is 1.8mm to 2.8mm. The input wire diameter determines the finished nail diameter.
The D80B is primarily the nail-forming machine that produces individual wire nails. Finished coil nails require additional collating and welding equipment after the loose nails are produced.
Yes, suitable loose nails can be produced within the D80B size range, but paper tape collation requires separate downstream collating equipment.
The D80B forms the base wire nail. Ring-shank production generally requires an additional thread-rolling process after nail forming.
The published motor power is 7kW.
The published standard power supply is AC 380V. Buyers should confirm their factory voltage and frequency before ordering.
The published machine dimensions are 1850 × 1100 × 1100mm, with a machine weight of 3200kg.
KYA publishes related nail moulds, nail knives and punch pins for its wire nail making machines. The required tooling depends on the nail specification being produced.
Provide the target nail length, nail diameter, head specification, shank type, required output, local power supply, intended downstream process and delivery destination.
For nail factory planning, send KYA the target nail drawings or samples, required nail sizes, wire diameters, production capacity, factory power supply and intended finished products. This information can be used to confirm whether the D80B and any required downstream equipment match the production requirement.
