Nail Making Machines

Combine our machines to suit your needs

● Produce All Size of Nails ● Extremely High Cost-Efficiency

IT IS BOTH!

Request a Quick Quote

THE CONNECTED

SOLUTION

To improve your productivity

The thoroughly proven machines, equipped with high-quality, durable precision tooling, ensure cost-effective operations and excellent reliability.
The in-line system is controlled from a touch screen, which is easy to navigate and allows for quick setup of nail parameters. Once the nail dimensions are set, production can take place unmanned, and only limited staff is required to carry out changeovers and maintenance.

Consult Your Technical Expert

Machines from KYA Product Range

X90

KYA Fasteners now launching brand new High Speed Nail Making machine(760 nails per minute). Here we are sharing you the first look of KYA-X90.

KYA Fasteners’s High speed nail making machine is a combination of market demand and any of the advance technology available. It’s designed and developed to be highly automated electromechanical integrated product. This nail making machine have wide usages, simple operation and reliable run. High speed nails making machine KYA-X90 New Design generation, a revolutionary progress in nail making industry. This equipment has the advantages of convenient operation, stable quality, low consumption and low unit cost, low manpower etc.

X130

High speed nail making machine is the new designed nail machine type for making wire nails, D type nails, paper nails, double head nails and clout nails. Speed 600-800 pcs/min, Model X50, X90 and X130,X150.
The maintenance of the high speed nail making machine is the daily work that must be done to keep the machine tool in good condition, prolong the service life and improve the production efficiency.
After the machine tool runs for a certain period of time, wear occurs due to the parts that are in contact with each other. Its working performance is gradually affected. At this time, the machine tool should be checked and adjusted regularly. Regular inspections should generally be carried out by operators under the guidance of maintenance personnel.

KYAnail+ Machine with KYAsmart

This video shows an wire nail making machine of the high-capacity nail + series with smart. KYA's nail manufacturing machine are indeed the more efficient in the market. Featuring the smart software platform, the nail is brought to the next level of high-performance automatic steel nail making machinery by unique patent,two time heading,double-dies and double-punches structure technology to enable extensive quality control and fast trouble shooting.

The automation control system means double capacity, better nail quality, less space requirements, increased user-friendliness, fewer operators and the possibility of unmanned production.one worker can operate 6-8 sets machines at same time.

Manufactured using a high-grade raw material, our products are appreciated for their high efficiency, stupendous performance, and reliability.

Nail Making Machine Detail

Nail Making Machine Features

Nail Cutter Holder Adopts Pendulum Structure

1. Shorter stroke and lower mechanical wear.
2. High precision, nail cutters work without touch with longer service life.
3. One set of cutters' cutting times up to 10 million times.

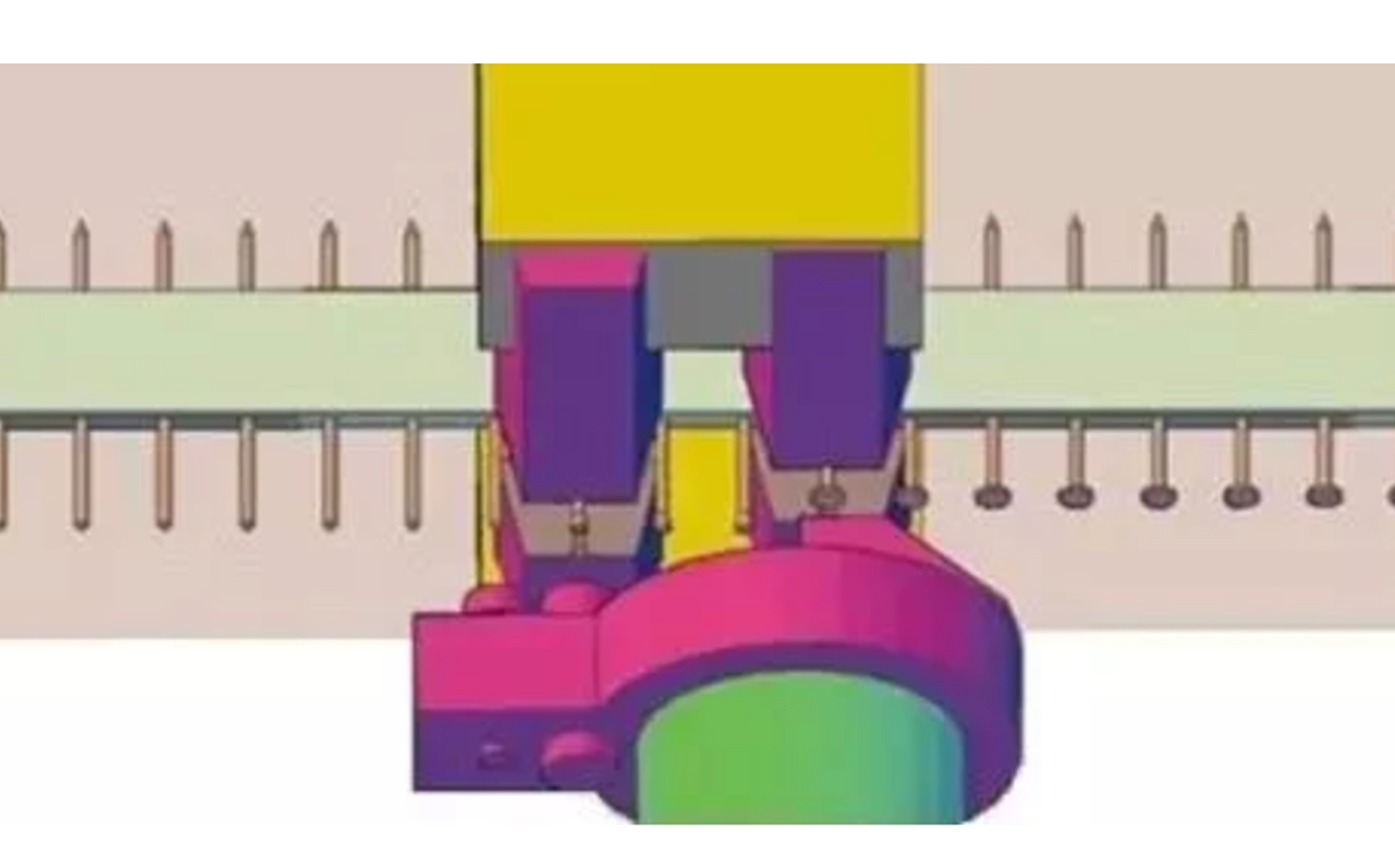

Unique Patent, Double-dies and Double-punches Structure

1. Bigger nail heads can be easily gotten
2. Nail heads are always very round and in the center.
3. Nail head without knock marks, consistent and good looking
4. Uniform thickness and diameter of the nail head.

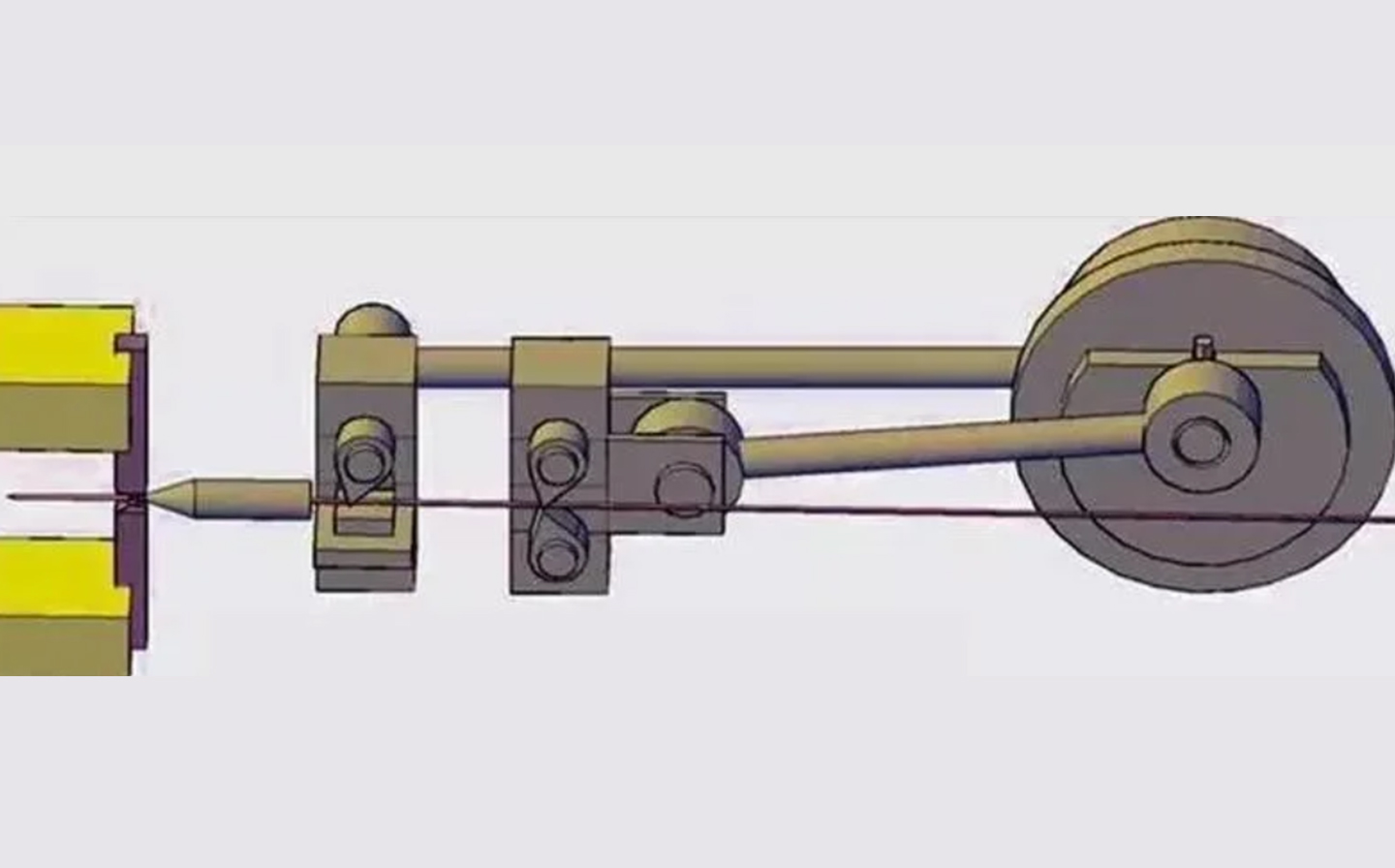

Feeding and Anti-backing Structure

1. High-precision feeding unit. Length difference can be controlled within 0.3 mm
2. With unique wire feeding and anti-backing structure, the nail scraps can be completely separated from the nail shank to ensure quality.

KYA Nail Machine

● Through disruptive transformation of the traditional nail-making process and the use of automated controls, the problems of inconsistent length, off-center nail head, varying nail head sizes, pointed or bent nails, and limited nail quality due to structural limitations of traditional nail-making machines and the skill level of nail-making workers have been completely resolved. High rates of defective products and wastage have also been addressed.
● This product features disruptive design and innovation in the overall nail-making process, nail head formation, and mechanical design, effectively addressing the various drawbacks of traditional nail-making machines. It significantly reduces production costs, helping businesses to reduce nail-making labor by 50-70% and coiling labor by 35-45%. It greatly improves product quality, reduces production costs, and enhances the core competitiveness of the factory.
● The smart software platform comes with an intuitive touch screen interface, which displays steel nail information, quality, production and performance status. The interface is easy to navigate and allows for quick setup unique user levels.

High Speed Nail Machine Technical Specifications:

Model	Nail Length (mm)	Nail Diameter (mm)	Motor (kw)	Speed (pcs/min)	Diemensions (mm)			Weight (kg)
Model	Nail Length (mm)	Nail Diameter (mm)	Motor (kw)	Speed (pcs/min)	Machine	Wire Pay-off	Electric control cabinet	Machine	Wire Pay-off	Electric control cabinet
X50	25-60	1.8-2.8	5.5kw+1.5kw	≤760pcs/min	15009501300mm	170011001700m	4207001050mm	2500kg	250kg	50kg
X90	38-90	2.0-3.5	5.5kw+1.5kw	≤760pcs/min	190012001150mm	170011001700m	4207001050mm	2800kg	250kg	50kg
X130	70-130	2.5-4.5	7.5kw+2.2kw	500-650pcs/min	220013001300mm	170011001700m	4207001050mm	3600kg	300kg	50kg
X150	70-150	2.5-5.0	11kw+2.2kw	500-650pcs/min	240014001400mm	170011001700mm	4207001050mm	4000kg	300kg	50kg

Request a Quick Quote

High Speed Nail Machine Main Configuration List

Complete machine bearing.
Main motor.
Speed reducer.
Frequency converter.
PLC.
Touch screen.
Cam splitter.
Proximity switch.
Contactor.
Synchronous belt.
Synchronous pulley.
Automatic petrol pump.

Please do not Hesitate to Contact Us for More Information.

Send Us Your Inquiry Today

X50 High Speed Nail Making Machine

Nail Length (mm):25-60mm
Nail Diameter (mm):1.8-2.8mm
Motor (kw):5.5kw+1.5kw
Speed (pcs/min):760pcs/min
Diemensions (mm):1500x950x1300mm
Weight:2800kg

X90 High Speed Nail Making Machine

Nail Length (mm):38-90mm
Nail Diameter (mm):2.0-3.5mm
Motor (kw):5.5kw+1.5kw
Speed (pcs/min):760pcs/min
Diemensions (mm):1900x1200x1150mm
Weight:3100kg

X130 High Speed Nail Making Machine

Nail Length (mm):70-130mm
Nail Diameter (mm):2.5-4.5mm
Motor (kw):7.5kw+2.2kw
Speed (pcs/min):500-650pcs/min
Diemensions (mm):2200x1300x1300mm
Weight:3950kg

X150 High Speed Nail Making Machine

Nail Length (mm):70-150mm
Nail Diameter (mm):2.5-5.0mm
Motor (kw):11kw+2.2kw
Speed (pcs/min):500-650pcs/min
Diemensions (mm):2400x1400x1400mm
Weight:4350kg

See More Details About KYAnail+ Machine

Cooperation Process

Get The Latest Price Now

Nail Machine FAQ

Installation service

We can send engineers to your company for machine installation. The round trip flight tickets, local transportation, local accommodation should be paid by your company. Engineer service charge is US$100/day.
The tolerance for nail length

± 0.25mm.
If there is some problems during machine running, what technical support can be provided?

Video technical support and online service can be provided.
The material for nail cutters, gripping dies and punches.

Tungsten Carbide with alloy steel.
The lifespan for nail cutters, gripping dies and punches.

Normally two months. It depends on the operator’s proficiency
Time for changing nail sizes

If only adjust the length of nails and keep the same wire diameter. 3-5 minutes is enough. If the nail diameter also need to be changed, then around 20 minutes will be needed for adjusting the feeding unit and gripping dies.
What kind of service can be provided？

Our service

In order to guarantee the customers are able fully to operate the machine, if the customers need, we can help customer as below:

(1) Correct operating mode

(2) Correct maintenance way

(3) Remove simple problem

(4) Training how to install the machine, training how to use the machine.

(5) Engineers available to service machinery overseas.
What parameter is necessary?

The wire diameter,mesh size,mesh width etc. are mainly needed, detailed information would be appreciated, Special requirement can be discussed.
How do your control quality?

We have an inspection team to check the products at all stages of the manufacturing process.
Can I change the motor as my local voltage?

We can change the voltage as your requirement, and there's no extra charge.

Factory FAQ

Do you have your own production factory?

Yes,we not only have our own factory,We also have a cooperative relationship with more than one hundred factories in China.
Can you send us samples?

We are pleased to send you the sample to test the quality and market.
About your products, could you do it OEM?

Yes, OEM service is available.
Do you also provide spare parts of pneumatic tools?

Once we confirm the models you'd like to order, we will send you the diagram for checking and also suggest you some easy-broken parts.
For the product, could you spray other color of painting?

Yes, color can be customized.
What's the delivery time?

It usually takes about 20-30 working days to produce one order.
How is the payment terms?

Normally T/T 30% in advance and T/T 70% before shipment.
Can I mix different models in one container?

Yes, different models can be mixed in one container, but the quantity of each model should not be less than MOQ.
How does your factory do regarding quality control?

We always pay great attention to quality control from the very beginning and every product was tested piece by piece before delivery.
Do you have quality certification?

Yes, we have CE, SGS,ISO, ect.
