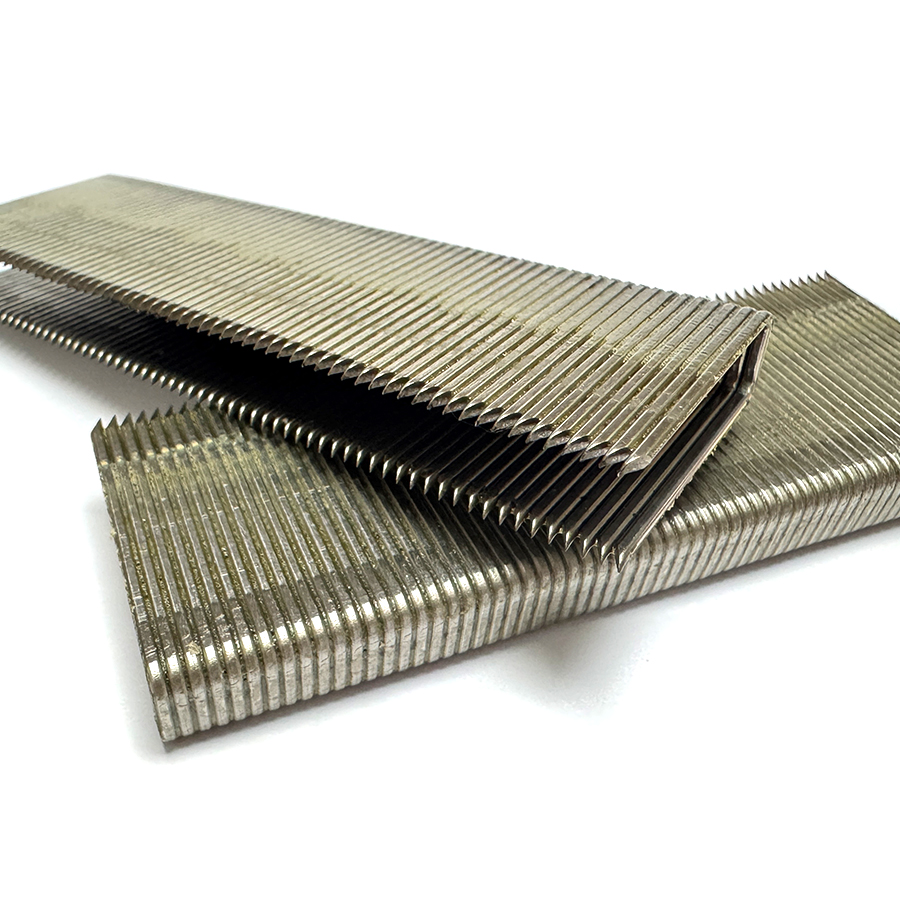

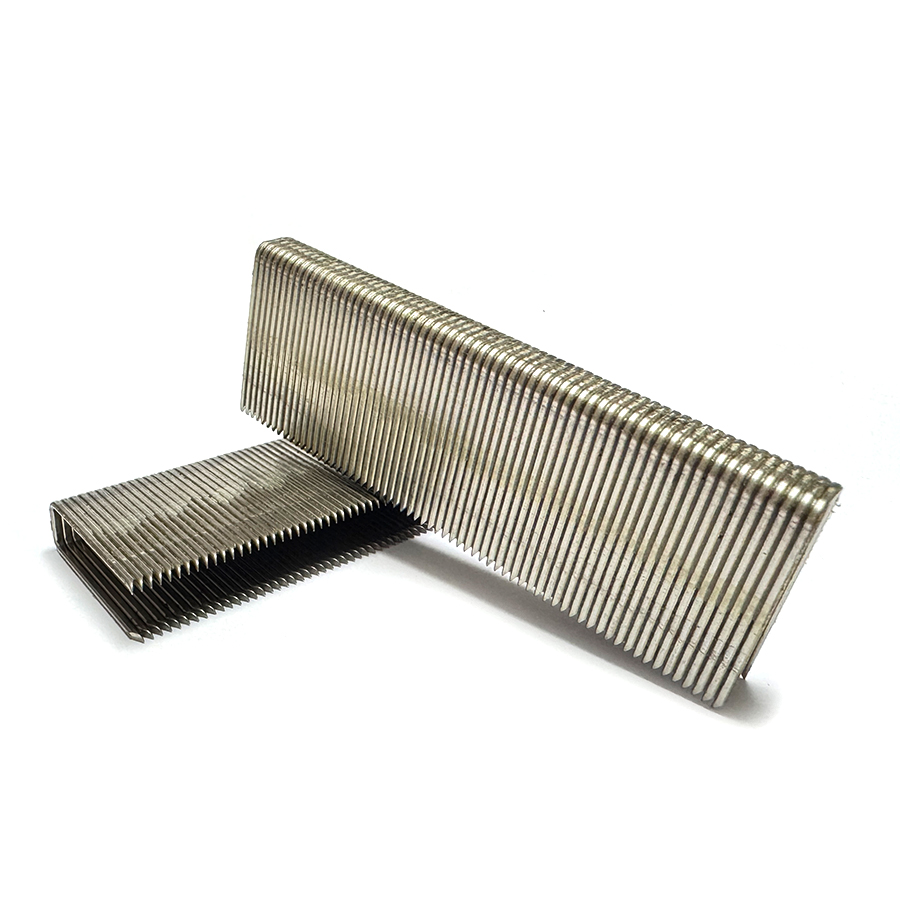

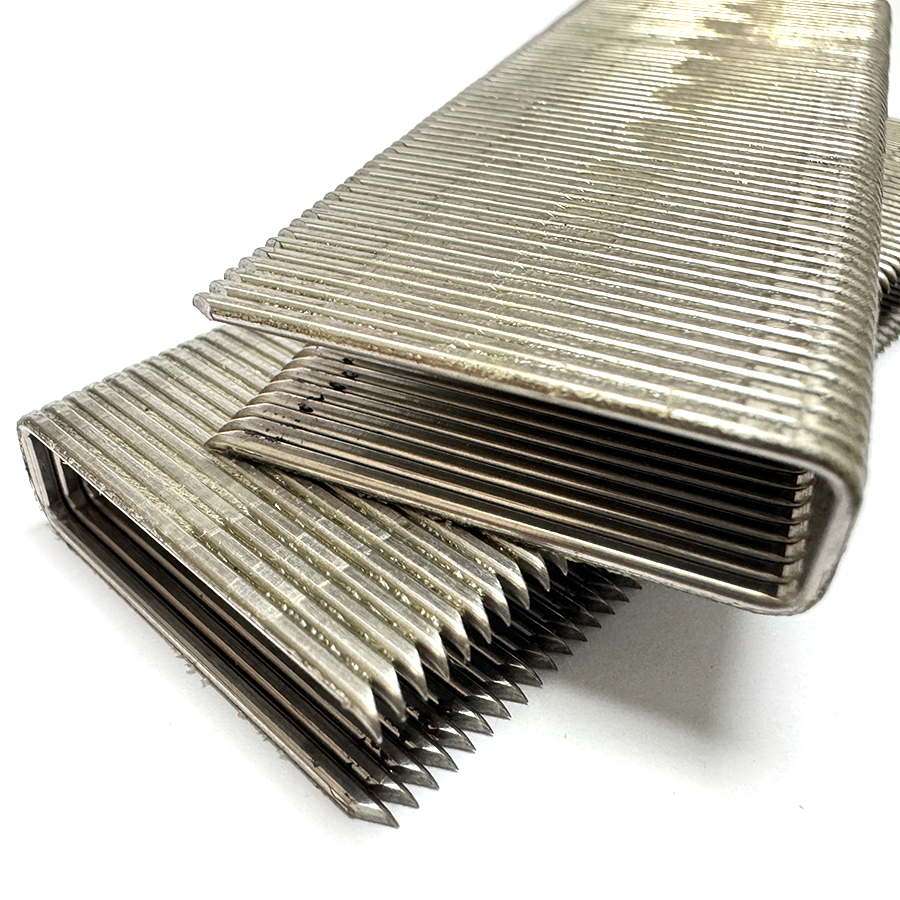

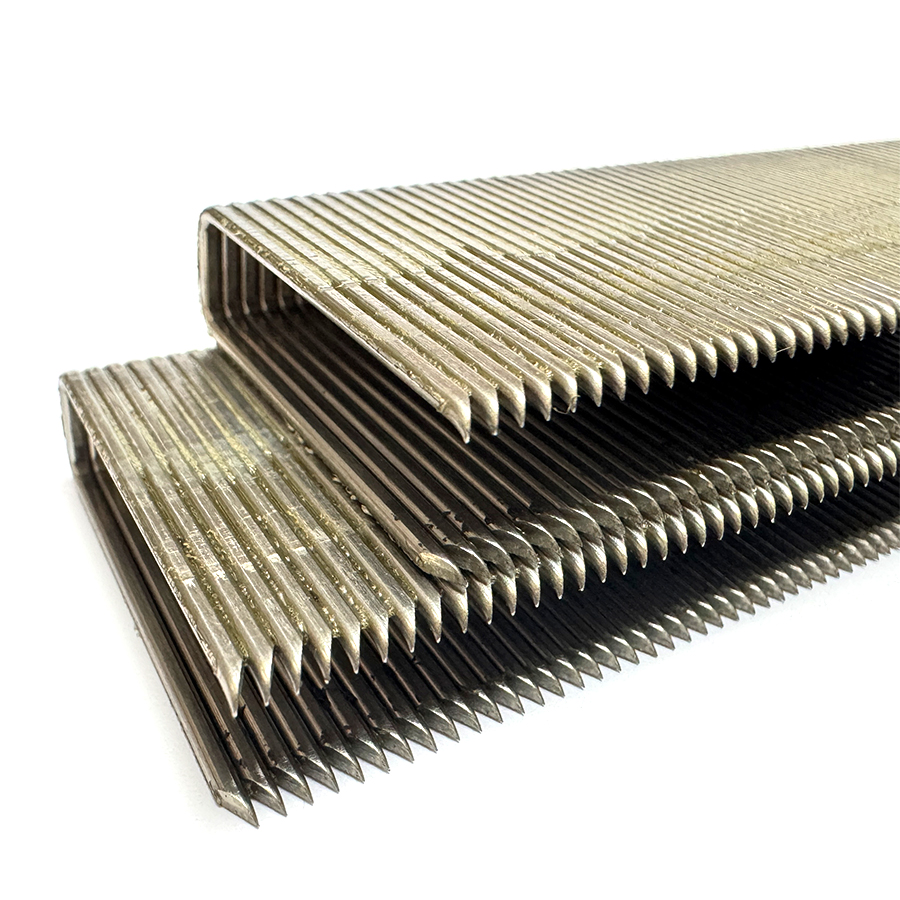

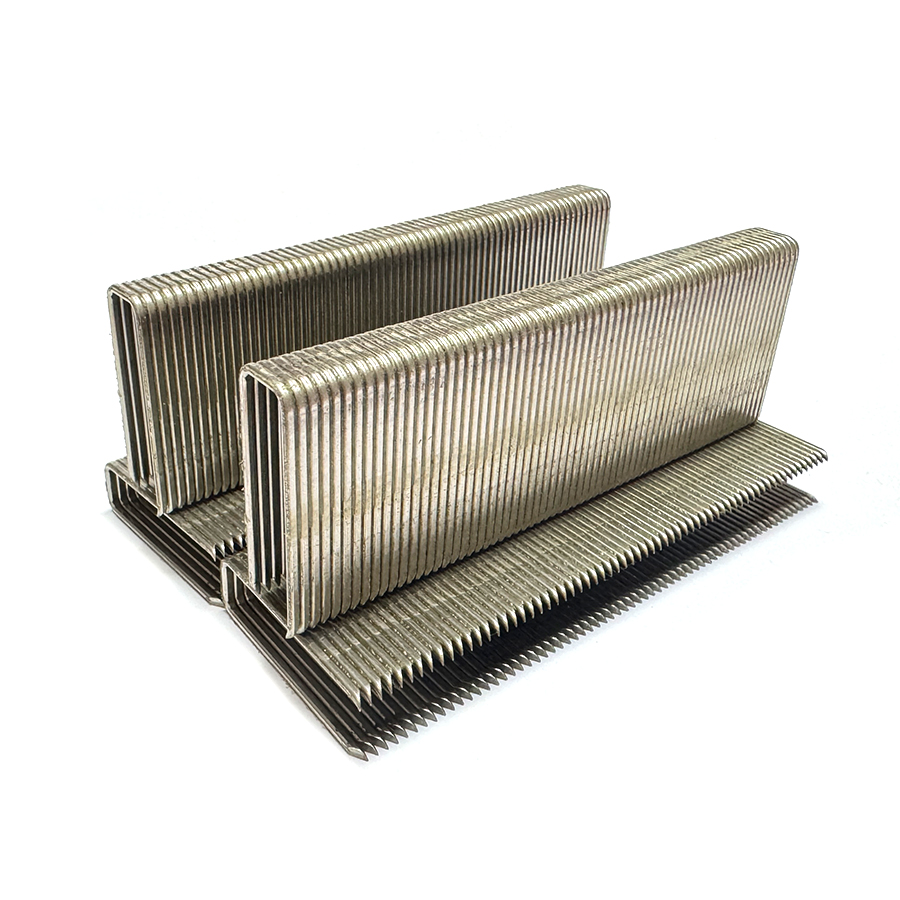

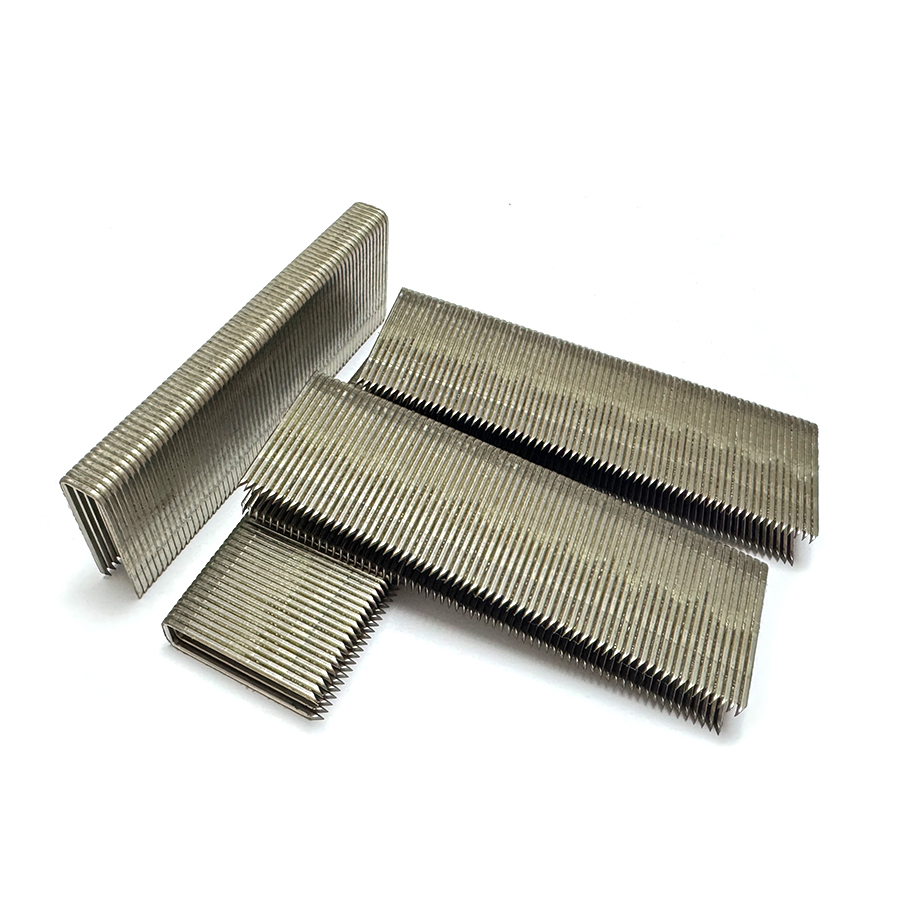

KYA 16 Gauge 7/16 Inch Crown N Series Stainless Steel Divergent Point Heavy Wire Staples are designed for professional fastening applications including sheathing, subflooring, roof decking, pallets, crates, furniture components, fencing and other compatible wood assemblies.
The N Series configuration features a 10.8mm crown with a 1.60 × 1.40mm wire section. Stainless steel and divergent point options are available within the published product configuration. Buyers should confirm staple length, point style and stapler compatibility before ordering.
16 Gauge Heavy Wire: Designed for demanding fastening applications requiring a heavier staple wire.
7/16 Inch Crown: The published crown width is 10.8mm, corresponding approximately to the 7/16 inch N Series format.
1.60 × 1.40mm Wire: Published wire width and thickness provide a clear reference for tool and fastener matching.
Stainless Steel: Provides corrosion resistance for applications where stainless steel fasteners are required.
Divergent Point Option: Divergent legs are designed to spread after entering compatible material to increase mechanical retention.
Multiple Leg Lengths: The published N Series table includes a broad selection of individual staple lengths for different fastening requirements.
Industrial Packaging: The published specification table lists 10,000 pieces per box for the sizes shown.
The following core dimensions are published for this KYA N Series heavy wire staple configuration.
| Parameter | Specification |
|---|---|
| Series | N Series |
| Gauge | 16 Gauge |
| Crown | 10.8mm / approximately 7/16" |
| Wire Width | 1.60mm |
| Wire Thickness | 1.40mm |
| Material | Stainless Steel |
| Point Option | Divergent Point |
| Published Packaging | 10,000 pcs per box |
KYA publishes the following individual N Series staple sizes. Because the current product information contains different overall length ranges in different sections, buyers should use the individual size table below when selecting a model.
| Item | Length | Crown | Wire | Material | Pcs/Box |
|---|---|---|---|---|---|
| N/12 | 12mm (1/2") | 10.8mm | 1.60 × 1.40mm | Stainless Steel | 10,000 |
| N/16 | 16mm (5/8") | 10.8mm | 1.60 × 1.40mm | Stainless Steel | 10,000 |
| N/19 | 19mm (3/4") | 10.8mm | 1.60 × 1.40mm | Stainless Steel | 10,000 |
| N/20 | 20mm (13/16") | 10.8mm | 1.60 × 1.40mm | Stainless Steel | 10,000 |
| N/22 | 22mm (7/8") | 10.8mm | 1.60 × 1.40mm | Stainless Steel | 10,000 |
| N/25 | 25mm (1") | 10.8mm | 1.60 × 1.40mm | Stainless Steel | 10,000 |
| N/28 | 28mm (1-1/8") | 10.8mm | 1.60 × 1.40mm | Stainless Steel | 10,000 |
| N/30 | 30mm (1-3/16") | 10.8mm | 1.60 × 1.40mm | Stainless Steel | 10,000 |
| N/32 | 32mm (1-1/4") | 10.8mm | 1.60 × 1.40mm | Stainless Steel | 10,000 |
| N/35 | 35mm (1-3/8") | 10.8mm | 1.60 × 1.40mm | Stainless Steel | 10,000 |
| N/38 | 38mm (1-1/2") | 10.8mm | 1.60 × 1.40mm | Stainless Steel | 10,000 |
| N/40 | 40mm (1-9/16") | 10.8mm | 1.60 × 1.40mm | Stainless Steel | 10,000 |
| N/45 | 45mm (1-3/4") | 10.8mm | 1.60 × 1.40mm | Stainless Steel | 10,000 |
| N/50 | 50mm (2") | 10.8mm | 1.60 × 1.40mm | Stainless Steel | 10,000 |
| N/57 | 57mm (2-1/4") | 10.8mm | 1.60 × 1.40mm | Stainless Steel | 10,000 |
| N/64 | 64mm (2-1/2") | 10.8mm | 1.60 × 1.40mm | Stainless Steel | 10,000 |
Confirm current production availability for the required N Series length before placing an order, particularly for sizes outside the range accepted by your stapler.
Request N Series Specifications and Pricing

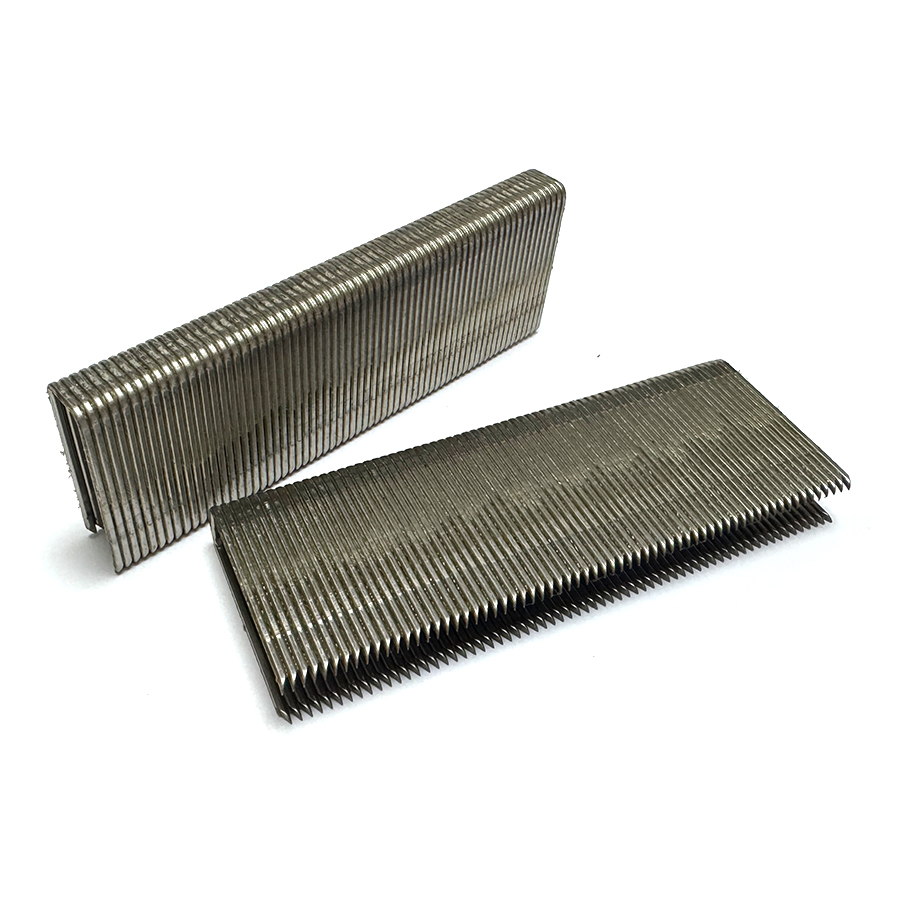

A divergent point staple uses staple legs designed to move away from each other as they penetrate suitable material. This creates a different fastening action from a conventional chisel point staple and can increase resistance to withdrawal in compatible applications.
Actual fastening performance depends on staple length, material density, grain direction, tool settings and the structure being fastened. Buyers should select the point type according to the required fastening application rather than assuming divergent points are suitable for every material.
16 Gauge 7/16 inch crown heavy wire staples are commonly specified for professional woodworking, construction and industrial fastening. Published applications for this product family include:
Wood sheathing
Subfloor installation
Roof decking and related wood assemblies
Pallet and crate manufacturing
Furniture components and assembly
Fencing and decking
Wood framing applications
Trellis, window and other wood-product manufacturing
The appropriate staple length and material should be selected according to the substrate thickness, fastening requirement, environmental exposure and stapler specification.

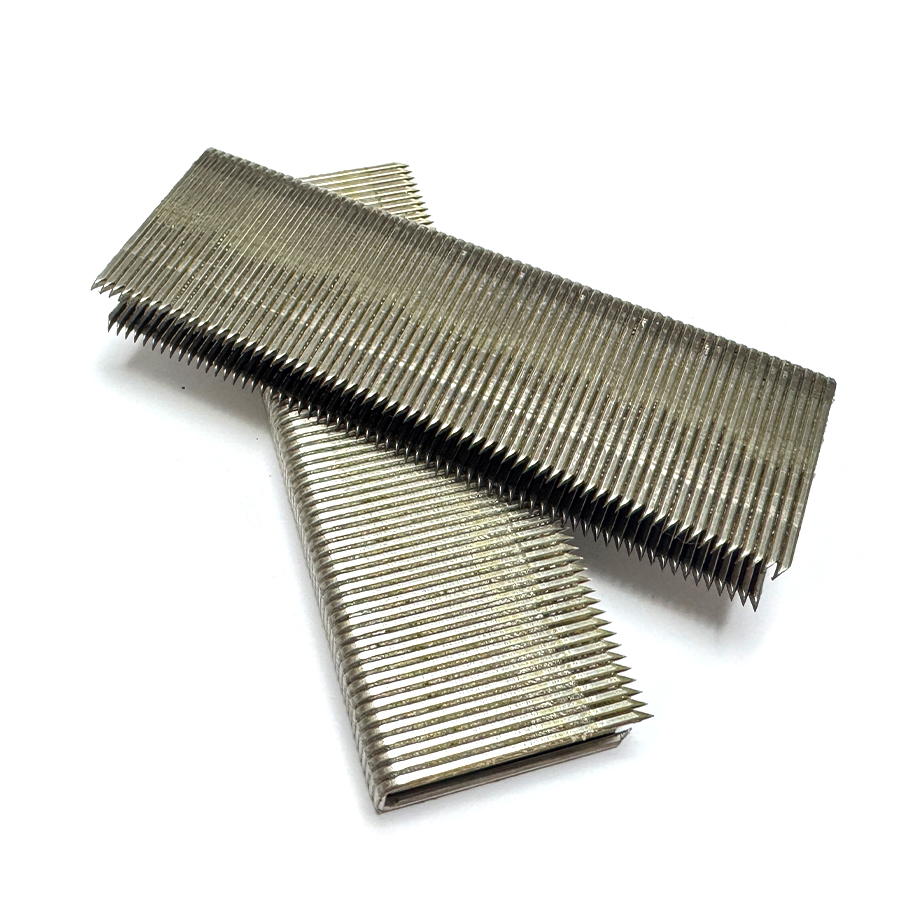

Stainless steel staples provide improved resistance to corrosion compared with uncoated carbon steel fasteners. They are often selected for applications exposed to humidity, exterior conditions or materials where corrosion resistance is important.
The current product information identifies the material as stainless steel but does not specify a stainless steel grade in the published specification table. If your project requires a particular stainless grade or corrosion-resistance level, provide that requirement when requesting a quotation so the material can be confirmed before ordering.
KYA lists N Series staples for use with compatible heavy wire staplers. Published tool references include PREBENA L, BOSTITCH B100, FASCO G, KIHLBERG 783, MAX 16GA, NIKEMA G5562, OMER M2, SENCO N, SPOTNAILS 66 and ATRO 100 series references.
Tool compatibility must be confirmed by the exact stapler model. A stapler should accept the required 16 Gauge N Series format, approximately 7/16 inch crown, 1.60 × 1.40mm wire dimensions and the selected leg length. Staplers from different manufacturers can use different magazine and staple geometries even when the nominal crown size appears similar.
When requesting a quotation, provide the stapler manufacturer and exact model number if available. This helps confirm the appropriate staple specification before purchase.
Confirm the Series: Verify that your stapler accepts N Series heavy wire staples.
Check the Gauge: This product is specified as 16 Gauge.
Check the Crown: The published crown dimension is 10.8mm, approximately 7/16 inch.
Check Wire Dimensions: The published wire section is 1.60 × 1.40mm.
Select the Correct Length: Use a leg length accepted by both the stapler and the fastening application.
Select the Point: Choose divergent or another specified point configuration according to the intended fastening performance.
Confirm Material: Specify stainless steel requirements according to the installation environment and project requirements.
For faster product matching and quotation preparation, provide the following information with your inquiry:
Required N Series item or leg length
Required point type
Required material or stainless steel specification
Stapler brand and exact model
Application or material being fastened
Estimated purchasing quantity
Delivery destination

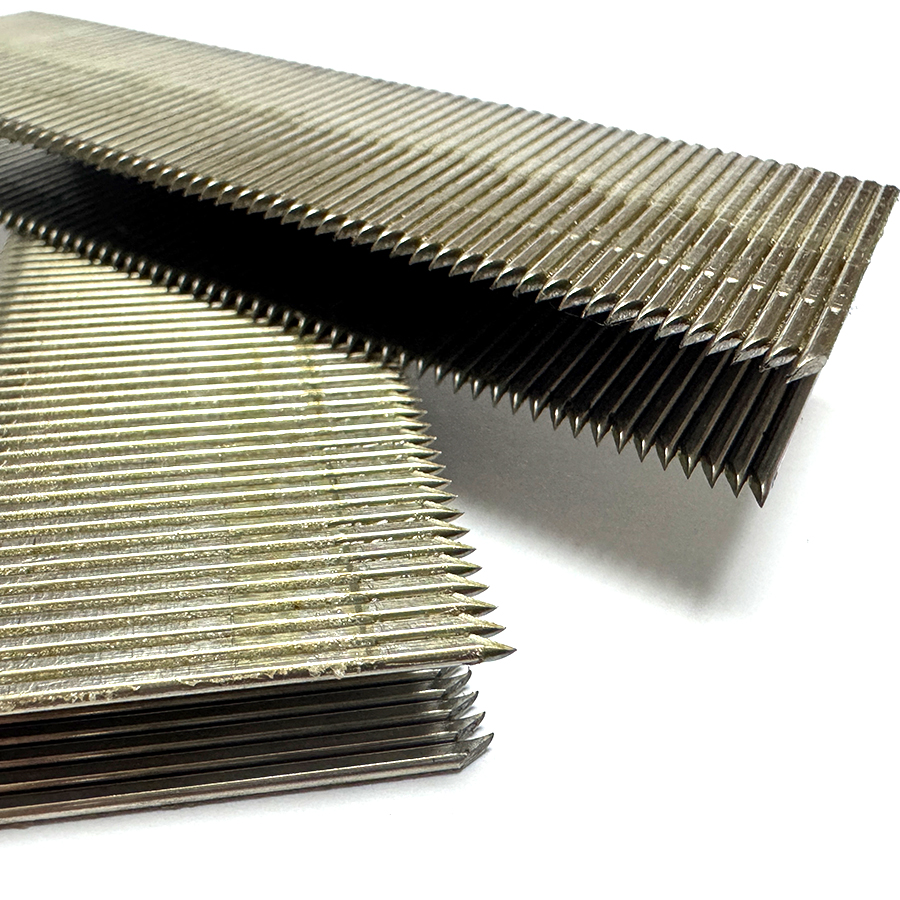

N Series staples are a heavy wire staple format used in compatible pneumatic staplers for construction, woodworking and industrial fastening applications. This KYA product is specified as 16 Gauge with a 10.8mm crown and 1.60 × 1.40mm wire section.
The published crown width is 10.8mm, commonly described as approximately 7/16 inch.
The published wire dimensions are 1.60mm wide × 1.40mm thick.

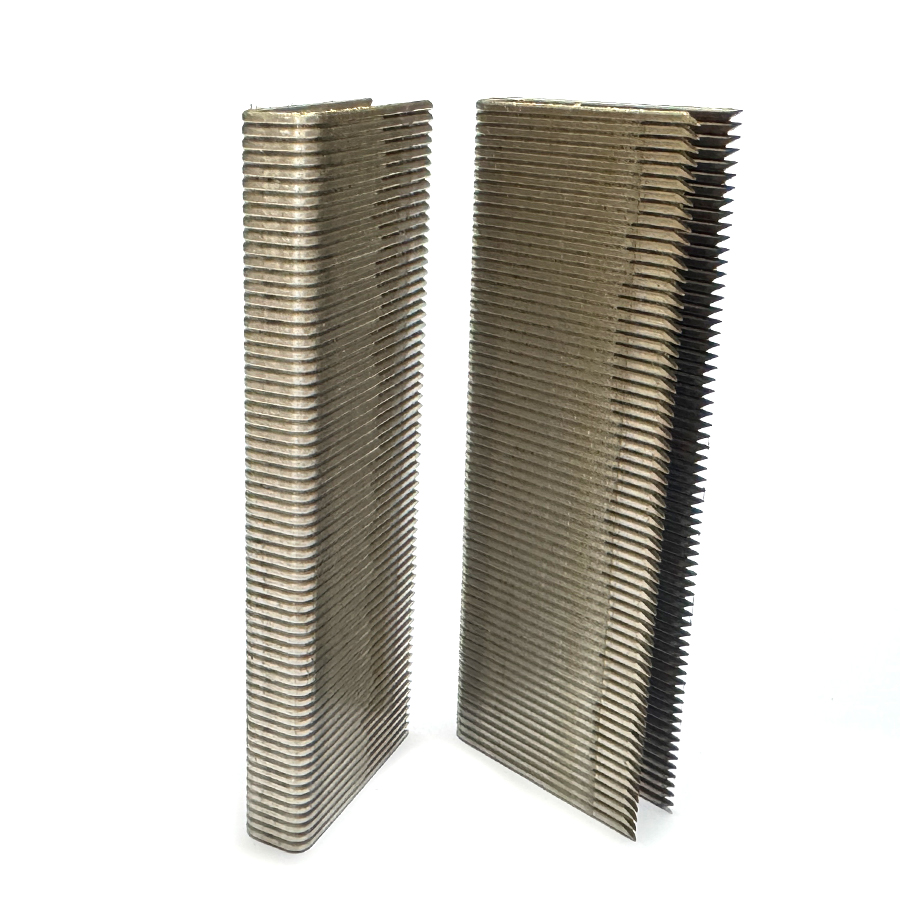

A divergent point staple has legs designed to spread apart as they enter suitable material. This can increase mechanical retention compared with a conventional point in compatible fastening applications.
The published size table includes N/12, N/16, N/19, N/20, N/22, N/25, N/28, N/30, N/32, N/35, N/38, N/40, N/45, N/50, N/57 and N/64. Confirm the current production availability of the required size before ordering.
They are supplied in an N Series format, but compatibility must be confirmed against the exact stapler model and required staple length. Different SENCO N-compatible tools accept different leg-length ranges.
No. Crown width alone does not confirm compatibility. Check gauge, crown geometry, wire dimensions, collation configuration and leg length against the tool manufacturer's specifications before use.
Typical applications include sheathing, subflooring, roof decking, pallets, crates, fencing, decking, furniture components and other compatible wood fastening operations.
Stainless steel is selected where corrosion resistance is required. However, the suitability of a specific staple for an outdoor, treated-wood, coastal or other corrosive environment depends on the stainless steel grade and project requirements. Confirm the required material specification before ordering.
The current published N Series specification table lists 10,000 pieces per box for the sizes shown. Confirm packing for the specific model and order before purchase.
Send the stapler brand, exact tool model, required staple length, point type and application. These details help confirm whether the selected N Series staple matches the tool and fastening requirement.
KYA supplies N Series heavy wire staples for fastener distributors, wholesalers, industrial users and professional purchasing teams. Contact KYA with your required size, stapler model, material requirement, quantity and delivery destination for product confirmation and quotation.
