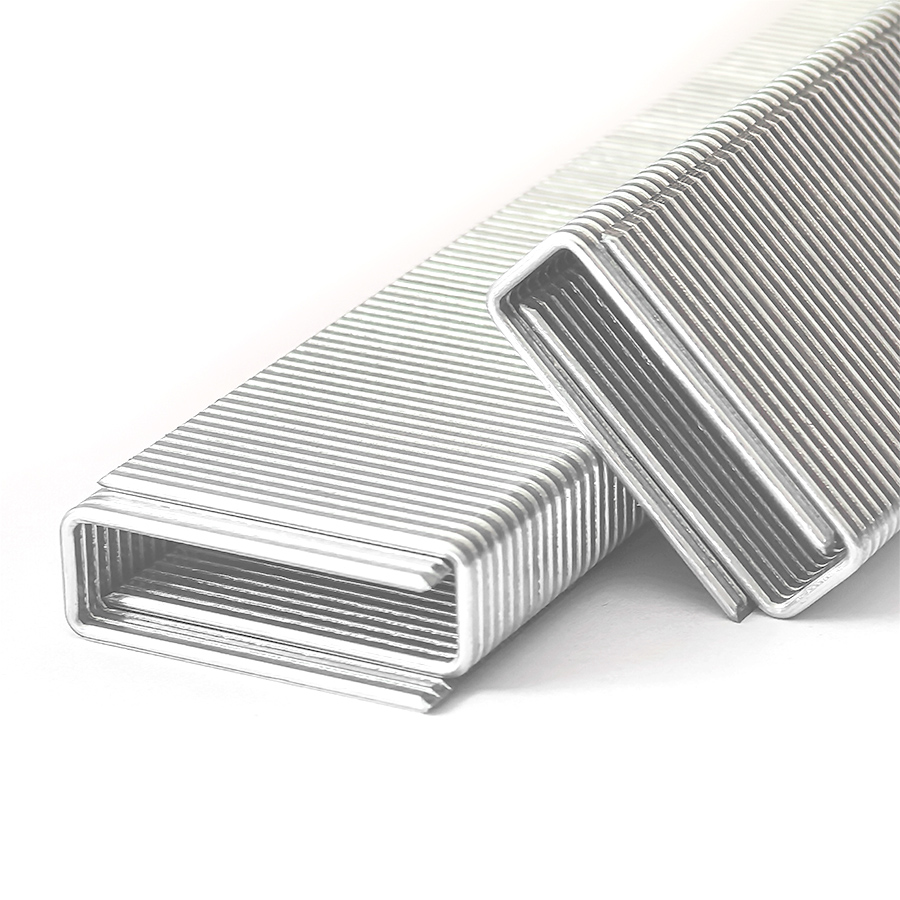

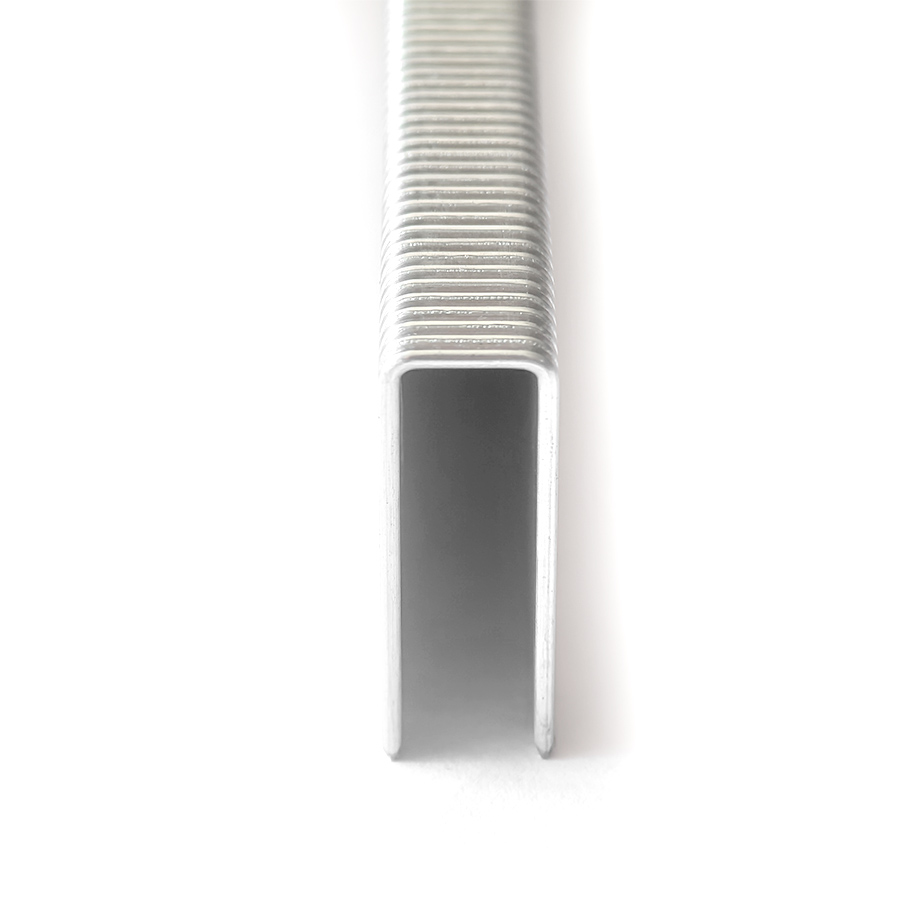

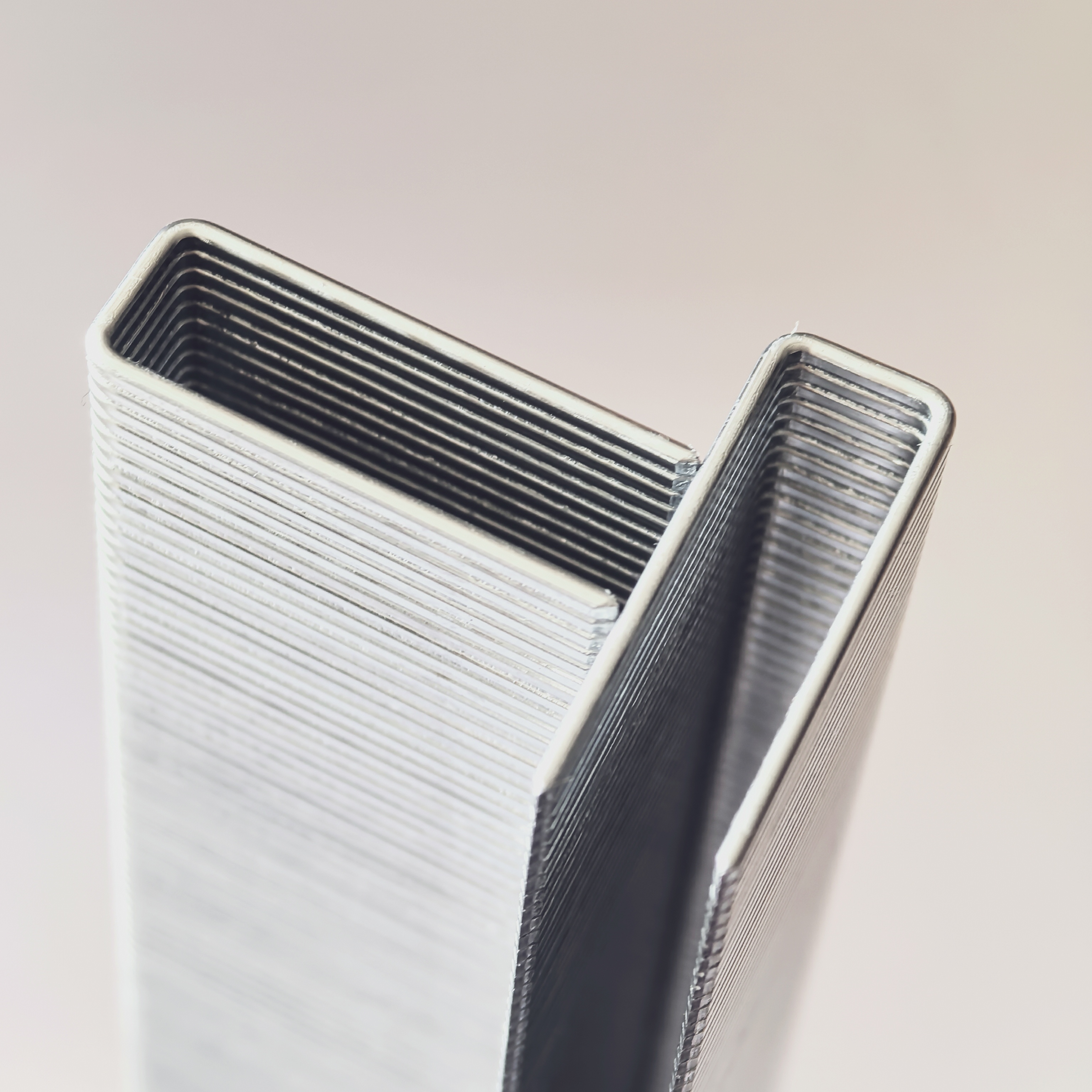

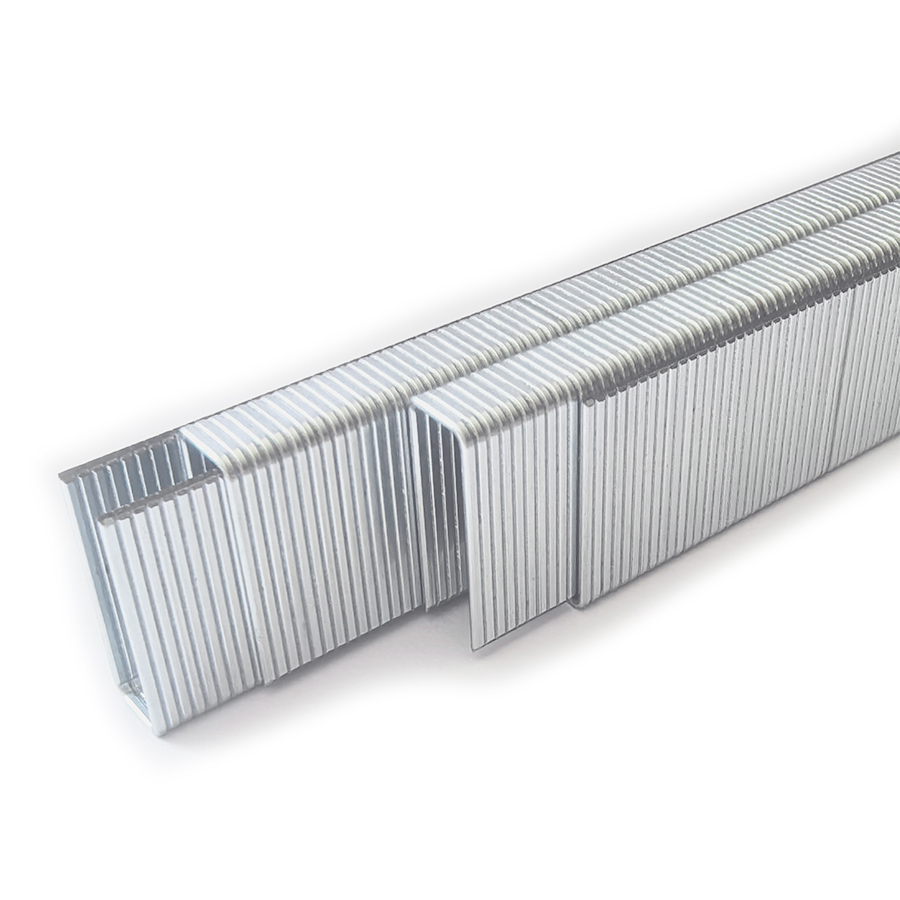

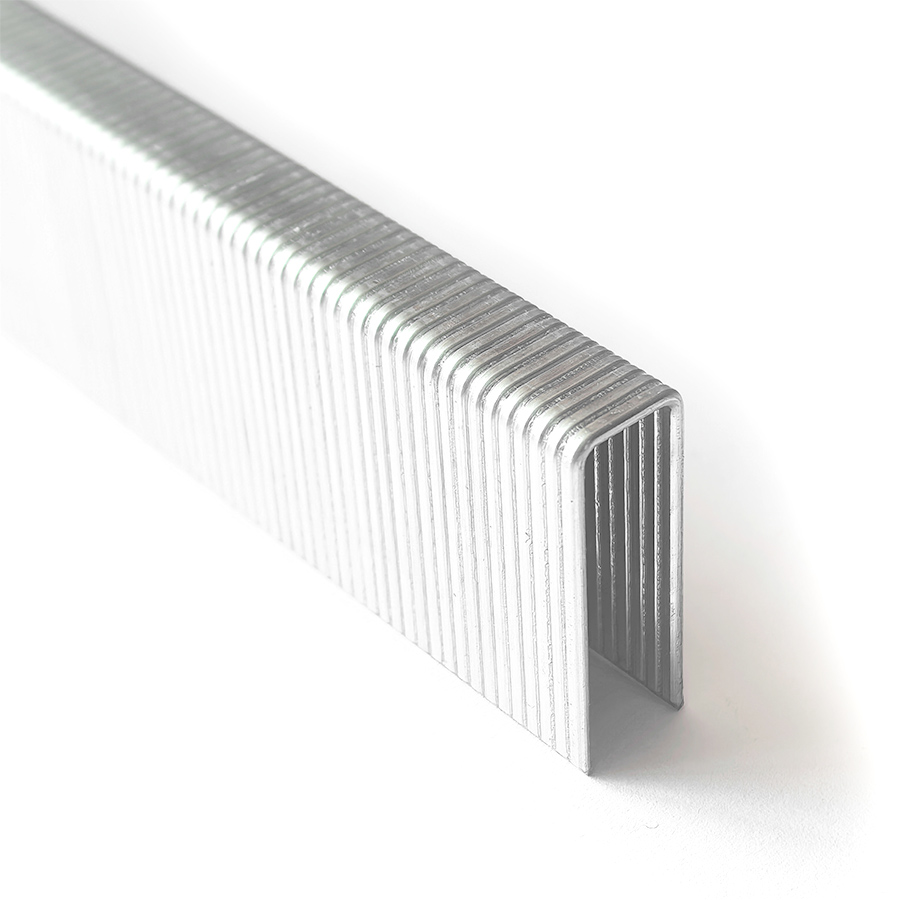

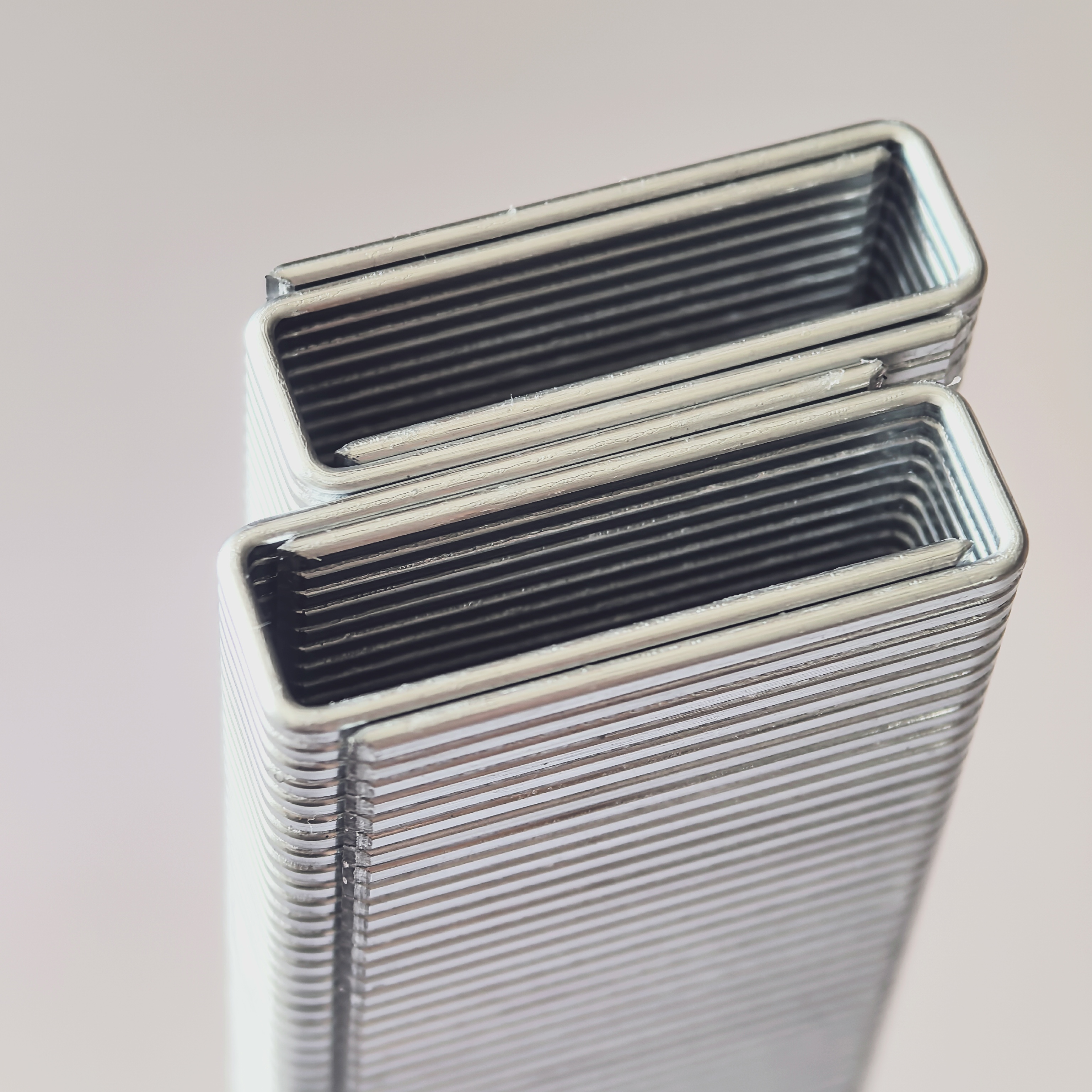

KYA 92 Series staples are 18 gauge medium wire fasteners with an 8.90mm narrow crown and leg lengths from 12mm to 40mm. The series is designed for professional cabinetry, furniture, trim, paneling and general wood-to-wood fastening applications where this staple profile is specified.
The KYA-92 staple uses a 1.25mm wide × 1.05mm thick wire profile and a chisel point. Galvanized wire, stainless steel and aluminum material options are listed within the KYA 92 Series, allowing professional buyers to select the fastener material according to the application and operating environment.
92 Series staples are commonly grouped with the BeA 92, Bostitch SL5035, Atro 92, Prebena H, Fasco 92 and Spotnails 58 fastener families. Because dimensions and accepted leg lengths can vary by tool model, compatibility should be confirmed against the exact stapler specification before ordering.
| Product Type | Medium Wire Narrow Crown Staple |
| Series | 92 Series |
| Product Code | KYA-92 |
| Gauge | 18 Gauge |
| Crown Width | 8.90mm |
| Wire Width | 1.25mm |
| Wire Thickness | 1.05mm |
| Wire Size | 1.25 × 1.05mm |
| Wire Diameter as Listed | 1.17# (confirm the unit and specification when ordering) |
| Collation | Glue collated |
| Available Leg Lengths | 12–40mm |
| Point | Chisel Point |
| Material Options | Galvanized Wire / Stainless Steel / Aluminum |
| Packing | 5,000 pcs / box for listed galvanized versions |
| Typical Applications | Cabinets, furniture, trim, paneling and wood assembly |
The 92 Series combines an 18 gauge medium wire profile with an 8.90mm narrow crown. This configuration provides a compact staple crown while retaining the wire section required for professional cabinet, furniture and woodworking fastening.
The 92 Series uses an 18 gauge medium wire profile. KYA specifies a wire width of 1.25mm and thickness of 1.05mm for this fastener family.
KYA specifies an 8.90mm crown width. The 92 Series is also commonly described in the fastener industry as a 5/16-inch-class narrow crown staple family. For purchasing and tool matching, use the actual KYA 8.90mm specification together with the complete wire dimensions.
The KYA 92 Series covers leg lengths from 12mm through 40mm. This range allows distributors and manufacturers to select a penetration depth appropriate for different wood thicknesses and assembly requirements.
The staple legs use a chisel point profile for penetration into suitable wood and panel materials when driven with a compatible pneumatic stapler.
KYA lists galvanized wire, stainless steel and aluminum options within the 92 Series. Material selection should be based on the installation environment, substrate and project requirements.
The KYA 92 Series is available in multiple leg lengths. Buyers should specify the complete item designation because two 92 Series staples can share the same crown and wire profile while using different leg lengths.
| Item | Leg Length | Crown | Wire Size |
|---|---|---|---|
| 92/12 | 12mm | 8.90mm | 1.25 × 1.05mm |
| 92/14 | 14mm | 8.90mm | 1.25 × 1.05mm |
| 92/15 | 15mm | 8.90mm | 1.25 × 1.05mm |
| 92/16 | 16mm | 8.90mm | 1.25 × 1.05mm |
| 92/18 | 18mm | 8.90mm | 1.25 × 1.05mm |
| 92/20 | 20mm | 8.90mm | 1.25 × 1.05mm |
| 92/21 | 21mm | 8.90mm | 1.25 × 1.05mm |
| 92/25 | 25mm | 8.90mm | 1.25 × 1.05mm |
| 92/28 | 28mm | 8.90mm | 1.25 × 1.05mm |
| 92/30 | 30mm | 8.90mm | 1.25 × 1.05mm |
| 92/32 | 32mm | 8.90mm | 1.25 × 1.05mm |
| 92/35 | 35mm | 8.90mm | 1.25 × 1.05mm |
| 92/38 | 38mm | 8.90mm | 1.25 × 1.05mm |
| 92/40 | 40mm | 8.90mm | 1.25 × 1.05mm |
18 gauge 92 Series staples are used for professional wood and panel fastening where a narrow crown medium wire staple is specified. The appropriate leg length and material should be selected according to the workpiece thickness and service environment.
Cabinet and drawer assembly
Cabinet backs and casebacks
Furniture frame assembly
Molding and trim fastening
Paneling and wood panels
Lattice and trellis assembly
Interior carpentry
Wood-to-wood fastening
Selected upholstery and furniture applications
For exterior, humid or corrosive environments, select the staple material according to the project specification. Galvanized, stainless steel and aluminum fasteners have different material characteristics and should not be treated as universally interchangeable.
| Feature | 92 Series Narrow Crown Staple | Wider Crown Staple |
|---|---|---|
| Crown Profile | 8.90mm narrow crown | Broader crown depending on staple series |
| Wire Class | 18 gauge medium wire | Varies by fastener family |
| Typical Use | Cabinetry, furniture, trim and wood assembly | Applications requiring a broader crown contact area |
| Product Range | 12–40mm legs | Depends on staple series |
KYA lists the 92 Series for use with several established industrial staple families, including PREBENA H, ATRO 92, BOSTITCH SL5035, FASCO 92, HOLZHER E, KIHLBERG 664, NIKEMA 92, MAX 7MA, OMER 92 and SPOTNAILS 58.
Industry cross-reference suppliers also commonly group BeA 92, Atro 92, Bostitch SL5035, Spotnails 5800 and Prebena H fasteners together. However, supported leg length can differ between staplers, so the tool manufacturer and exact model should always be checked before purchasing replacement staples.
| KYA Fastener Series | 92 Series |
| Gauge | 18GA |
| Crown | 8.90mm |
| Wire | 1.25 × 1.05mm |
| Leg Range | 12–40mm |
| Cross-Reference Families | BeA 92 / Bostitch SL5035 / Atro 92 / Prebena H / Fasco 92 / Spotnails 58 |
| Before Ordering | Confirm exact stapler model and accepted staple leg length |
Do not select replacement staples only by the terms "18 gauge" or "5/16-inch crown." Crown dimensions, wire section, collation and supported leg lengths must match the stapler specification.
Galvanized 92 Series staples use zinc-coated steel wire and are a common option for indoor furniture, cabinetry and general woodworking applications where galvanized fasteners meet the project requirements.
KYA lists stainless steel as an available material within the 92 Series. Stainless steel can be considered where the application specifically requires stainless fasteners or increased corrosion resistance.
Aluminum is also listed as a material option within the KYA 92 Series. Buyers should confirm whether aluminum is suitable for the substrate, load and environmental conditions of the intended application.
Staple leg length should be selected according to the thickness of the material being fastened, the base material and the penetration required for the joint. A longer staple is not automatically the correct choice.
The selected staple must also fall within the leg-length range accepted by the specific pneumatic stapler. For example, a stapler designed for 12–25mm 92 Series staples should not be assumed to accept a 40mm staple simply because both are part of the 92 family.
For accurate product matching and quotation, provide the required leg length, material, quantity, stapler manufacturer and model, application and delivery destination.
Reference KYA-92 and specify the exact item, such as 92/25, 92/30, 92/35 or 92/40, rather than requesting only an 18 gauge narrow crown staple.
| Product Code | KYA-92 |
| Gauge | 18 Gauge |
| Crown | 8.90mm |
| Wire Size | 1.25 × 1.05mm |
| Leg Lengths | 12–40mm |
| Point | Chisel Point |
| Material Options | Galvanized Wire / Stainless Steel / Aluminum |
| Inquiry Information | Required leg length, material, quantity, tool model, application and delivery destination |
KYA 92 Series staples are classified as 18 gauge medium wire staples.
KYA specifies an 8.90mm crown width. The 92 Series is also commonly grouped in the industry with nominal 5/16-inch crown staple families.
The published KYA specification is 1.25mm wide × 1.05mm thick.
KYA lists 92 Series staples from 12mm to 40mm, including 12, 14, 15, 16, 18, 20, 21, 25, 28, 30, 32, 35, 38 and 40mm lengths.
Typical applications include cabinetry, drawers, furniture frames, molding, trim, paneling, casebacks, lattice and other professional wood-to-wood fastening operations.
KYA lists PREBENA H, ATRO 92, BOSTITCH SL5035, FASCO 92, HOLZHER E, KIHLBERG 664, NIKEMA 92, MAX 7MA, OMER 92 and SPOTNAILS 58 among applicable tool families. Confirm the exact stapler model and supported leg length before ordering.
These fastener families are commonly cross-referenced by industrial staple suppliers, but exact crown dimensions and available leg lengths can vary. Verify the complete staple dimensions and tool specification before substitution.
Yes. KYA lists stainless steel as a material option within the 92 Series. Availability should be confirmed for the required leg length.
Yes. Aluminum is listed as another material option within the KYA 92 Series. Confirm the exact size and application requirements when requesting a quotation.
The galvanized versions currently displayed on the KYA product page list 5,000 staples per box. Confirm packaging for the required material and leg length when ordering.
Choose the leg length according to the material thickness, required penetration and the staple range supported by the tool. The longest available staple is not automatically the correct size for every application.
Provide the required 92 Series leg length, material, quantity, stapler manufacturer and model, application and delivery destination. Reference KYA-92 to identify this fastener family.
A sample box of 5,000 staples is available. The recipient pays the freight cost.
The minimum order quantity is 50 boxes, equivalent to one pallet.
OEM branding is available for packaging.
