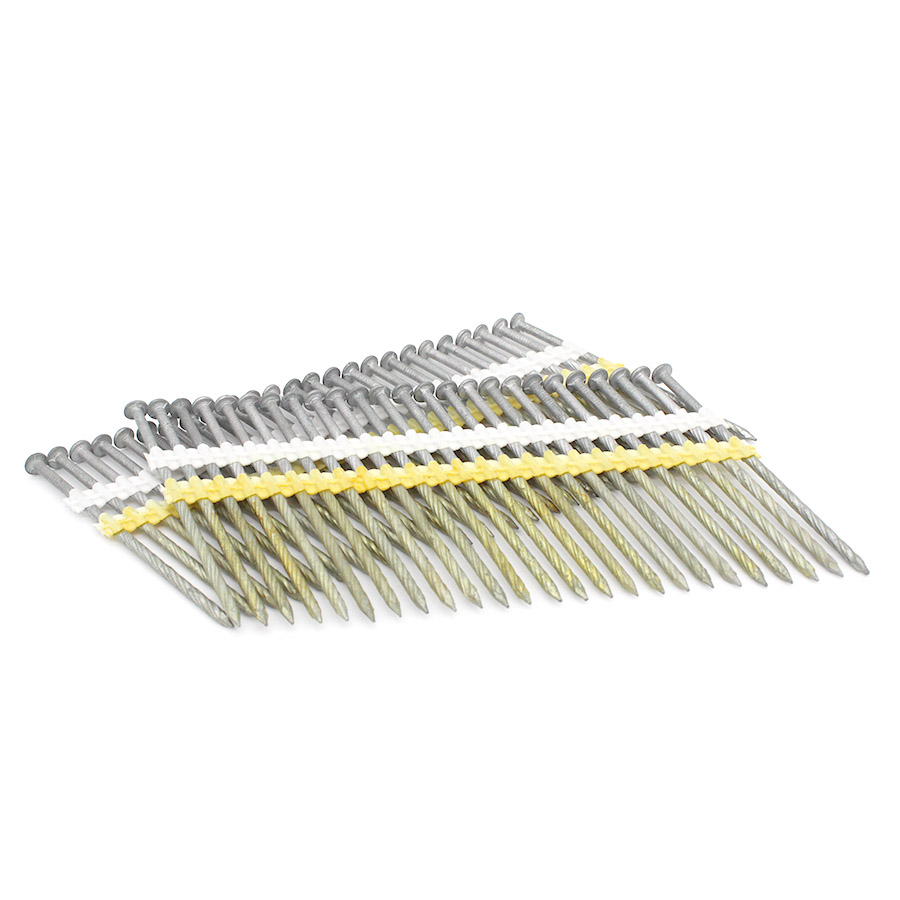

KYA Fasteners' 22 Degree 3-1/4 in. x 0.120 Plastic Collated Framing Nails are designed for robust framing and construction applications. Featuring a hot-dip galvanized coating for superior corrosion resistance, these ring shank nails ensure strong holding power and are rated for treated lumber, suitable for both interior and exterior use. With a full round head and plastic collation, they are compatible with 20-22 degree framing nailers, offering reliable performance for carpentry, framing, sheathing, and truss building. Available in lengths from 50mm to 130mm and various finishes, these nails deliver durability and versatility.
Hot-dip galvanized coating for corrosion resistance
Ring shank for superior holding power
Plastic collation for reliable, jam-free performance
Full round head for secure fastening
Rated for use in treated lumber
Compatible with 20-22 degree framing nailers
| Property | Specification |
|---|---|
| Model | 22 Degree Plastic Collated Framing Nails |
| Material | Carbon Steel, Stainless Steel |
| Collation Angle | 20°, 21°, 22° |
| Diameter | 2.87mm (0.113"), 3.05mm (0.120"), 3.33mm (0.131"), 3.76mm (0.148"), 4.10mm (0.160") |
| Length | 50mm - 130mm (2" - 3-1/2") |
| Head Type | Full Round Head, Clipped (D) Head |
| Shank Type | Smooth, Ring, Screw, Annular Thread |
| Point Type | Diamond |
| Finishing | Bright, Electro Galvanized (EG), Hot-Dip Galvanized (HDG), Stainless Steel (SS), DACR, MechGalv, Heat Treated |
| Coating | Yellow, Red, Blue |
| Length (in) | Diameter (in) | Shank Type | Finish | Collation Angle |
|---|---|---|---|---|
| 2 | 0.113 | Smooth, Ring, Screw | Bright, EG, HDG, SS | 21°, 22° |
| 2-1/4 | 0.113, 0.148 | Smooth | Bright, EG, HDG, SS | 21°, 22° |
| 2-3/8 | 0.113 | Smooth, Ring | Bright, EG, HDG, SS | 21°, 22° |
| 2-1/2 | 0.113, 0.120, 0.131 | Smooth, Screw | Bright, EG, HDG, SS | 21°, 22° |
| 3 | 0.120, 0.131, 0.148 | Smooth, Ring, Screw | Bright, EG, HDG, SS | 21°, 22° |
| 3-1/4 | 0.120, 0.131, 0.148 | Smooth, Ring, Screw | Bright, EG, HDG, SS | 21°, 22° |
| 3-1/2 | 0.131, 0.162 | Smooth, Screw | Bright, EG, HDG, SS | 21°, 22° |
| 4 | 0.131 | Screw | Bright, EG, HDG, SS | 21°, 22° |
The 22 Degree Framing Nails are optimized for heavy-duty construction and carpentry. Contact KYA Fasteners for bulk orders or custom specifications.
Request a Bulk QuoteNo sting, no jams, no waste
Cost-effective and durable
Resistant to water, heat, and cold damage
Compatible with standard 20-22 degree framing nailers
Great holding power and bending resistance
Multiple finishes: Bright, EG, HDG, SS
Smooth shank nails are ideal for general framing and construction, offering sufficient holding power for most applications.
Ring shank nails provide superior holding power by filling the ring crevasses with wood, preventing back-out in softer woods without splitting.
Screw shank nails spin during driving, creating a tight groove in hard woods to prevent splitting and back-out.
Annular thread nails feature beveled rings that press against wood or sheetrock, enhancing resistance to back-out.
The 22 Degree Framing Nails are designed for heavy-duty construction and carpentry projects requiring secure fastening.
Carpentry
Framing
Sheathing material
Truss building
Subflooring
Side wall fixation
Pallets and crate assembly
Real wood door construction
Bright finish nails have no coating and are suitable for interior framing and trim where corrosion protection is not needed.
Electro galvanized nails have a thin zinc layer for minimal corrosion protection, ideal for indoor areas with some humidity, like bathrooms or kitchens.
Hot-dip galvanized nails are coated with a thick zinc layer, perfect for outdoor use in rain and snow, though not recommended for coastal areas with high salt content.
Stainless steel nails (304 or 316) offer the best corrosion resistance, ideal for both interior and exterior applications, including coastal environments.
They are used for carpentry, framing, sheathing, truss building, subflooring, side wall fixation, pallet/crate assembly, and real wood door construction.
They are compatible with 20-22 degree plastic collation framing nailers.
Ring shank nails offer superior holding power by filling ring crevasses with wood, preventing back-out in softer woods.
Available finishes include Bright, Electro Galvanized, Hot-Dip Galvanized, and Stainless Steel.
Yes, they are rated for use in treated lumber, especially with hot-dip galvanized or stainless steel finishes.
Yes, sample orders are available to test quality. Contact KYA Fasteners to arrange a sample.
Ask a QuestionWith over 20 years of expertise, KYA Fasteners is a trusted leader in industrial fasteners, delivering high-quality 22 Degree Plastic Collated Framing Nails. Our SGS-certified production ensures precision and durability, serving clients in over 50 countries. We ship from Qingdao port within 20-30 days, offering customized solutions for construction and carpentry needs.
Global Reach: Exporting to 50+ countries with reliable framing nails
Premium Quality: Durable, corrosion-resistant nails for professional use
Fast Delivery: Ships worldwide in 20-30 days from Qingdao port
Custom Solutions: Tailored sizes, finishes, and shank types for specific projects
Enhance your construction projects with 22 Degree Framing Nails. Request a free quote today to experience KYA's quality and service.
