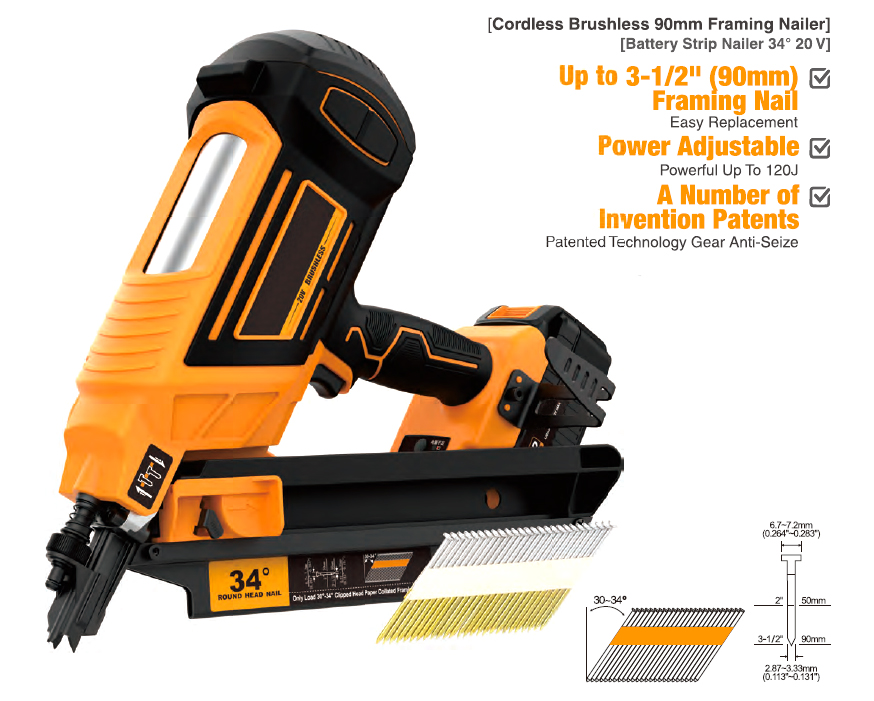

The LD3490 34 Degree Cordless Framing Nailer is a 20V brushless battery-powered nail gun designed for professional framing, subflooring, roof decking, wood fencing, pallet assembly, and shipping crate production. It works without an air compressor or gas cartridge, helping contractors, distributors, and tool wholesalers improve jobsite mobility and reduce setup time.
This cordless framing nailer is compatible with 34 degree paper collated clipped head framing nails from 2" to 3-1/2" in length. With a brushless motor, dual firing mode, tool-free depth adjustment, quick release magazine, and 20V lithium-ion battery system, the LD3490 is built for efficient fastening in construction and industrial wood assembly applications.
The LD3490 is engineered for professional fastening work where consistent driving power, cordless operation, and compatible nail selection are important. The following technical data helps buyers, contractors, importers, and tool distributors evaluate whether this 34 degree cordless framing nailer fits their application requirements.
| Product Model | LD3490 |
| Product Type | 34 Degree Cordless Framing Nailer |
| Net Weight | 9.11 lbs / 4.13 kg without battery |
| Dimensions | 15.25" x 4.25" x 13.38" / 370 x 131 x 340 mm |
| Motor | Brushless Motor |
| Power Source | Lithium-Ion Battery |
| Voltage | DC 20V |
| Input | 100-240V, 50/60Hz |
| Strike Rate | 120 Nails/min |
| Battery Recharge Time | 90 min with 4.0 Ah battery |
| Fasteners Per Charge | Up to 750 with 4.0 Ah battery |
| Cycles Per Charge | Up to 950 pcs with 4.0 Ah battery |
| Fastener Diameter | 0.113" to 0.131" |
| Fastener Length Range | 2" to 3-1/2" / 50-90 mm |
| Magazine Capacity | 50 pcs |
| Compatible Fasteners | 34 Degree 0.113" to 0.131" Diameter Paper Collated Clipped Head Framing Nails from 2" to 3-1/2" |
The LD3490 combines cordless mobility with professional fastening performance. It is suitable for construction workers, carpenters, pallet manufacturers, fencing contractors, and distributors looking for a reliable battery framing nailer for demanding wood fastening tasks.
| Brushless Motor | Delivers efficient power output, longer service life, and stable fastening performance. |
| Cordless Operation | No compressor, air hose, or gas cartridge required, making it easier to move across jobsites. |
| Dual Mode Firing | Supports flexible fastening for different jobsite requirements and working habits. |
| Tool-Free Depth Adjustment | Allows users to adjust nail depth quickly for different wood materials and fastening positions. |
| Textured Rubber Grip | Improves handling comfort and control during long working periods. |
| LED Indicator | Helps users check battery and tool status more conveniently. |
The LD3490 cordless framing nail gun is designed to provide strong driving power for structural fastening work. Its pressurized air tank can reach up to 115 psi, with power up to 120J, and adjustable power up to 130 psi. This helps the tool drive framing nails into wood materials with reliable force and consistency.
Compared with traditional pneumatic nailers, the cordless design reduces dependence on external air compressors. Compared with gas nailers, it avoids gas cartridge replacement and simplifies daily use for professional construction teams and maintenance crews.
The LD3490 is compatible with 34 degree paper collated clipped head framing nails. The accepted fastener diameter is 0.113" to 0.131", and the compatible nail length range is 2" to 3-1/2" / 50-90 mm. This makes it suitable for common framing, decking, fencing, and wood assembly applications.
| Nail Collation Angle | 34 Degree |
| Nail Type | Paper Collated Clipped Head Framing Nails |
| Diameter | 0.113" to 0.131" |
| Length | 2" to 3-1/2" / 50-90 mm |
| Magazine Capacity | 50 pcs |
The LD3490 is designed for easy daily maintenance. Its patent technology allows wearable parts to be replaced by removing only 5 screws, helping reduce service time and improve tool availability for professional users.
The quick release magazine makes nail loading and jam clearing more convenient. This feature is especially useful on active jobsites where downtime directly affects work efficiency.
The LD3490 34 degree cordless framing nailer is suitable for professional wood fastening and construction projects. It can be used by contractors, builders, carpenters, pallet manufacturers, fencing companies, and tool rental businesses.
| Framing | Suitable for wood frame construction and structural fastening work. |
| Subfloors | Helps fasten subfloor panels efficiently without compressor setup. |
| Roof Decking | Supports roof sheathing and decking installation work. |
| Pallet and Shipping Crate Assembly | Suitable for industrial wood packaging, pallet production, and crate assembly. |
| Wood Fencing | Helps improve fastening speed for fence construction and outdoor wood projects. |
The LD3490 uses a 20V lithium-ion battery system. With a 4.0 Ah battery, the tool can drive up to 750 fasteners per charge and recharge in about 90 minutes. This battery-powered design helps users work in locations where compressor access is limited or inconvenient.
KYA Fasteners supplies fastening tools, industrial fasteners, and related solutions for global B2B customers. The LD3490 34 Degree Cordless Framing Nailer is designed for professional buyers who need reliable fastening performance, compatible nail supply, technical support, and wholesale sourcing capability.
For importers, distributors, construction tool wholesalers, and OEM buyers, KYA can support product selection, bulk order consultation, fastener matching, and application guidance for framing nailers and compatible nails.
The LD3490 is used for framing, subfloors, roof decking, pallet assembly, shipping crate assembly, and wood fencing. It is suitable for professional construction and industrial wood fastening applications.
The LD3490 is compatible with 34 degree paper collated clipped head framing nails from 2" to 3-1/2" in length and 0.113" to 0.131" in diameter.
The LD3490 is a cordless framing nailer powered by a 20V lithium-ion battery. It does not require an external air compressor, air hose, or gas cartridge during normal operation.
With a 4.0 Ah battery, the LD3490 can drive up to 750 fasteners per charge. Actual performance may vary depending on nail size, wood density, temperature, and working conditions.
The LD3490 magazine capacity is 50 pieces, making it suitable for framing, decking, fencing, and other continuous fastening tasks.
Yes. The LD3490 has tool-free depth adjustment, allowing users to set the nail driving depth according to wood material, nail size, and application requirements.
The 4.0 Ah lithium-ion battery recharge time is approximately 90 minutes.
Yes. KYA Fasteners can support distributors, importers, construction tool wholesalers, and B2B buyers with LD3490 cordless framing nailer quotation, bulk order consultation, and compatible fastener recommendations.
