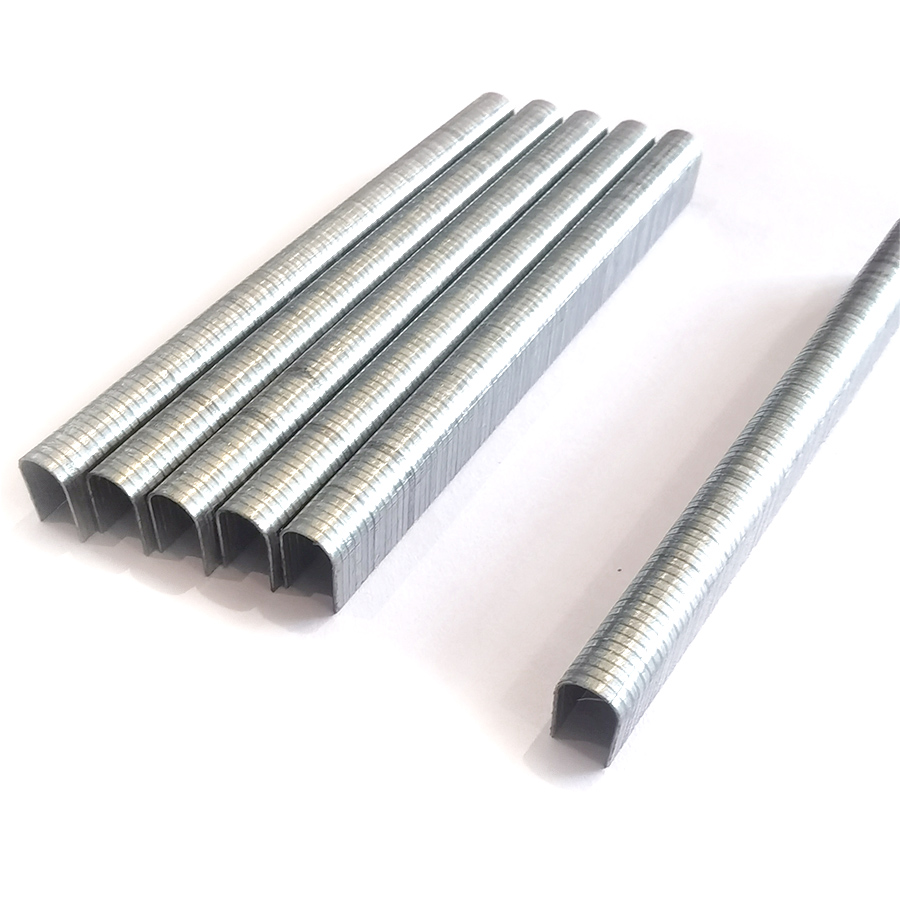

KYA 762 Heavy Duty Low Voltage Wire and Cable Staples are round-crown staples designed for fastening communication, data, coaxial, thermostat, doorbell, alarm and other low-voltage wiring to suitable wood substrates.
The staple features a 7.62mm / 0.300 inch round crown, approximately 1.20mm wire width and a galvanized steel construction. Available leg lengths include 10mm, 12mm and 14mm. The curved crown follows the shape of round cable more closely than a conventional flat-crown staple, helping reduce cable pinching when the correct staple size, tool and driving depth are used.
| Specification | 762 Series Details |
|---|---|
| Model | 762 / KYA-762 |
| Fastener Type | Round Crown Low Voltage Cable Staple |
| Crown | 7.62mm / 0.300 in. |
| Wire Width | 1.20mm / 0.047 in. |
| Wire Thickness | 0.51mm / 0.020 in. |
| Available Lengths | 10mm, 12mm, 14mm |
| Item References | 762/10, 762/12, 762/14 |
| Material | High-Carbon Steel |
| Finish | Galvanized / Zinc-Plated |
| Point | Chisel Point |
| Collation | Straight Strip |
| Staples Per Strip | 50 or 100 pcs/strip depending on configuration |
| Standard Box Quantity | 1,000 pcs/box |
| Typical Application | Low-voltage and communication cable fastening |
Tool compatibility should be confirmed by crown width, wire dimensions, staple length and strip configuration. Do not assume that every tool described as a cable stapler will accept the 762 fastener profile.
Request 762 Staple PricingThe 7.62mm / 0.300-inch curved crown is shaped for fastening round wire and cable. When installed with the correct tool setting, the crown can hold the cable against the substrate without intentionally flattening it in the way an incorrectly selected flat-crown staple might.
Chisel-point legs are designed for clean penetration into suitable wood substrates and help provide consistent anchoring during cable installation.
The galvanized zinc-plated surface provides corrosion protection for general indoor wiring and installation applications. Environmental exposure should be considered when selecting the required finish.
The 762 family is available in 10mm, 12mm and 14mm leg lengths, allowing installers and distributors to select a fastener according to the substrate and required penetration.
Straight-strip collation organizes multiple staples for repeated feeding through a compatible electric, pneumatic or other powered stapling system specifically designed for the staple dimensions being used.
Round crown cable staples are U-shaped fasteners with a curved bridge designed to follow the shape of electrical, communication or low-voltage cable. They differ from conventional flat-crown staples used for upholstery, sheathing or woodworking.
For cable installations, the objective is to secure the wire to the substrate without crushing, cutting or excessively compressing its insulation. Correct cable diameter, crown clearance, staple length and tool depth therefore matter as much as the staple itself.
Round crown staples can be used to route suitable Ethernet and data cable along wood framing or other approved substrates when the crown provides sufficient clearance and the staple is not over-driven.
Coaxial cable is another common application for round-crown cable fasteners. The installed staple should retain the cable without visibly deforming or pinching its insulation.
Low-voltage thermostat and doorbell wiring can be secured along suitable framing using a cable staple selected according to cable diameter and substrate requirements.
Applications can include alarm, sensor and other low-voltage security wiring where exposed cable runs require mechanical support.
Suitable speaker wire, telephone cable and audio wiring can also use round-crown staples when the cable dimensions fit safely under the crown.
Low-voltage lighting cable and selected holiday-light wiring are additional applications, provided the fastener and installation method are suitable for the wire and environmental conditions.
| Selection Factor | What to Check |
|---|---|
| Cable Diameter | Cable must fit under the round crown without being crushed |
| Crown Width | 762 Series: 7.62mm / 0.300 in. |
| Staple Length | Select according to substrate hardness and required penetration |
| Base Material | Confirm suitability for the wood or other approved substrate |
| Staple Tool | Match crown, wire size, leg length and strip configuration |
| Drive Depth | Staple should secure the cable without compressing its insulation |
| Item | Crown | Leg Length | Approx. Imperial Length |
|---|---|---|---|
| 762/10 | 7.62mm | 10mm | Approx. 3/8 in. |
| 762/12 | 7.62mm | 12mm | Approx. 15/32 in. |
| 762/14 | 7.62mm | 14mm | Approx. 9/16 in. |
Metric dimensions should be treated as the primary product specification. Imperial values above are approximate conversions.
The 762 and T25 cable staple families can appear similar because both are round-crown fasteners used for low-voltage cable fastening. However, the KYA 762 crown is 7.62mm / 0.300 inch, while T25-type staples are commonly referenced as a nominal 5/16 inch / approximately 7.94mm crown.
However, a similar crown dimension does not automatically make two staple series interchangeable. Wire width, wire thickness, exact leg length, strip dimensions and tool-magazine geometry can differ.
| Comparison Point | 762 Series | T25-Type Market Reference |
|---|---|---|
| Crown | 7.62mm / 0.300 in. | Nominal 5/16 in. / approximately 7.94mm round crown |
| Application | Low-voltage cable fastening | Low-voltage wire and cable fastening |
| Interchangeable? | Do not assume interchangeability. Verify complete staple and tool dimensions first. | |
A cable staple is intended to retain and guide the cable, not crush it tightly against the substrate. Driving the crown too deeply can compress cable insulation or alter the geometry of sensitive communication cable.
Select the correct crown clearance and use a compatible stapler or depth setting so the cable remains secure while retaining its normal shape. Inspect test installations before beginning repetitive production or installation work.
For distributors, electrical wholesalers and cable-installation suppliers, provide the complete staple and tool requirements when requesting a quotation.
| Purchasing Information | Example |
|---|---|
| Series | 762 |
| Crown | 7.62mm / 0.300 in. |
| Required Length | 10mm / 12mm / 14mm |
| Tool Model | Provide exact staple gun model |
| Cable Type | CAT6 / RG6 / thermostat / alarm / other |
| Cable Diameter | Provide OD where compatibility must be confirmed |
| Quantity | Required boxes / cartons |
| Packaging | Standard or custom labeling requirements |
They are designed primarily for fastening suitable low-voltage, communication and data cables to wood and other approved substrates. Applications include network, coaxial, thermostat, doorbell, alarm, telephone and audio wiring.
The 762 staple has a 7.62mm / 0.300 inch round crown.
KYA lists 10mm, 12mm and 14mm leg lengths, referenced as 762/10, 762/12 and 762/14.
They can be used for suitable low-voltage data cable when the cable fits safely under the crown and the tool does not over-drive the staple. Confirm the actual cable outside diameter before production use.
RG6 and similar coaxial cable are common applications for round-crown cable fasteners, provided the cable diameter, staple clearance and stapler setting are suitable.
A round crown follows the profile of round wire more closely, providing clearance around the cable and helping reduce pinching when the correct size and driving depth are used.
They are both round-crown cable staple families, but their nominal crown dimensions are not identical. but this alone does not establish interchangeability. Compare wire dimensions, exact leg length, strip configuration and the stapler manufacturer's fastener specification before substitution.
Use a stapling tool specifically designed for the 762 fastener dimensions or otherwise confirmed as compatible. Do not select a tool only because it is described as an electric, pneumatic or cable staple gun.
Select sufficient crown clearance, choose an appropriate leg length and adjust the tool so the staple holds the cable without visibly compressing or cutting the insulation. Test the installation first.
The standard KYA 762 staple uses high-carbon steel with a galvanized zinc-plated finish.
KYA packaging specifies 1,000 staples per box.
Provide the required leg length, staple gun model, cable type, cable diameter, quantity, destination market and packaging or labeling requirements.
Contact KYA Fasteners to confirm sample availability. When replacing another cable staple series, test the fastener with the actual stapler, cable and substrate before bulk use.
Ask About 762 Cable StaplesKYA supplies cable staples and industrial fastening products for fastener distributors, electrical wholesalers, cable installers, hardware suppliers and professional fastening users.
For quotations on 762 7.62mm round crown low-voltage cable staples, send the required length, tool model, cable application, order quantity, destination market and packaging requirements.
