KYA-660 Automatic Rebar Twin Tier

Share to:
KYA-660B Automatic Rebar Twin Tier can tie from 16 x 16 - 32 x 29, up to 38 x 16 x 16, 25 x 25 x 16 x 16(Unit: mm) rebar, making it one of the battery-powered rebar tying tools capable of tying the largest-sized rebar available.
  • 660B
  • KYA
  • KYA-660B
  • 350mm x 120mm x 300mm
  • 2.3 kgs
  • 66mm
  • DC18V(5.0AH)
  • Approx .70mins
  • 0.6 seconds
  • Over 4600 ties
  • 1.0mm
  • Approx .260ties(1 turns)
  • Rebar Tier Instructions.pdf
Availability:
Quantity:

Product Overview:

This Rebar-tier featuring new mechanisms which make it the most efficient rebar tying tool on the market. In addition, This tying tool weighs in at only 2.3kgs making it light weight as well. With an included belt hook reinforcement workers easily can move around and carry the tool with less operator fatigue. The KYA-660B is designed with durability and efficiency in mind. Easily load dual tie wire coils with the quick load magazine design. With an easy push gear release you are able to quickly feed wire when loading the tool. After that, the dual wire feeding mechanism of the KYA-660B helps complete each tie in about a half second. As a result of the faster speeds you spend less man hours per job. In addition, the large jaw of the TwinTier ties rebar sizes up to #7 x #7 with 19 gauge wire and the thinner arm allows for tight ties at 45 degrees. Finally, an enclosed design provides greater protection against dust and debris getting in the tool.

Shorter Tie Height:

Last but not least, the shorter tie height of the KYA-660B means that you need less concrete to fully cover your tie wire. Each tie is about 50% shorter than previous models.


1) One hand operation-easy to handle


2) Faster than normal tying machine, shorten tie height, cost savings


3) 18V Li-ion higher capacity battery


4) Brushless twisting motor-long service life


5) Light weight & compact body


6) 1.0mm twin wires


Similar Tool:MAX RB611T Rebar Tier.

rebar twin tier


Product Description:

Automatic rebar tying machine
Model No.

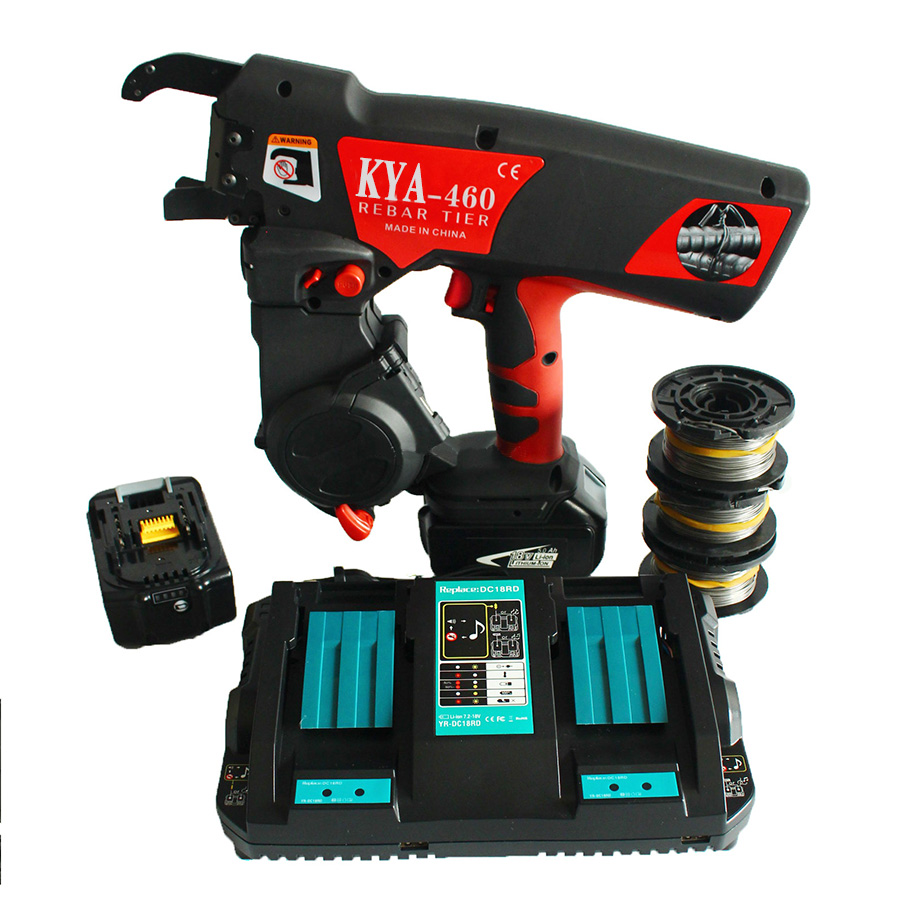

KYA-460(Li-ion)
KYA-660B(Li-ion)
Max Tying Diameter
46mm
66mm
Voltage & Capacity
DC18V(5.0AH)
DC18V(5.0AH)
Charge Time
Approx.70mins
Approx.70mins
Tying speed per knot
0.6 seconds
0.6 seconds
Ties per Charge
Over 4600ties
Over 4600 ties
Ties per Coil
Approx. 260ties(1turn)
Approx.260ties(1turns)
Turns per Tie
1 turn
1 turn
Wire Type
1.0mm Black annealed wire or Galvanized wire
1.0mm Black annealed wire or Galvanized wire
Net Weight
2.3kgs
2.3kgs
Dimension(L)X(W)X(H)
350mmX120mmX300mm
350mmX120mmX300mm
rebar tier


rebar twin tier

Rebar Tying Wire 1.0mm

Diameter:1.0mm
Gauge:19 Gauge
Coil Length:Double wire 33m(215-ft/spool)
Wraps per Tie:1-Twin wrap/tie
Ties per Coil: 250-260 ties/spool
(based on rebar size);
Material Code:Q195
Net weight:0.45kg/ spool
Heat Treatment: Annealed
Packing:30 spools/box

1-1


Battery Life:

The KYA TwinTier completes about 4000 ties per charge with a full charge completed in 70 minutes.

rebar twin tier

Operation Manual:

rebar tier

rebar tier


Features:

DOUBLE THE SPEED

WIder range to tie from 16mm x 16mm to 38mm x 16mm x 16mm. The Dual Wire Feeding Mechanism increases productivity.

COST SAVINGS

The Wire Pull Back Mechanism dispenses the precise amount of wire needed to form a tie reducing wire usage.

THE TWINTIER

The TwinTier can tie 4000 ties per battery charge and up to 240 ties per coil of wire (on 13mm x 13mm rebar).

SHORTER TIE HEIGHT

The TwinTier's Wire Bending Mechanism produces a shorter tie height. Less concrete is needed to fully cover a wire tie.

A LARGE JAW

A large jaw enables the TwinTier to tie up to a 32mm x 29mm rebar.

SLIM ARM FITS

Slim arm fits easily at a 45 degree angle for tight ties.

AN EASY PUSH GEAR

An easy push gear release effortlessly opens gears to quickly feed wire when loading the tool.


Application:

Precast Plants.

Road and Bridge Construction.

Tilt-Up Concrete Walls.

Concrete Foundations.

Retaining Walls.

Electrical Conduits.

Swimming Pools.


rebar tier tool

rebar twin tier

Rebar Size:

rebar twin tier
