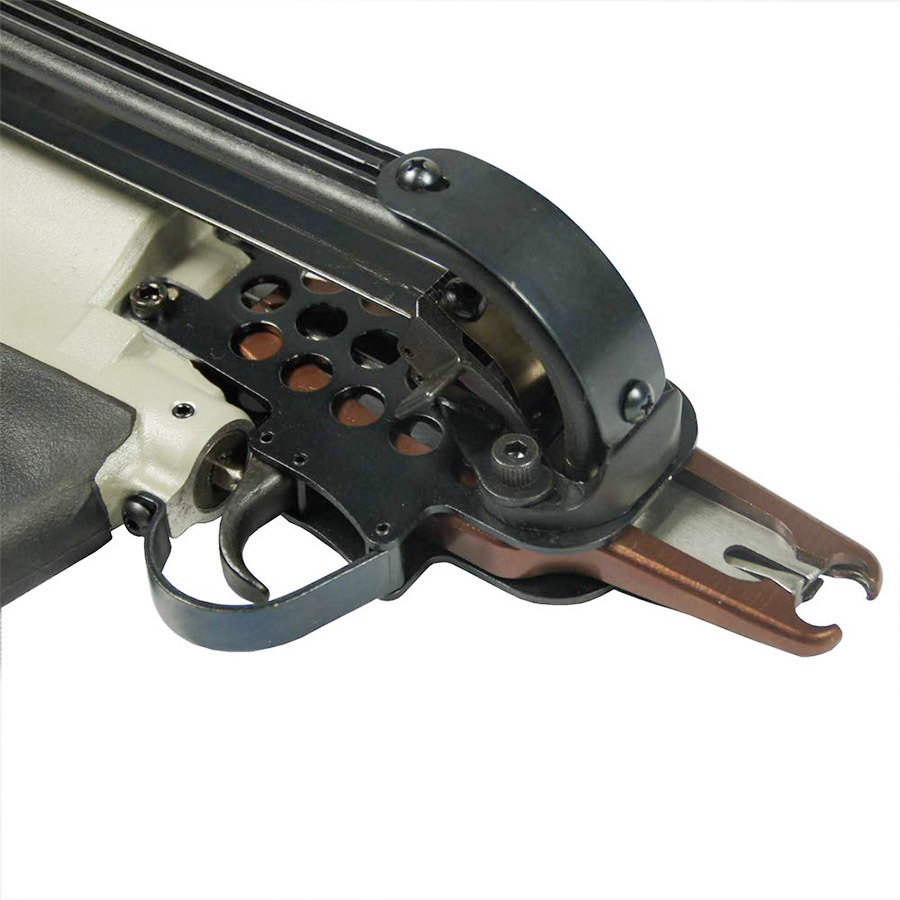

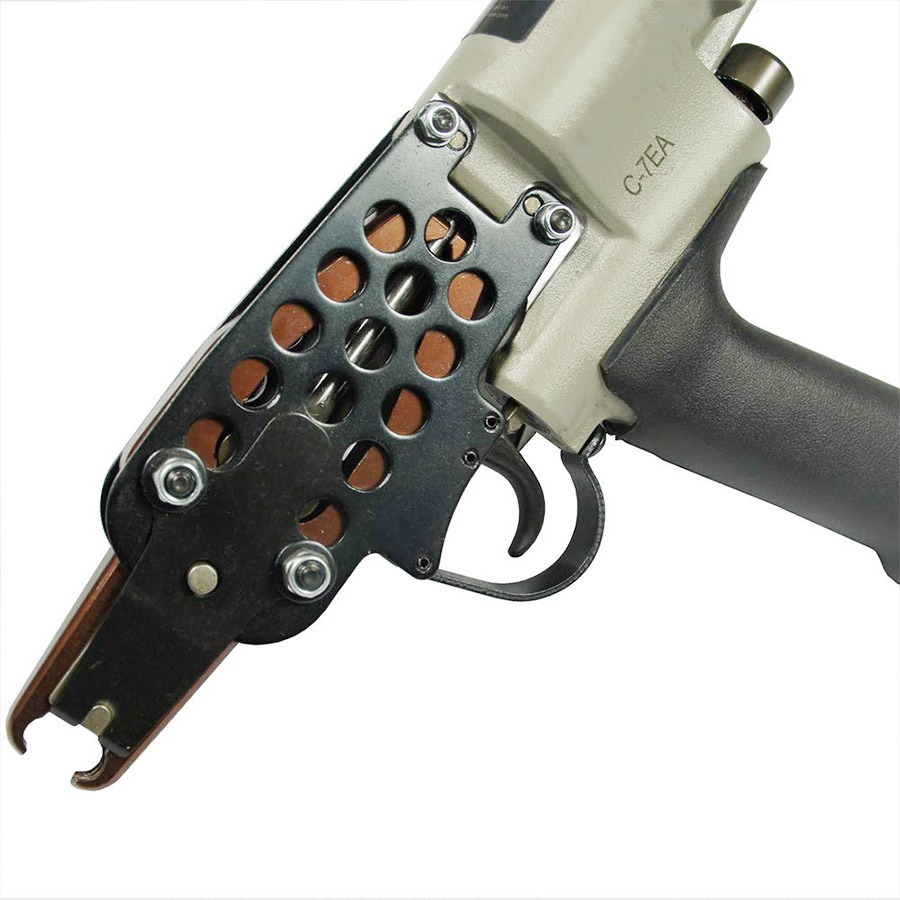

Pneumatic Hog Ring Tool C-7EA is a 15 gauge pneumatic C-ring gun designed for automotive seating, wire cages, bedding, bag closing, insulation, spring mattresses, pet cages and industrial wire fastening applications. This air hog ring tool uses 15 gauge 23.7–24mm crown hog ring staples, including 15G100, SC-6, HR23 and C24, for fast and reliable clamping in production environments.
The C-7EA hog ring gun features an ergonomic pull structure, symmetrical balance, rubber comfort grip and high-strength alloy steel muzzle. With 350mm x 220mm x 90mm tool dimensions, 1.54kg net weight, 1/4 inch NPT air inlet and 100 pcs load capacity, it helps reduce wrist and finger fatigue during long working shifts while delivering stable C-ring closing performance.
The C-7EA pneumatic hog ring tool is built for repetitive fastening work where hand-operated pliers are too slow or tiring. It closes C-ring staples around wire, fabric, mattress springs, cage mesh, automotive seat materials and industrial assemblies with less operator fatigue and more consistent fastening results.
15 gauge C-ring tool: Designed for 15 gauge 23.7–24mm crown hog ring staples.
100 pcs load capacity: Supports efficient fastening with fewer reloads in production work.
Ergonomic pull structure: Helps reduce wrist and finger fatigue during extended use.
High-strength alloy steel muzzle: Improves wear resistance and helps deliver consistent clamping.
Rubber comfort grip: Provides better control and comfort in industrial fastening tasks.
Easy loading design: Helps improve operating efficiency and reduce downtime.
| Specification | Details |
|---|---|
| Product Name | Pneumatic Hog Ring Tool C-7EA |
| Model | C-7EA |
| Brand | KYA |
| Code | KYA-7EA |
| Air Tool Type | Pneumatic Hog Ring Tool / C-Ring Gun |
| Tool Dimensions | 350mm x 220mm x 90mm / L x W x H |
| Net Tool Weight | 1.54kg / 3.39lbs |
| Air Inlet | 1/4 inch NPT |
| Load Capacity | 100 pcs |
| Applicable Hog Rings | 15 gauge 23.7–24mm crown C-ring staples / hog ring staples |
| Compatible Hog Ring Models | 15G100, SC-6, HR23, C24 |
| Hog Ring Crown | 23.8mm |
| Hog Ring Thickness | 1.8mm |
| Hog Ring Height | 12.0mm |
| Main Applications | Automotive seating, wire cages, spring mattresses, bedding, bag closing, insulation, pet cages and wire connections |
| Fastener Requirement | C-7EA Compatibility | Buying Note |
|---|---|---|
| Gauge | 15 Gauge | Use matching 15 gauge hog rings to avoid poor closing or tool feeding problems. |
| Crown Range | 23.7–24mm crown | Confirm crown size before ordering replacement C-ring staples. |
| Common Models | 15G100, SC-6, HR23, C24 | Select galvanized, stainless steel or other finish according to environment and application. |
| Staple Dimensions | 23.8mm crown, 1.8mm thickness, 12.0mm height | Match size to material thickness, closing diameter and required clamping strength. |
Industrial C-ring closing: Built for automotive, mattress, cage and industrial fastening operations.
Ergonomic balance: Symmetrical design helps reduce wrist fatigue during repetitive fastening work.
Durable alloy steel muzzle: Wear-resistant muzzle supports longer service life and consistent ring closing.
Fast loading process: 100 pcs capacity helps reduce reloading frequency during production.
Rubber comfort grip: Improves handling, control and operator comfort.
15 gauge hog ring support: Compatible with 23.7–24mm crown C-rings used in cage, mattress and seating applications.
Pneumatic Hog Ring Tool C-7EA is suitable for industrial fastening tasks that require quick and uniform C-ring closure around wire, mesh, fabric, springs and assembled materials.
Automotive seat manufacturing and car seat upholstery
Spring mattresses and independent pocket spring mattress production
Pet cages, animal cages and tight mesh cage fabrication
Wire cage assembly and wire mesh connections
Bedding, bag closing and insulation fastening
Furniture, upholstery and general industrial wire fastening
| Selection Point | What to Check | Recommendation |
|---|---|---|
| Hog Ring Size | Gauge, crown, thickness and height | Use 15 gauge 23.7–24mm crown C-rings such as 15G100, SC-6, HR23 or C24. |
| Air System | Air inlet, air hose and compressor setup | Confirm 1/4 inch NPT connection and maintain clean, stable air supply for consistent operation. |
| Application Material | Wire diameter, mesh size, fabric thickness and ring closing diameter | Test samples before bulk production to confirm ring closure and clamping strength. |
| Production Volume | Daily fastening quantity and operator shift length | Choose pneumatic C-7EA for repetitive, high-volume hog ring fastening instead of manual pliers. |
It is used to fasten C-ring staples in automotive seating, wire cages, spring mattresses, bedding, bag closing, insulation, pet cages, wire mesh connections and other industrial fastening applications.
The C-7EA is compatible with 15 gauge 23.7–24mm crown hog ring staples, including 15G100, SC-6, HR23 and C24 models.
Yes. The tool uses an ergonomic structure, symmetrical balance, lightweight body and rubber comfort grip to help reduce wrist and finger fatigue during long production shifts.
The load capacity is 100 pcs, which helps reduce reloading frequency during repetitive fastening work.
The air inlet is 1/4 inch NPT. Use a suitable air hose and clean compressed air supply for stable tool operation.
Yes. KYA can supply compatible 15 gauge hog rings, including 15G100, SC-6, HR23 and C24 type C-rings, with material, finish and packing options according to your application.
Yes. Contact KYA for sample availability, compatible hog rings, spare parts, bulk order pricing, OEM requirements and shipping schedule.
KYA Fasteners supplies pneumatic tools, hog ring guns, hog rings, mattress clips, staples, nails, wire products and industrial fastening solutions for global customers. For automotive, mattress, cage and furniture applications, KYA provides pneumatic hog ring tools, compatible C-rings, spare parts and production fastening support.
Contact KYA to get factory-direct pricing for Pneumatic Hog Ring Tool C-7EA, including tool specifications, compatible hog rings, sample support, spare parts, bulk order pricing and shipping schedule.
