These 12 Gauge 7/8 Inch x .109 Inch Galvanized Smooth Shank Concrete and Steel Nails are plastic-collated concrete nails designed for fastening wood to concrete, wood to steel, steel to concrete, carpet to concrete, drywall track, ceiling systems, doors, windows, and other construction materials.
Made from alloy steel with a galvanized anti-corrosion coating, these smooth shank concrete nails feature a .109 inch shank diameter, 7/8 inch / 22mm length, 0-degree collation, and 1,000 pcs per box packing. They are compatible with CS3040 pneumatic nailers and many gas-powered concrete and steel nailers.
12 Gauge smooth shank concrete nails for nail guns.
.109 inch shank diameter and 7/8 inch / 22mm nail length.
Galvanized coating for corrosion resistance and smoother fastening.

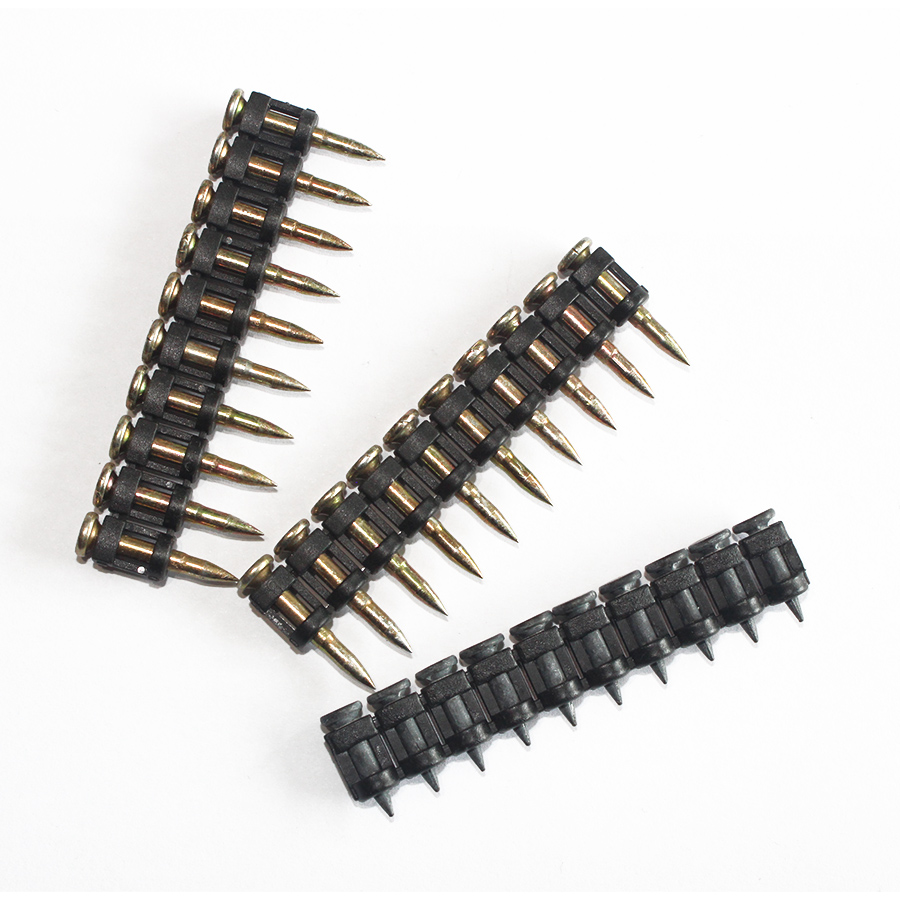

Plastic-collated strips with 10 nails per row for fast loading.
1,000 pcs per box and 10 boxes per case for construction and distributor supply.
Suitable for concrete, steel, masonry, filled block, drywall track, and construction fastening.
Watch the video to understand the concrete nail application, nail strip structure, and nail gun fastening performance.
These 12 Gauge concrete nails are supplied in 0-degree plastic-collated strips. The SD series includes multiple nail lengths from 19mm to 38mm, allowing buyers to choose the correct length for concrete, steel, masonry, and fastening depth requirements.
| Attribute | Details |
|---|---|
| Product Name | 12 Gauge 7/8 Inch x .109 Inch Galvanized Smooth Shank Concrete and Steel Nails |
| Series | SD Concrete Nails |
| Gauge | 12 Gauge |
| Length Range | 19mm–38mm |
| Main Size | 7/8 inch / 22mm |
| Angle | 0 degree |
| Material | Alloy steel / No.60 steel |
| Finish | Galvanized coating |
| Head Width | 6.1mm–6.3mm |
| Shank Diameter | 2.8mm–3.0mm / .109 inch–.118 inch |
| Shank Type | Smooth shank |
| Collation | Plastic collated |
| Packing | 10 pcs/row, 100 rows/box, 1,000 pcs/box, 10 boxes/case |
| Compatible Tools | CS3040 pneumatic nailer and many gas-powered concrete and steel nailers |
SD concrete nails are designed for nail gun fastening into concrete, steel, soft concrete, solid masonry, and filled block. The plastic strip helps keep nails aligned for centralized loading, while the galvanized coating helps reduce corrosion and improve surface smoothness.
Made from No.60 steel for high hardness and long durability.
Smooth surface with thick galvanized coating for anti-corrosion performance.
Plastic-collated strips reduce loosening and support fast loading.
Consistent nail size helps reduce jamming and improve fastening accuracy.
10 pcs per strip and 1,000 pcs per box for construction site and wholesale supply.
Suitable for doors, windows, ceilings, drywall track, wood-to-concrete, wood-to-steel, and steel-to-concrete fastening.
The SD series includes 19mm, 22mm, 25mm, 32mm, and 38mm concrete nails. The 7/8 inch / 22mm SD22 size is commonly used for concrete and steel fastening where a short, strong, galvanized smooth shank nail is required.
| Item | Specification | Length (mm) | Length (inch) | Pcs/Stick | Pcs/Box |
|---|---|---|---|---|---|
| SD19 | 12GA SD Series | 19mm | 3/4" | 10 pcs | 1,000 pcs |
| SD22 | 12GA, .109 inch shank diameter | 22mm | 7/8" | 10 pcs | 1,000 pcs |
| SD25 | Wire diameter .109 inch–.118 inch | 25mm | 1" | 10 pcs | 1,000 pcs |
| SD32 | Head width 6.1mm–6.3mm | 32mm | 1-1/4" | 10 pcs | 1,000 pcs |
| SD38 | 12GA SD Series | 38mm | 1-1/2" | 10 pcs | 1,000 pcs |
KYA supplies multiple plastic-collated concrete nail sizes for different fastening depths. Buyers can select the correct nail length according to base material, fixture thickness, nailer compatibility, and required holding strength.
These galvanized concrete nails are suitable for fastening to soft concrete, solid masonry, filled block, and steel. They are commonly used by construction contractors, drywall installers, ceiling installers, window and door installers, flooring installers, and tool distributors.
Fastening wood to concrete.
Fastening wood to steel.
Fastening steel to concrete.
Fixing carpet to concrete.
Fastening drywall track, doors, windows, and ceiling systems.
Fastening to soft concrete, solid masonry, and filled block.
To achieve stable fastening and reduce jamming, buyers should match nail length, shank diameter, collation angle, nailer compatibility, and base material. The 7/8 inch / 22mm nail is suitable for many short-depth fastening tasks, while longer SD25, SD32, and SD38 nails can be selected for deeper penetration.
| Selection Factor | Recommendation |
|---|---|
| Nailer Compatibility | Confirm compatibility with CS3040 pneumatic nailer or gas-powered concrete and steel nailers. |
| Nail Length | Choose 19mm, 22mm, 25mm, 32mm, or 38mm according to fixture thickness and base material. |
| Base Material | Use for soft concrete, solid masonry, filled block, steel, and selected construction substrates. |
| Surface Finish | Select galvanized nails when corrosion resistance and smoother feeding are required. |
| Packing Requirement | 1,000 pcs per box and 10 boxes per case are suitable for construction projects and wholesale supply. |
KYA Fasteners supplies concrete nails, steel nails, collated nails, pneumatic nailers, gas nailer fasteners, industrial fasteners, staples, and fastening solutions for global distributors, contractors, construction suppliers, and tool dealers.
12 Gauge SD series concrete nails for nail gun fastening.
Galvanized smooth shank nails for concrete, steel, masonry, and filled block applications.
Multiple lengths available from 19mm to 38mm.
Plastic-collated strips for fast loading and stable feeding.
Suitable for bulk orders, construction projects, tool distributors, and fastener wholesalers.
They are used for fastening wood to concrete, wood to steel, steel to concrete, carpet to concrete, drywall track, doors, windows, ceilings, soft concrete, solid masonry, and filled block.
The main size is 7/8 inch, equal to 22mm. The shank diameter is .109 inch, and the nails are supplied in 0-degree plastic-collated strips.
These concrete nails are compatible with the CS3040 pneumatic nailer and many gas-powered concrete and steel nailers. Buyers should confirm nail length, shank diameter, and collation compatibility before ordering.
They are made from alloy steel / No.60 steel with a galvanized coating. This helps improve hardness, durability, surface smoothness, and corrosion resistance.
Available lengths include SD19 3/4" / 19mm, SD22 7/8" / 22mm, SD25 1" / 25mm, SD32 1-1/4" / 32mm, and SD38 1-1/2" / 38mm.
The standard packing is 10 nails per stick, 100 sticks per box, and 1,000 pcs per box. The page also lists 10 boxes per case for bulk supply.
Yes. These galvanized smooth shank concrete and steel nails can be used for steel-to-concrete fastening, wood-to-steel fastening, and other construction fastening applications when matched with a compatible nailer.
Bulk buyers include fastener distributors, tool dealers, construction contractors, drywall installers, ceiling installers, flooring installers, and building material wholesalers.
