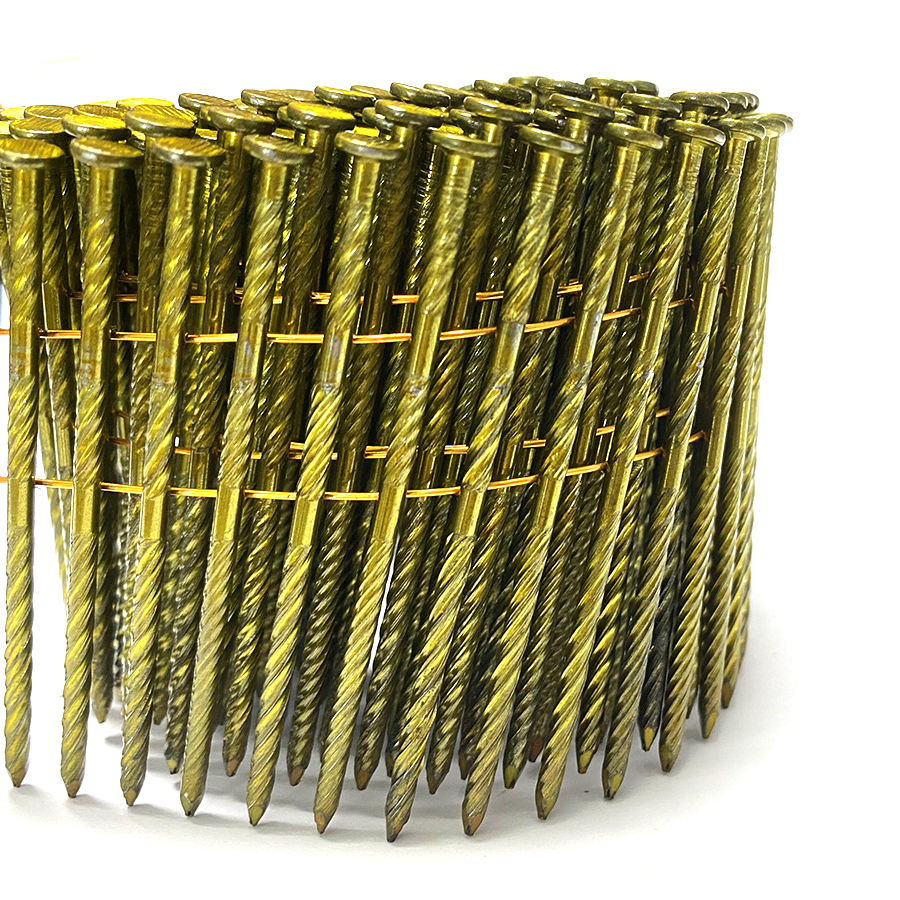

KYA Fasteners' 15 Degree Bright Screw Shank Wire Coil Nails 3.05x75mm are engineered for high-performance fastening in framing, sheathing, and fencing applications. Crafted from quality steel with a bright finish, these nails feature a screw shank for superior holding power in hardwoods, preventing splitting. Measuring 3.05mm in diameter and 75mm in length, they are wire-collated at a 15-degree angle for efficient loading in coil nailers, reducing downtime. With a full round head and options for chisel or diamond points, these nails are ideal for lathing, sheathing, and pallet assembly. Available in bright, electro-galvanized, or stainless steel finishes, they offer versatility for interior applications.
15-degree wire collation for efficient nailer operation
Screw shank design for enhanced holding power in hardwoods
3.05mm diameter and 75mm length for robust fastening
Full round head with chisel or diamond point options
Bright finish, with EG, HDG, or stainless steel options
Coil capacity of 200-3,000 nails for reduced reloading
| Specification | Details |
|---|---|
| Item | 15 Degree Bright Screw Shank Wire Coil Nails 3.05x75mm |
| Degree | 15 Degree |
| Collation Type | Wire Coil |
| Material | Steel (Galvanized, Stainless Steel, Aluminum options) |
| Diameter | 3.05mm (0.120 inch) |
| Length | 75mm (3 inch) |
| Shank | Screw |
| Head Type | Full Round Head |
| Head Diameter | 7.4mm |
| Head Thickness | 1.3mm |
| Point Type | Chisel, Diamond, Blunt, Beveled, No Point |
| Finishing | Bright (EG, HDG, MechGalv, Heat Treated options) |
| Coating | Yellow, Red, Blue (optional) |
| Coil Capacity | 200-3,000 nails |
| Packing | 4,000-16,000 pcs/box |
These 3.05x75mm screw shank coil nails are optimized for sheathing, fencing, and pallet assembly. Contact KYA Fasteners for bulk orders or custom finishes.
Request a Bulk Quote| Wire Gauge | Length (inch) | Pcs/Box |
|---|---|---|
| .083 | 1-1/4 | 16,000 |
| .083 | 1-1/2 | 16,000 |
| .083 | 1-3/4 | 16,000 |
| .083 | 2 | 12,000 |
| .090 | 1-1/2 | 12,000 |
| .090 | 1-3/4 | 12,000 |
| .090 | 2 | 9,000 |
| .090 | 2-1/4 | 9,000 |
| .099 | 1-1/2 | 12,000 |
| .099 | 1-3/4 | 9,000 |
| .099 | 2 | 9,000 |
| .099 | 2-1/4 | 9,000 |
| .099 | 2-1/2 | 9,000 |
| .105 | 1-1/2 | 7,500 |
| .105 | 2 | 7,500 |
| .105 | 2-1/4 | 7,500 |
| .105 | 2-1/2 | 7,500 |
| .105 | 2-3/4 | 5,000 |
| .113 | 2 | 5,000 |
| .113 | 2-1/4 | 5,000 |
| .113 | 2-3/8 | 5,000 |
| .113 | 2-1/2 | 5,000 |
| .113 | 2-3/4 | 5,000 |
| .113 | 3 | 5,000 |
| .113 | 3-1/4 | 4,500 |
| .120 | 2-1/2 | 5,000 |
| .120 | 2-3/4 | 5,000 |
| .120 | 3 | 4,500 |
| .120 | 3-1/4 | 4,500 |
| .120 | 3-1/2 | 4,000 |
| .131 | 2-1/2 | 4,500 |
| .131 | 3 | 4,000 |
| .131 | 3-1/4 | 4,000 |
| .131 | 3-1/2 | 4,000 |
Smooth Shank: Common for framing and general construction, offering sufficient holding power for everyday use.
Ring Shank: Superior holding power in softer woods, preventing backing out due to ring friction.
Screw Shank: Ideal for hardwoods, spins during driving to prevent splitting and ensure a tight hold.
Annular Thread Shank: Beveled rings press against wood or sheetrock, preventing backing out.
Nail Head
Screw Shank
Nail Point
These screw shank coil nails are designed for heavy-duty fastening in construction and industrial applications.
Sheathing for walls and roofs
Ply bracing for structural reinforcement
Fencing fixation for residential and commercial properties
Timber and softer pine framing
Composition roofing and underlayments
Fiber cement board installation
Cabinet and furniture frame assembly
Bright Finish: No coating, suitable for interior framing and trim where corrosion protection is not needed.
Electro-Galvanized (EG): Thin zinc layer for minimal corrosion protection, ideal for indoor applications like bathrooms and kitchens.
Hot Dip Galvanized (HDG): Thick zinc coating for outdoor use, protecting against daily weather conditions.
Stainless Steel (SS): Best corrosion resistance, suitable for both interior and exterior applications, available in 304 or 316 grades.
Watch how our 3.05x75mm screw shank coil nails perform in sheathing, fencing, and pallet assembly applications. For additional demos, contact us.
These nails are used for sheathing, ply bracing, fencing, framing, roofing, underlayments, fiber cement boards, and furniture frames in construction and industrial applications.
Screw shank nails spin during driving, creating a tight groove in hardwoods to prevent splitting and ensure a secure hold.
The bright finish is best for indoor use. For outdoor applications, choose hot dip galvanized or stainless steel variants for better corrosion resistance.
Wire collation at a 15-degree angle allows for high coil capacity (200-3,000 nails), reducing reloading time in nailers.
Yes, KYA offers bright, electro-galvanized, hot dip galvanized, or stainless steel finishes, with optional yellow, red, or blue coatings.
These nails are compatible with 15-degree coil framing nailers, ensuring seamless operation in professional settings.
Ask a QuestionWith over 20 years of expertise, KYA Fasteners is a trusted leader in industrial fasteners, delivering high-quality 15 degree 3.05x75mm screw shank coil nails. Our SGS-certified production ensures durability and precision, serving clients in over 50 countries. We ship from Qingdao port within 20-30 days, offering customized solutions for construction and industrial needs.
Global Reach: Exporting to 50+ countries with reliable coil nails
Premium Quality: Steel with bright, galvanized, or stainless steel options
Fast Delivery: Ships worldwide in 20-30 days from Qingdao port
Custom Solutions: Tailored nails for specific applications
Elevate your projects with 3.05x75mm coil nails. Request a free quote today to experience KYA's quality and service.
Contact KYA Fasteners
