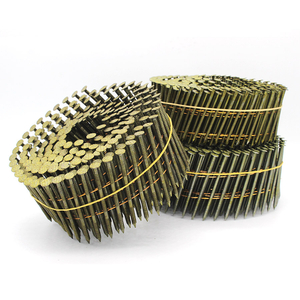

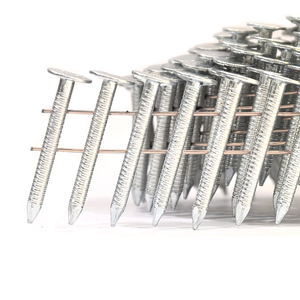

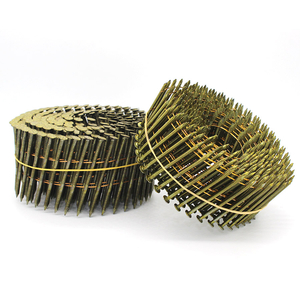

Coil nails can be smooth nails, ring nails, screw nails according to shank types. Also written as collated nails. Usually welded twice into coils at 15 or 16 angle degree for easy and continuous operation. Collated wire nails are the preferred fasteners for most crating and pallet siding and fencing applications. Using coil nails allow the operator to hold more nails in the nailing gun and reduce reloading time.
The nails come in all forms of vinyl coated and galvanized finish, as well as deformed shanks with varying holding power such as smooth, screw and ring.
The pints can be diamond point (DP), common round point (CP) and FP (flat point). Collated steel nails can be divided into conical coils and flat coils.
Electro Galvanized 12um Wire Coil Nails 2.7x70mm
● For use with 15 Degree Coil Framing Nailer.
● Galvanized coating resists corrosion and rust. For interior and exterior use. Rated for use in treated lumber.
● Wire Collated.
● Tighter hold power and increased durability.
● Complete styles, gauges and sizes are available.
● Full Round Head.
Electro Galvanized 12um Wire Coil Nails 2.7x70mm
Degree: 15 degree. 16 degree, o degree.
Collation Type: Wire Coil
Material: Carbon Steel
Diameter: 1.6 - 3.8 mm | 0.063 - 0.148"
Length: 25mm-150mm.
Coil Capacity：200 - 3,000
Shank: Smooth, Ring, Screw.
Finishing: Bright, EG, HDG, DACR, MechGalv, Heat Treated.
Coating: Yellow, Red, Blue.
Nail Point: Chisel point, diamond point, no point, blunt point， beveled point.
Nail Head
Nail Shank
Nail Point
Galvanized Iron Wire Coil Nails Specifications with Nails and Coils Data:
| Wire Dia. (Nail length) | Shank dia. | Expansile dia. | Head dia. | Head thickness | First welding position | Second welding position | Inside Coil Dia. |
| 2.1 ( 25 - 38 mm ) | 2.1 +/- 0.02 - 0.05 mm | 2.1 + 0.15-0.3 mm | 5.0 mm | 0.8 mm | 8 mm | 19 mm | 25 mm |
| 2.1 ( 45 - 50 mm ) | 2.1 +/- 0.02 - 0.05 mm | 2.1 + 0.15-0.3 mm | 5.0 mm | 0.8 mm | 19 mm | 37 mm | 32 mm |
| 2.3 x 38 mm | 2.3 +/- 0.02 - 0.05 mm | 2.3 + 0.15-0.3 mm | 5.5 mm | 0.8 mm | 8 mm | 19 mm | 32 mm |
| 2.2 - 2.3 ( 45 - 60mm ) | 2.3 +/- 0.02 - 0.05 mm | 2.3 + 0.15-0.3 mm | 5.5 mm | 0.8 mm | 19 mm | 37 mm | 32 mm |
| 2.5 ( 35 - 38 mm ) | 2.5 +/- 0.02 - 0.05 mm | 2.5 + 0.15-0.3 mm | 6.0 mm | 1.0 mm | 8 mm | 19 mm | 32 mm |
| 2.4 - 2.5 ( 50 - 75 mm ) | 2.5 +/- 0.02 - 0.05 mm | 2.5 + 0.15-0.3 mm | 6.0 mm | 1.0 mm | 19 mm | 37 mm | 32 mm |
| 2.7 - 2.9 ( 50 - 83 mm ) | 2.7 +/- 0.02 - 0.05 mm | 2.7 + 0.15-0.3 mm | 7.1 mm | 1.0-1.1 mm | 19 mm | 37 mm | 32 mm |
| 3.0 - 3.1 ( 80 - 90 mm ) | 3.0 +/- 0.02 - 0.05 mm | 3.0 + 0.15-0.3 mm | 7.4 mm | 1.3 mm | 19 mm | 37 mm | 32 mm |
| 3.1 x 100 mm | 3.1 +/- 0.02 - 0.05 mm | 3.1 + 0.15-0.3 mm | 7.4 mm | 1.3 mm | 19 mm | 52 mm | 32 mm |
Coil Nails Wire Gauge in Inch:
| Wire Gauge | Length | Package (pcs/box) |
| .083’’ | 1-1/4” | 16000 |
| .083’’ | 1-1/2’’ | 16000 |
| .083’’ | 1-3/4’’ | 16000 |
| .083’’ | 2’’ | 12000 |
| .090’’ | 1-1/2’’ | 12000 |
| .090’’ | 1-3/4’’ | 12000 |
| .090’’ | 2’’ | 9000 |
| .090’’ | 2-1/4’’ | 9000 |
| .099’’ | 1-1/2’’ | 12000 |
| .099’’ | 1-3/4’’ | 9000 |
| .099’’ | 2’’ | 9000 |
| .099’’ | 2-1/4’’ | 9000 |
| .099’’ | 2-1/2’’ | 9000 |
| .105’’ | 1-1/2’’ | 7500 |
| .105’’ | 2’’ | 7500 |
| .105’’ | 2-1/4’’ | 7500 |
| .105’’ | 2-1/2’’ | 7500 |
| .105’’ | 2-3/4’’ | 5000 |
| .113’’ | 2’’ | 5000 |
| .113’’ | 2-1/4’’ | 5000 |
| .113’’ | 2-3/8’’ | 5000 |
| .113’’ | 2-1/2’’ | 5000 |
| .113’’ | 2-3/4’’ | 5000 |
| .113’’ | 3’’ | 5000 |
| .113’’ | 3-1/4’’ | 4500 |
| .120’’ | 2-1/2’’ | 5000 |
| .120’’ | 2-3/4’’ | 5000 |
| .120’’ | 3’’ | 4500 |
| .120’’ | 3-1/4’’ | 4500 |
| .120’’ | 3-1/2’’ | 4000 |
| .131’’ | 2-1/2’’ | 4500 |
| .131’’ | 3’’ | 4000 |
| .131’’ | 3-1/4’’ | 4000 |
| .131’’ | 3-1/2’’ | 4000 |
Smooth Shank
Smooth shank nails are the most common and are often used for framing and general construction applications. They offer enough holding power for most everyday use.

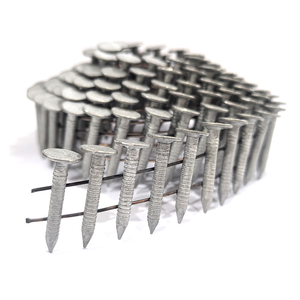

Ring Shank
Ring shank nails offer superior holding power over smooth shank nails because the wood fills in the crevasse of the rings and also provide friction to help prevent the nail from backing out over time. A ring shank nail is often used in softer types of wood where splitting is not an issue.
Screw Shank
A screw shank nail is generally used in hard woods to prevent the wood from splitting while the fastener is being driven. The fastener spins while being driven (like a screw) which creates a tight groove that makes the fastener less likely to back out.
Annular Thread Shank
Annular thread is very similar to a ring shank except the rings are externally beveled which presses against the wood or sheet rock to prevent the fastener from backing out.
Sheathing.
Ply bracing.
Fencing fixation.
Timber & softer pine framing material.
Composition roofing.
Underlayments.
Fiber cement boards.
Cabinet and furniture frames.
Bright Finish
Bright fasteners have no coating to protect the steel and are susceptible to corrosion if exposed to high humidity or water. They are not recommended for exterior use or in treated lumber, and only for interior applications where no corrosion protection is needed. Bright fasteners are often used for interior framing, trim and finish applications.
Hot Dip Galvanized (HDG)
Hot dip galvanized fasteners are coated with a layer of Zinc to help protect the steel from corroding. Although hot dip galvanized fasteners will corrode over time as the coating wears, they are generally good for the lifetime of the application. Hot dip galvanized fasteners are generally used for outdoor applications where the fastener is exposed to daily weather conditions such as rain and snow. Areas near the coasts where the salt content in rain water is much higher, should consider Stainless Steel fasteners as salt accelerates the deterioration of the galvanization and will accelerate corrosion.
Electro Galvanized (EG)
Electro Galvanized fasteners have a very thin layer of Zinc that offers some corrosion protection. They are generally used in areas where minimal corrosion protection is needed such as bathrooms, kitchens and other areas that are susceptible to some water or humidity. Roofing nails are electro galvanized because they are generally replaced before the fastener begins to wear and are not exposed to harsh weather conditions if installed properly. Areas near the coasts where salt content in rain water is higher should consider a Hot Dip Galvanized or Stainless Steel fastener.
Stainless Steel (SS)
Stainless steel fasteners offer the best corrosion protection available. The steel may oxidize or rust over time but it will never lose its strength from corrosion. Stainless Steel fasteners can be used for exterior or interior applications and generally come in 304 or 316 stainless steel.
