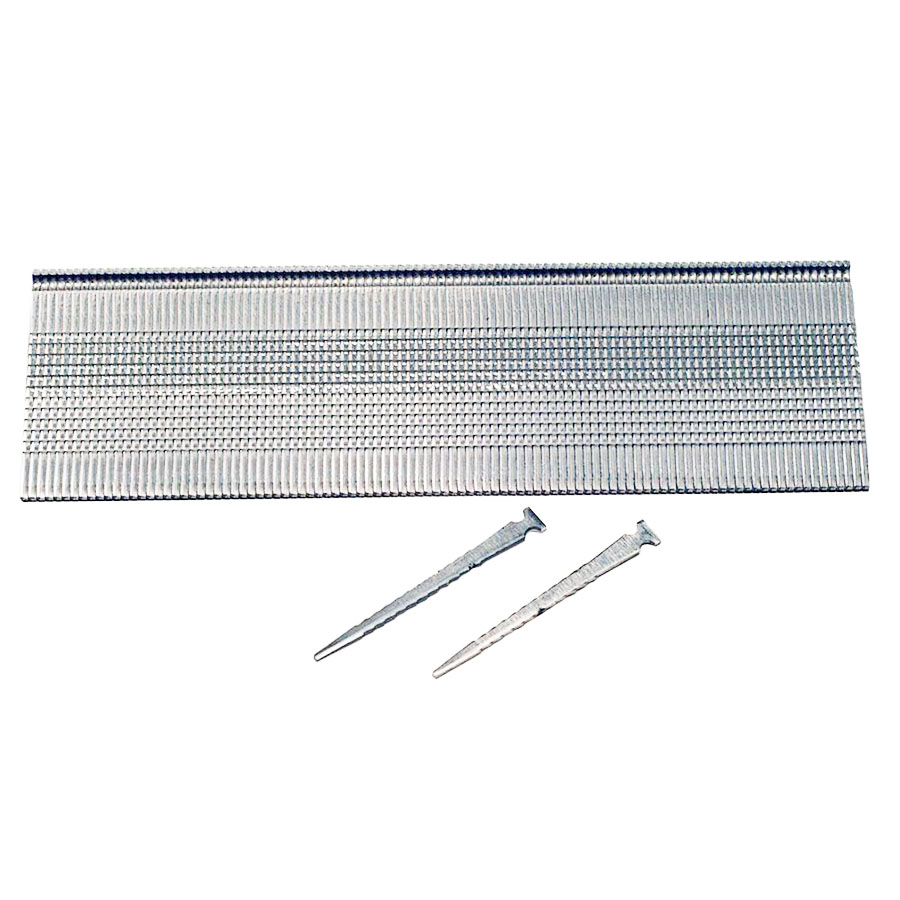

KYA 16 Gauge T Cleat Nails are professional flooring fasteners designed for installing 1/2" to 3/4" solid hardwood flooring, tongue-and-groove flooring, decorative paneling, ceilings, and subflooring. Made from full-hard carbon steel, these T-shaped flooring cleats provide the strength required for driving into dense wood while helping reduce bending during installation.
The wide T-shaped head, cupped point, and well-defined barbs are designed to provide secure holding power while reducing the risk of wood splitting and nail backing out. Available in 38mm, 45mm, and 50mm lengths, these glue-collated flooring cleat nails are compatible with flooring nailers designed for 16-gauge T-cleats.
| Specification | Details |
|---|---|
| Product Type | T-Shaped Flooring Cleat Nails |
| Gauge | 16 Gauge |
| Thickness | Approximately 1.52mm |
| Head Width | 5.8mm |
| Available Lengths | 38mm, 45mm, 50mm |
| Imperial Lengths | 1-1/2", 1-3/4", 2" |
| Material | Full-Hard Carbon Steel |
| Head Type | Wide T-Shaped Wedge Head |
| Point | Cupped Point |
| Shank | Barbed / Ribbed Shank |
| Collation | Glue Collated |
| Nails Per Strip | 100 Nails |
| Typical Flooring Thickness | 1/2" to 3/4" Solid Wood Flooring |
| Compatible Tool Type | Flooring Nailers Designed for 16 Gauge T-Cleats |
KYA 16 Gauge T Cleat Flooring Nails are supplied in three standard lengths for different hardwood flooring installation requirements. Bulk packaging is designed for flooring distributors, wholesalers, contractors, and professional fastening suppliers.
| Model | Length | Inch | Nails / Strip | Nails / Box | Boxes / Carton | Cartons / Pallet |
|---|---|---|---|---|---|---|
| T38 | 38mm | 1-1/2" | 100 | 1,000 | 10 | 60 |
| T45 | 45mm | 1-3/4" | 100 | 1,000 | 10 | 60 |
| T50 | 50mm | 2" | 100 | 1,000 | 10 | 45 |
Full-Hard Carbon Steel: Provides sufficient rigidity for driving into hardwood and helps reduce nail bending during installation.
Wide T-Shaped Head: The 5.8mm wedge-shaped head helps secure flooring tightly during installation.
Cupped Point: Designed to penetrate hardwood while reducing the risk of splitting the flooring tongue.
Barbed Shank: Well-defined barbs improve mechanical grip and help resist the cleat backing out after installation.
Glue Collation: Keeps cleats aligned in strips for consistent feeding through compatible flooring nailers.
Three Standard Lengths: Choose from 38mm, 45mm, and 50mm according to flooring thickness and installation requirements.
Professional Flooring Applications: Suitable for solid hardwood flooring, tongue-and-groove installations, paneling, ceilings, and subflooring.
T cleat flooring nails are mechanical fasteners designed primarily for fastening hardwood flooring to a suitable wood subfloor. They are driven through the tongue of tongue-and-groove flooring using a compatible flooring nailer, helping secure each board while keeping the fastener concealed after the next board is installed.
The T-shaped head provides a broad contact area, while the barbed shank grips the substrate after penetration. This makes 16-gauge flooring cleats suitable for applications where secure mechanical fastening and reliable holding power are required.
| Application | Typical Use |
|---|---|
| Solid Hardwood Flooring | Installation of approximately 1/2" to 3/4" solid wood flooring. |
| Tongue-and-Groove Flooring | Concealed angle fastening through the flooring tongue. |
| Decorative Wood Paneling | Mechanical fastening of compatible wood panels. |
| Ceiling Applications | Fastening compatible tongue-and-groove wood ceiling materials. |
| Subflooring | Selected wood fastening applications where T-cleat compatibility is specified. |
The correct flooring cleat length depends on the flooring material, board thickness, subfloor construction, nailer specifications, and the installation instructions provided by the flooring manufacturer.
| Size | Length | Selection Consideration |
|---|---|---|
| T38 | 38mm / 1-1/2" | Shortest option in the range. Confirm flooring thickness and required penetration before use. |
| T45 | 45mm / 1-3/4" | Intermediate length for flooring applications requiring greater penetration than T38. |
| T50 | 50mm / 2" | Longest standard option for applications requiring deeper fastening. |
Always check the flooring manufacturer's fastening requirements and confirm that the selected cleat length is compatible with your flooring nailer before installation.
Do not select flooring cleats based only on nail length. A compatible flooring nailer must be designed to accept the correct gauge, T-shaped head profile, strip configuration, and length range.
| Compatibility Check | KYA T Cleat Specification |
|---|---|
| Fastener Type | T-Shaped Flooring Cleat |
| Gauge | 16 Gauge |
| Length Range | 38-50mm / 1-1/2"-2" |
| Collation | Glue-Collated Strip |
| Strip Quantity | 100 Cleats Per Strip |
If you are replacing another manufacturer's flooring cleats, send KYA Fasteners the nailer model, existing fastener dimensions, or fastener sample information so compatibility can be checked before bulk ordering.
Hardwood flooring fasteners must penetrate dense material while maintaining secure holding power. KYA T-shaped flooring cleats combine a rigid carbon steel body with a cupped point and barbed shank to support consistent installation in compatible hardwood flooring systems.
The wide T-shaped head helps hold the flooring securely, while the barbed section increases resistance to withdrawal. The cupped point is designed to reduce splitting as the cleat enters the wood, which is particularly important when working with solid hardwood flooring.
KYA Fasteners supplies 16 Gauge T Cleat Nails for professional flooring applications and bulk purchasing. Standard sizes include T38, T45, and T50, with 1,000 cleats per box and 10 boxes per carton.
When requesting a quotation, provide the required cleat size, estimated order quantity, destination country, flooring nailer model, and any packaging requirements. This information helps us confirm the appropriate product specification and quotation for your market.
Request Wholesale Price View Flooring Cleat Nails
They are primarily designed for fastening 1/2" to 3/4" solid hardwood flooring and tongue-and-groove flooring. They can also be used in compatible decorative paneling, ceiling, and subfloor applications.
Standard sizes are T38 at 38mm or 1-1/2", T45 at 45mm or 1-3/4", and T50 at 50mm or 2".
They are designed for flooring nailers that accept 16-gauge T-shaped cleats in the corresponding length range. Always check the nailer's fastener specification before ordering.
The main difference is length. T38 is 38mm, T45 is 45mm, and T50 is 50mm. The correct size depends on flooring thickness, subfloor construction, required penetration depth, and flooring manufacturer recommendations.
The barbs increase mechanical grip after the nail enters the wood and help resist withdrawal, providing secure fastening for hardwood flooring installations.
The cupped point is designed to help the cleat penetrate hardwood while reducing the risk of splitting the flooring tongue during installation.
Yes. KYA 16 Gauge T Cleat Nails are glue collated with 100 nails per strip for loading into compatible flooring nailers.
Each standard box contains 1,000 cleat nails. There are 100 nails per strip and 10 boxes per carton.
Compatibility depends on the engineered flooring construction and the flooring manufacturer's installation instructions. Check whether mechanical cleat fastening is permitted and confirm the required gauge and fastener length before installation.
Check your flooring thickness, subfloor type, required penetration depth, flooring nailer specification, and flooring manufacturer's installation requirements. If you are unsure, provide these details to KYA Fasteners before ordering.
Yes. Flooring distributors, fastener wholesalers, tool suppliers, and professional buyers can contact KYA Fasteners for bulk pricing, packaging information, and product compatibility assistance.
Looking for 16 Gauge T Cleat Nails for hardwood flooring? Send us the required size, quantity, destination market, flooring nailer model, and packaging requirements. KYA Fasteners can help you confirm the suitable T38, T45, or T50 flooring cleat specification for your application.
