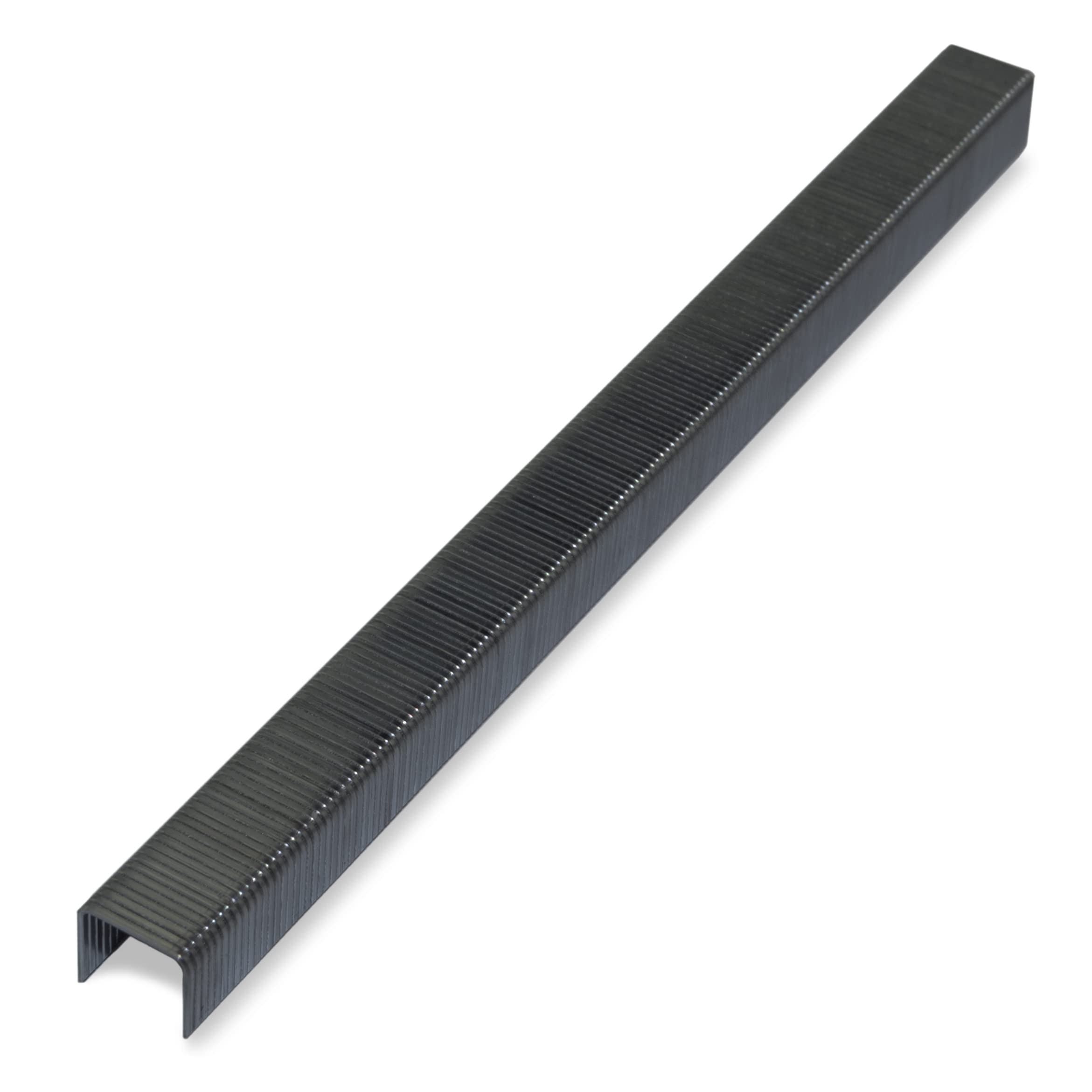

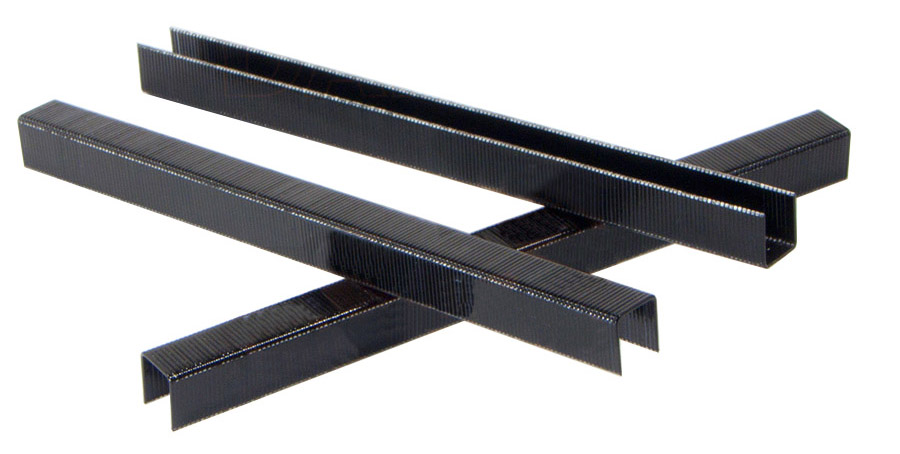

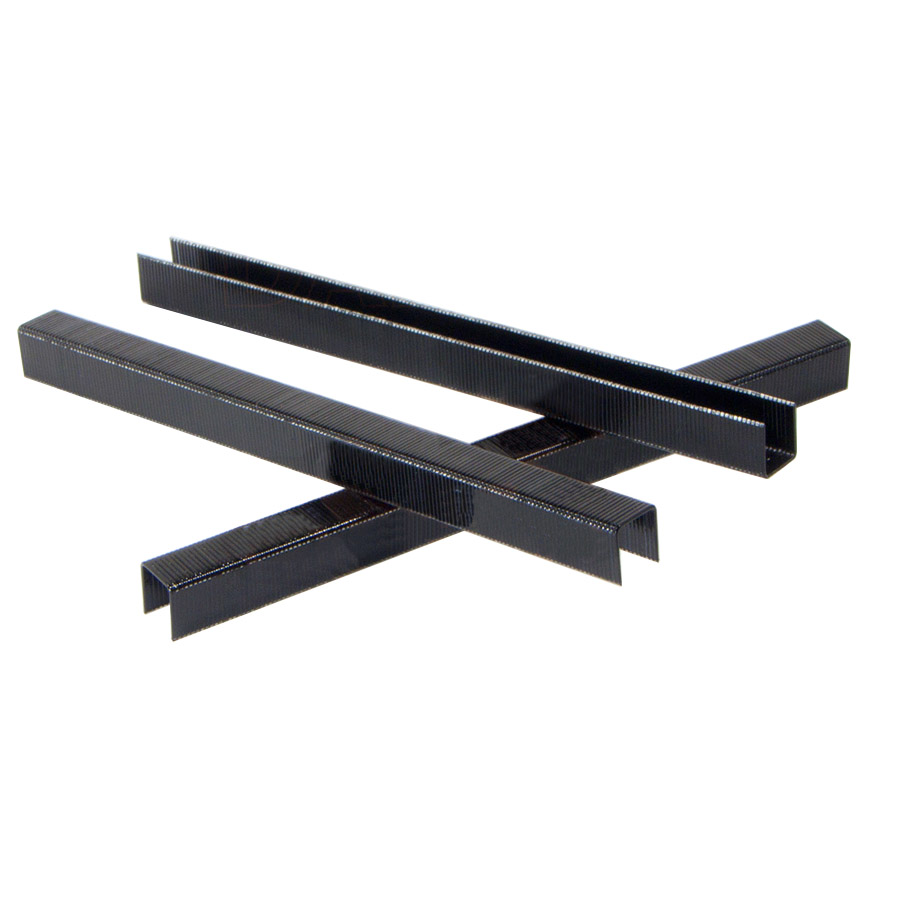

KYA 22 gauge 71 Series black upholstery staples are fine-wire staples designed for professional upholstery, furniture manufacturing, automotive trim and other light-material fastening applications. The 71 Series uses a 3/8" crown, approximately 9.0 mm, with available leg lengths from 4 mm to 16 mm.
The fine 0.75 × 0.55 mm steel wire helps keep the fastener profile small when attaching fabric, vinyl, padding and similar materials. The featured black configuration is suitable where a dark staple appearance is preferred for the finished assembly.
22 gauge fine wire: designed for fastening fabric and other relatively light materials with a small visible fastener profile.
3/8" crown: approximately 9.0 mm crown width, a common format for professional upholstery staplers.
4–16 mm leg range: multiple lengths for different material thicknesses and substrates.
Chisel point: designed for efficient penetration into compatible substrates.
Black configuration: useful where a dark staple appearance is preferred.
Glue-collated strips: supplied in collated form for compatible pneumatic staplers.
10,000 staples per box: bulk packaging for workshops, furniture manufacturers and distributors.
| Parameter | Specification |
|---|---|
| Series | 71 Series |
| Gauge | 22 Gauge |

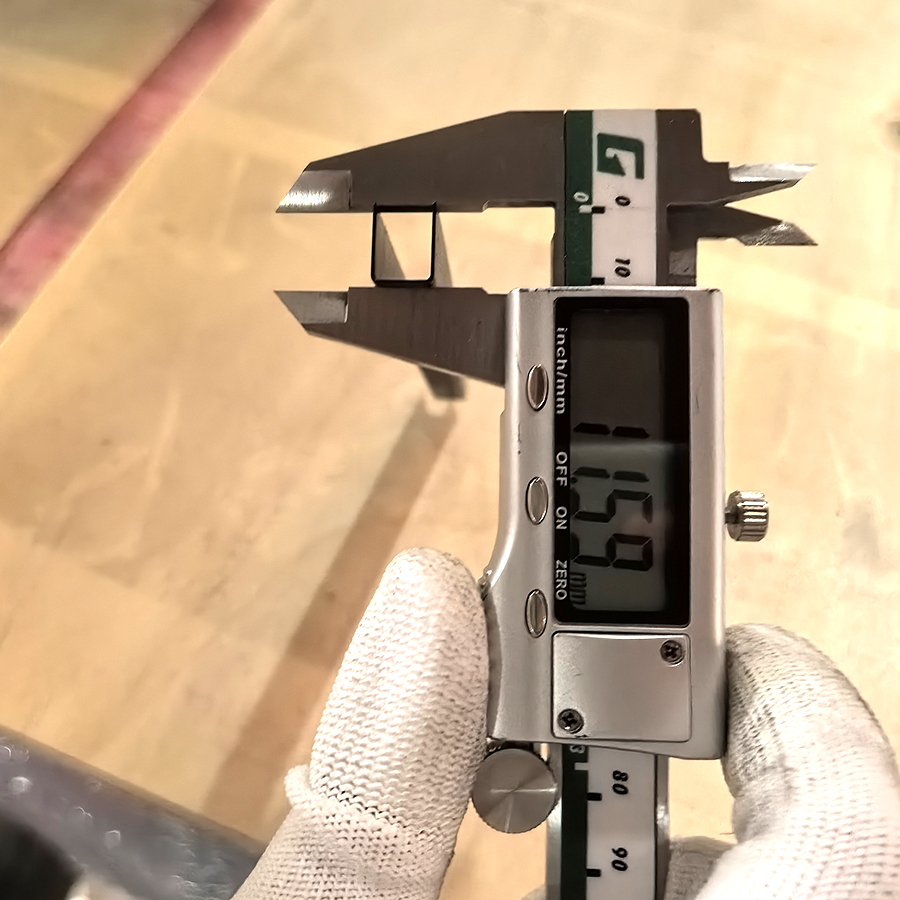

| Wire Size | 0.75 × 0.55 mm |

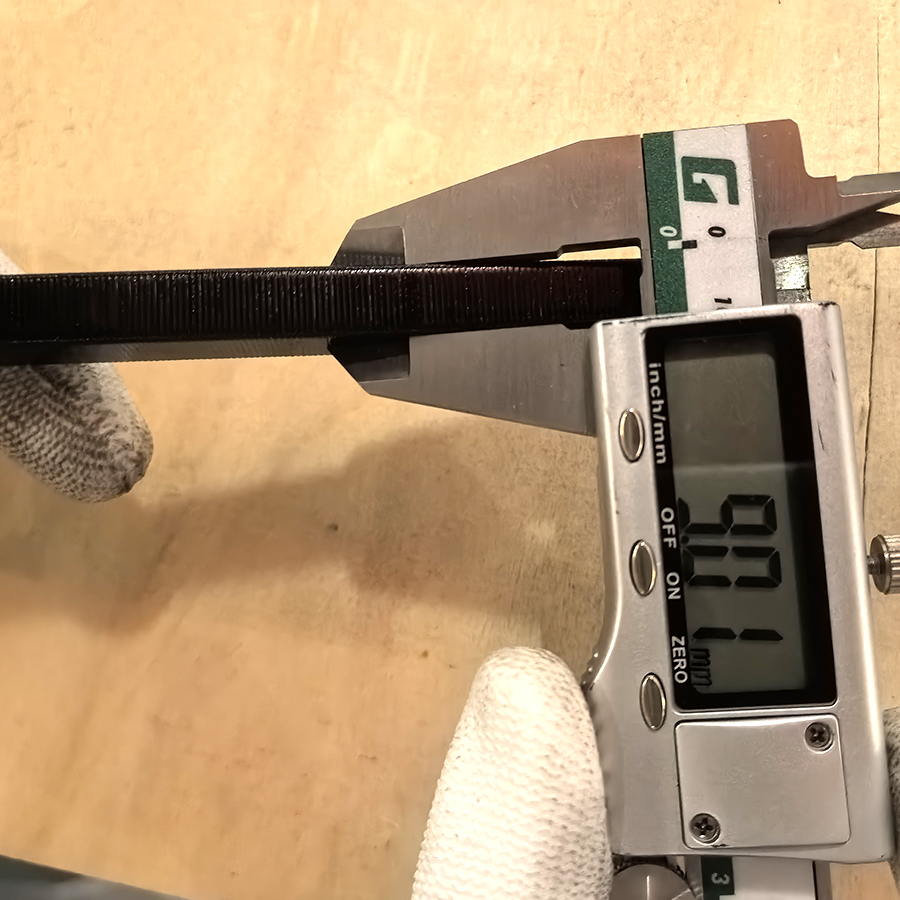

| Crown Width | 3/8" / approximately 9.0 mm |
| Available Leg Lengths | 4–16 mm / approximately 5/32"–5/8" |
| Point | Chisel Point |
| Material | Steel |
| Color | Black |
| Collation | Glue Collated / Black Glue |
| Staples per Box | 10,000 pcs |
| Boxes per Carton | 20 boxes |
| Listed Compatible Series | PREBENA V, BeA 71, SENCO C, KIHLBERG 670, Omer 3G, Haubold 7100, ATRO 7, Duo-Fast 7 |
The 71 Series is available in multiple leg lengths so buyers can match the staple to the thickness of the material being attached and the substrate below it.
| Model | Leg Length | Crown | Gauge |
|---|---|---|---|
| 71/04 | 4 mm | 3/8" / 9.0 mm | 22 GA |
| 71/06 | 6 mm | 3/8" / 9.0 mm | 22 GA |
| 71/08 | 8 mm | 3/8" / 9.0 mm | 22 GA |
| 71/10 | 10 mm | 3/8" / 9.0 mm | 22 GA |
| 71/12 | 12 mm | 3/8" / 9.0 mm | 22 GA |
| 71/14 | 14 mm | 3/8" / 9.0 mm | 22 GA |
| 71/16 | 16 mm | 3/8" / 9.0 mm | 22 GA |
Choose the leg length according to the fabric, padding or sheet material thickness and the density of the supporting substrate. Always confirm that the selected length falls within the fastener range of the stapler being used.
Fine wire staples are widely used in upholstery because the relatively small wire cross-section allows the staple to secure fabric, vinyl and similar covering materials while keeping the fastening area compact.
The 3/8" crown provides contact across the material, while the available leg lengths allow manufacturers and upholsterers to select a staple according to the thickness of the covering material and the supporting wood or composite substrate.
The correct air pressure, staple length and tool setup should be selected so the crown seats securely without cutting or excessively marking the upholstery material.
Furniture upholstery: attaching fabric, backing material and upholstery components to compatible frames.
Automotive upholstery: seats, interior trim, vinyl and related material fastening.
Bedding production: fabric and light covering attachment in compatible mattress and box-spring manufacturing processes.
Insulation: fastening suitable insulation-facing materials to compatible substrates.
Roofing felt and house wrap: temporary or specified fastening where 71 Series fine-wire staples are suitable for the installation method.
Picture frames and light trim: selected assembly and backing applications.
Craft and workshop applications: fabric, leatherette, vinyl and other thin materials on compatible substrates.
71 Series staples are available in different material and appearance configurations. These versions should be treated as separate specifications rather than assumed to provide the same corrosion resistance.
| Configuration | Selection Consideration |
|---|---|
| Black | Selected where a dark staple appearance is preferred for upholstery or visible fastening areas. |
| Galvanized Wire | Common general-purpose configuration for upholstery and indoor production applications. |
| Stainless Steel | Separate material option for applications requiring greater corrosion resistance. |
| Aluminum | Available within the 71 Series range for applications requiring the corresponding material characteristics. |
If corrosion resistance is an important purchasing requirement, specify the required staple material when requesting a quotation. A black steel staple should not be assumed to provide the same corrosion resistance as a stainless steel version.
71 Series is a widely used fine-wire upholstery staple format. The current KYA product information lists the following compatible tool families:
| Tool / Staple Family | Compatibility Note |
|---|---|
| BeA 71 Series | Common 71 Series upholstery staple format; confirm the leg-length range of the exact tool. |
| SENCO C Series | Common interchangeable fine-wire format in compatible upholstery staplers. |
| PREBENA V Series | Listed as compatible with 71 Series staples; verify exact tool model. |
| Omer 3G Series | Professional upholstery stapler family using compatible 71 / C Series staples. |
| KIHLBERG 670 | Listed as a compatible 71 Series tool family. |
| Haubold 7100 | Listed as a compatible fine-wire staple format. |
| ATRO 7 | Listed as compatible with the corresponding staple series. |
| Duo-Fast 7 | Listed as compatible with the corresponding 71-style fine-wire staple format. |
Tool compatibility should be confirmed by staple crown, wire dimensions and leg-length range. A stapler that accepts one 71 Series length may not necessarily accept every 4–16 mm option.
For distributors, upholstery factories and furniture manufacturers, specify the required leg length, material, color, quantity and stapler model when requesting pricing. This helps confirm the correct 71 Series configuration before ordering.

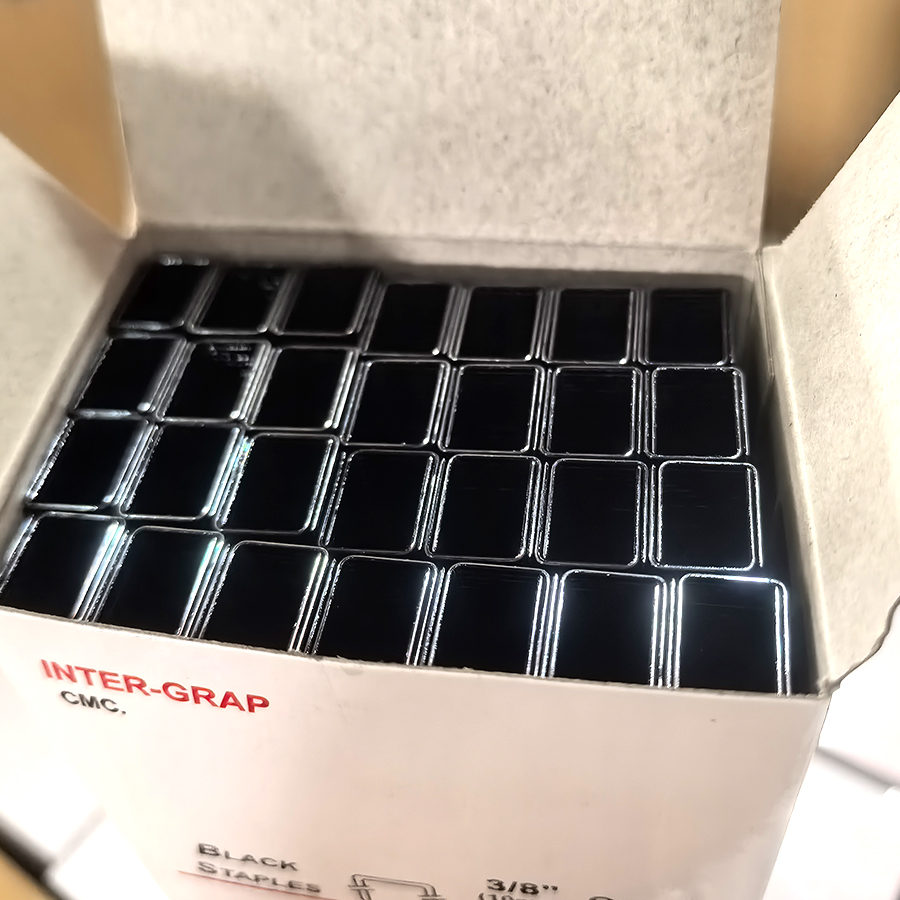

The featured black 71 Series is packed at 10,000 staples per box, with the current product information listing 20 boxes per carton. Confirm current packing configuration with your quotation.
This 71 Series uses 22 gauge wire measuring approximately 0.75 × 0.55 mm with a 3/8" / 9.0 mm crown. Available leg lengths range from 4 mm to 16 mm.
They are mainly used for professional upholstery, furniture manufacturing, automotive interior trim and similar fine-wire fastening applications where a dark staple appearance is preferred.
The featured black product is listed as a steel 71 Series staple. Stainless steel is a separate material option within the broader 71 Series range and should be specified separately when corrosion resistance is required.
They should not be described as rust-proof. If the application requires increased corrosion resistance or regular moisture exposure, confirm whether a stainless steel version is more appropriate.
Fine wire provides a relatively small fastener profile, which is useful when securing fabrics, vinyl and other thin materials where excessive marking or a bulky fastener is undesirable.
The chisel-shaped legs are designed to penetrate compatible substrates efficiently during pneumatic installation. Actual penetration depends on staple length, substrate density and stapler settings.
The current product information lists PREBENA V, BeA 71, SENCO C, KIHLBERG 670, Omer 3G, Haubold 7100, ATRO 7 and Duo-Fast 7 families. Confirm the exact model and accepted leg-length range before ordering.
71 Series and SENCO C-style fine-wire staples are commonly cross-referenced for compatible professional upholstery staplers. Always compare crown width, wire dimensions and leg length with the exact tool specification.
Choose the leg length according to the thickness of the material being fastened, the required penetration into the substrate and the accepted fastener range of the stapler. The 71 Series range on this page covers 4, 6, 8, 10, 12, 14 and 16 mm.
The current product specification lists 10,000 staples per box and 20 boxes per carton. Confirm the final packing configuration when placing an order.
Provide the required leg length, material or color configuration, quantity, destination market, application and stapler brand and model. This helps confirm the correct staple specification and packing.
KYA supplies 22 gauge 71 Series fine-wire staples for upholstery distributors, furniture manufacturers, automotive trim shops and professional fastening applications. For this 3/8" crown black upholstery staple, send your required leg length, quantity, application and stapler model to confirm the appropriate supply configuration.
