Home / Fasteners / Nails / Framing Nails / 34 Degree Hot Dip Galvanized Clipped Head Paper Collated Framing Nails
34 Degree Hot Dip Galvanized Clipped Head Paper Collated Framing Nails 34 Degree Hot Dip Galvanized Clipped Head Paper Collated Framing Nails

loading

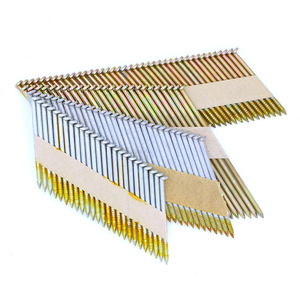

34 Degree Hot Dip Galvanized Clipped Head Paper Collated Framing Nails

Share to:
sharethis sharing button
For use in 30 to 34 degree paper tape collation framing nailers.
Paper tape collated smooth shank.
Hot dip galvanized coating resists corrosion and rust. For interior and exterior use. Rated for use in treated lumber.
Clipped Head.
  • 34 Degree Hot Dip Galvanized

Availability:
Quantity:
Overview
  • For use in 30 to 34 degree paper tape collation framing nailers

  • Paper tape collated smooth shank

  • Hot dip galvanized coating resists corrosion and rust. For interior and exterior use. Rated for use in treated lumber

  • Clipped Head

Product Description

34 Degree Hot Dip Galvanized Clipped Head Paper Collated Framing Nails.

Degree: 34 degree and 30 degree

Diameter: 2.8mm(0.113")3.05mm(0.120")3.33mm(0.131")3.76mm(0.148")

Length: 50mm-130mm.

Shank: Smooth, Ring, Screw.

Finishing: Bright, EG, HDG, DACR, MechGalv, Heat Treated.

Coating: Yellow, Red, Blue.

framing nails-13-7
framing nails-15-4

Description Package PCS/CTN
⌀3.1 x 90mm   EG(12um) Smooth 2000 nails
⌀3.1 x 90mm   EG(12um) Smooth 2000 nails
⌀3.1 x 90mm   Bright Smooth 2000 nails
⌀3.1 x 90mm   EG(12um) Ring 2000 nails
⌀3.1 x 90mm   EG(12um) Ring 2000 nails
⌀3.1 x 90mm   Bright Ring 2000 nails
⌀3.1 x 90mm   EG(12um) Smooth 2000 Nails
⌀3.1 x 90mm   Bright Smooth 2000 Nails
⌀3.1 x 90mm   EG(12um) Ring 2000 nails
⌀3.1 x 90mm   Bright Ring 2000 nails


⌀3.1 x 75mm   EG(12um) Ring 2000 nails
⌀3.1 x 75mm   EG(12um) Smooth 2000 nails
⌀3.1 x 75mm   HDG Ring 2000 nails
⌀3.1 x 75mm   Bright Smooth 2000 nails
⌀3.1 x 75mm   Bright Ring 2000 nails
⌀3.1 x 75mm   EG(12um) Ring 2000 nails
⌀3.1 x 75mm   Bright Ring 2000 nails
⌀3.1 x 75mm   EG(12um) Smooth 2000 nails
⌀3.1 x 75mm   Bright Smooth 2000 nails


⌀3.1 x 63mm   Bright Smooth 2000 nails
⌀3.1 x 63mm   EG(12um) Ring 2000 nails
⌀3.1 x 63mm   Bright Ring 2000 nails
⌀3.1 x 63mm   EG(12um) Smooth 2000 nails
⌀3.1 x 63mm   HDG Ring 2000 nails
⌀3.1 x 63mm   Bright Smooth 2000 nails
⌀3.1 x 63mm   EG(12um) Ring 2000 nails
⌀3.1 x 63mm   Bright Ring 2000 nails
⌀3.1 x 63mm   EG(12um) Smooth 2000 nails


⌀2.87 x 63mm   SS304 Ring 3000 nails
⌀2.87 x 63mm   HDG Ring 3000 nails
⌀2.87 x 63mm   Bright Smooth 3000 nails
⌀2.87 x 63mm   EG(12um) Ring 3000 nails
⌀2.87 x 63mm   Bright Ring 3000 nails
⌀2.87 x 63mm   EG(12um) Smooth 3000 nails
⌀2.87 x 63mm   Bright Smooth 3000 nails
⌀2.87 x 63mm   EG(12um) Ring 3000 nails
⌀2.87 x 63mm   Bright Ring 3000 nails
⌀2.87 x 63mm   EG(12um) Smooth 3000 nails


⌀2.87 x 75mm   EG(12um) Ring 3000 nails
⌀2.87 x 75mm   Bright Smooth 3000 nails
⌀2.87 x 75mm   Bright Ring 3000 nails
⌀2.87 x 75mm   EG(12um) Smooth 3000 nails
⌀2.87 x 75mm   EG(12um) Ring 3000 nails
⌀2.87 x 75mm   Bright Smooth 3000 nails
⌀2.87 x 75mm   Bright Ring 3000 nails
⌀2.87 x 75mm   EG(12um) Smooth 3000 nails


⌀2.87 x   51mm  EG(12um) Ring 3000 nails
⌀2.87 x 51mm   Bright Smooth 3000 nails
⌀2.87 x 51mm   Bright Ring 3000 nails
⌀2.87 x 51mm   EG(12um) Smooth 3000 nails
⌀2.87 x   51mm  EG(12um) Ring 3000 nails
⌀2.87 x 51mm   Bright Smooth 3000 nails
⌀2.87 x 51mm   Bright Ring 3000 nails
⌀2.87 x 51mm   EG(12um) Smooth 3000 nails


⌀2.87 x   70mm  EG(12um) Ring 3000 nails
⌀2.87 x 70mm   Bright Smooth 3000 nails
⌀2.87 x 70mm   Bright Ring 3000 nails
⌀2.87 x 70mm   EG(12um) Smooth 3000 nails
⌀2.87 x   70mm  EG(12um) Ring 3000 nails
⌀2.87 x 70mm   Bright Smooth 3000 nails
⌀2.87 x 70mm   Bright Ring 3000 nails
⌀2.87 x 70mm   EG(12um) Smooth 3000 nails


Shank Type

Smooth Shank

Smooth shank nails are the most common and are often used for framing and general construction applications. They offer enough holding power for most everyday use.


Ring Shank

Ring shank nails offer superior holding power over smooth shank nails because the wood fills in the crevasse of the rings and also provide friction to help prevent the nail from backing out over time. A ring shank nail is often used in softer types of wood where splitting is not an issue.


Screw Shank

A screw shank nail is generally used in hard woods to prevent the wood from splitting while the fastener is being driven. The fastener spins while being driven (like a screw) which creates a tight groove that makes the fastener less likely to back out.


Annular Thread Shank

Annular thread is very similar to a ring shank except the rings are externally beveled which presses against the wood or sheet rock to prevent the fastener from backing out.

Application

For the fixing of timber and timber framing using various proprietary types of pneumatic and cordless application tools.

34 degree paper framing nails

Finishing

Bright Finish

Bright fasteners have no coating to protect the steel and are susceptible to corrosion if exposed to high humidity or water. They are not recommended for exterior use or in treated lumber, and only for interior applications where no corrosion protection is needed. Bright fasteners are often used for interior framing, trim and finish applications.


Hot Dip Galvanized (HDG)

Hot dip galvanized fasteners are coated with a layer of Zinc to help protect the steel from corroding. Although hot dip galvanized fasteners will corrode over time as the coating wears, they are generally good for the lifetime of the application. Hot dip galvanized fasteners are generally used for outdoor applications where the fastener is exposed to daily weather conditions such as rain and snow. Areas near the coasts where the salt content in rain water is much higher, should consider Stainless Steel fasteners as salt accelerates the deterioration of the galvanization and will accelerate corrosion.


Electro Galvanized (EG)

Electro Galvanized fasteners have a very thin layer of Zinc that offers some corrosion protection. They are generally used in areas where minimal corrosion protection is needed such as bathrooms, kitchens and other areas that are susceptible to some water or humidity. Roofing nails are electro galvanized because they are generally replaced before the fastener begins to wear and are not exposed to harsh weather conditions if installed properly. Areas near the coasts where salt content in rain water is higher should consider a Hot Dip Galvanized or Stainless Steel fastener.


Stainless Steel (SS)

Stainless steel fasteners offer the best corrosion protection available. The steel may oxidize or rust over time but it will never lose its strength from corrosion. Stainless Steel fasteners can be used for exterior or interior applications and generally come in 304 or 316 stainless steel.
