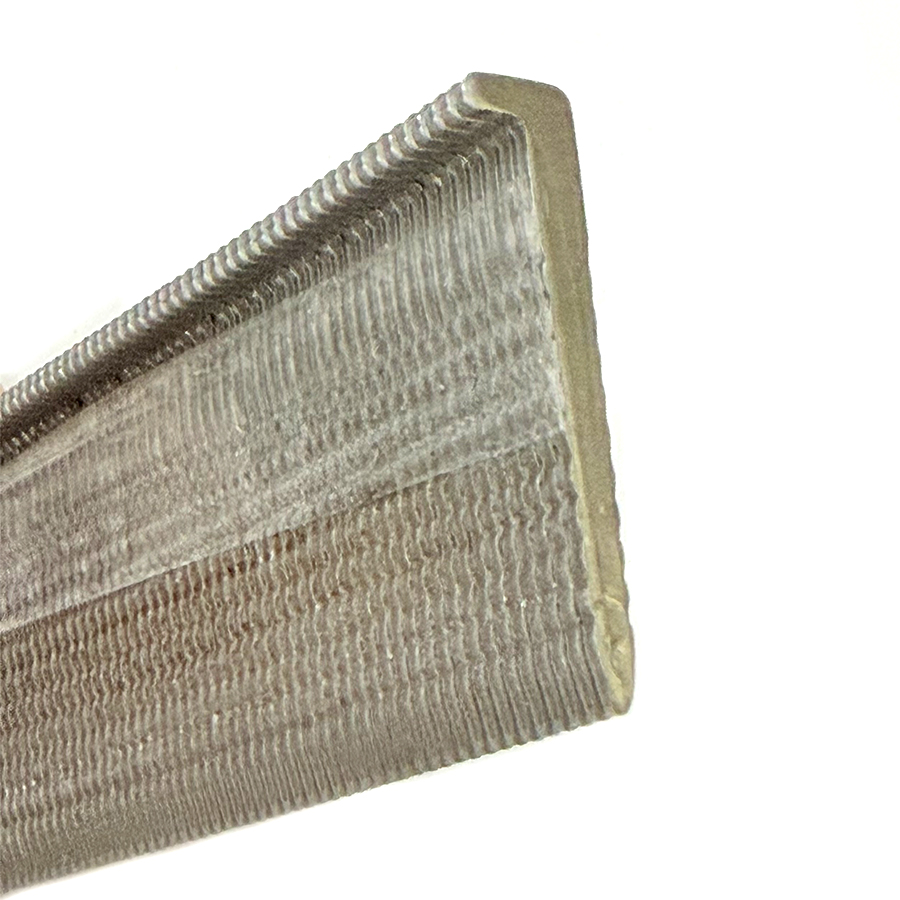

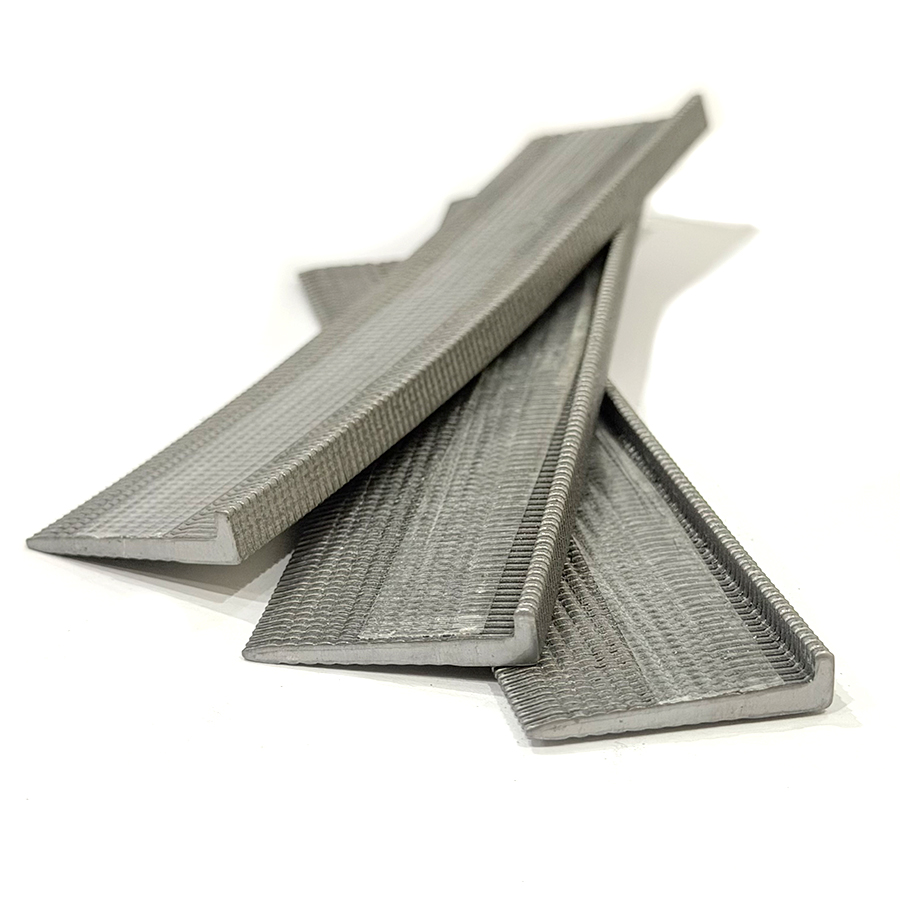

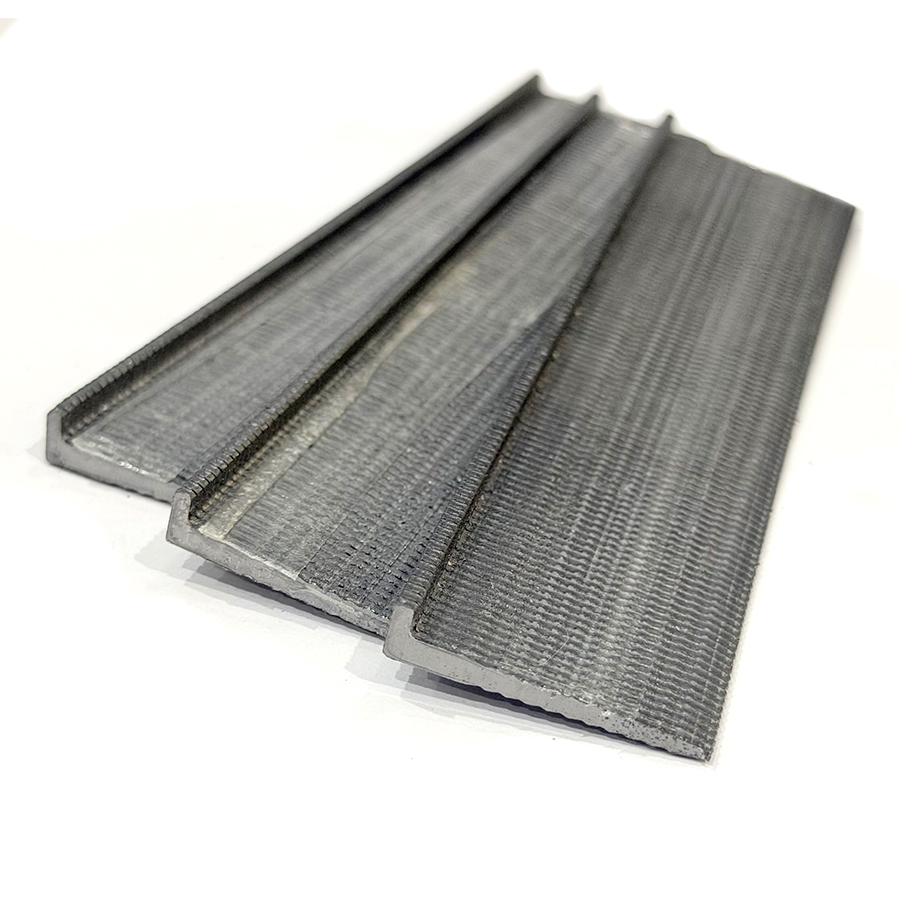

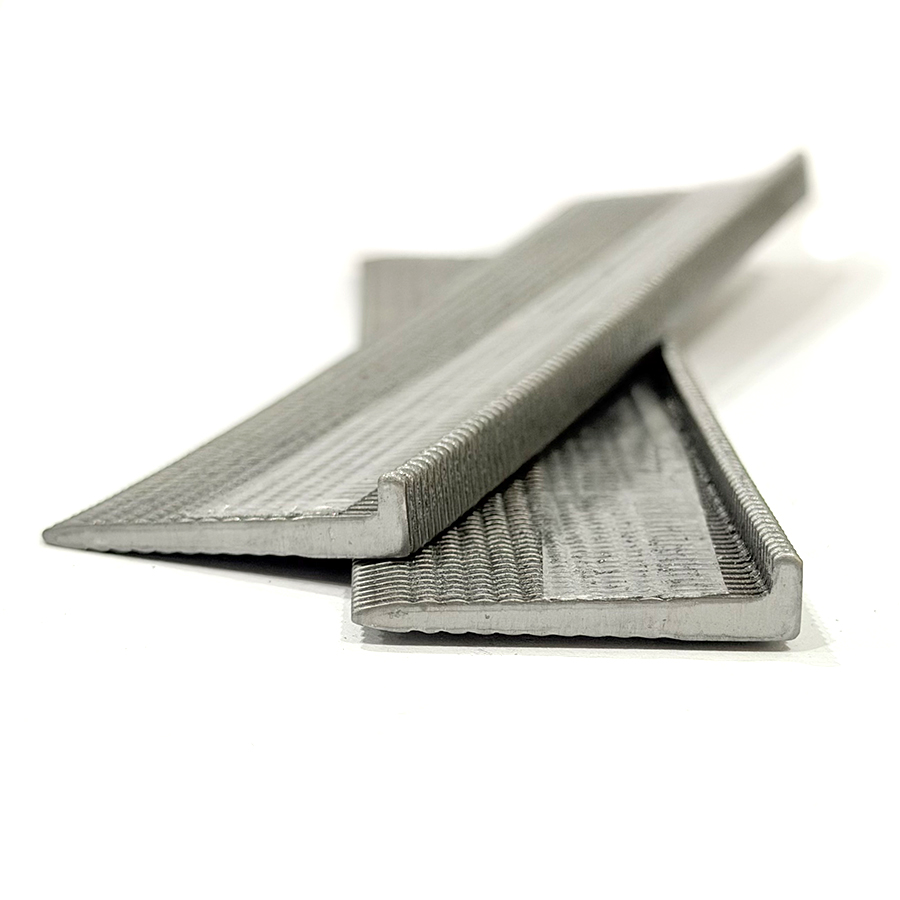

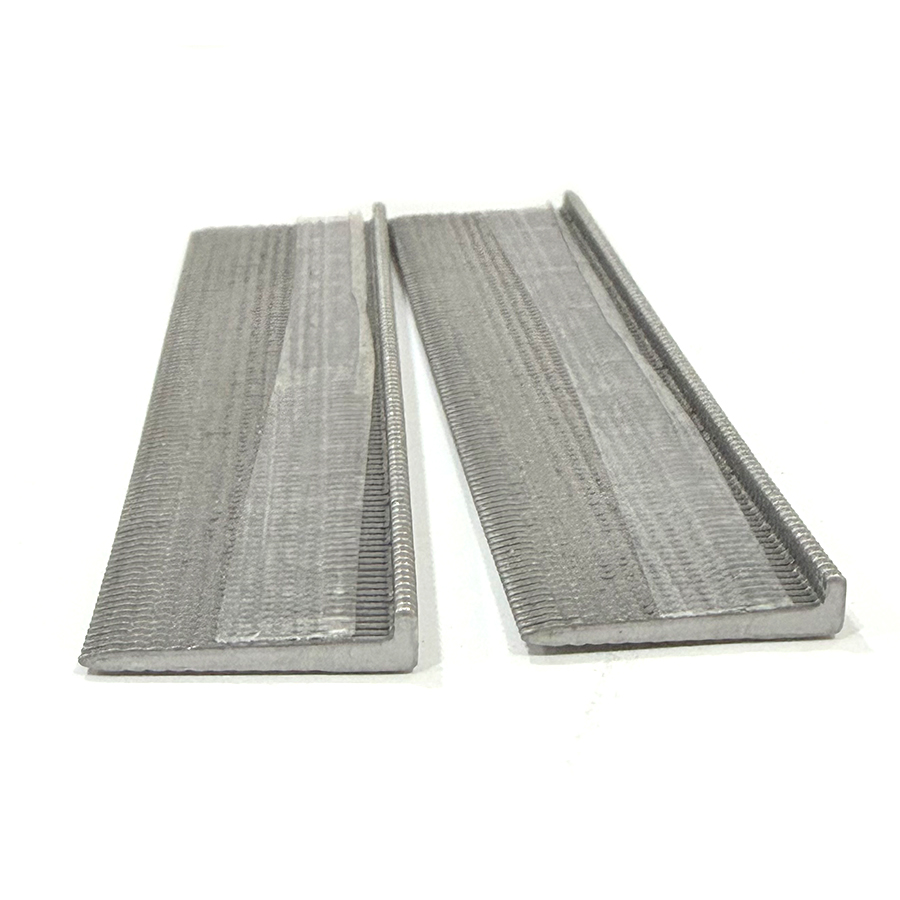

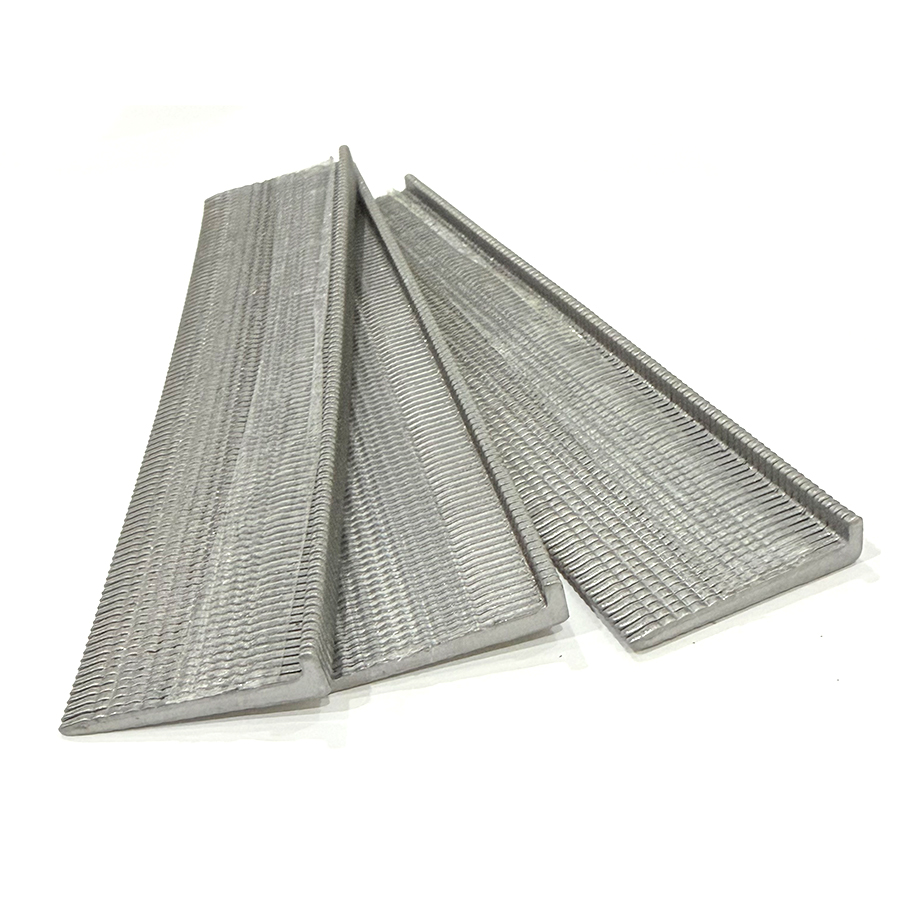

KYA 1-1/4 Inch 18 Gauge L-Cleat Flooring Nails are designed for professional tongue-and-groove hardwood flooring installation. The KYA-L32cleat measures 32mm / 1-1/4 inches long, uses an 18 gauge / approximately 1.4mm cleat profile, and features a 6.5mm L-shaped head.
The narrower 18 gauge profile is particularly useful for flooring installations where minimizing stress on the flooring tongue is important. Defined barbs along the cleat help resist movement after installation, while the cupped point is designed to help reduce splitting as the cleat enters hardwood.
KYA-L32 cleats are glue-collated in straight strips of 100 cleats and packed 1,000 pieces per box. They should be used with a compatible 18 gauge L-cleat flooring nailer that accepts 1-1/4-inch glue-collated L-cleats. Do not assume compatibility with 16 gauge flooring nailers because 16GA and 18GA cleats use different fastener dimensions and tool systems.
| Specification | KYA-L32 |
|---|---|
| Model | L32 |
| KYA Code | KYA-L32 |
| Fastener Type | L-Cleat Flooring Nail |
| Gauge | 18 Gauge |
| Length | 32mm / 1-1/4 Inch |
| Listed Cleat Thickness | 1.40mm |

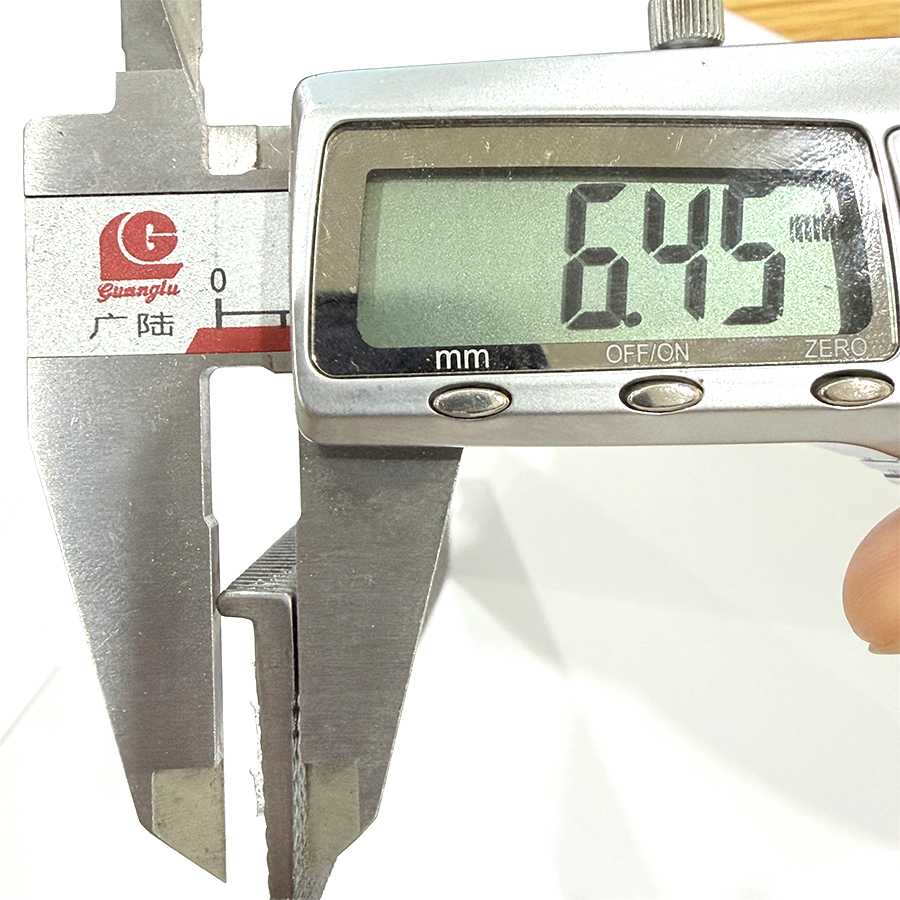

| L-Head Width | Approx. 6.5mm |
| Head Type | L-Shaped Flooring Cleat Head |
| Point Type | Cupped Point |
| Shank | Barbed / Serrated Flooring Cleat Profile |
| Material | Carbon Steel |
| Collation | Glue-Collated Straight Strip |
| Pieces per Strip | 100 |
| Pieces per Box | 1,000 |
| Boxes per Carton | 10 |
| Cartons per Pallet | 60 |
| Compatible Tool Type | 18 Gauge L-Cleat Flooring Nailers accepting 32mm / 1-1/4" glue-collated cleats |
| Main Flooring Application | 1/2"–3/4" Solid Wood Flooring according to current KYA product specification |
Important: The current KYA source page previously stated compatibility with 16 gauge L-cleat nailers. Because KYA-L32 is an 18 gauge fastener, tool compatibility should instead be confirmed against an 18 gauge L-cleat flooring nailer's accepted fastener dimensions.
An 18 gauge L-cleat has a smaller cross-section than a typical 16 gauge flooring cleat. This can be useful when fastening flooring with relatively thin tongues or dense wood species where reducing stress around the tongue is important.
Professional 18 gauge flooring systems are commonly used for hardwood, engineered hardwood, bamboo and dense or exotic tongue-and-groove flooring. The correct fastener still depends on the flooring manufacturer's installation instructions, board thickness, tongue profile, subfloor and flooring nailer.
| Feature | Function |
|---|---|
| 18 Gauge Profile | Smaller cleat cross-section than 16GA systems, helping reduce material displacement in flooring tongues. |
| L-Shaped Head | Seats against the flooring tongue and helps secure the board while reducing concentrated stress compared with an unsuitable fastener profile. |
| Cupped Point | Designed to help the cleat enter wood with reduced splitting risk. |
| Defined Barbs | Engage surrounding wood fibers and help resist withdrawal and floor movement after installation. |
| Glue Collation | Keeps cleats aligned in strips for automatic feeding through compatible flooring nailers. |
18 gauge and 16 gauge L-cleats are different fastener systems. Their dimensions, magazine channels and flooring nailers are not automatically interchangeable.
| Feature | 18 Gauge L-Cleat | 16 Gauge L-Cleat |
|---|---|---|
| Relative Cleat Size | Thinner / smaller cross-section | Heavier / larger cross-section |
| KYA Example | L32: 1.40mm listed thickness | L38 / L50: 1.52mm listed thickness |
| Tool Requirement | 18GA L-cleat flooring nailer | 16GA L-cleat flooring nailer |
| Flooring Selection | Commonly used with thinner tongues, dense hardwood, engineered and exotic flooring where approved | Commonly used with traditional thicker solid hardwood flooring where approved |
| Interchangeability | Do not substitute solely by length. Verify gauge, cleat geometry and flooring nailer specification. | |
KYA-L32 should be used with flooring nailers designed to drive 18 gauge, 1-1/4-inch L-cleats. The nailer's accepted gauge, maximum length, collation type and magazine profile should all be checked before use.
Industry examples of 18 gauge L-cleat systems include Powernail Model 50-series flooring nailers and Freeman 18GA flooring nailers that accept glue-collated L-cleats. These examples show the relevant fastener format but should not be treated as a universal compatibility guarantee for KYA cleats without dimensional confirmation.
| Compatibility Item | KYA-L32 Requirement |
|---|---|
| Fastener Gauge | 18 Gauge |
| Fastener Type | L-Cleat Flooring Nail |
| Fastener Length | 32mm / 1-1/4 Inch |
| Collation | Glue-Collated Straight Strip |
| Magazine | Must accept the KYA 18GA L-cleat strip geometry |
| Tool Verification | Provide the nailer manufacturer and model when requesting compatibility confirmation |
Check Flooring Nailer Compatibility
KYA primarily positions the 1-3/4-inch 18 gauge L-cleat for installation of 1/2-inch to 3/4-inch solid wood flooring. Actual fastener selection should always follow the flooring manufacturer's installation specification.
| Application | Selection Guidance |
|---|---|
| Solid Hardwood Flooring | Primary KYA application for 1/2"–3/4" tongue-and-groove solid wood flooring where an 18GA cleat is specified. |
| Dense Hardwood | The smaller 18GA cleat profile can be useful with dense species when approved by the flooring and tool manufacturer. |
| Engineered Flooring | Many professional 18GA L-cleat systems are used for engineered tongue-and-groove flooring; confirm the specific board manufacturer permits mechanical cleat fastening. |
| Bamboo / Exotic Flooring | 18GA cleat systems are commonly used with dense bamboo and exotic species, subject to flooring manufacturer instructions and field testing. |
| Decorative Paneling | Can be used where panel thickness and fastening geometry are suitable for the 45mm L-cleat. |
| Ceiling / Subfloor Applications | Use only where the construction system permits this fastener type and penetration depth. |
Flooring cleat length should be selected according to flooring thickness, tongue position, subfloor construction and the flooring manufacturer's fastening schedule. A longer cleat is not automatically better if it produces excessive penetration or is not supported by the nailer.
| Selection Factor | What to Check |
|---|---|
| Flooring Thickness | Ensure sufficient penetration below the flooring while following the floor manufacturer's recommendation. |
| Tongue Geometry | The flooring nailer base and cleat angle must align correctly with the tongue. |
| Subfloor | Plywood, OSB and other approved subfloor systems can have different fastening requirements. |
| Nailer Range | The flooring nailer must specifically support 1-3/4-inch 18GA L-cleats. |
| Flooring Manufacturer | Follow the manufacturer's approved fastener gauge, length, spacing and installation method. |
KYA's current product family table lists L32, L38 and L45 flooring cleats. The important point is that these products do not all use the same gauge.
| Model | Length | Gauge | Thickness | Head | Pcs/Strip | Pcs/Box |
|---|---|---|---|---|---|---|
| L38 | 38mm / 1-1/2" | 16GA | 1.52mm | 7.5mm | 100 | 1,000 |
| L45 | 45mm / 1-3/4" | 16GA | 1.52mm | 7.5mm | 100 | 1,000 |
| L50 | 50mm / 2" | 16GA | 1.52mm | 7.5mm | 100 | 1,000 |
| L32 | 32mm / 1-1/4" | 18GA | 1.40mm | 6.5mm | 100 | 1,000 |
| L38 | 38mm / 1-1/2" | 18GA | 1.40mm | 6.5mm | 100 | 1,000 |
| L45 | 45mm / 1-3/4" | 18GA | 1.40mm | 6.5mm | 100 | 1,000 |
Because L38 and L50 are listed by KYA as 16 gauge while L32 is listed as 18 gauge, do not treat these three sizes as interchangeable fasteners for the same flooring nailer. Confirm the tool's accepted gauge and fastener profile first.
Flooring cleats must both penetrate the flooring tongue and resist movement after installation. KYA-L45 uses barbs along the shank to engage surrounding wood fibers after driving.
The cupped point is intended to help the fastener enter hardwood with reduced splitting tendency. This is particularly relevant when working with dense or brittle flooring species, although the flooring system should always be tested on representative material before full installation.
The 7.5mm L-shaped head provides a broad surface at the top of the cleat and is designed to seat against the tongue area during installation.
The current KYA product page identifies the L32 as a carbon steel flooring cleat but does not publish a specific galvanized, stainless steel or other corrosion-resistant finish for this SKU.
Unless another finish is confirmed, buyers should treat this product primarily as an indoor flooring fastener for dry-service applications. Moisture-exposed, exterior or chemically treated flooring systems may require a specific corrosion-resistant fastener material or coating.
If stainless steel, galvanized or another corrosion-resistant L-cleat is required, include the finish requirement in the quotation rather than assuming the standard KYA-L45 provides the same corrosion performance.
Correct cleat selection is only one part of a successful flooring installation. Nailer setup, flooring thickness, subfloor, tongue geometry and fastening spacing also affect installation quality.
| Installation Check | Guidance |
|---|---|
| Nailer Base Adjustment | Set the flooring nailer base or foot according to the actual board thickness and tongue geometry. |
| Fastener Angle | Ensure the tool positions the L-cleat correctly through the tongue without damaging the board edge. |
| Test Installation | Test several boards before full production, especially with dense hardwood, engineered flooring or bamboo. |
| Fastener Spacing | Follow the flooring manufacturer's specified spacing and end-distance requirements. |
| Subfloor Penetration | Confirm the selected 1-3/4-inch length provides appropriate penetration without conflicting with the construction below. |
Professional flooring distributors and OEM buyers should specify the full fastener geometry rather than requesting only “flooring nails.”
| Buyer Information | Required Details |
|---|---|
| Gauge | 18 Gauge for KYA-L32 |
| Length | 32mm / 1-1/4 Inch |
| Nailer Model | Provide the flooring nailer manufacturer and exact model. |
| Flooring Type | Solid hardwood, engineered flooring, bamboo or other material. |
| Flooring Thickness | Provide board thickness and, where relevant, tongue dimensions. |
| Material / Finish | Carbon steel standard configuration or required corrosion-resistant option. |
| Packaging | Standard KYA reference is 1,000 pcs/box; specify any private-label or distributor packing requirement. |
| Quantity | Provide order quantity or expected annual consumption. |
| Destination Market | Country or region for quotation and packaging planning. |
Request Bulk L-Cleat Pricing Explore Flooring Cleat Nails
KYA-L32 is an 18 gauge, 32mm / 1-1/4-inch L-shaped flooring cleat designed for compatible tongue-and-groove hardwood flooring installation.
Yes. KYA's current specification table lists L32 as 18 gauge with a listed thickness of approximately 1.40mm.
It should not be assumed. 16GA and 18GA flooring cleats use different dimensions and tool systems. KYA-L32 should be matched to an 18GA flooring nailer that accepts its 32mm L-cleat format.
Use a flooring nailer specifically designed for 18 gauge L-cleats with a maximum fastener length of at least 1-1/4 inches. Confirm the exact magazine and cleat geometry with the tool manufacturer.
Powernail 50-series flooring nailers are designed around 18GA L-cleats, including 1-1/4-inch lengths on applicable models. Exact KYA dimensional compatibility should still be confirmed before bulk use.
Freeman offers flooring nailers designed for 18GA glue-collated L-cleats from 1-1/4 to 1-3/4 inches. Buyers should compare the full fastener dimensions and tool specification before replacing another brand with KYA-L32.
KYA currently positions this 1-1/4-inch L-cleat for installation of 1/2-inch to 3/4-inch solid wood flooring. Always follow the flooring manufacturer's fastening instructions.
Many professional 18GA flooring systems are used with engineered tongue-and-groove floors. Confirm that the flooring manufacturer allows mechanical cleat fastening and specifies a compatible gauge and length.
18GA L-cleat systems are commonly used for dense hardwood, bamboo and exotic flooring because of their smaller fastener profile. Test the actual flooring and follow the flooring manufacturer's requirements before installation.
Barbs engage surrounding wood fibers after driving and help resist fastener withdrawal and subsequent floor movement.
The cupped point is designed to help the cleat penetrate hardwood while reducing the tendency to split the flooring tongue or surrounding wood.
The L-shaped head provides a wider bearing surface at the top of the cleat and is designed to seat securely against the flooring tongue during installation.
They are glue-collated in straight strips for automatic feeding through compatible 18 gauge L-cleat flooring nailers.
KYA currently lists 100 L32 cleats per strip.
The standard KYA reference packing is 1,000 cleats per box.
The current KYA product information identifies carbon steel but does not specify a galvanized finish for this SKU. If corrosion resistance is required, request the required finish or material explicitly.
L38 is listed as 38mm / 1-1/2-inch and 16GA, L45 is 45mm / 1-3/4-inch and 18GA, while L50 is 50mm / 2-inch and 16GA. Because the gauges differ, they should not automatically be used in the same flooring nailer.
Select fastener length according to board thickness, tongue position, subfloor construction, required penetration and the flooring manufacturer's installation instructions. Gauge must also match the flooring nailer.
Yes. KYA supplies flooring cleats for distributors, flooring-tool dealers, installation companies and professional fastener buyers. Provide the required model, gauge, length, quantity and packaging specification when requesting a quote.
Provide the KYA-L32 or 18GA × 1-1/4-inch specification, flooring nailer model, flooring type and thickness, required material or finish, order quantity, packaging requirement and destination country.
Looking for 18 Gauge 1-1/4 Inch L-Cleat Flooring Nails? Send KYA Fasteners your flooring nailer model, flooring material and thickness, required quantity, finish requirement and destination country. If you are replacing another brand of 18GA L-cleat, provide the existing fastener code or sample so the dimensions and tool compatibility can be checked before quotation.
