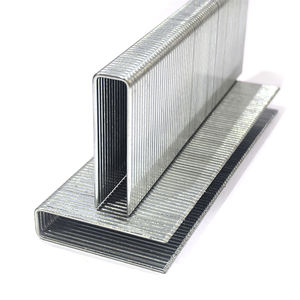

KYA N38 16 Gauge Stainless Steel Staples feature a 1-1/2 inch (38mm) leg, 7/16 inch (10.8mm) crown and 1.60 × 1.40mm heavy wire. Manufactured from S304 stainless steel, these medium crown staples are designed for professional woodworking, construction and industrial fastening applications where corrosion resistance is required.
The N38 configuration uses a chisel point and glue collation, with the published product specification listing 70 staples per strip and 10,000 staples per box. Before ordering, confirm that your stapler accepts 16 gauge N Series staples with a 7/16 inch crown and 1-1/2 inch leg length.
The N38 model is a 38mm N Series heavy wire staple made from S304 stainless steel. The dimensions below should be checked against the fastener specifications of your pneumatic stapler before use.
| Specification | N38 Details |
|---|---|
| Series | N38 / N Series |
| Gauge | 16 Gauge |
| Crown | 7/16" (10.8mm) |
| Leg Length | 1-1/2" (38mm) |
| Wire Size | 1.60 × 1.40mm |
| Material | S304 Stainless Steel |
| Point | Chisel Point |
| Collation | Glue Collated |
| Staples per Strip | 70 pcs |
| Published Packing | 10,000 pcs per Box |
304 Stainless Steel: Provides corrosion resistance for fastening applications where stainless steel is specified.
16 Gauge Heavy Wire: Designed for demanding construction, woodworking and industrial fastening.
7/16 Inch Crown: The 10.8mm crown distributes the fastening load over a wider area than narrow crown staples.
38mm Leg: The 1-1/2 inch leg provides the specified penetration length for compatible materials and assemblies.
Chisel Point: Designed for consistent penetration into compatible substrates.
Glue Collated: Staples are assembled into strips for feeding through compatible pneumatic staplers.
70 Staples per Strip: Published strip configuration for the N38 product.
The combination of a 16 gauge heavy wire, 7/16 inch crown, 38mm leg and stainless steel construction makes N38 staples suitable for a range of professional fastening applications where the selected material and tool specifications are appropriate.
Cedar shingles
Roof decking and sheathing
Fascia and soffit installation
Floor underlayment
Subfloor applications
Wood fencing
Lattice and screening
Siding applications
Pallet and crate assembly
Furniture and cabinet components
General exterior wood fastening where 304 stainless steel is specified
The suitability of a stainless steel fastener depends on the substrate, exposure conditions and project requirements. For highly corrosive or saltwater environments, confirm the required stainless steel grade before ordering.
304 stainless steel offers substantially better corrosion resistance than untreated carbon steel and is widely used in exterior wood fastening, cedar, redwood and other applications where corrosion or staining from conventional steel fasteners may be a concern.
Stainless steel should not be described as completely immune to corrosion. Fastener performance depends on moisture, chemicals, salts, treated lumber formulations and other environmental conditions. Select the stainless grade according to the actual application.
N38 staples are intended for compatible N Series pneumatic staplers that accept 16 Gauge, 7/16 inch crown, 1-1/2 inch leg heavy wire staples.
N Series references are available across multiple professional stapler manufacturers, but compatibility should be confirmed by the exact tool model. Matching only the 7/16 inch crown is not sufficient because different tools can accept different gauges, wire profiles and leg-length ranges.
When requesting a quotation, provide your stapler manufacturer and exact model number if available. This allows the required staple dimensions to be checked before ordering.
N38 is the 38mm model in the published KYA N Series stainless steel staple range. The following table shows the related sizes listed for comparison. Confirm current availability for the required model before ordering.
| Item | Length | Crown | Wire | Material | Pcs/Box |
|---|---|---|---|---|---|
| N/12 | 12mm (1/2") | 10.8mm | 1.60 × 1.40mm | Stainless Steel | 10,000 |
| N/16 | 16mm (5/8") | 10.8mm | 1.60 × 1.40mm | Stainless Steel | 10,000 |
| N/19 | 19mm (3/4") | 10.8mm | 1.60 × 1.40mm | Stainless Steel | 10,000 |
| N/20 | 20mm (13/16") | 10.8mm | 1.60 × 1.40mm | Stainless Steel | 10,000 |
| N/22 | 22mm (7/8") | 10.8mm | 1.60 × 1.40mm | Stainless Steel | 10,000 |
| N/25 | 25mm (1") | 10.8mm | 1.60 × 1.40mm | Stainless Steel | 10,000 |
| N/28 | 28mm (1-1/8") | 10.8mm | 1.60 × 1.40mm | Stainless Steel | 10,000 |
| N/30 | 30mm (1-3/16") | 10.8mm | 1.60 × 1.40mm | Stainless Steel | 10,000 |
| N/32 | 32mm (1-1/4") | 10.8mm | 1.60 × 1.40mm | Stainless Steel | 10,000 |
| N/35 | 35mm (1-3/8") | 10.8mm | 1.60 × 1.40mm | Stainless Steel | 10,000 |
| N/38 | 38mm (1-1/2") | 10.8mm | 1.60 × 1.40mm | S304 Stainless Steel | 10,000 |
| N/40 | 40mm (1-9/16") | 10.8mm | 1.60 × 1.40mm | Stainless Steel | 10,000 |
| N/45 | 45mm (1-3/4") | 10.8mm | 1.60 × 1.40mm | Stainless Steel | 10,000 |
| N/50 | 50mm (2") | 10.8mm | 1.60 × 1.40mm | Stainless Steel | 10,000 |
| N/57 | 57mm (2-1/4") | 10.8mm | 1.60 × 1.40mm | Stainless Steel | 10,000 |
| N/64 | 64mm (2-1/2") | 10.8mm | 1.60 × 1.40mm | Stainless Steel | 10,000 |
Check that your pneumatic stapler is designed for 16 gauge N Series or an equivalent compatible medium crown staple format.
The N38 crown measures 10.8mm, approximately 7/16 inch. Crown width alone does not confirm tool compatibility, so the complete fastener dimensions should be checked.
The N38 model uses a 38mm or 1-1/2 inch leg. Make sure this length is accepted by the tool and appropriate for the thickness and construction of the materials being fastened.
This product is specified as S304 stainless steel. If your project requires another stainless steel grade or has specific corrosion-resistance requirements, include those details when requesting a quotation.
For faster product confirmation and quotation preparation, provide the following information:
Required model: N38 / 38mm
Required stainless steel grade
Stapler manufacturer and exact model
Material or application being fastened
Required purchasing quantity
Packaging requirements, if applicable
Delivery destination
Send Your N38 Staple Requirements
The KYA N38 staple is a 16 gauge heavy wire staple with a 38mm (1-1/2") leg and a 10.8mm (7/16") crown.
This N38 product is specified as S304 stainless steel, commonly referred to as 304 stainless steel.
The published wire dimensions are 1.60mm wide × 1.40mm thick.
The N38 product specification lists a chisel point.
KYA lists the N38 staples as glue collated, with 70 staples per strip.
The published KYA specification lists 10,000 staples per box and 70 staples per strip. Confirm packaging when placing your order.
Typical applications include sheathing, cedar shingles, fascia, soffits, underlayment, siding, fencing, lattice, pallets, crates and other professional wood fastening where the N38 dimensions and 304 stainless steel material are appropriate.
The product listing identifies these staples as ACQ rated. 304 stainless steel is commonly selected for treated-lumber and exterior wood applications because of its corrosion resistance. Confirm compatibility with the preservative system, connector requirements and applicable project specifications.
The product listing includes marine upholstery and docks among its applications and describes the stainless option as saltwater-resistant. 304 stainless steel provides general corrosion resistance, but it is not rustproof in every environment; confirm the required grade for saltwater exposure and maintenance conditions.
Use a compatible N Series stapler that accepts 16 Gauge, 7/16 inch crown and 1-1/2 inch leg staples. Compatibility should be confirmed with the exact tool model rather than by brand name alone.
KYA publishes additional N Series stainless steel sizes from N/12 through N/64 in the product family table. Contact KYA to confirm the current availability of the required length and material specification.
The product information lists global delivery in 20–30 days. Confirm the current production and shipping schedule for your order quantity and destination.
OEM options for custom staple lengths and packaging are listed for this product. Confirm the required dimensions, packaging and order details with KYA.
KYA states that it has manufactured N38 16GA stainless staples since 2003 and supplies customers in more than 50 countries, including the USA, Germany, Australia and Canada.
KYA supplies N38 stainless steel staples for fastener distributors, wholesalers, construction suppliers, woodworking manufacturers and professional industrial users. Send your stapler model, required quantity, application and delivery destination for product confirmation and quotation.
