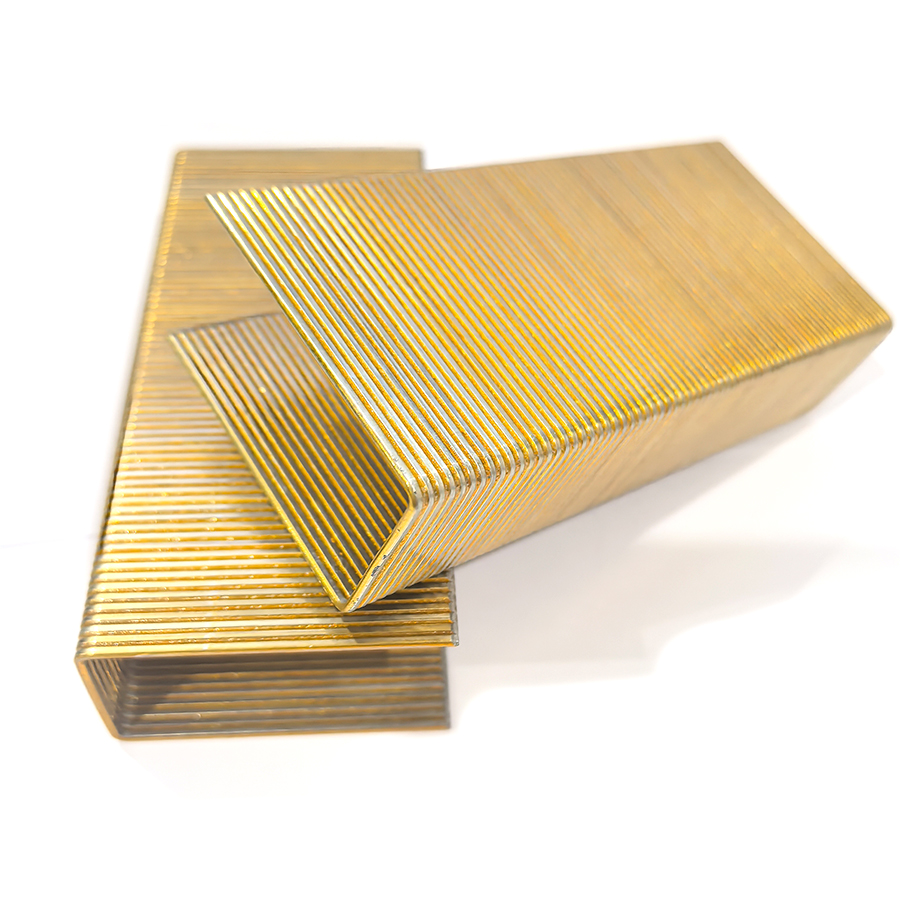

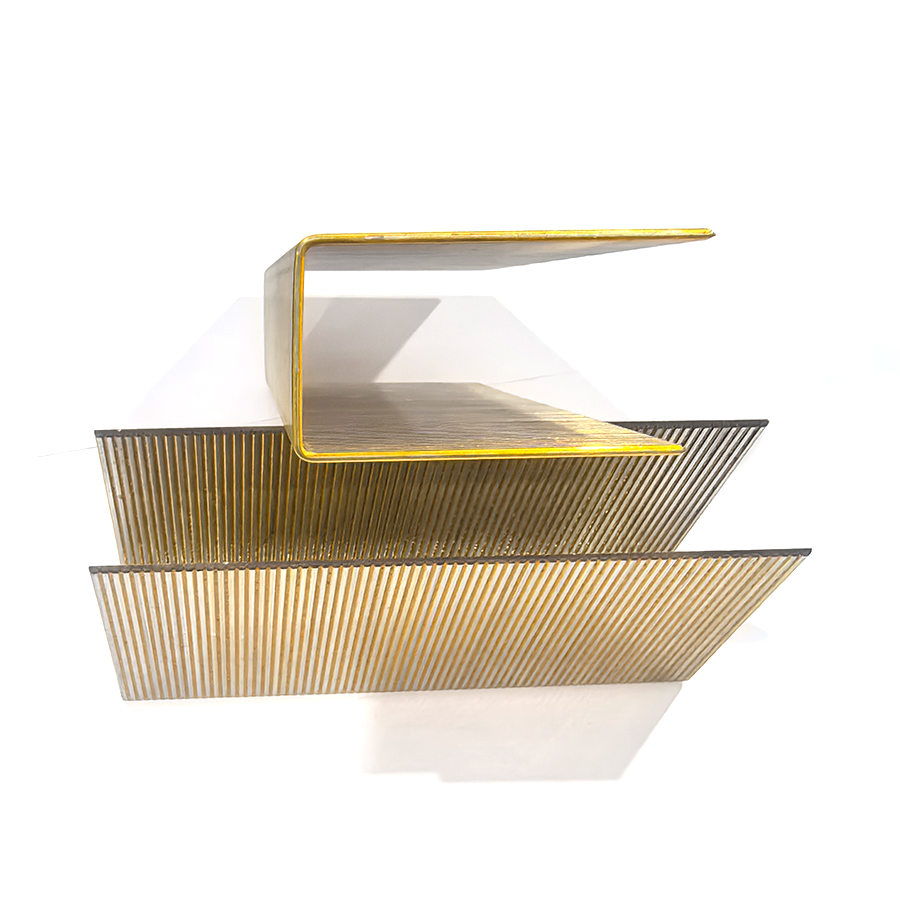

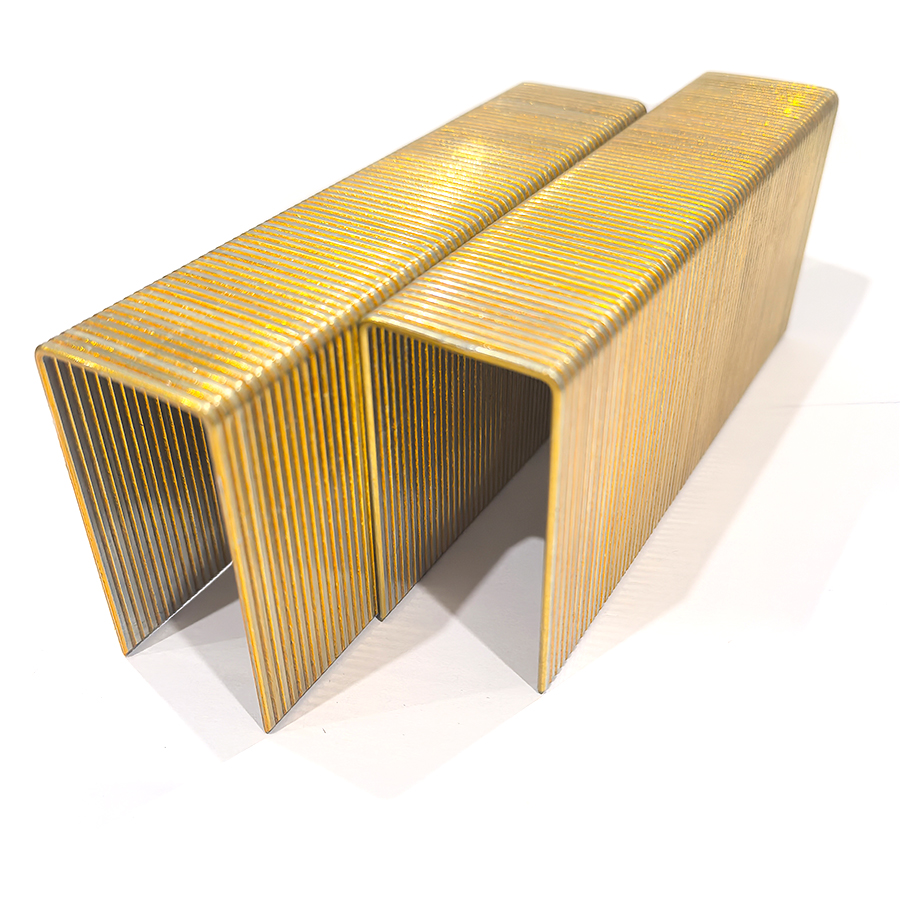

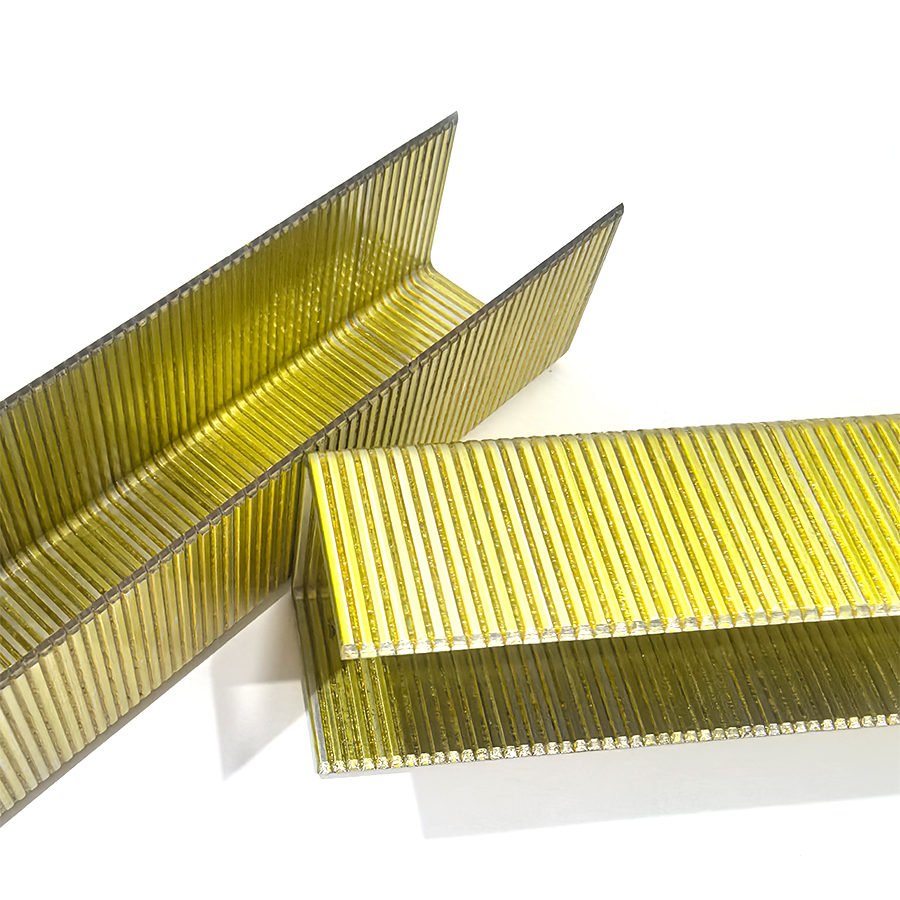

KYA 16 Gauge 1 Inch Crown Staples P Series are heavy-wire staples designed for construction, packaging, woodworking and industrial fastening applications. The P Series uses a 26.5mm / nominal 1-inch crown, with a wire cross-section of 1.58mm × 1.38mm / 0.063" × 0.055" and leg lengths from 12mm to 50mm / 1/2" to 2".
These 16 gauge wide crown staples use a chisel point and straight-strip collation for compatible pneumatic wide crown staplers. Available material and finish options include galvanized steel, stainless steel and aluminum, allowing buyers to select the staple according to the fastening application and required corrosion resistance.
KYA P Series staples are cross-referenced with fastener families including SENCO P, PREBENA WS, Duo-Fast 1700, FASCO SNW, Kihlberg 784, Nikema SK, OMER/PMER WP and Spotnails 36. Cross-reference names should be used as a selection aid rather than an automatic guarantee of compatibility. Always confirm crown width, wire dimensions, leg length, collation and the exact stapler model before ordering.
Request P Series Staples Quote
| Specification | Details |
|---|---|
| Series | KYA P Series / P (WS)-1.52 |
| KYA Code | KYA-P |
| Fastener Type | Heavy Wire Wide Crown Staples |
| Gauge | 16 Gauge |
| Crown Width | 26.5mm / Nominal 1 Inch |
| Wire Width | 1.58mm / 0.063" |
| Wire Thickness | 1.38mm / 0.055" |
| Leg Length Range | 12–50mm / 1/2"–2" |
| Point Type | Chisel Point |
| Collation | Straight Strip / Glue Collated |
| Material Options | Galvanized Steel, Stainless Steel, Aluminum and Carbon Steel Options |
| Standard Galvanized Finish | Electro-Galvanized where specified |
| Typical Strip Quantity | 70 Staples per Stick according to KYA current packing data |
| Cross-Reference Families | SENCO P, PREBENA WS, Duo-Fast 1700, FASCO SNW, Kihlberg 784, Nikema SK, PMER/OMER WP, Spotnails 36 |
Cross-reference information identifies similar staple families. Exact wire dimensions, crown geometry, strip construction and tool ranges can vary between brands. Verify the stapler manufacturer's fastener specification before substitution.
KYA P Series staples are available in eleven listed leg lengths from 12mm to 50mm. The correct length should be selected according to material thickness, required penetration and the supported range of the pneumatic stapler.
| Item | Length (mm) | Length (in) | Pcs / Stick | Pcs / Carton | Cartons / Pallet |
|---|---|---|---|---|---|
| P/12 | 12mm | 1/2" | 70 | 10,000 | 60 |
| P/16 | 16mm | 5/8" | 70 | 10,000 | 60 |
| P/19 | 19mm | 3/4" | 70 | 10,000 | 60 |
| P/22 | 22mm | 7/8" | 70 | 10,000 | 60 |
| P/25 | 25mm | 1" | 70 | 10,000 | 60 |
| P/28 | 28mm | 1-1/8" | 70 | 10,000 | 60 |
| P/32 | 32mm | 1-1/4" | 70 | 10,000 | 60 |
| P/38 | 38mm | 1-1/2" | 70 | 10,000 | 60 |
| P/40 | 40mm | 1-9/16" | 70 | 10,000 | 60 |
| P/45 | 45mm | 1-3/4" | 70 | 10,000 | 60 |
| P/50 | 50mm | 2" | 70 | 10,000 | 60 |
P Series is an established 16 gauge wide crown staple format used by several professional fastening systems. KYA lists the following families as cross-reference products for P Series staple selection.
| Cross-Reference | Selection Guidance |
|---|---|
| SENCO P Series | Nominal 16 gauge, 1-inch wide crown staple family. Verify leg length, point, collation and exact tool model. |
| PREBENA WS | 26.5mm wide crown heavy staple family. Confirm exact wire dimensions and stapler configuration before substitution. |
| Duo-Fast 1700 | Widely cross-referenced 16 gauge 1-inch crown staple system for roofing, lathing, packaging and construction tools. |
| FASCO SNW | Use as a cross-reference family only; confirm the exact tool and supported leg range. |
| Kihlberg 784 | Confirm staple profile and machine specification when replacing an existing Kihlberg-format staple. |
| Nikema SK | Cross-reference according to KYA current product data; verify dimensional compatibility. |
| PMER / OMER WP | Confirm crown, wire section, collation and leg-length specification before ordering replacement staples. |
| Spotnails 36 Series | Cross-reference family for selected 16 gauge wide crown staple applications; verify the tool model before use. |
SENCO's current P-family tools illustrate why the exact stapler matters. For example, SENCO PS15XP is specified for 16 gauge 1-inch crown staples up to 1-1/2 inches, while PS20XP supports selected P staples up to 2 inches. A P/50 staple therefore should not be assumed to fit every P Series stapler.
26.5mm Wide Crown: Broad crown distributes the fastening load over a larger surface area than narrow or medium crown staples.
16 Gauge Heavy Wire: KYA P Series uses a 1.58 × 1.38mm wire section for demanding construction, packaging and woodworking applications.
12–50mm Leg Length Range: Multiple staple lengths allow buyers to match penetration requirements to material thickness and tool capacity.
Chisel Point: Designed for efficient penetration into suitable wood, panels, packaging materials and other compatible substrates.
Straight Strip Collation: Collated strips support automatic feeding in compatible pneumatic wide crown staplers.
Multiple Material Options: Galvanized steel, stainless steel and aluminum options support different application and corrosion-resistance requirements.
Established Cross-Reference Format: Comparable to several widely used P / WS / 1700-type heavy staple systems when dimensions and tools are correctly matched.
A wide crown staple spreads clamping force over a larger area than a narrow crown staple. This makes 16 gauge P Series staples useful for panel fastening, insulation, packaging, furniture frames and other applications where a broad staple crown is preferred.
| Application | Typical Use |
|---|---|
| Sheathing | Fastening suitable panel materials when the project and stapler specification permit 16 gauge wide crown staples. |
| Wire Lathing | Wide crown distributes holding force across wire lath in compatible fastening systems. |
| Roofing Felt | Selected P Series staples are used with compatible roofing staplers where allowed by the roofing-system specification. |
| Foam Insulation Board | Broad crown helps distribute contact pressure over insulation materials. |
| Furniture & Cabinet Frames | Heavy-wire fastening for suitable frame and butt-joint assemblies. |
| Corrugated Packaging | Fastening corrugated containers, cardboard panels, skids and industrial packaging. |
| Crates & Boxes | Assembly of suitable wood or packaging components using compatible stapling equipment. |
| Pallet Applications | Selected packaging and pallet work where the specified staple dimensions and connection design permit their use. |
Staple material and finish should be chosen separately from staple size. A 16 gauge 1-inch crown specification does not determine whether the staple is appropriate for moisture, exterior exposure or treated lumber.
| Material / Finish | Selection Guidance |
|---|---|
| Electro-Galvanized Steel | Provides a zinc coating over steel and is generally used for dry interior or limited-moisture applications where its corrosion protection is adequate. |
| Heavier Galvanized Specification | Where greater corrosion protection is required, specify the required zinc coating rather than assuming standard electro-galvanized staples are sufficient. |
| Stainless Steel | Preferred for applications requiring substantially greater corrosion resistance; confirm the required stainless grade and tool compatibility. |
| Aluminum | Available for selected applications where aluminum fasteners are specified; verify strength and material compatibility before substitution. |
Standard electro-galvanized staples should not automatically be described as suitable for all exterior applications or all pressure-treated lumber. Treated-wood and exterior projects should follow the required fastener material, coating and corrosion specification.
Selecting a staple requires matching both the material thickness and the stapler's supported leg-length range. Longer staples are not automatically stronger or more appropriate if the tool, substrate or connection is not designed for them.
| Selection Factor | What to Check |
|---|---|
| Material Thickness | Choose sufficient leg length to pass through the top material and achieve the required penetration in the substrate. |
| Tool Range | Confirm the minimum and maximum staple lengths accepted by the exact stapler. |
| Substrate | Wood density, panel type, cardboard, insulation and other substrates require different penetration and holding characteristics. |
| Application Standard | Construction and roofing applications should follow the relevant fastening schedule or system requirements. |
| Corrosion Exposure | Select galvanized, heavier-coated, stainless or another material according to the environment. |
KYA offers more than one 16 gauge wide crown staple family. P Series and BCS2 Series should not be treated as one identical product merely because both are marketed as approximately 1-inch crown staples.
| Specification | KYA P Series | KYA BCS2 Series |
|---|---|---|
| Gauge | 16 GA | 16 GA |
| Nominal Crown | 26.5mm | 25mm |
| Wire Width | 1.58mm | 1.58mm |
| Wire Thickness | 1.38mm | 1.38mm |
| Primary Cross-Reference | SENCO P, PREBENA WS, Duo-Fast 1700, Spotnails 36 | Bostitch BCS2, BeA 140, PREBENA WC, ATRO 16WC and related 25mm-crown systems |
| Interchangeability | Do not assume interchangeability. Match crown, wire dimensions, leg length, strip and stapler specification. | |
KYA supplies 16 gauge wide crown staples for fastener distributors, pneumatic-tool dealers, packaging manufacturers, furniture factories, construction-material suppliers, woodworking companies and other professional buyers.
For an accurate P Series quotation, specify the required leg length, material, finish, quantity, stapler model and destination country. If you are replacing SENCO P, PREBENA WS, Duo-Fast 1700 or another cross-reference staple, provide the existing staple code or physical sample.
When stainless steel, outdoor-use or treated-lumber performance is required, state that requirement separately so the correct staple material and finish can be confirmed instead of assuming the standard electro-galvanized version is suitable.
Request Wholesale P Series Price Explore KYA Staples
P Series staples are 16 gauge heavy-wire wide crown staples used in compatible pneumatic construction, roofing, packaging and industrial staplers. KYA P Series has a 26.5mm crown and a 1.58 × 1.38mm wire section.
KYA P Series staples have a 26.5mm crown, which is marketed as a nominal 1-inch wide crown staple format.
They are classified as 16 gauge heavy wire staples. KYA specifies a wire width of 1.58mm and thickness of 1.38mm.
KYA offers P Series lengths of 12, 16, 19, 22, 25, 28, 32, 38, 40, 45 and 50mm, covering approximately 1/2 inch through 2 inches.
Yes. SENCO P is one of the staple families listed by KYA as a cross-reference. Exact compatibility should still be checked against crown width, wire dimensions, leg length, point, collation and the stapler model.
SENCO specifies the PS15XP for 16 gauge 1-inch crown P-type staples up to 1-1/2 inches. Confirm the exact KYA staple length and strip configuration before use.
SENCO currently lists PS20XP for 16 gauge 1-inch crown P staples from 7/8 inch through 2 inches. Verify the specific KYA item and tool specification before production use.
PREBENA WS is another cross-reference family. PREBENA currently identifies WS as a 26.5mm wide crown heavy staple system. Because wire dimensions and tool configurations may differ, verify the exact replacement specification.
Duo-Fast 1700 is commonly cross-referenced with P-type 16 gauge 1-inch crown staples. Treat it as a compatibility reference rather than assuming every size and stapler is interchangeable.
No. KYA P Series has a 26.5mm crown, while KYA BCS2 Series is specified with a 25mm crown and a different cross-reference family. The two should be treated as separate staple systems.
Typical uses include sheathing, wire lathing, roofing felt, insulation board, furniture and cabinet frames, corrugated packaging, crates, boxes and other heavy fastening applications where wide crown staples are specified.
The standard KYA P Series listed on this page uses a chisel point.
KYA's current packaging table lists 70 staples per stick for the P/12 through P/50 sizes.
KYA currently lists 10,000 staples per carton across the P/12 through P/50 range shown on this page.
Standard electro-galvanized staples provide more corrosion protection than untreated steel, but they should not automatically be specified for prolonged exterior exposure. Select the coating or stainless steel grade required for the actual environment.
Do not assume that standard electro-galvanized staples are suitable for every treated-lumber system. Follow the lumber manufacturer's, building-code or project requirements for fastener coating or stainless steel grade.
Stainless steel is listed as an available KYA P Series material option. Confirm the required staple length, stainless grade, quantity and compatibility when requesting a quotation.
P/25 is 25mm / 1 inch long, P/38 is 38mm / 1-1/2 inches and P/50 is 50mm / 2 inches. Choose according to the required penetration, material thickness and the leg-length range supported by your stapler.
Provide the required P Series leg length, material or finish, stapler manufacturer and model, order quantity, packaging requirement, application and destination country. If replacing another brand, provide the existing fastener code or sample.
Looking for 16 Gauge 1 Inch Crown P Series Staples? Send KYA Fasteners your required leg length, material, finish, stapler model, purchase quantity, packaging requirement and destination country. For SENCO P, PREBENA WS, Duo-Fast 1700 or other replacement applications, include the existing staple reference so dimensional compatibility can be checked before quotation.
