KYA 23 Gauge Headless Pin Nails are precision fasteners designed for fine woodworking, decorative trim, molding, cabinet work, furniture assembly, picture frames, upholstery trim, and other applications where a nearly invisible fastening point is required. The headless design leaves only a very small entry mark, helping reduce filling, sanding, and surface preparation before painting or finishing.
Manufactured from galvanized / zinc-plated steel, KYA P6 Series micro pin nails have an approximately 0.64mm / 0.025-inch wire diameter, smooth shank, and chisel-point profile. Their small cross-section helps reduce the risk of splitting delicate trim and narrow wood components compared with larger-gauge finishing fasteners.
Available in lengths from 12mm to 30mm, these glue-collated 23GA headless pins are supplied in strips of 100 pins and packaged for professional woodworking shops, furniture factories, trim installers, fastener distributors, and pneumatic tool suppliers. Headless pins are intended primarily for positioning and light-duty fastening rather than structural load-bearing joints.
Request 23 Gauge Pin Nails Quote
| Specification | Details |
|---|---|
| Series | P6 Series |
| KYA Code | KYA-P6 |
| Fastener Type | Headless Micro Pin Nails |
| Gauge | 23 Gauge |
| Wire Diameter | 0.64mm / 0.025" |
| Head Type | Headless |
| Shank | Smooth Shank |
| Point Type | Chisel Point |
| Material | Galvanized Steel |
| Surface Finish | Zinc Plated |
| Length Range | 12mm to 30mm / Approx. 1/2" to 1-3/16" |

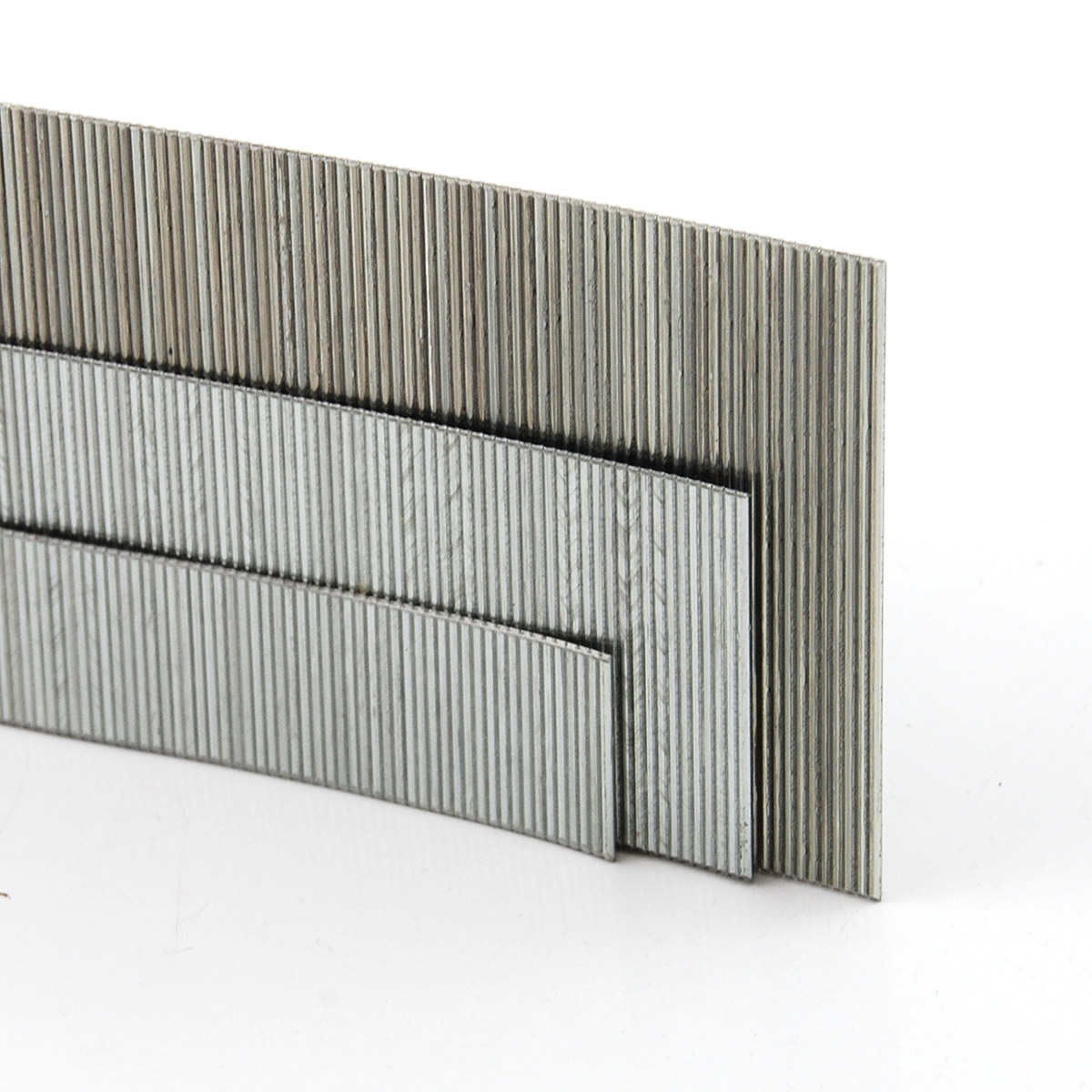

| Collation | Glue-Collated Straight Strip |
| Pins Per Strip | 100 |
| Pins Per Box | 10,000 |
| Main Applications | Fine Woodworking, Trim, Molding, Cabinets, Furniture, Frames and Upholstery Trim |
KYA P6 Series 23 gauge headless pin nails are available in eight lengths from 12mm to 30mm. The correct pin length should be selected according to material thickness, wood density, required penetration, joint design, adhesive use, and the supported fastener range of the pin nailer.
| Item | Length | Pcs / Strip | Pcs / Box | Boxes / Carton | Cartons / Pallet | G.W. / Carton | G.W. / Pallet |
|---|---|---|---|---|---|---|---|
| P6/12 | 12mm / 1/2" | 100 | 10,000 | 48 | 64 | 13.76kg | 880.64kg |
| P6/15 | 15mm / 5/8" | 100 | 10,000 | 48 | 50 | 17.12kg | 856kg |
| P6/18 | 18mm / Approx. 23/32" | 100 | 10,000 | 48 | 40 | 20.96kg | 838.4kg |
| P6/20 | 20mm / 13/16" | 100 | 10,000 | 48 | 40 | 22.88kg | 915.2kg |
| P6/22 | 22mm / 7/8" | 100 | 10,000 | 48 | 40 | 24.8kg | 992kg |
| P6/25 | 25mm / 1" | 100 | 10,000 | 48 | 36 | 28.64kg | 1031.04kg |
| P6/28 | 28mm / 1-1/8" | 100 | 10,000 | 36 | 30 | 29.64kg | 1032.04kg |
| P6/30 | 30mm / 1-3/16" | 100 | 10,000 | 36 | 30 | 30.64kg | 1033.04kg |
Nearly Invisible Fastening: The headless design leaves a very small entry point, making these pins suitable for visible trim and finished woodworking surfaces.
0.64mm Micro Pin Diameter: The thin 23 gauge profile minimizes material displacement and helps reduce splitting in narrow or delicate wood components.
Smooth Shank: Supports clean penetration through suitable wood, trim, molding, and furniture components.
Chisel Point: Designed for efficient penetration while limiting unnecessary damage to delicate workpieces.
12-30mm Length Range: Eight available sizes allow buyers to match pin penetration to material thickness and nailer capability.
Glue-Collated Strips: 100 pins per strip support efficient loading and feeding through compatible 23 gauge pin nailers.
10,000 Pins Per Box: Bulk packaging supports professional woodworking shops, furniture factories, tool distributors, and industrial users.
23 gauge headless pin nails are designed primarily for precision fastening where appearance is more important than high structural holding power. Their extremely small diameter and lack of a conventional nail head allow the fastener to become almost invisible after installation.
They are particularly useful for holding delicate trim, molding, frame components, veneers, decorative pieces, and glued assemblies in position while adhesive cures. For joints requiring significant structural strength, a larger fastener or additional mechanical fastening should be used.
| Application | Typical Use |
|---|---|
| Decorative Trim & Molding | Fastening delicate trim while minimizing visible nail holes. |
| Cabinetry | Positioning cabinet trim, small moldings, decorative components, and glued joints. |
| Furniture Manufacturing | Attaching decorative furniture trim and holding lightweight components during assembly. |
| Picture Frames | Precision fastening of suitable frame components with minimal visible marking. |
| Window Beading | Attaching narrow bead and trim components where a small entry mark is desirable. |
| Rattan & Scribe Molding | Light-duty fastening of delicate decorative wood and trim components. |
| Upholstery Trim | Blind pinning and positioning of suitable trim panels and lightweight components. |
| Handicrafts | Small woodworking, craft, model, and decorative assembly projects. |
Pin nail compatibility should be checked using the nailer's specified gauge, wire diameter, head style, collation format, and supported fastener length. A tool that accepts 23 gauge fasteners does not automatically accept every 23 gauge pin design.
KYA P6 Series pins are associated with several common 23 gauge headless pin families used by pneumatic tool manufacturers. The following references should be treated as cross-reference guidance rather than a guarantee for every individual tool model.
| Brand | Referenced 23 Gauge Pin Series |
|---|---|
| ATRO | MINI |
| BeA | S700 |
| Bostitch | MINI PINS |
| Fasco / Tacwise | A64 Type |
| SENCO | CZ Series |
| Nikema | 6 Series |
| MAX | 0.6 Type |
| Haubold | ST06 Type |
| Prebena | AL Series |
| Spotnails | P23 |
Before placing a bulk order, provide KYA Fasteners with your pin nailer model and required pin length. This allows the gauge, pin diameter, collation, fastener length, and headless profile to be checked against your tool specification.
Check Pin Nailer Compatibility
The appropriate pin length depends on the thickness and density of the material, required penetration, joint construction, adhesive use, and the maximum pin length supported by the nailer. Longer pins are not automatically better for every application.
| Pin Length | Selection Consideration |
|---|---|
| 12-15mm | Short pins for thin trim, small decorative components, lightweight craft work, and applications requiring limited penetration. |
| 18-22mm | General precision fastening for molding, cabinetry, frame components, and furniture trim where moderate penetration is required. |
| 25-30mm | Longer pins for thicker trim and components where greater penetration is required and supported by the pin nailer. |
Test the selected pin on an offcut or sample of the actual material before production. Check penetration depth, surface marking, pin deflection, splitting, and holding performance.
Headless pins and brad nails serve different fastening requirements. A 23 gauge pin is much thinner and less visible than a typical 18 gauge brad, but it also provides less mechanical holding power.
| Feature | 23 Gauge Headless Pin | Brad Nail |
|---|---|---|
| Fastener Size | Very small micro pin | Larger fastener |
| Head | Headless | Small visible head |
| Visible Mark | Minimal | More visible than a 23GA pin |
| Holding Power | Light-duty positioning and fastening | Greater mechanical holding power |
| Typical Applications | Delicate trim, molding, veneers, glued assemblies, fine woodworking | Trim, cabinetry, molding, general finish carpentry |
Because headless 23 gauge pins have a very small diameter and no conventional nail head, their mechanical holding power is lower than larger brad or finish nails. In many fine woodworking applications, the pins are used to hold components accurately in place while wood glue or another suitable adhesive cures.
Whether adhesive is required depends on the joint design, materials, load, and finished application. Do not rely on headless pin nails alone for structural joints or applications requiring substantial load-bearing capacity.
KYA Fasteners supplies P6 Series 23 Gauge Headless Pin Nails for fastener distributors, pneumatic tool dealers, woodworking suppliers, cabinet manufacturers, furniture factories, frame manufacturers, trim contractors, and other professional buyers.
Eight standard lengths from 12mm to 30mm allow distributors to offer multiple fastener options for different trim, cabinet, furniture, frame, craft, and woodworking applications. Standard packaging contains 10,000 pins per box.
For quotation, provide the required P6 pin length, order quantity, destination country, pin nailer model, and packaging requirements. If you are replacing another brand, providing the current pin series or tool model helps confirm compatibility.
Request Wholesale Price Explore Pin Nails
They are primarily used for delicate molding, decorative trim, cabinetry, furniture trim, picture frames, window beading, crafts, and glued woodworking assemblies where a minimal visible fastener mark is required.
KYA P6 Series 23 gauge headless pin nails have a nominal wire diameter of approximately 0.64mm or 0.025 inch.
The P6 Series product shown here is a headless pin design. This minimizes the visible fastening mark after the pin is driven into the workpiece.
KYA offers P6/12, P6/15, P6/18, P6/20, P6/22, P6/25, P6/28, and P6/30, covering lengths from 12mm to 30mm.
They leave a very small entry mark compared with larger brad and finish nails. This makes them particularly useful for prefinished trim and visible decorative woodworking.
Their small 0.64mm diameter displaces less material than larger-gauge nails, which can reduce the likelihood of splitting narrow trim and delicate wood. Actual performance depends on wood species, grain direction, fastener length, edge distance, and nailer settings.
No. Headless micro pins provide relatively low mechanical holding power and are intended primarily for precision positioning and light-duty fastening. Structural joints should use appropriately specified structural fasteners.
In many woodworking applications, yes. Headless pins are commonly used to hold components accurately while adhesive cures because their holding power is lower than larger brad or finish nails.
KYA lists SENCO CZ as a referenced cross-compatible pin series. Confirm that your exact SENCO nailer accepts 23 gauge headless pins with a 0.64mm-class diameter and the required pin length before ordering.
Prebena AL is listed as a comparable 23 gauge headless pin series. Compare the exact wire diameter, pin length, collation, and nailer specification before substituting one fastener series for another.
BeA S700 and Bostitch Mini Pins are listed among the referenced 23 gauge pin families. Exact compatibility depends on the pin nailer model, accepted length range, pin dimensions, and magazine design.
KYA P6 Series pins are glue collated in strips containing 100 pins.
Standard KYA packaging contains 10,000 headless pin nails per box. Carton and pallet quantities vary according to pin length.
Consider the material thickness, wood density, required penetration, joint design, adhesive use, and the maximum pin length supported by your nailer. Test the selected length on the actual material before production.
Zinc-plated or galvanized pins are generally more appropriate for dry or controlled environments unless their corrosion performance is specifically rated for the intended exposure. For demanding moisture or corrosion conditions, confirm whether a suitable stainless steel fastener is required.
Yes. KYA Fasteners supplies P6 Series headless pin nails for fastener distributors, pneumatic tool dealers, woodworking suppliers, furniture factories, cabinet manufacturers, and other professional buyers.
Looking for 23 Gauge P6 Series Headless Pin Nails? Send KYA Fasteners your required pin length, purchase quantity, destination country, pin nailer model, and packaging requirements. We can help verify the appropriate 0.64mm headless pin specification before quotation.
