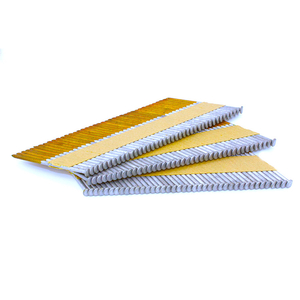

33 Degree Clipped Head Paper Collated Framing Nails are designed for professional timber framing, decking, siding, sheathing and structural construction applications. These paper tape collated framing nails are compatible with 30 to 34 degree paper tape collation framing nailers, delivering reliable feeding, strong driving performance and efficient fastening on jobsites.
KYA 33 degree framing nails are available with clipped head and offset round head designs, smooth, ring and screw shank options, and finish choices including Bright Finish, Hot Dip Galvanized (HDG), Electro Galvanized (EG) and Stainless Steel (SS). Diameter options include 2.8mm, 3.05mm, 3.33mm and 3.76mm, with length options from 50mm to 130mm.
33 degree paper collated framing nails are made for framing nailers that require angled paper strip collation. Paper tape collation supports clean driving and reliable magazine feeding, while the clipped head or offset round head design helps improve fastening performance in construction work.
30–34 degree nailer compatibility: Designed for paper tape collation framing nailers used in professional construction.
Paper tape collation: Supports reliable feeding and consistent nail alignment during framing work.
Clipped head and offset round head: Available head options for different nailer and project requirements.
Multiple shank styles: Smooth shank for general framing, ring shank for higher holding power and screw shank for selected hardwood applications.
Corrosion-resistant finishes: EG, HDG and stainless steel options help match indoor, outdoor and high-corrosion environments.
Broad size range: 50mm to 130mm length options support framing, decking, siding, timber assembly and structural fastening.
| Specification | Details |
|---|---|
| Product Name | 33 Degree Clipped Head Paper Collated Framing Nails |
| Brand | KYA |
| Fastener Type | Paper Collated Framing Nails / Clipped Head Framing Nails / Paper Tape Framing Nails |
| Degree | 30 degree or 33 degree |
| Compatible Nailer | 30 to 34 degree paper tape collation framing nailers |
| Diameter Options | 2.8mm (0.113"), 3.05mm (0.120"), 3.33mm (0.131"), 3.76mm (0.148") |
| Length Range | 50mm to 130mm |
| Head Type | Clipped Head, Offset Round Head |
| Shank Type | Smooth, Ring, Screw |
| Finishing | Bright Finish, Hot Dip Galvanized (HDG), Electro Galvanized (EG), Stainless Steel (SS) |
| Coating | Yellow, Red, Blue |
| Common Applications | Timber framing, decking, siding, sheathing, structural construction, pallets and wood assembly |
| Description | Package PCS/CTN |
|---|---|
| ⌀3.1 x 90mm EG (12um) Smooth | 2000 nails |
| ⌀3.1 x 90mm Bright Smooth | 2000 nails |
| ⌀3.1 x 90mm EG (12um) Ring | 2000 nails |
| ⌀3.1 x 90mm Bright Ring | 2000 nails |
| ⌀3.1 x 75mm EG (12um) Smooth | 2000 nails |
| ⌀3.1 x 75mm Bright Smooth | 2000 nails |
| ⌀3.1 x 75mm EG (12um) Ring | 2000 nails |
| ⌀3.1 x 75mm HDG Ring | 2000 nails |
| ⌀3.1 x 63mm Bright Smooth | 2000 nails |
| ⌀3.1 x 63mm EG (12um) Ring | 2000 nails |
| ⌀2.87 x 63mm SS304 Ring | 3000 nails |
| ⌀2.87 x 63mm HDG Ring | 3000 nails |
| ⌀2.87 x 75mm EG (12um) Smooth | 3000 nails |
| ⌀2.87 x 51mm Bright Ring | 3000 nails |
| ⌀2.87 x 70mm EG (12um) Ring | 3000 nails |
| Shank Type | Performance | Recommended Use |
|---|---|---|
| Smooth Shank | Easy driving with standard holding power for general construction. | Framing, general timber assembly and indoor construction work. |
| Ring Shank | Ring profile improves holding strength by gripping wood fibers. | Softer woods, sheathing, decking and applications requiring extra withdrawal resistance. |
| Screw Shank | Spins during driving to create a tight groove and reduce backing out. | Hardwoods, pallets, crates and stronger fastening requirements. |
| Annular Thread Shank | Externally beveled rings enhance grip and help prevent back-out. | Wood and sheetrock applications where back-out resistance is important. |
33 degree clipped head paper collated framing nails are designed for securing timber and framing with pneumatic or cordless framing nailers. They are suitable for construction projects that require durability, precision, reliable feeding and strong fastening performance.
Timber framing and structural wood construction
Decking and exterior wood fastening
Siding and side wall fixation
Sheathing and bracing applications
Pallets, crates and wooden packaging
General construction where 30–34 degree paper collated nails are required
| Finish | Description | Recommended Use |
|---|---|---|
| Bright Finish | Uncoated nail finish with no added corrosion protection. | Indoor framing and trim where corrosion resistance is not required. |
| Hot Dip Galvanized (HDG) | Zinc-coated finish for stronger corrosion protection in weather exposure. | Outdoor framing, decking, siding and treated lumber applications outside extreme coastal exposure. |
| Electro Galvanized (EG) | Thin zinc layer for moderate corrosion protection. | Indoor or low-humidity environments such as protected framing, bathrooms and kitchens. |
| Stainless Steel (SS) | Maximum corrosion resistance, available in 304 or 316 grades. | Coastal areas, exterior construction, treated lumber and corrosion-sensitive projects. |
| Selection Point | 33 Degree Framing Nail Requirement | Recommendation |
|---|---|---|
| Nailer Compatibility | 30 to 34 degree paper tape collation framing nailers | Confirm the nailer angle, collation type, head type, diameter and length before ordering. |
| Head Type | Clipped head or offset round head | Match head type with tool requirements, local building code and project specifications. |
| Shank Type | Smooth, ring or screw | Use ring shank for extra holding strength; use smooth shank for standard framing; use screw shank for selected hardwood applications. |
| Finish | Bright, EG, HDG, SS | Choose bright for dry indoor use, HDG for outdoor use and stainless steel for coastal or highly corrosive environments. |
| Packing | 2000 or 3000 nails per carton depending on size | Select carton quantity based on project volume, distributor stocking and construction crew usage. |
They are used for securing timber and framing in construction projects. Common applications include framing, decking, siding, sheathing, pallets, crates and general structural wood fastening.
These nails are compatible with 30 to 34 degree paper tape collation framing nailers. Always confirm nailer angle, paper collation, head type, diameter and nail length before use.
Smooth shank nails are suitable for general construction with standard holding power. Ring shank nails provide stronger grip because the ring profile holds wood fibers more aggressively, making them useful for softer woods and higher holding requirements.
Electro-galvanized nails provide moderate corrosion protection and are best for indoor or low-humidity environments. For outdoor use, hot dip galvanized or stainless steel nails are usually recommended.
Choose bright finish for dry indoor use, electro galvanized for moderate indoor corrosion protection, hot dip galvanized for outdoor framing and stainless steel for coastal areas or highly corrosive environments.
Available diameter options include 2.8mm, 3.05mm, 3.33mm and 3.76mm. Available length options range from 50mm to 130mm, with smooth, ring and screw shank options.
Yes. KYA can discuss sample orders, nailer compatibility, head type, shank type, finish, diameter, length, packaging and bulk order quantity according to your construction or distribution needs.
Yes. Neutral packaging and customized packaging can be discussed according to order quantity, carton requirements, distributor needs and market requirements.
KYA Fasteners supplies paper collated framing nails, clipped head framing nails, plastic strip nails, coil nails, roofing nails, pallet nails, pneumatic nailers, staples, hog rings, wire products and industrial fastening solutions for global customers. For construction and industrial fastening, KYA provides framing nails with different degrees, lengths, diameters, head types, shank styles, finishes and packaging options.
Contact KYA to get factory-direct pricing for 33 Degree Clipped Head Paper Collated Framing Nails, including nailer compatibility, size selection, finish options, samples, custom packaging, bulk order quantity and shipping schedule.
