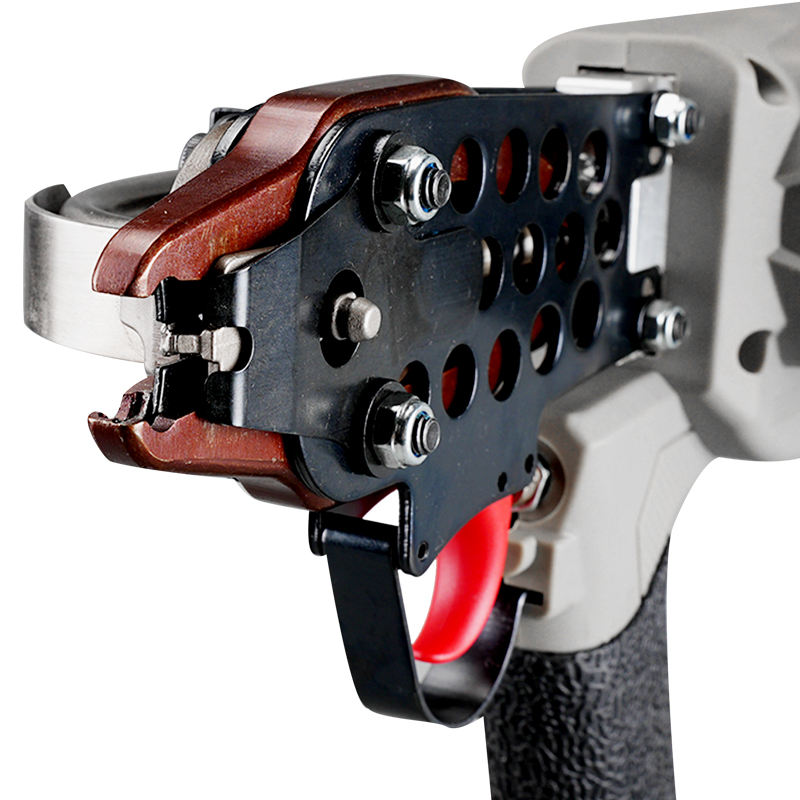

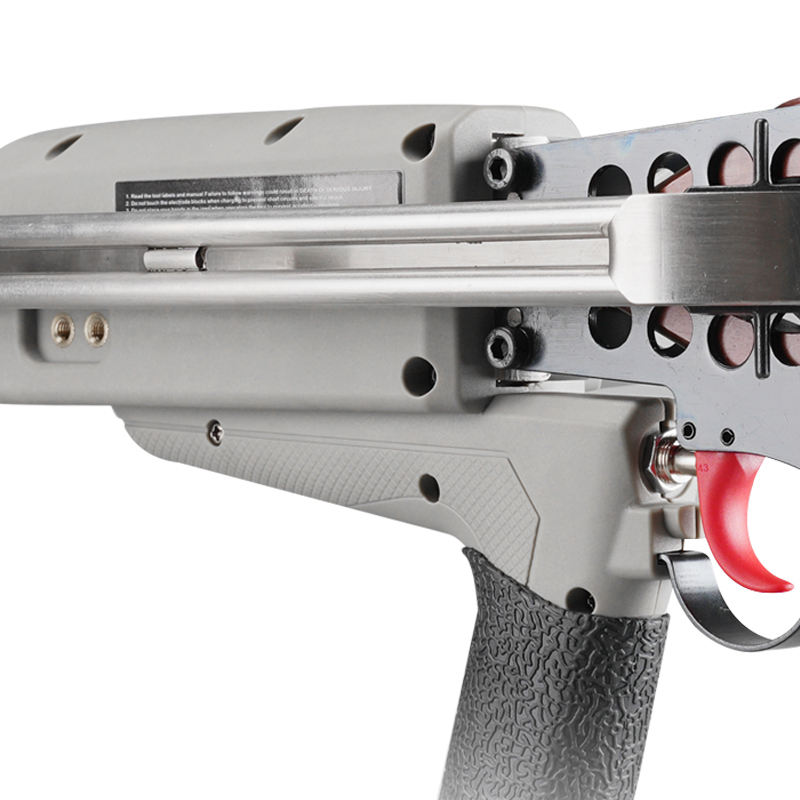

KYA eC760T is a 16 gauge cordless electric hog ring gun designed for fastening compatible C-rings without requiring an air compressor or pneumatic hose. Powered by a 20V MAX 4.0Ah lithium-ion battery, the tool is suitable for workshop production, cage assembly, fencing, upholstery, automotive seating and other mobile fastening applications.
The standard eC760T is designed for approximately 1.6mm 16GA C-rings with a 1/2" / 12.5mm inner crown and approximately 5/8" / 16.9mm outside crown. The standard tool configuration forms compatible rings to approximately 3.0–4.0mm closed diameter.
KYA lists a magazine capacity of up to 125 rings and a net weight of approximately 7.01lb / 3.18kg including the battery. A fully charged 20V MAX 4.0Ah battery is listed for approximately 4,000 fastening cycles under normal operating conditions.
| Product Type | Cordless Electric Hog Ring Gun / C-Ring Tool |
| Model | eC760T |
| KYA Code | KYA-eC760T |
| Fastener Type | 16 Gauge Collated C-Ring / Hog Ring |
| Hog Ring Wire Diameter | Approximately 1.6mm |
| Inner Crown | Approximately 1/2" / 12.5mm |
| Outside Crown | Approximately 5/8" / 16.9mm |
| Standard Closure Diameter | Approximately 3.0–4.0mm |

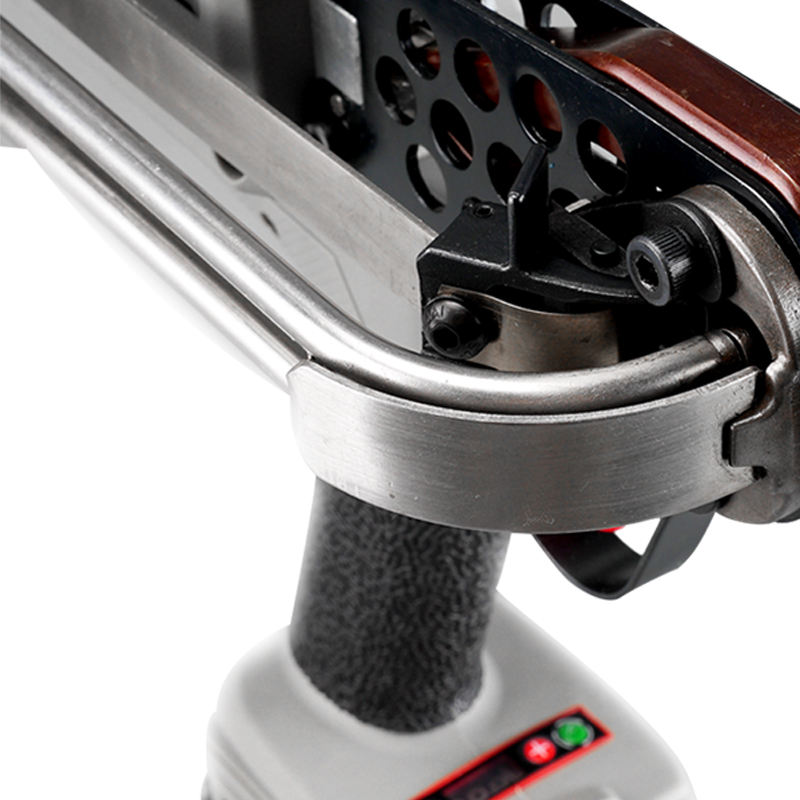

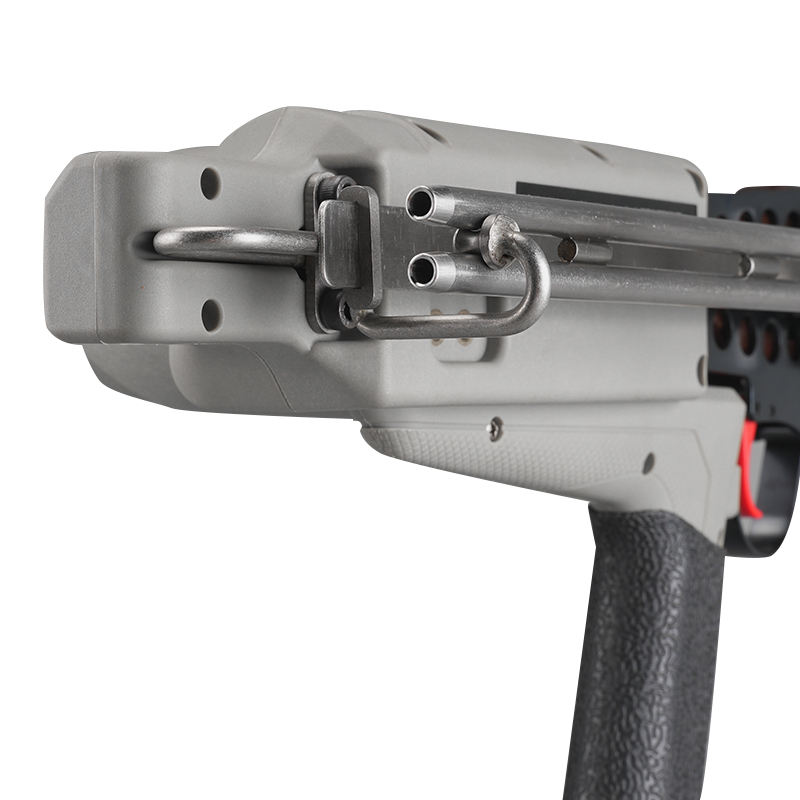

| Magazine Capacity | Up to 125 rings |
| Battery | 20V MAX Lithium-Ion, 4.0Ah |
| Approximate Fastenings per Charge | Up to approximately 4,000 under normal operating conditions |
| Net Weight | Approximately 7.01lb / 3.18kg including battery |
| Published Dimensions | 755 × 465 × 275mm; confirm current tool or package dimensions if required for logistics planning |
| Charger Input | 100–240V AC, 50/60Hz |
| Charger Output | 20V DC, 2.0A |
| Charger Weight | Approximately 0.51lb / 0.23kg |
| Primary Applications | Wire cages, fencing, automotive seating, upholstery, spring mattresses, bag closure and wire-mesh fastening |
The eC760T belongs to the compact 16 gauge C-ring tool class. Its compatible ring is smaller than the 15 gauge 3/4-inch C-rings used by larger hog-ring systems.
For reliable feeding and ring formation, compatibility should be checked by wire diameter, inner crown, outside crown, collation format and required finished closure rather than by gauge alone.
| Fastener Parameter | eC760T Reference |
|---|---|
| Fastener Style | C-Type Hog Ring |
| Gauge | 16 Gauge |
| Wire Diameter | Approximately 1.6mm |
| Inner Crown | Approximately 12.5mm / 1/2" |
| Outside Crown | Approximately 16.9mm / 5/8" class |
| Standard Tool Closure | Approximately 3.0–4.0mm |
| Magazine Capacity | Up to 125 compatible rings |
KYA also references C17 / 516G100-type 16 gauge C-rings in connection with the eC760T platform. When cross-referencing an existing ring, provide the exact part number or ring dimensions because different suppliers can use different measurement conventions for the same general 1/2-inch C-ring class.

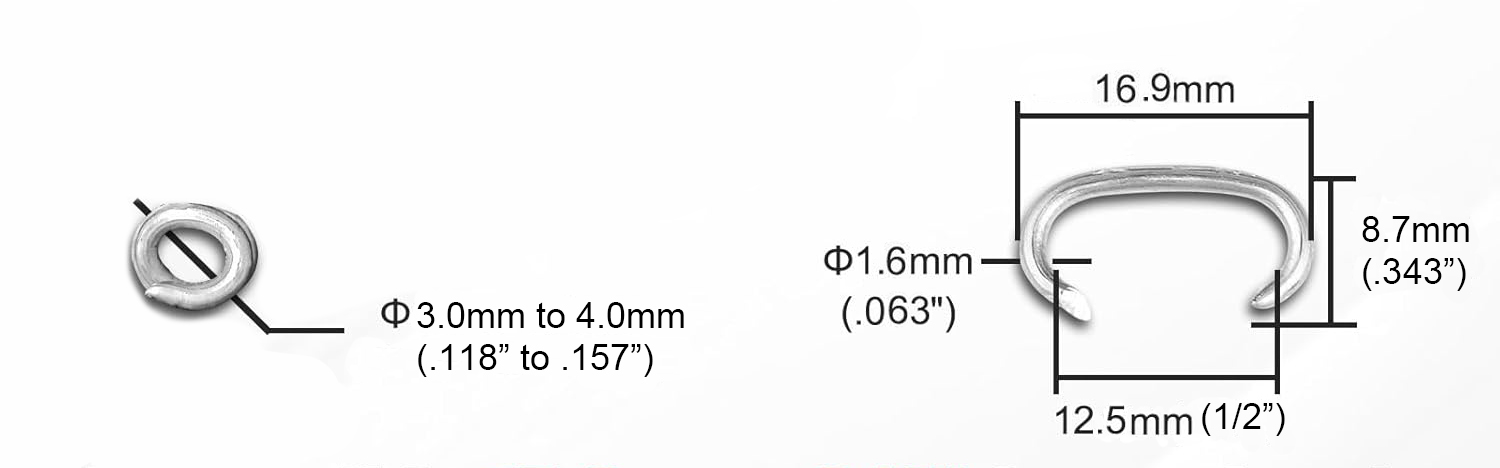

The compatible eC760T ring can be described using both an inner-crown and an outside-crown measurement. These measurements refer to different points on the open C-ring.
| Measurement | Approximate Dimension | Meaning |
|---|---|---|
| Inner Crown | 12.5mm / 1/2" | Opening measured on the inside of the C-ring |
| Outside Crown | 16.9mm / approximately 5/8" class | Overall outside width of the open ring |
| Wire Diameter | 1.6mm | Diameter of the C-ring wire |
| Finished Closure | 3.0–4.0mm | Approximate closed loop produced by the standard eC760T tool configuration |
The standard eC760T is designed to form compatible 16GA C-rings to approximately 3.0–4.0mm closed diameter. This tighter closure differentiates the tool from larger 15GA C-ring systems designed for wider finished loops.
The correct closure depends on the combined diameter and compressibility of the materials being joined. Before production use, test the ring around the actual wire, spring, mesh or component to confirm that the completed loop closes correctly.

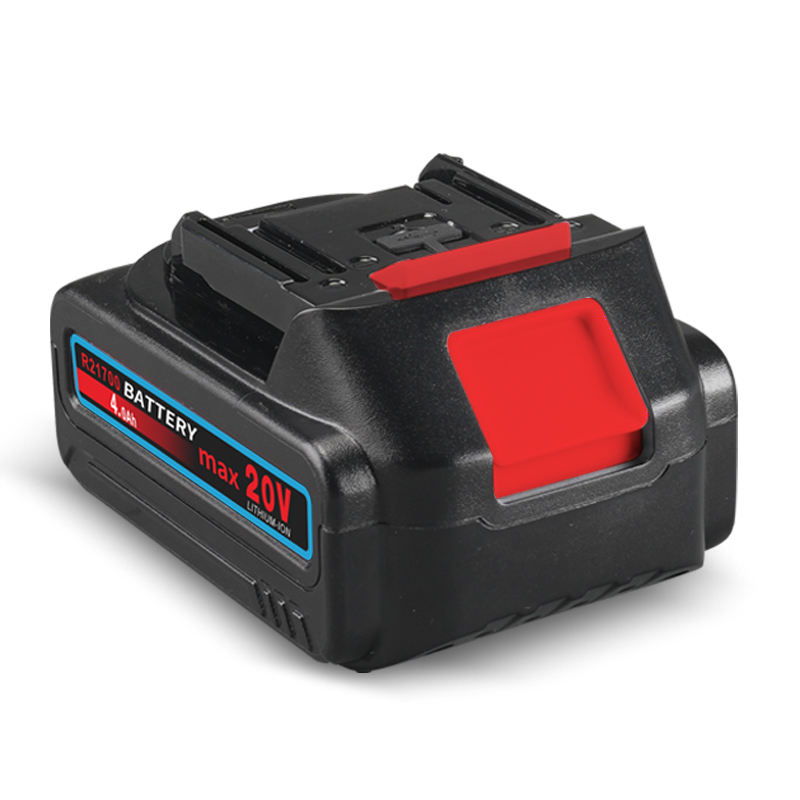

The eC760T uses a rechargeable 20V MAX 4.0Ah lithium-ion battery. Battery power allows the tool to operate without a compressed-air line, improving mobility for field installations and work around large cages, fencing sections or vehicle interiors.
Current eC760T product information lists approximately 4,000 fastening cycles from a fully charged battery under normal operating conditions. Actual runtime varies with ring resistance, temperature, battery condition, fastening frequency and other working conditions.
The battery is also listed with a USB output function for emergency device charging.
The battery-powered design removes the need for an air compressor and pneumatic hose during fastening. This is useful for mobile installation work, outdoor fencing, large cages and production areas where an air line would restrict movement.
The eC760T uses approximately 1.6mm 16 gauge C-rings in the compact 1/2-inch size class. This makes it suitable for applications requiring a smaller finished loop than larger 15GA C-ring systems.
KYA lists a capacity of up to 125 rings. The exact loaded quantity can vary with the compatible strip configuration.
The standard tool forms a tight C-ring loop suitable for selected wire, cage, automotive, mattress and mesh-fastening applications.
The 4.0Ah battery allows the operator to move between fastening positions without managing a pneumatic hose or maintaining continuous compressed-air supply.
The eC760T is intended for professional fastening where a compact 16GA C-ring and approximately 3.0–4.0mm finished closure suit the components being joined.
Animal and pet cage assembly
Wire mesh fastening
Selected fencing connections
Automotive seat assembly
Automotive upholstery
Furniture upholstery
Spring mattress production
Bag and mesh closure
Cargo and containment netting
Selected traps and small-wire assemblies
For heavy gabion baskets, large structural mesh or thick wire bundles, verify the required ring gauge and finished loop diameter before selecting the eC760T. The compact 16GA ring system is not a universal replacement for larger fencing or gabion C-rings.
Cordless operation allows the operator to move around cages, animal enclosures and fencing sections without dragging an air hose. This can be particularly useful for installation, repair and assembly work away from a fixed compressed-air source.
The selected wire combination must fit within the closed loop produced by the tool. Test the ring on the actual wire diameters before high-volume installation.
C-rings are used in selected automotive seating and upholstery processes to connect seat-cover components, wires, springs and supporting structures. The eC760T is appropriate where the assembly requires its compact 16GA ring geometry and tight closure.
Automotive seat systems use different ring sizes and closure requirements. Confirm the existing fastener dimensions before replacing another hog-ring tool.
The tool can be used in selected mattress and bedding operations where compatible 16GA C-rings fasten springs, wire components or related assemblies.
Mattress production can use several C-ring families. Confirm the ring size and finished closure required by the specific spring or border-wire assembly before changing tools.
| Specification | eC760T | Typical 15GA 3/4" Cordless System |
|---|---|---|
| Ring Gauge | 16GA / approximately 1.6mm | 15GA / approximately 1.8mm |
| Inner Crown | Approximately 1/2" / 12.5mm | Approximately 3/4" / 19mm |
| Outside Crown | Approximately 16.9mm | Approximately 23.7mm |
| Typical Closure | Approximately 3.0–4.0mm | Approximately 4.8–5.2mm depending on tool |
| Selection | Compact ring and tighter finished loop | Larger ring for wider wire or component bundles |
Choose the tool according to the required ring geometry and finished loop, not simply by selecting the higher wire gauge or larger ring size.
| Feature | eC760T Cordless | Pneumatic C-Ring Tool |
|---|---|---|
| Power Source | 20V MAX lithium-ion battery | Compressed air |
| Air Compressor | Not required during operation | Required |
| Air Hose | Not required | Normally required |
| Mobility | Suitable for mobile and field fastening | Movement depends on hose and air-supply location |
| Runtime | Depends on battery charge | Depends on compressed-air supply |
| Production Environment | Useful where mobility is important | Useful in fixed air-equipped production lines |
| Charger Weight | Approximately 0.51lb / 0.23kg |
| Input | 100–240V AC, 50/60Hz |
| Output | 20V DC, 2.0A |
| Battery | 20V MAX, 4.0Ah lithium-ion |
| Published Charging Time | Approximately 45–60 minutes; confirm for the supplied battery and charger configuration |

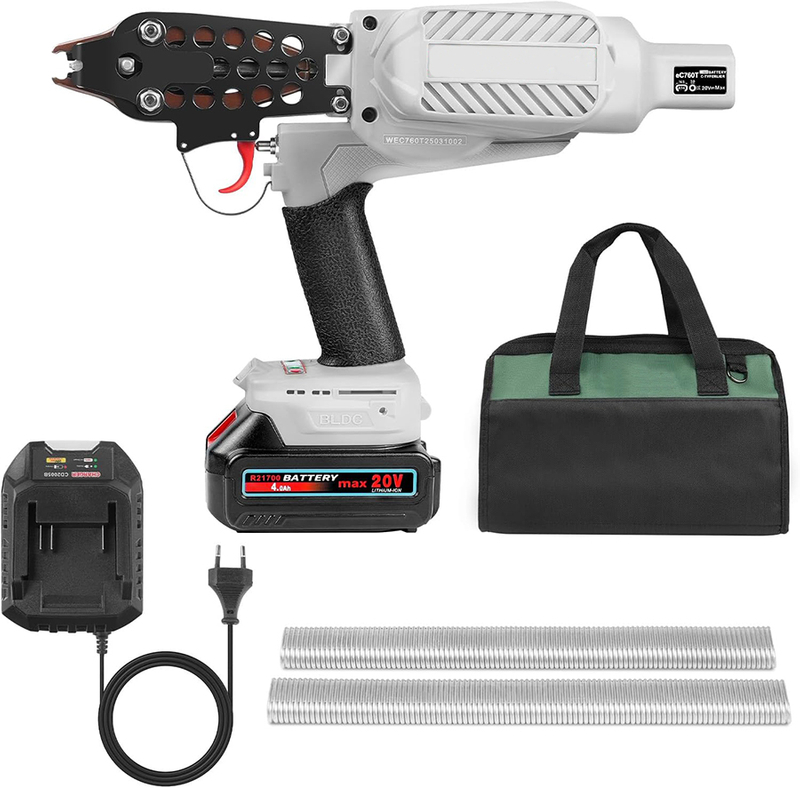

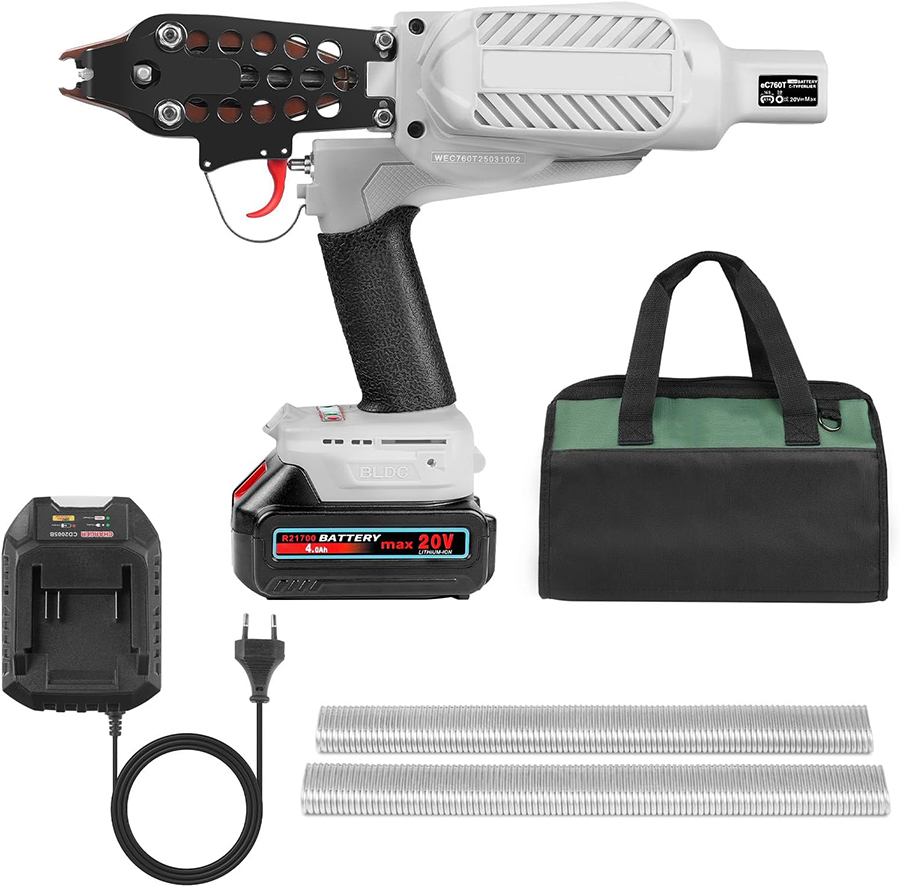

| Item | Quantity |
|---|---|
| eC760T Cordless Hog Ring Gun | 1 pc |
| 20V MAX 4.0Ah Battery | 1 pc |
| Battery Charger | 1 pc |
| Belt Clip | 1 pc |
| Tool Bag | 1 pc |
| Operating Instructions | 1 pc |
| 16GA Hog Rings | 200 pcs included as listed |
The product listing specifies 200 hog rings with the tool. Confirm the compatible ring dimensions and package quantity for the selected order.
Use only compatible 16GA C-rings that match the required wire and crown dimensions.
Confirm that the approximately 3.0–4.0mm finished closure suits the materials being joined.
Remove the battery before clearing a jam, inspecting the magazine or servicing the forming nose.
Do not force incompatible C-ring strips into the magazine.
Inspect the forming jaws if rings begin to close unevenly.
Follow the operating instructions supplied with the tool for loading, charging and maintenance.
For accurate quotation and fastener matching, provide the required tool quantity, application, existing C-ring part number or dimensions, wire or component diameter, required finished closure and delivery destination.
For the exact tool shown on this page, specify KYA-eC760T, 16GA cordless electric hog ring gun, 20V MAX 4.0Ah battery, approximately 12.5mm inner crown / 16.9mm outside crown C-ring and 3.0–4.0mm standard closure.
The eC760T is a battery-powered 16 gauge C-ring tool designed for compatible collated hog rings used in cages, fencing, seating, upholstery, mattresses and other fastening applications.
The tool uses a 20V MAX 4.0Ah lithium-ion battery.
Current eC760T product information lists approximately 4,000 fastening cycles from a fully charged battery under normal operating conditions. Actual runtime varies with ring resistance, temperature and battery condition.
The standard tool is designed for approximately 16GA / 1.6mm C-rings with a 1/2" / 12.5mm inner crown and approximately 16.9mm outside crown.
The current standard eC760T specification is approximately 3.0–4.0mm closed diameter.
The standard eC760T should be specified at approximately 3.0–4.0mm closure. Larger figures can refer to other forming configurations or related C760-family tools and should not be combined into the standard eC760T specification.
Approximately 12.5mm refers to the inside opening of the compatible C-ring, while approximately 16.9mm describes its outside width. They are different measurements of the same open ring format.
The eC760T is associated with the 16GA 1/2-inch C-ring class, including C17 / 516-type references. Before cross-brand substitution, compare the actual crown, wire diameter, strip geometry and required closure rather than relying only on the part-family name.
No. Other 16GA C-rings can have different open widths, heights, strip formats and closed diameters. Use a ring that matches the eC760T fastener geometry.
KYA currently lists a capacity of up to 125 rings.
No. It is powered by a lithium-ion battery and does not require an air compressor or pneumatic hose during operation.
Yes, for selected fencing and wire-mesh connections where the combined wire dimensions suit the compatible ring and approximately 3.0–4.0mm finished closure.
Yes. Animal cages, pet cages and wire enclosures are established applications for compact 16GA C-ring tools.
Yes, where the seat assembly uses a compatible 16GA C-ring and the required finished closure falls within the tool's working range.
Yes, in selected mattress and spring assemblies using a compatible 16GA C-ring. Other bedding systems may require larger hog rings or wider closures.
Do not assume compatibility with heavy gabions. Many gabion systems use much thicker wire and larger C-rings. Follow the gabion manufacturer's fastening specification.
The product page lists approximately 45–60 minutes. Actual charging time can vary with battery condition and charger configuration; follow the supplied charger indicator and confirm the package specification.
The published package includes the eC760T hog ring gun, one 20V battery, one charger, one belt clip, one tool bag and operating instructions. Confirm any included rings or additional accessories with the order configuration.
Provide the required quantity, application, existing hog-ring part number or dimensions, joined wire or component size, required finished closure, destination voltage requirements and delivery destination. Reference KYA-eC760T for this cordless 16GA model.
