Cordless Electric Hog Ring Gun eC7CT 15GA Cordless 20V 4.0Ah

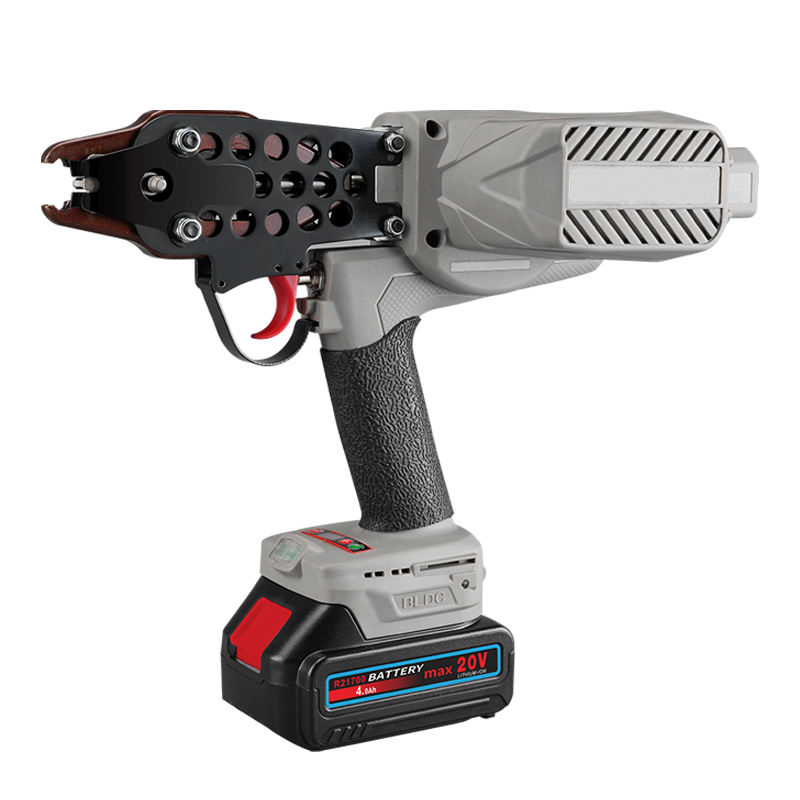

Cordless Electric Hog Ring Gun eC7CT

The Cordless Electric Hog Ring Gun eC7CT is a high-performance fastening tool designed to deliver efficient and consistent binding without the limitations of air hoses or compressors. Powered by a rechargeable lithium-ion battery, this tool provides true portability and flexibility, making it ideal for both workshop and on-site applications.

Compatible with C7 series hog rings (15 gauge), the eC7CT features an automatic feeding system that enables continuous operation and significantly improves productivity. Its fast cycle speed and stable closing performance ensure secure and uniform fastening across various materials.

• Type: 15 Gauge Electric Hog Ring Gun

• Model Number: eC7CT

• Capacity: 125PCS

• Battery Input: 100-240V 50/60Hz 60W

• Battery Output: DC 20V Max(4.0Ah)

• Weight: 7.21LB (3.27KG)*Including battery

• Applications: Animal cages, fencing, spring mattress, replace leather cover and more

• Cordless Freedom: The new version of the cordless battery-powered hog ring gun reduces the hassle of hoses, compressors, etc. regarding pneumatic nail guns, allowing for flexible operation anywhere.

• High Efficiency: Use 20V MAX 4.0Ah lithium-ion battery, full charge state can drive about 4000 staples, dramatic increases in productivity; the battery also has a USB output port for emergency use.

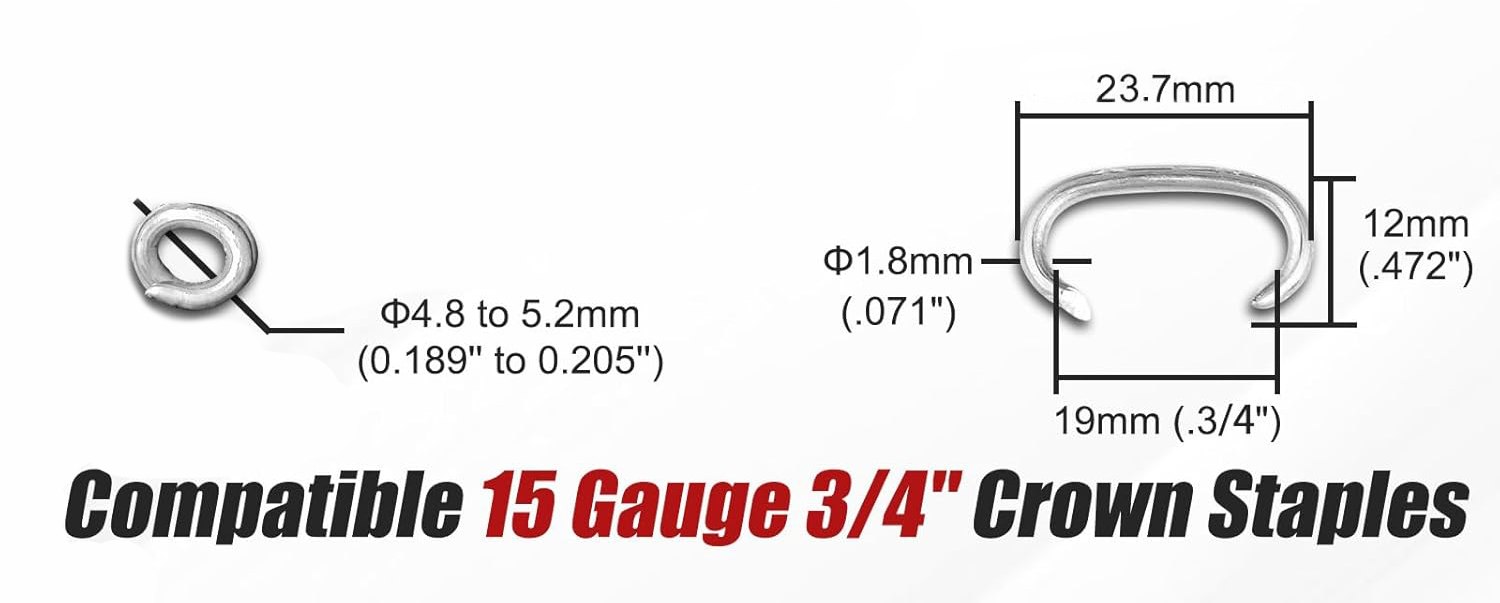

• Closing Diameter: Standard 15 gauge Electric hog ring gun clamps staples with a diameter of 4.8 to 5.2 mm.

• Compatible Fasteners: 15 Gauge 3/4-inch (19 mm) Inner Crown, 15/16-inch (24 mm) Outside Crown Hog Ring Staples; The item will comes with 200 pieces of staples.

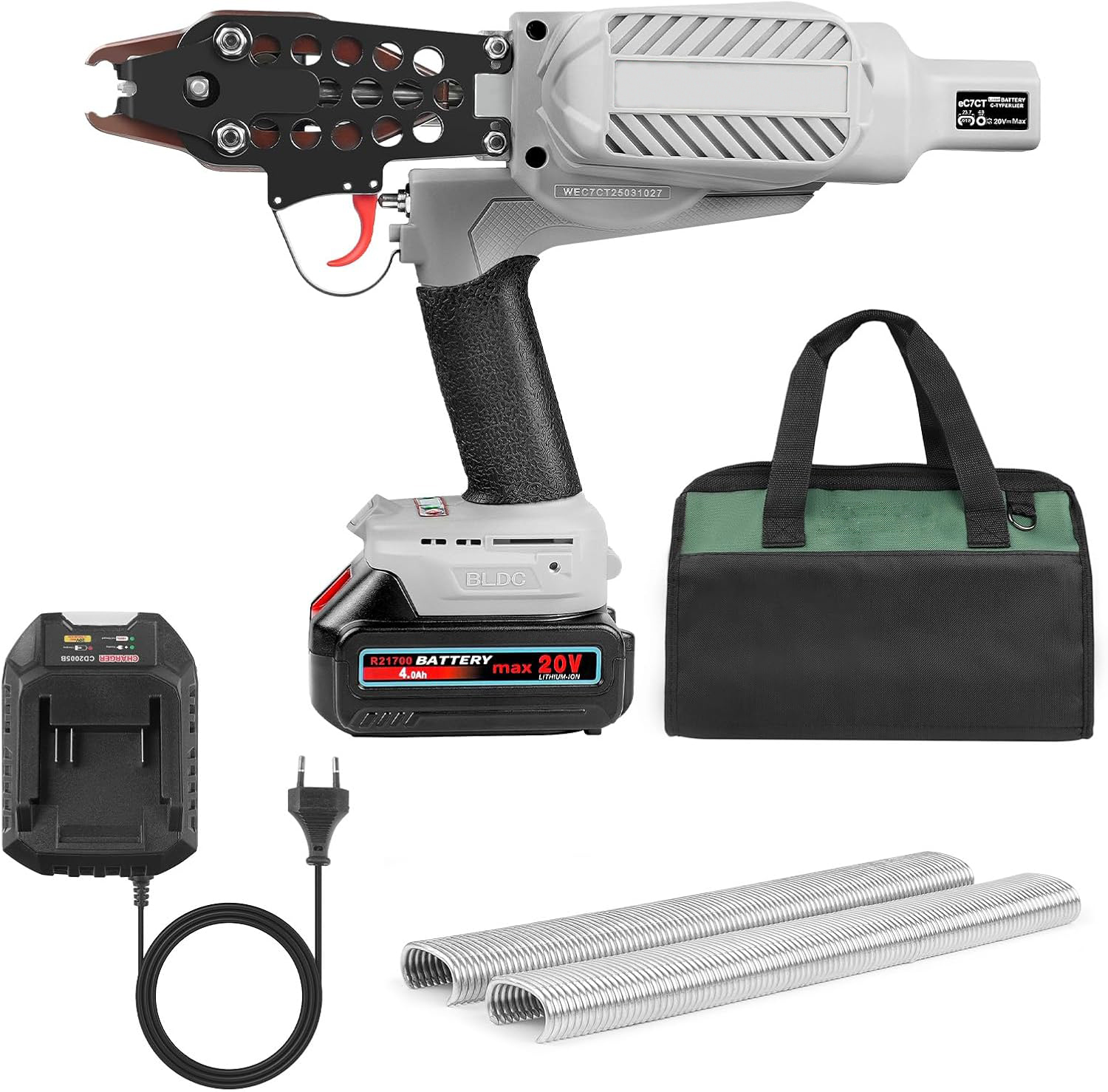

• What You Get: eC7CT hog ring gun x 1PCS, Battery x 1PCS, Charger x 1PCS, Belt Clip x 1PCS, Tool Bag x 1PCS, Operating Instruction x 1PCS.

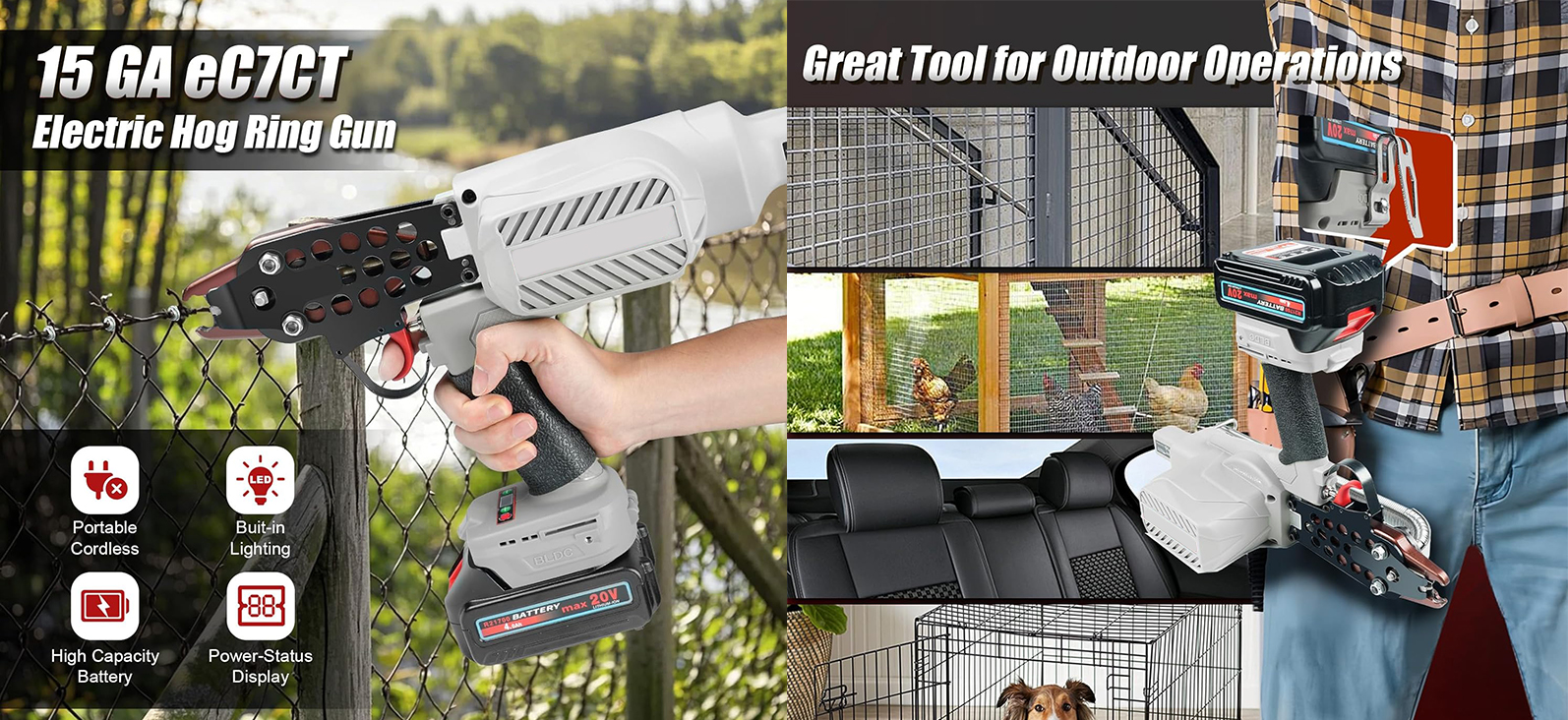

• Wide Application: Outdoor Fatening Work, Wire Cages, Automotive Seating, Spring Mattress, Bag Closure, Fencing.

• Mattress manufacturing

• Network structure fastening (e.g., wire mesh, fencing)

• Automotive upholstery

• Pet cage assembly

1. What is the eC7CT cordless hog ring gun used for?

The eC7CT is designed for fastening C-type hog rings quickly and efficiently. It is commonly used in applications such as wire fencing, cages, mattress assembly, upholstery, and automotive seat production.

2. What type of hog rings does the eC7CT support?

This model typically works with 15 gauge (1.8mm) C-type hog rings with a crown size around 3/4" (23.7mm), which are standard for industrial fastening applications.

3. What are the advantages of a cordless hog ring gun over pneumatic tools?

Compared with pneumatic models, cordless tools offer:

• No need for air compressors or hoses

• Greater mobility and flexibility on job sites

• Easier setup and lower maintenance

Cordless systems eliminate the limitations of air supply while maintaining high-speed fastening performance.

4. How many fastenings can be done per battery charge?

A fully charged battery can typically deliver around 1500 shots per charge, depending on material thickness and working conditions.

5. How long does it take to fully charge the battery?

Charging time is approximately 45–60 minutes for a full charge, allowing for quick turnaround during continuous work.

6. What materials can the eC7CT handle?

The tool is suitable for fastening materials with thickness ranging from 4.8 mm to 9.0 mm, including:

• Wire mesh and fencing

• Upholstery springs and fabrics

• Automotive seating structures

• Cage and gabion assemblies

7. Does the tool require frequent maintenance?

No. Compared to pneumatic tools, cordless hog ring guns require:

• No air system maintenance.

• Minimal lubrication.

• Simple battery and magazine care.

This makes them a low-maintenance solution for daily use.

8. How many hog rings can the magazine hold?

The magazine capacity is typically around 125 hog rings, allowing continuous operation without frequent reloading.

With over 20 years of expertise, KYA Fasteners is a trusted global supplier of fasteners and fastening tools. Our Pneumatic Hog Ring Stapler C7 is engineered for precision and durability in mattress manufacturing and other fastening applications. For bulk orders or custom solutions, Request a Quote today.
