KYA 1.00 x 1.25mm x 100 Galvanized Staple Wire Band is a glue-collated flattened steel-wire band designed for industrial staple manufacturing. The current product specification identifies a 1.00mm × 1.25mm wire section, 100 wires per band, 950–1050 N/mm² tensile strength and galvanized coating.
The wire band is supplied on a wooden reel for downstream staple-production processes. Individual flattened wires are held together by adhesive to form a continuous band that can be fed into compatible staple-manufacturing equipment before cutting and forming into finished fasteners.
For replacement or machine qualification, buyers should confirm the actual wire width, wire thickness, wires per band, tensile strength, coating, band dimensions and intended finished staple series. Some supplier and machine cross-reference tables reverse the width and thickness order, so a production drawing is more reliable than the size name alone.
| Specification | Featured Product |
|---|---|
| Product Type | Galvanized Staple Wire Band / Glued Flattened Wire Band |
| Current Size Designation | 1.00 × 1.25 × 100 |
| Current Page Measurement Order | Width × Thickness × Wires per Band |
| Wire Width | 1.00mm according to the current product specification |
| Wire Thickness | 1.25mm according to the current product specification |
| Wires per Band | 100 |
| Tensile Strength | 950–1050 N/mm² |
| Featured Coating | Galvanized / Electro-Galvanized |
| Collation | Glue-Collated Wire Band |
| Packing Support | Wooden Reel / Wood Wheel |
| Empty Wooden Spool Weight | Current family specification lists approximately 35kg empty spool weight |
| Loaded Wire Weight per Reel | Confirm current order specification; do not confuse loaded wire weight with the 35kg empty spool weight |
| Primary Use | Raw wire band for manufacturing finished staples |
| Finished Staple Series | Confirm exact staple series and production-machine specification before ordering |
Important dimensional note: the legacy KYA product page identifies this configuration as 1.00mm width × 1.25mm thickness × 100 wires. Other staple-wire references may list a similar cross-section in the reverse order as 1.25 × 1.00mm. Confirm the actual production drawing rather than assuming the two designations are automatically identical.
Request 1.00 x 1.25 x 100 Wire Pricing
On the current KYA product page, 1.00 × 1.25 × 100 is presented as Width × Thickness × Pcs. It therefore identifies the nominal flattened-wire cross section together with the number of individual wires contained across the glued band.
| Designation | Meaning on Current KYA Page |
|---|---|
| 1.00 | Nominal wire width in millimeters |
| 1.25 | Nominal wire thickness in millimeters |
| 100 | Number of individual wires / pieces in the glued wire band |
When comparing KYA wire band with another supplier, do not compare only the written size. Some technical tables use thickness × width rather than width × thickness. The intended finished staple, actual wire cross section and machine feed dimensions should all be checked.
Staple wire band combines multiple flattened wires into a continuous glued web. The adhesive holds the wires in alignment during handling and downstream production before individual staple blanks are cut and formed.
For stable processing, manufacturers should control wire dimensions, tensile strength, flatness, adhesive behavior and band alignment. These parameters affect how the band feeds, cuts and forms in the staple-production process.
The featured galvanized 1.00 × 1.25 × 100 configuration is listed at 950–1050 N/mm² tensile strength. This value should be treated as the primary SKU-level tensile specification rather than the much broader 800–1400 N/mm² range listed for the complete KYA wire-band family.
Tensile strength affects downstream cutting, bending and forming behavior. A staple manufacturer replacing an existing wire supplier should therefore compare not only size and coating but also the tensile-strength range used on the current production line.
| Wire Band | Current KYA Family Data | Selection Guidance |
|---|---|---|
| Galvanized | Featured 1.00 × 1.25 × 100 configuration: 950–1050 N/mm² | Primary configuration on this page for manufacturing galvanized finished staples |
| Copper-Coated | KYA family table includes copper-coated configurations at 540–750 N/mm² for specified sizes | Treat as a separate wire-band configuration; do not assume the same tensile range or finished-fastener application |
| Bright | Listed as a broader family coating option | Confirm exact size and tensile-strength availability before ordering |
The current page lists steel and stainless steel within the broader material range, but the featured 1.00 × 1.25 × 100 row is specifically listed as galvanized. Stainless steel should therefore be treated as a separate production option rather than as the material of the standard SKU shown on this page.
If stainless finished staples are required, confirm stainless grade, finished wire dimensions, mechanical properties, adhesive system and machine compatibility before replacing a galvanized wire band.
The following table preserves the wire-band configurations listed on the original KYA product page. The featured product for this URL is Item 03: 1.00 × 1.25 × 100 galvanized wire band.
| Item | Tensile Strength | Width × Thickness × Wires | Coating | Packing |
|---|---|---|---|---|
| 01 | 950–1050 N/mm² | 0.58 × 0.75 × 167 | Galvanized | Wood Wheel |
| 02 | 950–1050 N/mm² | 0.65 × 0.95 × 125 | Galvanized | Wood Wheel |
| 03 | 950–1050 N/mm² | 1.00 × 1.25 × 100 | Galvanized | Wood Wheel |
| 04 | 950–1050 N/mm² | 1.37 × 1.59 × 72 | Galvanized | Wood Wheel |
| 05 | 950–1050 N/mm² | 0.41 × 0.51 × 209 | Galvanized | Wood Wheel |
| 06 | 540–750 N/mm² | 0.58 × 0.75 × 167 | Copper Coating | Wood Wheel |
| 07 | 540–750 N/mm² | 0.58 × 0.75 × 167 | Copper Coating | Wood Wheel |
Source-table note: Items 06 and 07 contain identical size, tensile-strength and coating data in the current page. The source does not state the technical difference between those two rows, so no additional distinction should be invented.
| Family Attribute | Current KYA Page Data |
|---|---|
| Material Family | Steel and stainless-steel options are listed; verify exact grade by product configuration |
| Published Carbon Range | 0.06–0.50% carbon is stated as a broader steel-family reference |
| Family Tensile Range | 800–1400 N/mm² depending on configuration |
| Wire Diameter Before Flattening | 0.70–1.80mm family processing range |
| Coating Options | Bright, Galvanized, Copper |
| Collation | Glue |
| Band Appearance / Glue Color | Translucent, Golden and other specified colors according to current family data |
| Empty Spool Weight | Approximately 35kg according to the current family specification |
| Protective Packing | Wooden wheel with corrugated cardboard, removable plastic foam and adhesive tape |

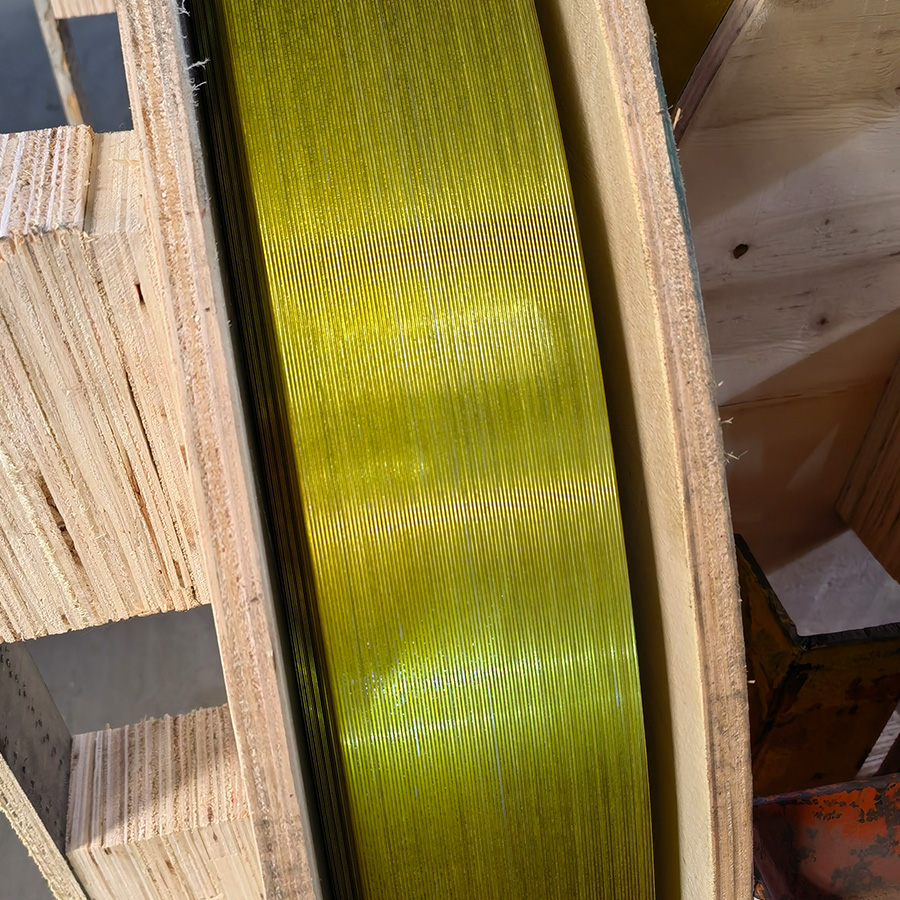

The current product specification uses a wooden wheel / wooden reel. Corrugated cardboard is used between layers or sections of the wire band, while the outside can be protected with removable plastic foam and adhesive tape.
The original product data states that the empty spool itself averages approximately 35kg. This should not be presented as the net weight of staple wire on the reel. Buyers should confirm the current loaded wire weight, reel dimensions and pallet configuration when freight planning is required.
The primary use is as semi-finished wire material for producing industrial staples. The wire band is fed into suitable production equipment where the wire is cut and formed into the required finished-staple geometry.
The broader staple-wire-band family also includes smaller wire sections used for office staple production. Select the correct wire cross section, band count and tensile strength according to the finished staple specification.
KYA's broader wire-band product data also identifies brads and pins among downstream fastener applications. The exact 1.00 × 1.25 × 100 configuration should be matched to the required finished fastener and forming machine before use for a non-staple product.
Different wire-band sizes are used to manufacture staples for carton packaging, upholstery, furniture, construction and other industrial fastening markets. The end use depends on the finished staple produced from the wire band rather than on the spool alone.
KYA has a separate 18GA 90/92 staple wire band page that includes 1.00 × 1.25mm × 100 among its wire-band references. However, newer KYA technical tables also publish approximately 1.25 × 1.00 × 100 or 1.27 × 1.05 × 100 for selected 90/92 configurations.
For that reason, this product page should not make an unconditional 90/92 compatibility claim from the 100-wire designation alone. Buyers should provide the finished staple dimensions, current wire section and production-machine requirements for cross-reference confirmation.
| Parameter | What to Confirm |
|---|---|
| Finished Staple Series | Provide the exact finished staple model or dimensional drawing |
| Wire Width | Confirm actual flattened-wire width and the supplier's measurement orientation |
| Wire Thickness | Confirm thickness independently rather than assuming dimension order |
| Wires per Band | Featured configuration uses 100 wires per glued band |
| Tensile Strength | Featured configuration is listed at 950–1050 N/mm² |
| Coating | Specify galvanized, copper-coated, bright or other required finish |
| Adhesive / Band Condition | Confirm glue-collation requirements, band alignment and processing conditions |
| Machine | Provide manufacturer, model and existing wire-band specification when replacing another supplier |
| Loaded Reel Specification | Confirm reel dimensions, wire net weight and pallet configuration for handling and transport |
| Ordering Information | What to Provide |
|---|---|
| Current Size | 1.00 × 1.25mm × 100 wires according to the current product page |
| Dimension Orientation | Confirm whether your current supplier uses width × thickness or thickness × width |
| Tensile Strength | 950–1050 N/mm² for the featured galvanized configuration |
| Coating | Galvanized for this featured SKU; specify another coating only if required |
| Finished Staple | Provide finished staple series, crown, wire size or sample when cross-referencing |
| Production Equipment | Provide staple-machine manufacturer and model if feed compatibility needs to be checked |
| Loaded Reel Requirement | Specify preferred wire weight per reel and handling requirement |
| Band Color | Provide required translucent, golden or other specified appearance if relevant |
| Quantity | Provide required reels, total wire weight or annual purchasing volume |
Send Your Staple Wire Specification
It is a glued flattened-wire band used as semi-finished material for staple manufacturing. The current KYA product page identifies it as 1.00mm × 1.25mm with 100 wires per band.
On the current KYA specification, 100 refers to the number of individual wires or pieces contained in the glued wire band.
That is how the current legacy page labels its Width × Thickness × Pcs table. However, other staple-wire technical tables may reverse width and thickness. Confirm the current KYA production drawing before dimensional cross-reference.
They may describe the same nominal rectangular cross section when two suppliers use different dimension orders, but this should not be assumed. Compare the actual wire drawing, tolerances and machine requirement.
The featured galvanized 1.00 × 1.25 × 100 configuration is listed at 950–1050 N/mm².
Yes. The featured Item 03 configuration is listed as galvanized, and the current product description identifies the wire surface as electro-galvanized.
They use different surface treatments and can also have different mechanical specifications. The featured galvanized size is listed at 950–1050 N/mm², while copper-coated entries in the current family table are listed at 540–750 N/mm² for the specified configuration.
The current KYA page describes the broader wire family using a 0.06–0.50% carbon range. It does not provide one exact steel grade or chemical composition for this featured SKU, so the precise material grade should be confirmed when required.
KYA's separate 18GA 90/92 wire-band material references include a 1.00 × 1.25 × 100 configuration, but other current KYA technical tables use different width and thickness values for 90/92 production. Confirm the finished staple and production-line specification before ordering specifically for 90/92 staples.
The broader KYA wire-band family is described for staples, brads and pins. Whether this exact 1.00 × 1.25 × 100 configuration is appropriate depends on the required finished fastener geometry and production equipment.
The current specification lists glue collation. Adhesive holds the flattened wires together as a continuous band for downstream manufacturing.
The featured product is packed on a wooden wheel or wooden reel. Current family data also lists corrugated cardboard separation, removable plastic foam and adhesive tape for protection.
The current product page states that approximately 35kg is the average weight of the empty spool. It should not be interpreted as the net wire weight on a loaded reel. Confirm the loaded wire quantity for the current order.
The uploaded product specification does not state one verified loaded wire weight for this exact SKU. Provide the required reel size or ask KYA to confirm the current packing specification before freight calculations.
The current family specification lists translucent and golden appearances and indicates that other specified colors may be available. Confirm the required adhesive or band appearance with the order.
Provide the existing wire width, thickness, number of wires per band, tensile strength, coating, finished staple series and staple-machine model. A physical sample or production drawing is useful when suppliers use different dimension-order conventions.
Contact KYA Fasteners to confirm current sample or trial-order availability. For a new production line or supplier replacement, test the exact wire band under the intended cutting, forming and adhesive conditions before volume purchasing.
Ask About 1.00 x 1.25 x 100 Wire Band
KYA supplies staple wire band for staple factories, industrial-fastener manufacturers, packaging-fastener producers, furniture-fastener manufacturers and wire-forming businesses.
For quotations on 1.00 × 1.25mm × 100 galvanized staple wire band, provide the finished staple series, actual wire cross section, dimension-order convention, tensile-strength requirement, coating, machine model, required reel specification and purchasing quantity.
