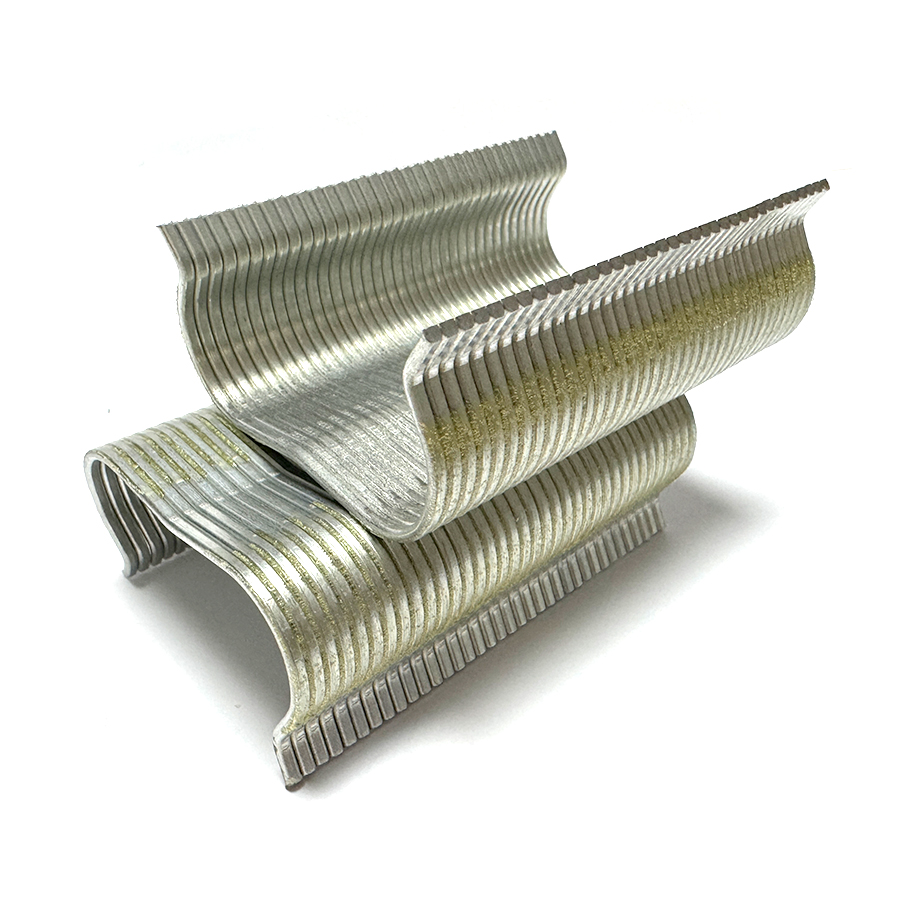

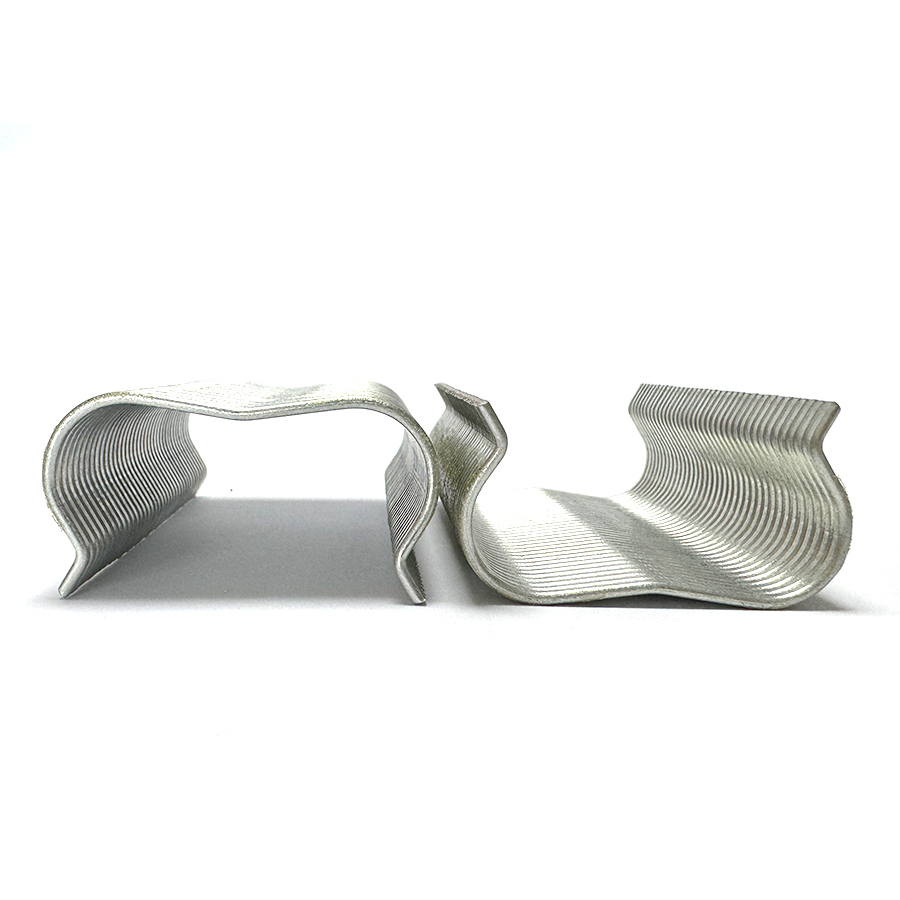

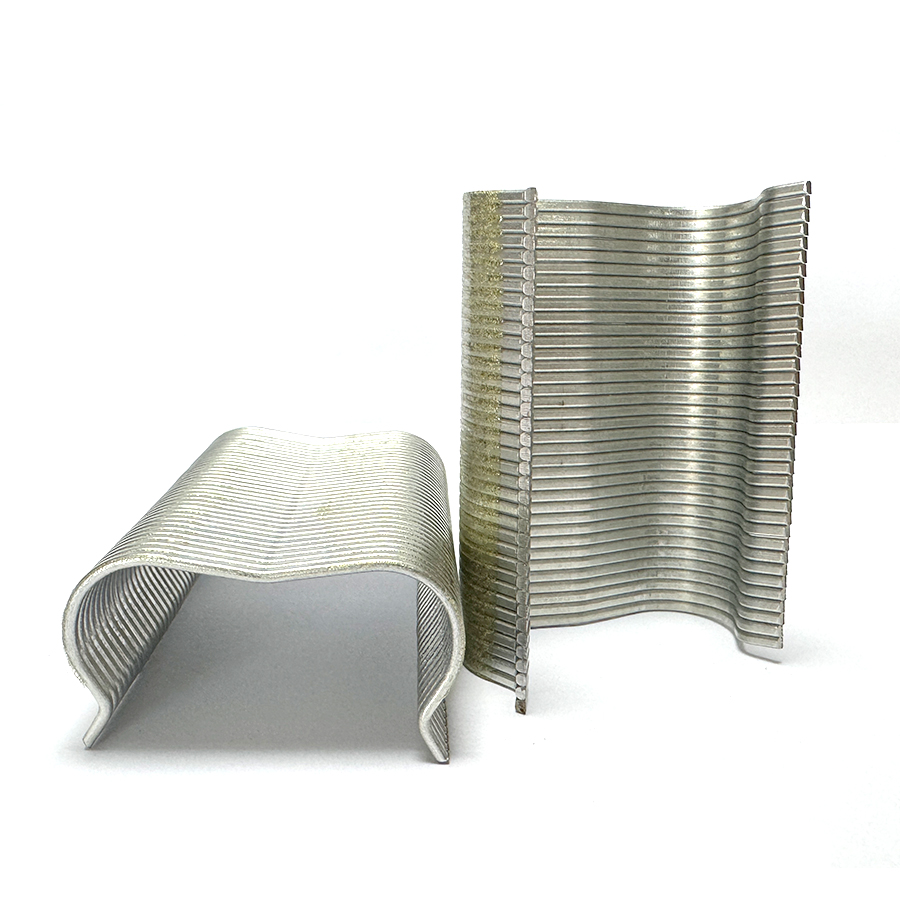

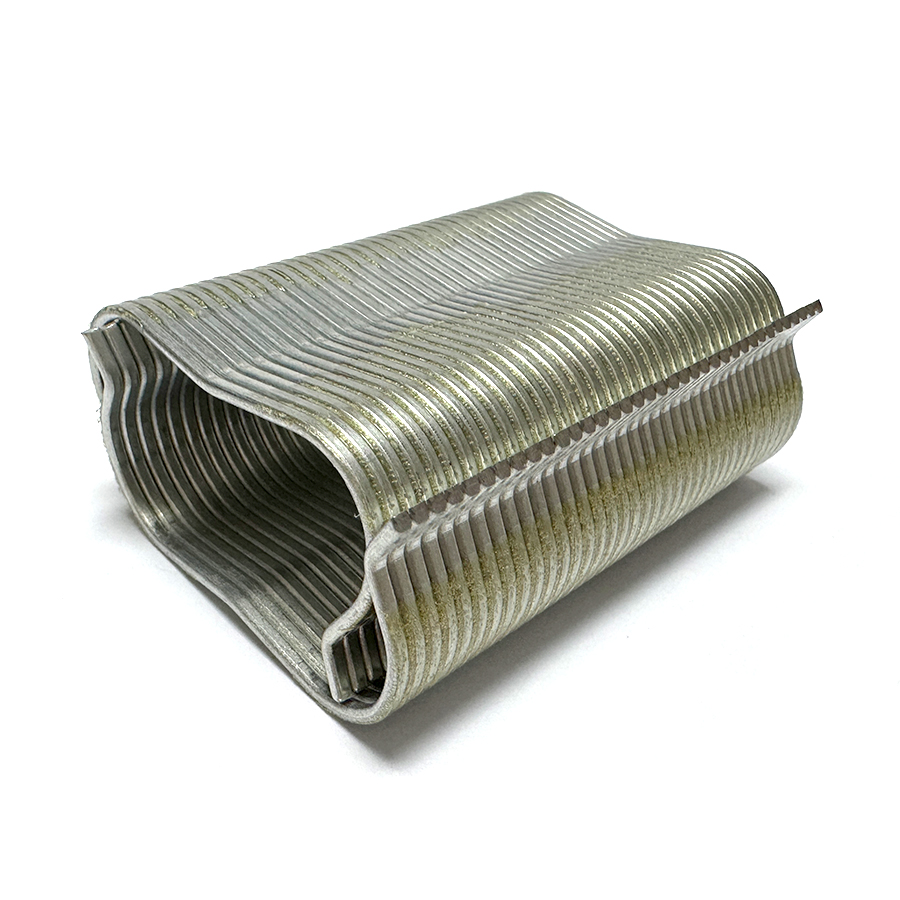

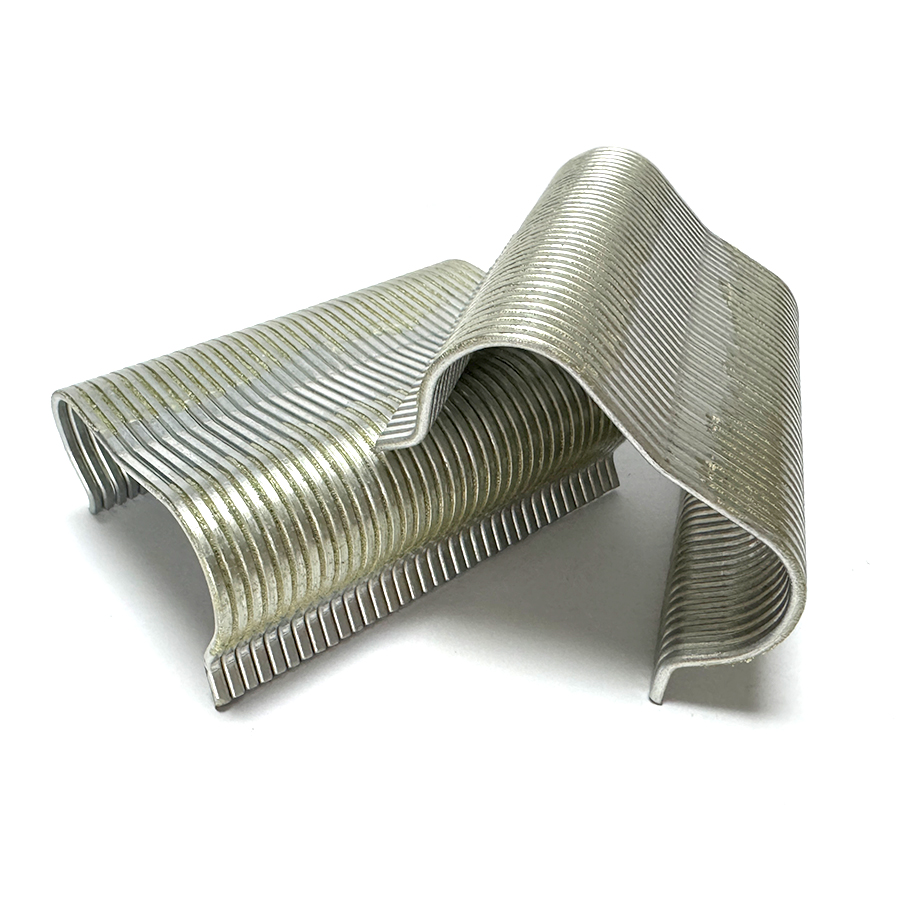

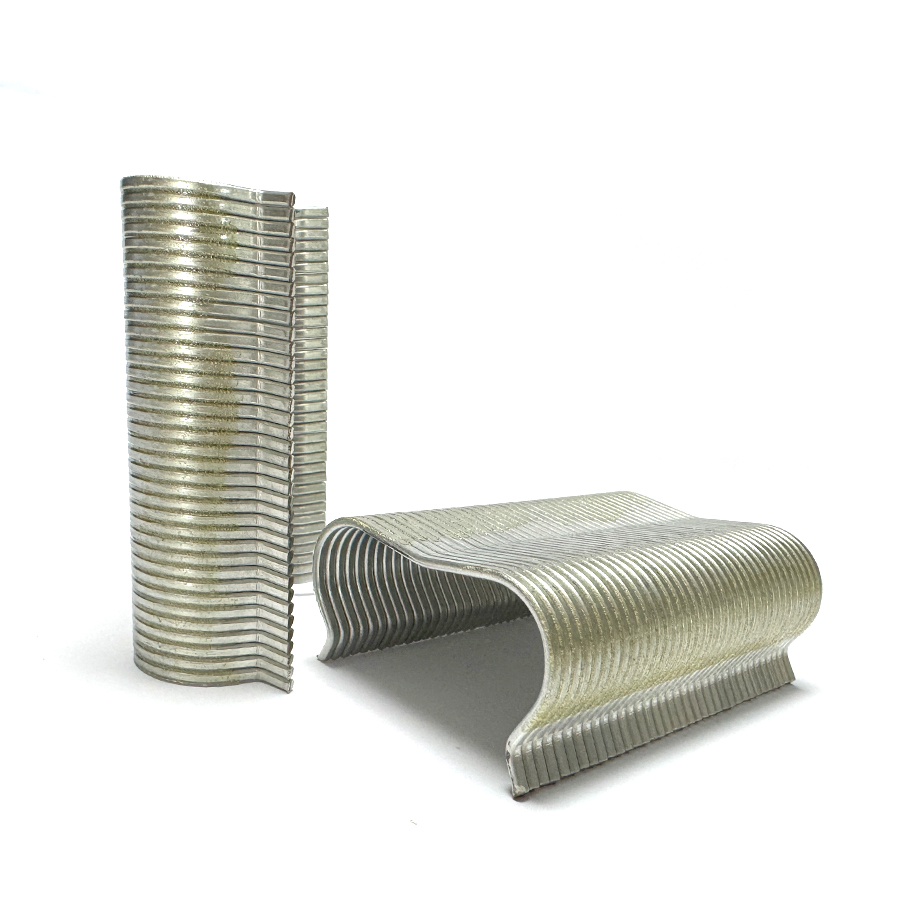

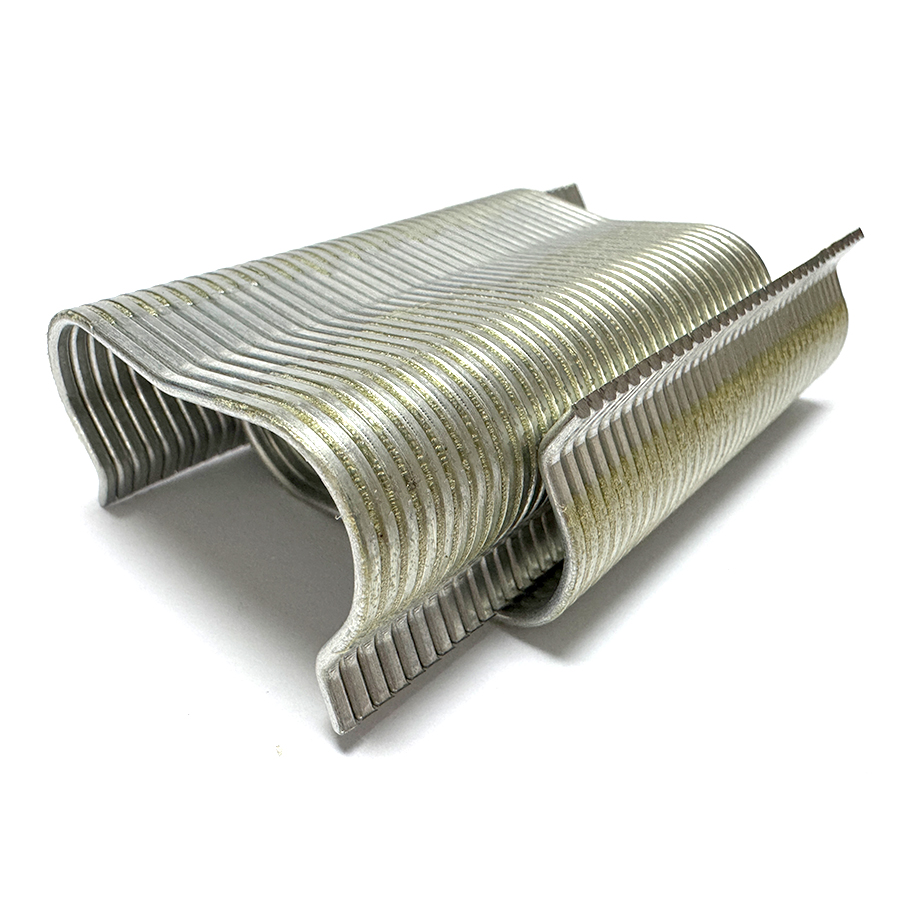

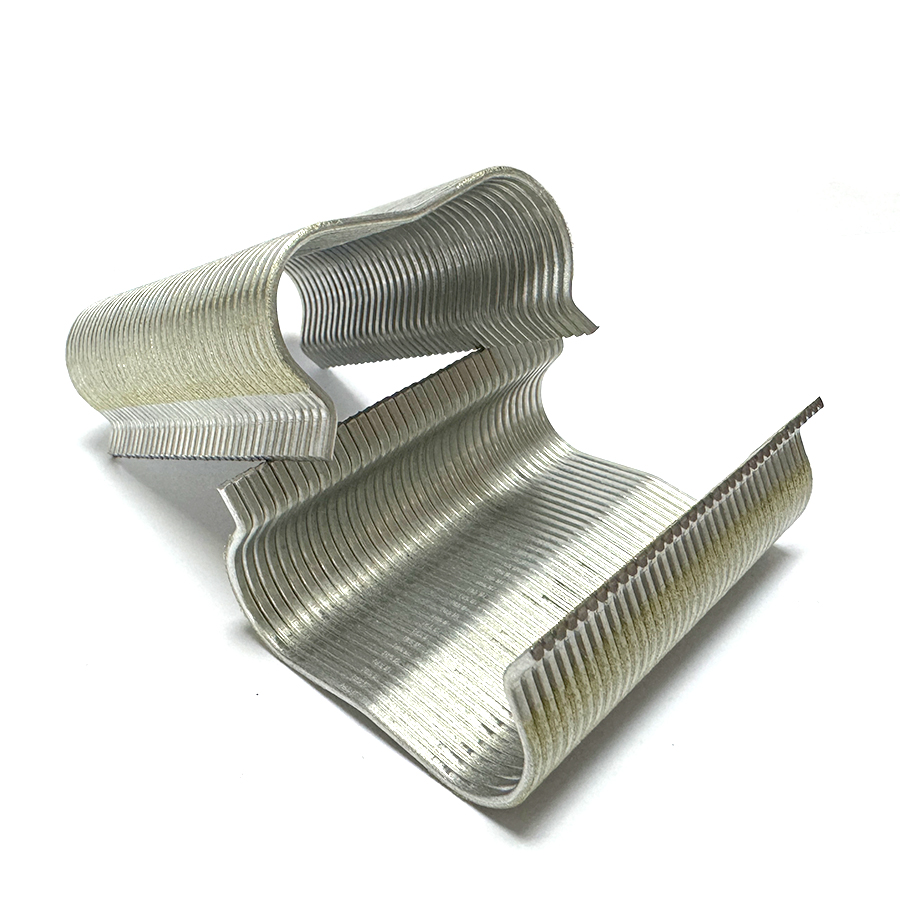

KYA E45 hog ring staples are 14 gauge galvanized steel fasteners designed for securing polyethylene irrigation tubing to trellis or support wire in vineyards, orchards and other agricultural irrigation systems.

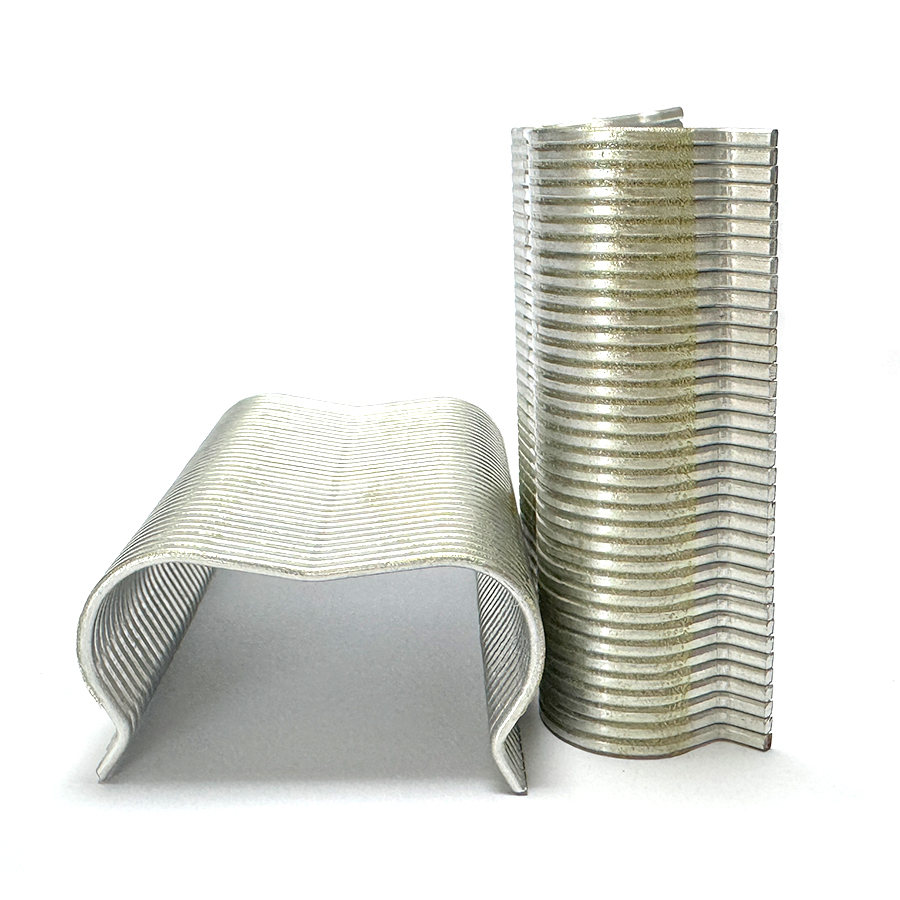

The KYA-E45 staple measures approximately 45mm wide × 22mm high and is formed from 2.0mm steel wire. Its rounded ring profile, blunt ends and outward-curved legs are designed for manual installation with compatible E45 irrigation stapling equipment.
Within the Agrifast E-Series system, the E45 format is intended for PE irrigation pipe in the approximately 17–20mm diameter range when used with the corresponding Mod 140 tool and E45 magazine.
| Product Type | Irrigation Hog Ring / Vineyard Staple |
| Model | E45 |
| Product Code | KYA-E45 |
| Gauge | 14 Gauge |
| Wire Diameter | 2.0mm |
| Outside Width | 45mm |
| Height | 22mm |
| Material | Steel |
| Finish | Galvanized |
| Point Type | Blunt |
| Leg Design | Outward-Curved Legs |
| Packing | 650 pcs / box |
| Pieces per Strip | 36 pcs |
| Boxes per Carton | 15 boxes |
| Reference Pipe Diameter | Approximately 17–20mm PE Pipe |
| Reference Tool System | Mod 140 with E45 Magazine |
| Primary Application | Fixing PE irrigation tubing to trellis or support wire |
The E45 is a specialized agricultural fastening ring rather than a conventional construction hog ring. Its shape is designed around irrigation-line installation where polyethylene tubing needs to be retained alongside a vineyard or orchard support wire.

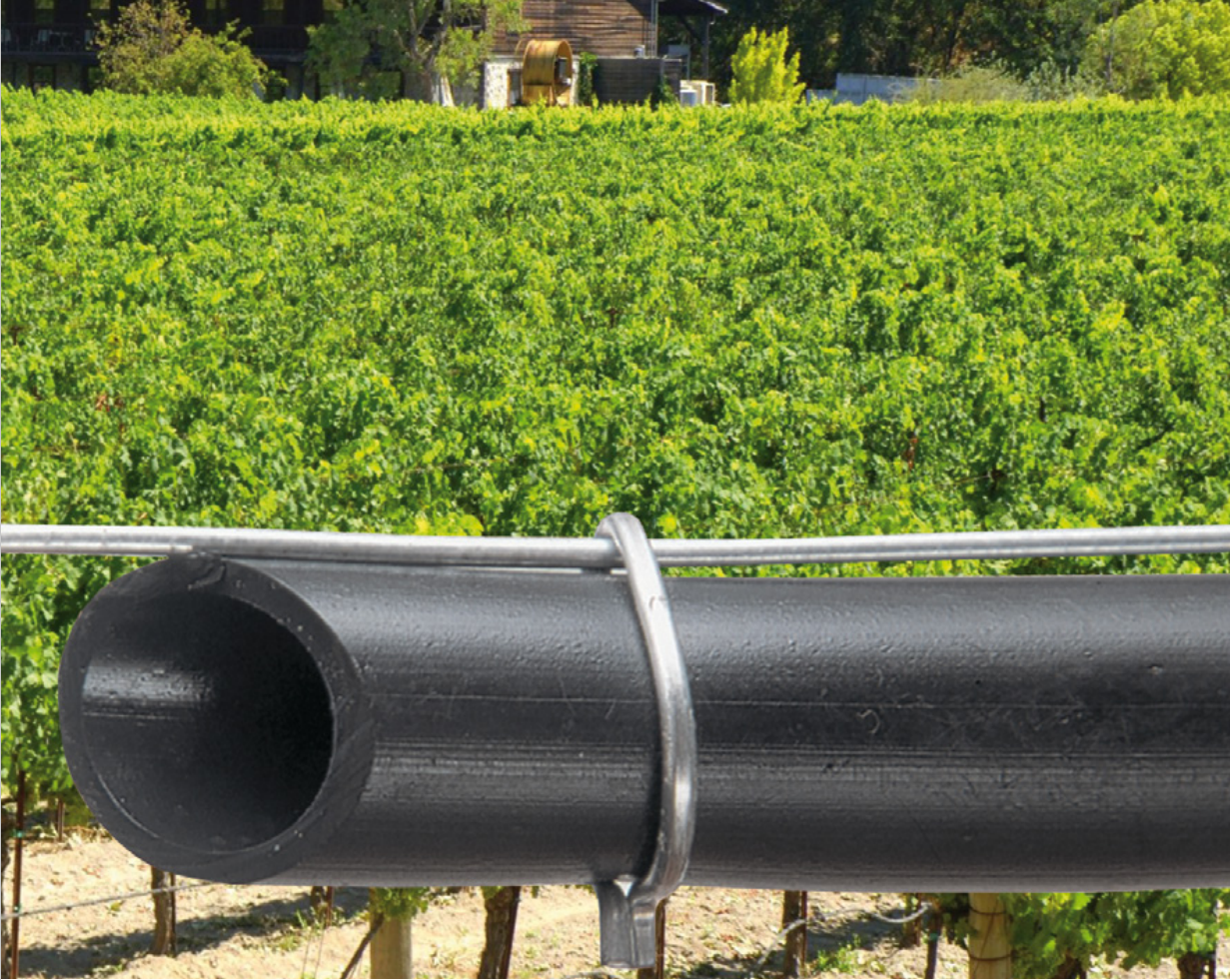

When the compatible hand tool closes the staple, the ring forms around the irrigation tube and support wire. The outward-curved legs also allow the installed staple to be accessed with suitable pliers when removal is required.
The E45 is manufactured from 2.0mm galvanized steel wire. This wire diameter corresponds to the 14 gauge E-Series irrigation staple format used in compatible agricultural fastening systems.
The E45 measures approximately 45mm across the outside of the ring and 22mm in height. These dimensions distinguish it from the smaller E30 and E40 staples used for smaller irrigation tubing.
The E45 uses blunt ends rather than sharp penetrating points. This configuration is appropriate for a fastener that closes around irrigation tubing and support wire rather than being driven into wood.
KYA specifies outward-curved leg ends. After installation, this shape provides accessible ends that can be gripped with suitable pliers when a staple needs to be removed.
The galvanized zinc-coated surface provides corrosion protection for the steel staple during normal agricultural use. The actual service life depends on environmental exposure, irrigation water, chemicals and local growing conditions.
KYA lists 650 E45 staples per box for commercial vineyard, orchard, irrigation and agricultural supply applications.
The E45 staple is intended primarily for agricultural irrigation-line fastening where PE tubing needs to be supported by a horizontal trellis or carrier wire.
Vineyard drip irrigation tubing
PE irrigation pipe attachment to trellis wire
Orchard irrigation-line support
Greenhouse irrigation tubing where the E45 format is suitable
Agricultural irrigation systems using approximately 17–20mm PE pipe
Replacement fasteners for compatible E45 irrigation tools
E45 staples should not be selected solely because the outside width is 45mm. The tubing diameter, tool magazine and closing geometry must all correspond to the E45 fastening system.
Within the Agrifast Mod 140 system, the E45 staple and corresponding magazine are specified for polyethylene irrigation tubing with an outside diameter of approximately 17–20mm.
The selected staple should leave the irrigation tubing properly supported without excessive compression. Pipe outside diameter should therefore be checked before selecting E30, E40 or E45 staples.
| Staple | Staple Size | Wire Diameter | Reference PE Pipe Diameter | Tool System |
|---|---|---|---|---|
| E30 | 29 × 18mm | 2.0mm | 10–12mm | Mod 140 with E30 magazine |
| E40 | 39 × 22.5mm | 2.0mm | 13–16mm | Mod 140 with E40 magazine |
| E45 | 45 × 22mm | 2.0mm | 17–20mm | Mod 140 with E45 magazine |
This comparison applies to the E30, E40 and E45 configurations used within the Mod 140 irrigation fastening system. Use the pipe outside diameter and tool magazine specification when selecting the correct staple.
Agrifast specifies the manual Mod 140 irrigation fastening tool for E30, E40 and E45 staple formats. The tool uses a dedicated magazine corresponding to the selected staple size.
For E45 staples, the Mod 140 should be fitted with the E45 magazine and used with irrigation tubing within the appropriate diameter range. Buyers replacing staples for another brand of irrigation fastening tool should provide the exact tool model before ordering.
| Staple Model | E45 |
| Reference Tool | Mod 140 Manual Irrigation Fastener |
| Required Magazine | E45 Magazine |
| Reference Pipe Range | 17–20mm PE Pipe |
| Fastening Method | Manual closure around irrigation tubing and support wire |
| Before Ordering | Confirm tool model, magazine and irrigation pipe outside diameter |
E-Series irrigation staples provide a mechanical method for attaching polyethylene irrigation tubing to vineyard and orchard support wire. The system uses a purpose-designed hand tool to form the staple around the pipe and wire.
| Feature | E45 Metal Staple System | Plastic Tie System |
|---|---|---|
| Fastener Material | Galvanized steel wire | Plastic, depending on tie type |
| Installation | Closed mechanically with compatible irrigation fastening tool | Installed according to the selected tie system |
| Removal | Outward-curved legs can be accessed with suitable pliers | Depends on the plastic tie design |
| Sizing | Selected according to pipe diameter and E-Series tool setup | Selected according to tie length and pipe/support configuration |
The most appropriate fastening system depends on the irrigation layout, pipe diameter, support-wire configuration, installation equipment and vineyard or orchard maintenance process.
The ends of the E45 legs curve outward after installation. KYA identifies this geometry as a feature that facilitates removal with pliers when the irrigation line needs to be repositioned, replaced or serviced.
Removal should be performed carefully so the pliers engage the staple rather than the polyethylene tubing. Inspect the irrigation pipe after maintenance before returning the system to service.
The E45 is manufactured from galvanized steel. The zinc coating provides corrosion protection compared with untreated bright steel and is suitable for the intended agricultural irrigation fastening application.
Corrosion performance depends on moisture, fertilizer, chemicals, water quality, climate and other environmental conditions. Where unusual chemical exposure is expected, provide the operating conditions when requesting the fastener specification.
For accurate product matching and quotation, provide the required quantity, irrigation tool manufacturer and model, magazine type, PE pipe outside diameter, application and delivery destination.
For this product, reference KYA-E45 and specify 14GA galvanized E45 irrigation staples, 45 × 22mm with 2.0mm wire.
| Product Code | KYA-E45 |
| Gauge | 14 Gauge |
| Staple Size | 45 × 22mm |
| Wire Diameter | 2.0mm |
| Material | Steel |
| Finish | Galvanized |
| Point | Blunt |
| Packing | 650 pcs / box |
| Pieces per Strip | 36 pcs |
| Boxes per Carton | 15 boxes |
| Reference Pipe Range | 17–20mm PE Pipe |
| Reference Tool | Mod 140 with E45 Magazine |
| Inquiry Information | Quantity, tool model, magazine, pipe diameter, application and delivery destination |
E45 is a galvanized steel ring staple designed to secure polyethylene irrigation tubing to trellis or support wire in vineyards, orchards and related agricultural irrigation systems.
KYA specifies the E45 at approximately 45mm wide × 22mm high with a 2.0mm wire diameter.
The E45 is a 14 gauge irrigation staple manufactured from 2.0mm steel wire.
Within the Mod 140 E-Series irrigation system, E45 is specified for PE tubing with an outside diameter of approximately 17–20mm.
Agrifast specifies the manual Mod 140 irrigation fastening tool with the dedicated E45 magazine. Other tools should be checked against the complete E45 dimensions before use.
No. The tool must match the E45 dimensions and closing geometry. A general-purpose hog ring plier should not automatically be assumed to accept this agricultural staple format.
The outward leg shape facilitates access with suitable pliers when an installed staple needs to be removed for irrigation-line maintenance or replacement.
The staple uses blunt ends because it closes around the tubing rather than piercing it. Correct staple size, tool setup and installation remain necessary to avoid excessive pressure on the PE pipe.
E40 measures approximately 39 × 22.5mm and is used in the Mod 140 system for approximately 13–16mm PE pipe. E45 measures approximately 45 × 22mm and is intended for approximately 17–20mm PE pipe.
Yes. KYA E45 staples are manufactured from steel with a galvanized zinc-coated finish.
KYA lists 650 E45 staples per box.
E45 is primarily an irrigation-line fastener for securing PE tubing to support wire. Plant-training fasteners such as V45 use a different design and should not be treated as interchangeable with E45.
Provide the required quantity, irrigation fastening tool manufacturer and model, magazine type, PE pipe outside diameter, application and delivery destination. Reference KYA-E45 to identify the correct staple.
A 650-piece sample box is available for evaluation and can be shipped worldwide; the buyer pays the freight cost.
The listed MOQ is 56–64 cartons (one pallet). Custom sizes are available on request.
