| Material: | |
|---|---|
| Finish: | |
| Point: | |
| Quantity: | |

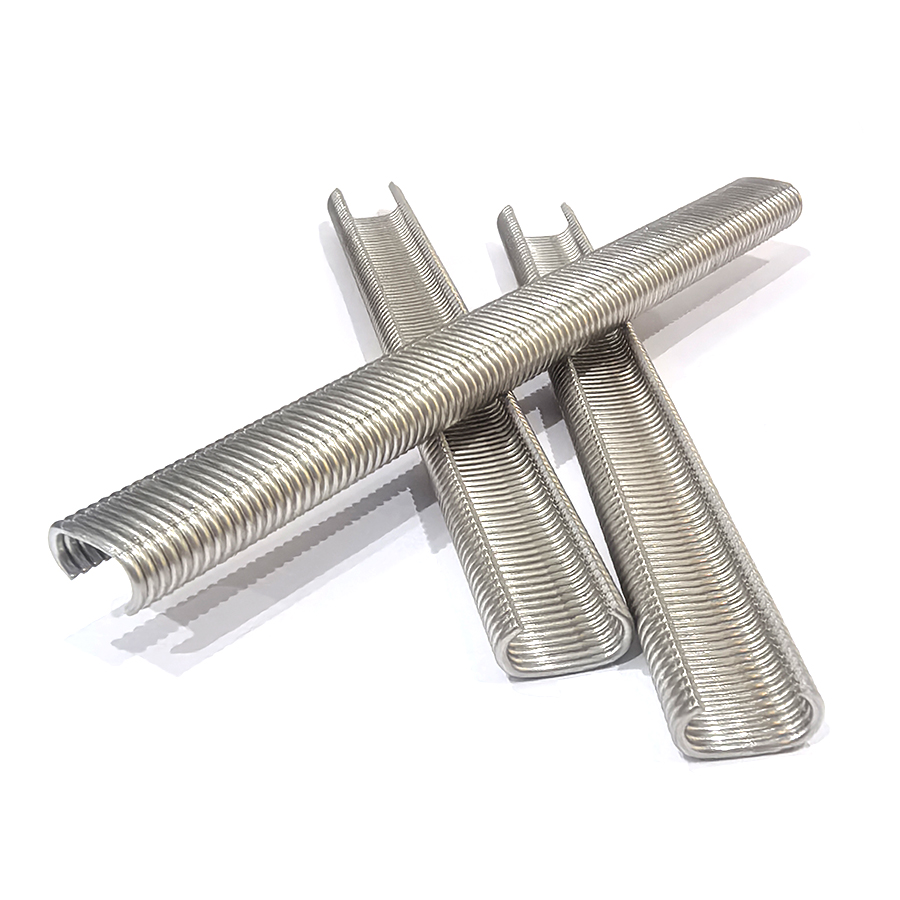

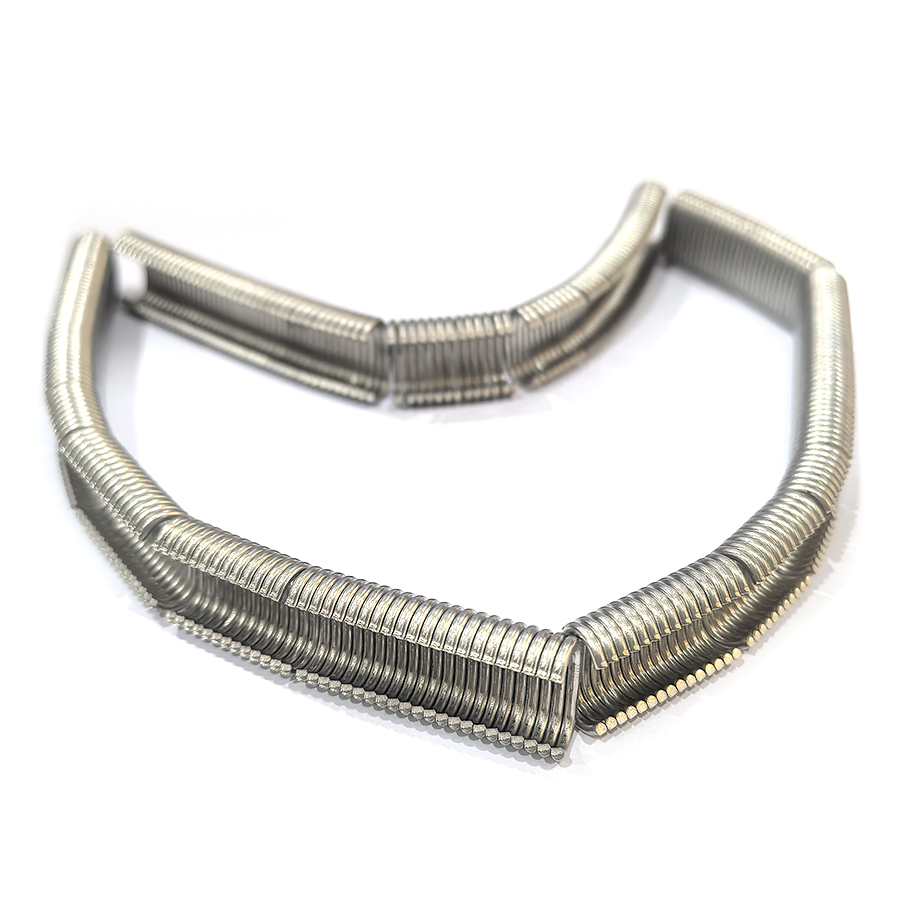

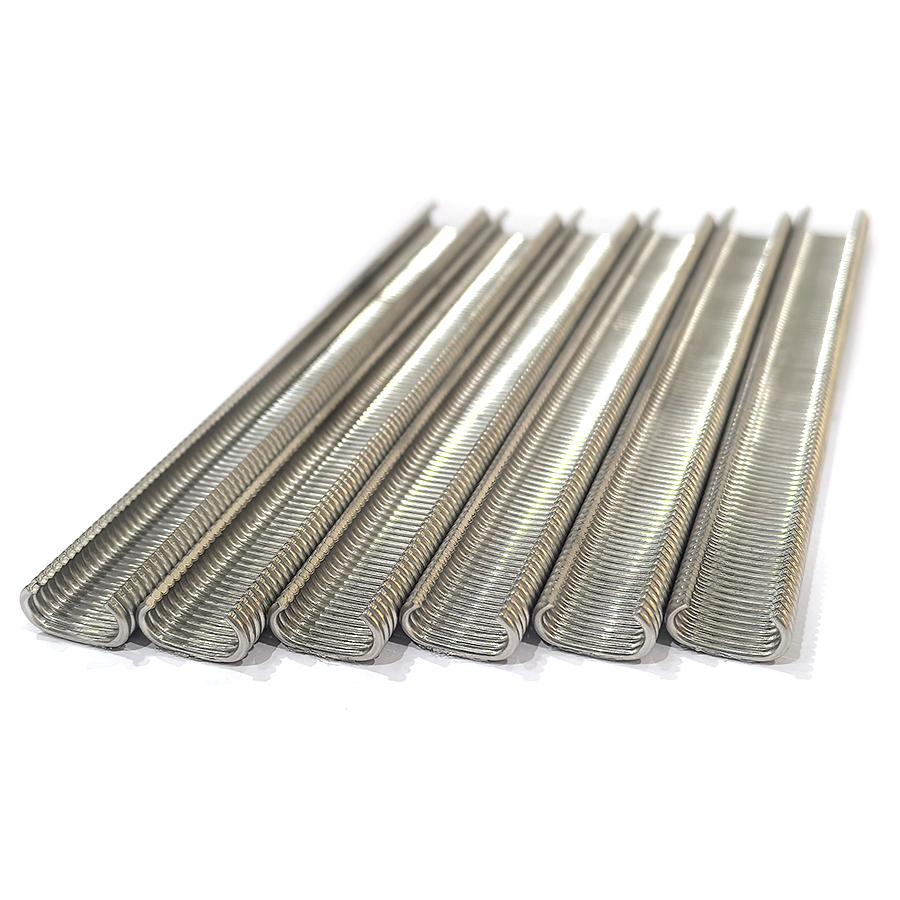

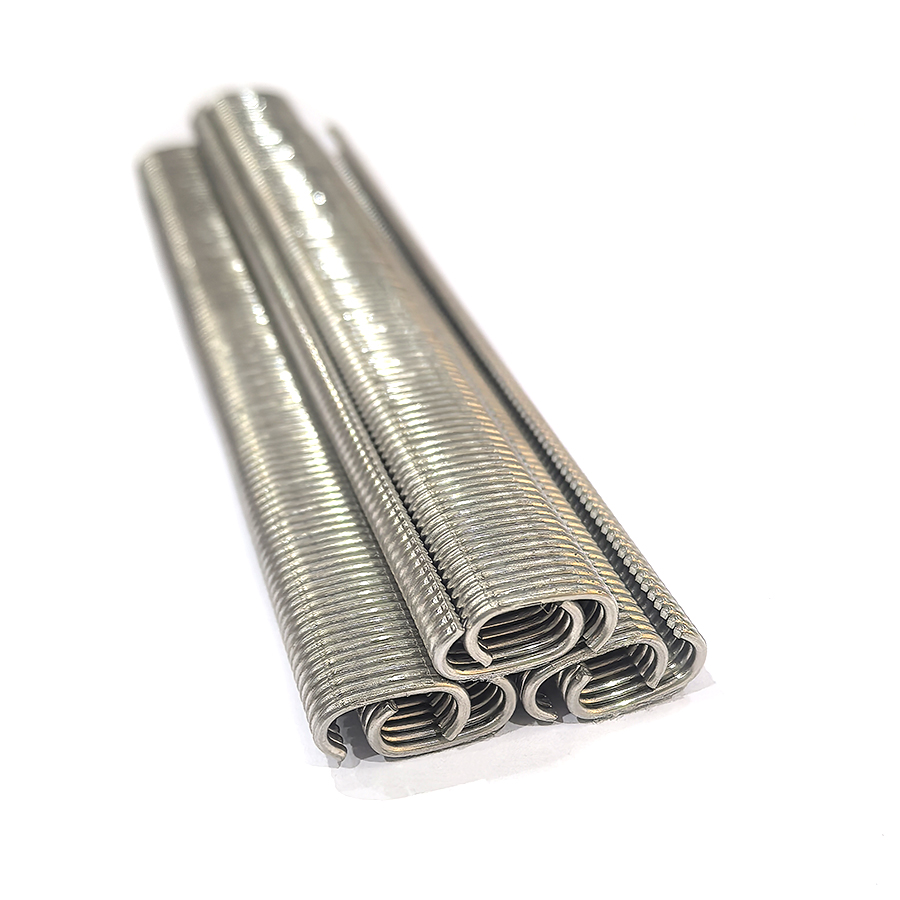

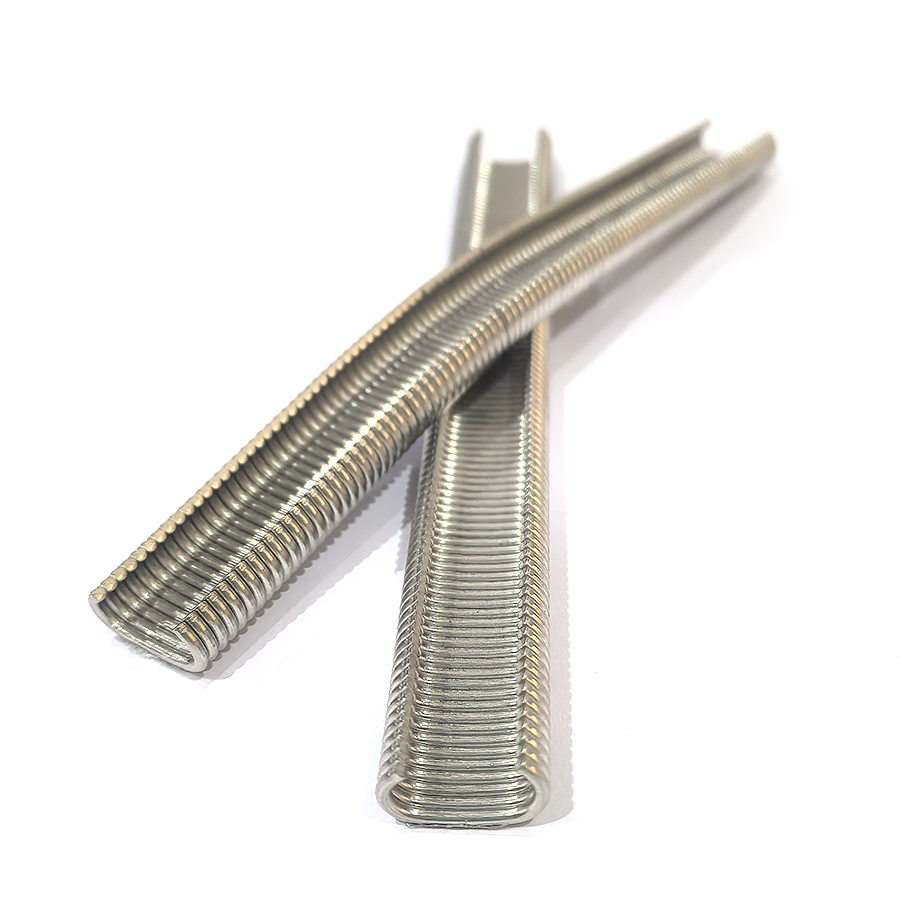

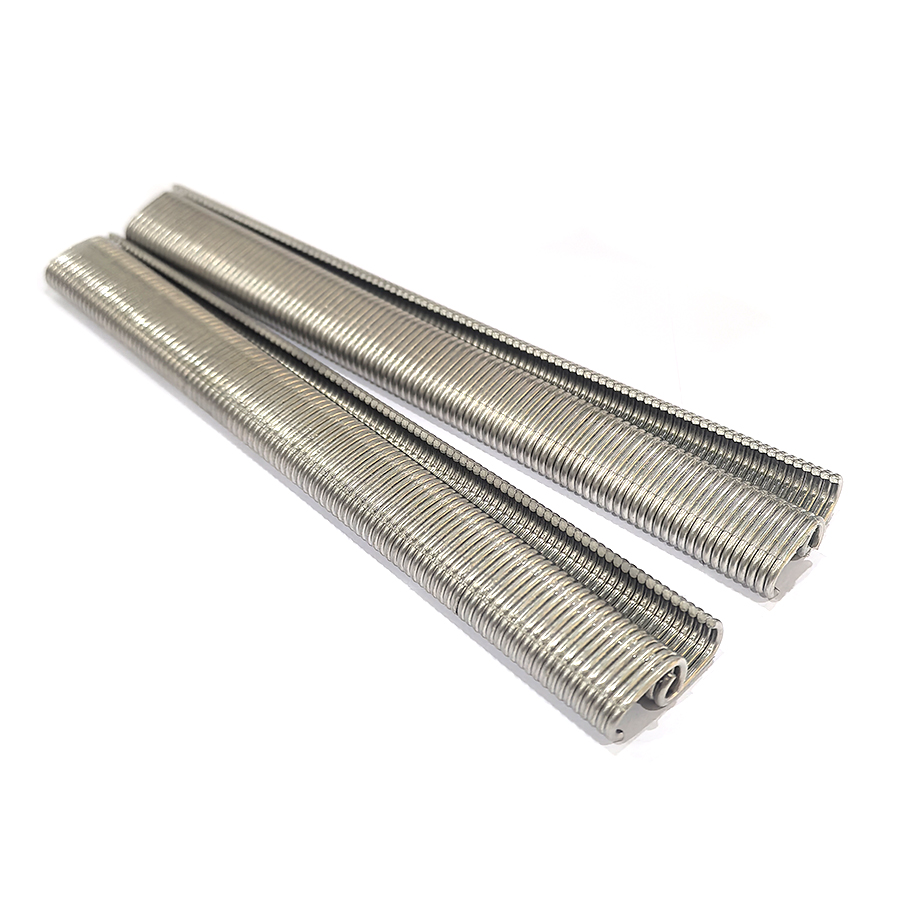

KYA 516SS100B stainless steel hog rings are 16 gauge collated C-rings with a nominal 1/2-inch open size, 1.6mm wire and blunt points. They are designed for pneumatic hog-ring fastening in netting, cages, upholstery, bag closure, traps, insulation and other wire or fabric fastening applications.
The B suffix identifies the blunt-point version of the 516 stainless series. The related 516SS100 model uses a sharp point, while 516SS100B uses a blunt point for applications where piercing the work material is not required or where a less aggressive point is preferred.
This fastener class uses approximately 1.60mm wire, a nominal 1/2-inch open C-ring and a listed 1/8-inch closed diameter. KYA lists 100 rings per collated strip and 10,000 rings per box for the 516 stainless steel series.
16 Gauge: approximately 1.60mm wire diameter for compact C-ring fastening.
1/2-inch C-ring class: designed for compatible 16GA hog ring tools.
Blunt point: 516SS100B configuration for applications that do not require a sharp piercing point.
Stainless steel: provides greater corrosion resistance than conventional uncoated carbon steel.
1/8-inch listed closure: compact finished ring size when used with the corresponding closure tooling.
Collated strips: 100 rings per strip in the KYA 516 series.
10,000 rings per box: bulk packaging for production users and distributors.
C-style geometry: suitable for joining netting, wire, fabric, cord and related materials where the specified closure fits the assembly.
| Parameter | Specification |
|---|---|
| Model | 516SS100B |
| Fastener Type | Collated C-Style Hog Ring / C-Ring |
| Gauge | 16 Gauge |
| Wire Diameter | Approximately 1.60mm |
| Nominal Open Size | 1/2 inch |
| Listed Closed Diameter | 1/8 inch / approximately 3.2mm |
| Point | Blunt |
| Material | Stainless Steel |

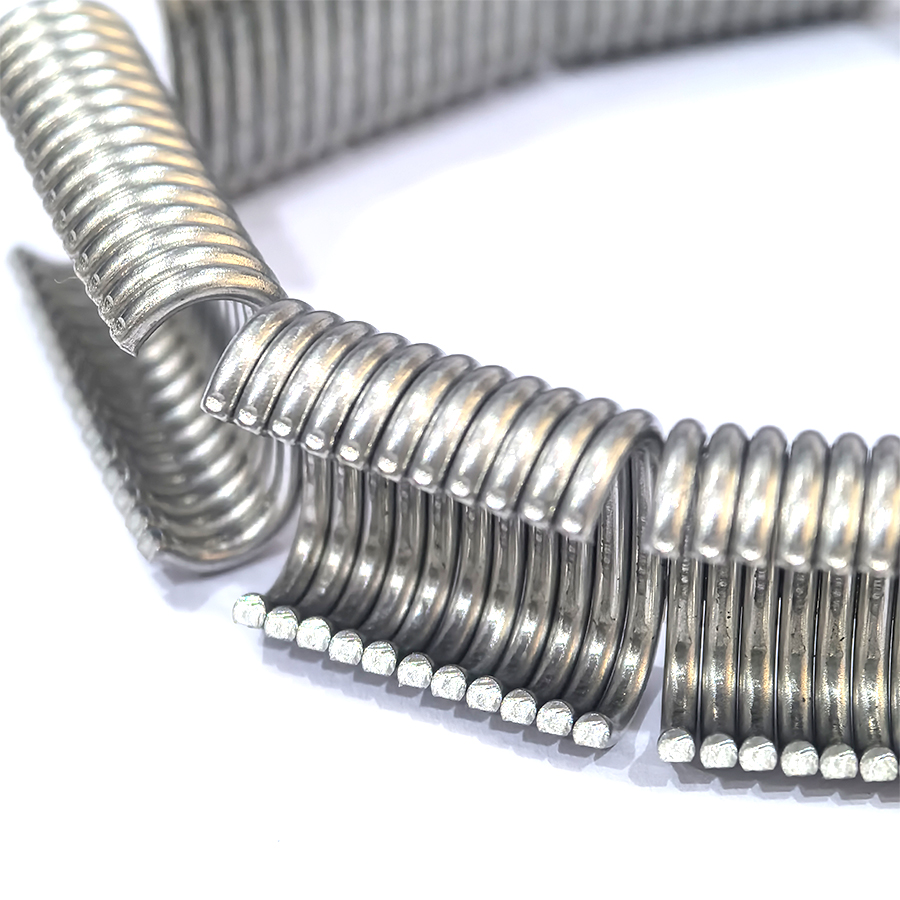

| KYA Stainless Material Reference | SS304 listed within the KYA 516 stainless steel product family |
| Collation | Collated Strip |
| Rings per Strip | 100 pcs |
| Rings per Box | 10,000 pcs |
| Reference Tool Class | 16GA pneumatic 1/2-inch C-ring tools; verify exact tool model and closure requirement |
| Part Number | Material / Finish | Point | Strip Size | Box Count |
|---|---|---|---|---|
| 516G100 | Galvanized | Sharp | 100 rings | 10,000 rings |
| 516G100B | Galvanized | Blunt | 100 rings | 10,000 rings |
| 516GF100 | Galfan | Sharp | 100 rings | 10,000 rings |
| 516SS100 | Stainless Steel | Sharp | 100 rings | 10,000 rings |
| 516SS100B | Stainless Steel | Blunt | 100 rings | 10,000 rings |
| 516AL100 | Aluminum | Sharp | 100 rings | 10,000 rings |
| 516AL100B | Aluminum | Blunt | 100 rings | 10,000 rings |
This product page focuses on the 516SS100B stainless steel blunt-point version. Sharp-point, galvanized, Galfan and aluminum versions should be selected as separate configurations rather than treated as identical substitutes.
| Specification | 516SS100B | 516SS100 |
|---|---|---|
| Gauge | 16GA | 16GA |
| Nominal C-Ring Size | 1/2" | 1/2" |
| Material | Stainless Steel | Stainless Steel |
| Point | Blunt | Sharp |
| Box Count | 10,000 | 10,000 |
Blunt-point rings are selected where the fastener mainly needs to close around wire, cord, netting or a material bundle rather than pierce through the material. They can also reduce the risk of unwanted puncturing in suitable applications.
Sharp-point rings are intended for applications where the ring must pierce through fabric, mesh or another suitable material during closing. The correct point depends on the work material and closure process.
BOSTITCH Industrial uses the model designation RING516SS100B for a 16GA, 1/2-inch, blunt-point stainless steel C-ring packed 10,000 rings per box. This provides a useful industry reference when distributors and production users are identifying the 516SS100B fastener class.
| Reference | Gauge | Size | Point | Material | Box Count |
|---|---|---|---|---|---|
| KYA 516SS100B | 16GA | 1/2" | Blunt | Stainless Steel | 10,000 |
| BOSTITCH RING516SS100B | 16GA | 1/2" | Blunt | Stainless Steel | 10,000 |
Matching model class and nominal dimensions are useful cross-reference information, but buyers should still confirm strip geometry, wire diameter and the intended tool before changing fastener suppliers.
516SS100B belongs to the 16GA 1/2-inch C-ring tool class. Tool selection should be based on wire gauge, open ring size, strip configuration and required finished closure diameter.
| Tool Reference | Published Fastener Class | Selection Note |
|---|---|---|
| BOSTITCH SC760B | 16GA, 1/2" open C-ring, 1/8" closed | Strong dimensional reference for the KYA 516SS100B 1/8" closure configuration. |
| BOSTITCH SC761B | 16GA, 1/2" open C-ring, 3/16" closed | BOSTITCH lists RING516SS100B for this tool, but the finished closure differs from SC760B. |
| KYA C760 / SC760 Class | 16GA 1/2" C-ring class | Confirm exact tool model and jaw configuration before production use. |
The nominal open ring size does not by itself determine the finished connection. The closing jaw or anvil geometry of the hog ring tool controls how tightly the C-ring is formed around the work material.
For example, BOSTITCH identifies SC760B as a 1/2-inch open to 1/8-inch closed tool, while SC761B uses the same nominal 1/2-inch C-ring class but closes to approximately 3/16 inch. Buyers should therefore specify the required finished closure as well as the ring model.
Netting and cargo net assembly
Small and medium bag closure
Wire cage and trap assembly
Lobster pot and bait-bag fastening where the selected stainless material meets service requirements
Bird netting and garden netting
Wire and cord loop forming
Upholstery and automotive seating assemblies
Insulation fastening
Wire mesh and general industrial binding

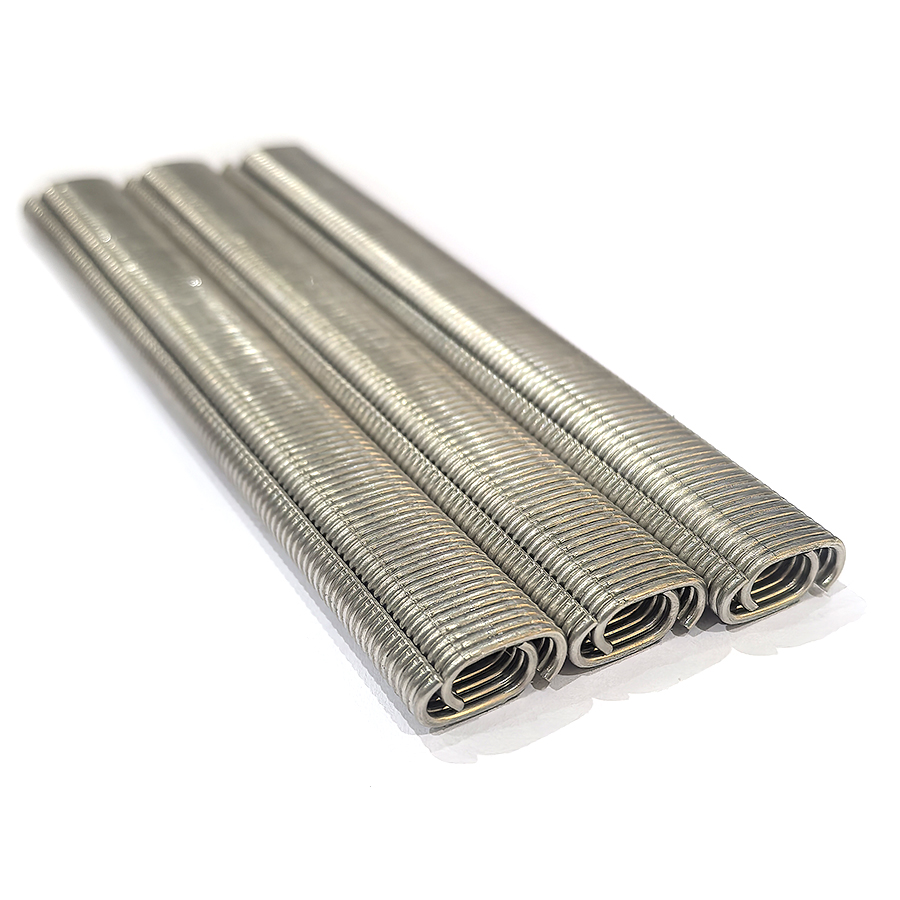

A 1/2-inch C-ring can be used to form compact closures around suitable netting, cord, fabric edges and bag materials. The blunt point is particularly relevant when the ring needs to wrap and close around the material without intentionally piercing it.
Always match the finished closure diameter to the thickness of the material bundle. A closure that is too tight may damage the material, while an oversized closure may not retain it securely.
Stainless C-rings are used for joining suitable wire mesh in cage and trap production. The 16GA 516 class is intended for relatively compact connections where the 1/2-inch open ring and selected closure diameter fit the joined wire dimensions.
For lobster pots, bait bags or other wet-service applications, confirm the stainless grade and actual exposure conditions. Stainless steel provides corrosion resistance but should not be described as universally immune to corrosion in every saltwater environment.
Hog rings are widely used in upholstery and automotive seating to connect suitable fabric, listing wire, support wire and related seat components. The required C-ring size depends on the material bundle and seat construction.
For upholstery production, verify that the 1/2-inch open size and the selected tool closure provide sufficient retention without cutting, crushing or excessively compressing the joined materials.
| Ring Class | Wire | Nominal Open Size | General Selection |
|---|---|---|---|
| 516 Series | 16GA / 1.60mm | 1/2" | Compact netting, bag, cage, upholstery and wire fastening. |
| 16GA 11/16" Class | 16GA / 1.60mm | 11/16" | Larger bundles or assemblies requiring more open ring capacity. |
| 16GA 3/4" Class | 16GA / 1.60mm | 3/4" | Larger fastening bundles and different C-ring tool systems. |
| Material | General Characteristic | Selection Guidance |
|---|---|---|
| Stainless Steel | Corrosion-resistant material throughout the ring rather than a surface zinc coating. | Consider for wet, humid or corrosion-sensitive applications when the selected stainless grade meets the environment. |
| Galvanized Steel | Carbon steel protected with a zinc coating. | General-purpose applications where the specified galvanized coating provides adequate corrosion resistance. |
| Galfan | Zinc-aluminum alloy coated steel option within the 516 family. | Select when this coating system is specified for the application. |
Stainless steel generally provides better corrosion resistance than ordinary carbon steel, but no stainless fastener should be described as universally rust-proof in every environment.
Saltwater, chlorides, chemicals, temperature and prolonged wet exposure can affect stainless steel differently. For marine, aquaculture or other aggressive environments, confirm the exact stainless grade and service conditions before specifying the fastener.
| Order Detail | What to Provide |
|---|---|
| Model | 516SS100B. |
| Point | Blunt point. |
| Gauge | 16GA / approximately 1.60mm wire. |
| Ring Size | Nominal 1/2-inch C-ring. |
| Required Closure | Specify the required finished inside diameter, such as approximately 1/8 inch. |
| Tool | Provide exact hog-ring tool manufacturer and model. |
| Application | Specify netting, bag closure, cage, trap, upholstery, insulation or other assembly. |
| Environment | Specify indoor, outdoor, humid, freshwater, saltwater or chemical exposure where relevant. |
| Quantity | Provide required boxes, cartons, pallets or estimated annual consumption. |
Discuss Your 516SS100B Requirement
516SS100B is a 16 gauge, nominal 1/2-inch stainless steel C-ring with a blunt point. It belongs to the 516 collated hog-ring family.
The B identifies the blunt-point version. The related 516SS100 is the sharp-point stainless configuration.
It is a 16 gauge C-ring with approximately 1.60mm wire.
It belongs to the nominal 1/2-inch open C-ring class. KYA lists a 1/8-inch closed diameter for the corresponding closure configuration.
The current KYA 516-series packing specification lists 100 rings per strip.
The current specification lists 10,000 rings per box.
Both are 16GA stainless 1/2-inch C-rings. 516SS100 uses a sharp point, while 516SS100B uses a blunt point.
Choose a blunt point where the ring needs to wrap around the material rather than intentionally pierce it. Typical examples include selected netting, wire, cord, cage and trap assemblies.
A sharp point is useful where the C-ring must penetrate suitable fabric, mesh or another material during closing. Select the point based on the actual workpiece.
Both are identified as 16GA, 1/2-inch, stainless steel, blunt-point C-rings with 10,000 rings per box. Confirm wire, strip and tool geometry before cross-brand substitution.
BOSTITCH specifies its RING516SS100B for the SC760B. The SC760B is designed for a 16GA 1/2-inch C-ring and produces an approximately 1/8-inch closed ring. Confirm the KYA strip and feed geometry in the actual tool before bulk use.
BOSTITCH also lists RING516SS100B for the SC761B. However, SC761B is designed to close the nominal 1/2-inch ring to approximately 3/16 inch rather than the 1/8-inch closure of SC760B, so select the tool according to the required finished closure.
Not automatically. Gauge and nominal crown are only part of the compatibility check. Strip geometry, wire diameter, magazine design and the tool's closing jaw also need to match.
Yes, 1/2-inch C-rings are commonly used for suitable netting and cord-fastening applications. Confirm that the closed diameter retains the material without damaging it.
Yes, cage and trap assembly are established applications for this 16GA C-ring class when the mesh-wire diameter and required closure fit the ring.
Lobster pots and bait bags are listed applications for comparable stainless 516 C-rings. For continuous saltwater or chloride exposure, confirm the exact stainless grade and required corrosion resistance before selection.
No. Stainless steel is corrosion resistant, but saltwater and chloride exposure can still cause corrosion depending on alloy grade, temperature and service conditions. Do not treat 304 stainless as universally corrosion-proof in marine service.
It can be used in suitable seating and upholstery assemblies where the 1/2-inch C-ring size and selected closure fit the listing wire, fabric and support components.
They can be used for suitable wire and mesh fastening where the 1/2-inch C-ring geometry fits the joined components. Larger wire bundles may require a larger hog-ring series.
516SS100B belongs to the compact nominal 1/2-inch C-ring class. An 11/16-inch ring has a larger open size and is generally selected for larger material bundles or a different required finished closure.
Choose according to the service environment, required corrosion resistance, tool compatibility and cost target. Stainless, galvanized and Galfan are different material or coating systems and should not be treated as identical.
Provide the required model, hog-ring tool brand and model, required finished closure, application, exposure environment, packaging requirement and order quantity.
KYA product information lists exports to the USA, Germany, Australia and Canada, and supply to more than 50 countries. The original compatibility list names C760, SC760 and BeA C7 tools; verify the exact tool model, magazine and closure jaw before ordering because the installed closure can vary by tool.
KYA supplies 516SS100B 16GA stainless steel blunt-point hog rings for fastener distributors, netting manufacturers, cage and trap producers, upholstery manufacturers and other professional users. Provide the exact tool model, required closure, application and quantity so the appropriate C-ring configuration can be confirmed.
