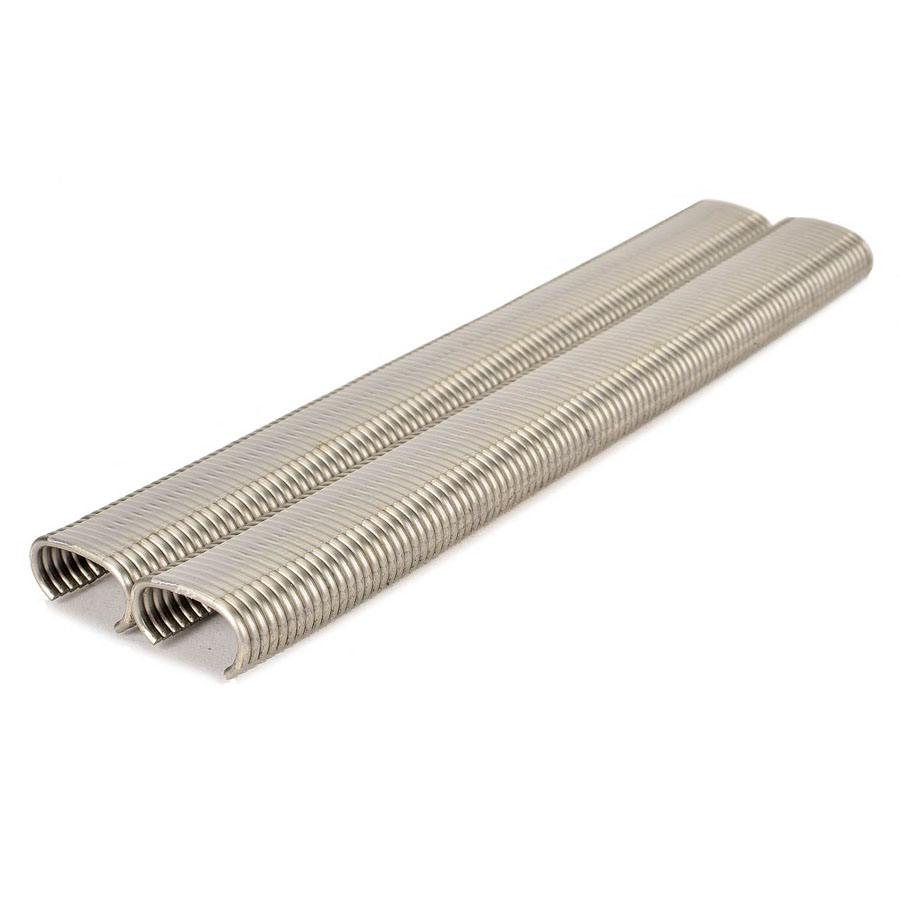

KYA 15SS100B stainless steel hog rings are 15 gauge C-style fasteners with a 3/4" open size, approximately 1.8mm wire diameter, 12mm ring height and blunt points. The featured configuration is manufactured from SS304 stainless steel and supplied for compatible pneumatic hog ring tools.
The blunt-point configuration is intended for fastening operations where the ring primarily closes around wire, cord, mesh, springs or upholstery components rather than intentionally piercing the material. Typical applications include automotive seating, furniture upholstery, bedding, wire cages, netting, bag closure, bungee cord assembly and industrial wire fastening.
KYA lists 100 rings per strip and 10,000 rings per carton for the 15SS100B within its 15 gauge 3/4-inch C-ring family. Tool selection should be based on the exact 15SS100B ring series and required closure geometry rather than on the 15 gauge designation alone.
| Product Type | Collated C-Style Hog Ring / C-Ring Fastener |
| Model | 15SS100B |
| KYA Code | KYA-15SS100B |
| Gauge | 15 Gauge |
| Wire Diameter | Approximately 1.80mm |
| Open Size / Outside Diameter | 3/4" / approximately 19mm |
| Ring Height | Approximately 12.0mm |
| Material | SS304 Stainless Steel |
| Point Type | Blunt Point |
| Ring Style | C Style |
| Strip Size | 100 rings / strip |
| Packing | 10,000 rings / carton |
| KYA Listed Tool Family | C7-series pneumatic hog ring tools; confirm exact tool model and closure requirement |
| Primary Applications | Automotive seating, upholstery, bedding, cages, netting, bag closure, bungee cord and industrial wire fastening |
The product selector also lists related 15GA ring-family options, including galvanized, aluminum, Glafan and zinc-aluminum materials; Bright, galvanized, copper, SS304 and Glafan finishes; and sharp or blunt points. The 15SS100B configuration on this page is the SS304 blunt-point version. Confirm the selected material, finish and point style against the matching model when ordering.
The 15SS100B belongs to the common 15 gauge 3/4-inch C-ring family used in high-volume industrial fastening. The open ring is positioned around the components being joined and is then formed by the tool jaws into a smaller closed profile.
Because the finished closure is controlled by the tool nose and forming jaws, the final inside diameter can vary between compatible C7-series tool configurations. Buyers should therefore specify the application and desired closure rather than relying only on the 3/4-inch open-ring dimension.
KYA lists approximately 1.8mm wire thickness for the 15SS100B. The actual wire diameter is an important compatibility parameter because the tool magazine, feed system and forming jaws are designed around a specific ring series.
The product is classified in the 3/4-inch C-ring size family. For purchasing and tool matching, this should be treated as the open ring size or outside-diameter class rather than as a guarantee of the final closed diameter.
KYA publishes an approximately 12mm ring height for this configuration. Ring height, open size and wire diameter should all be checked when replacing another manufacturer's C ring.
The B suffix identifies the blunt-point configuration within the 15G100 / 15100 / 15SS100 ring family. Blunt points are useful when the ring needs to close around wire, spring, cord, mesh or upholstery components without intentionally piercing them.
A blunt point can reduce unintended piercing compared with a sharp-point ring, but it should not be described as eliminating every handling or material-damage risk.
The featured KYA product is manufactured from SS304 stainless steel. This provides higher corrosion resistance than ordinary uncoated carbon-steel hog rings and is useful where moisture or corrosion resistance is an important purchasing consideration.
SS304 should not be described as completely immune to corrosion. Performance depends on moisture, salt, chemicals, temperature and the service environment.
The KYA 15100 family is supplied with 100 rings per strip and 10,000 rings per carton. The collated format supports repetitive feeding in compatible pneumatic C-ring tools.
The 15 gauge 3/4-inch family includes different materials and point configurations. These are separate purchasing references even though they share the same general ring size.
| Part Number | Material / Finish | Point | Strip Size | Carton Quantity |
|---|---|---|---|---|
| 15100 | Bright Steel | Sharp | 100 | 10,000 |
| 15100B | Bright Steel | Blunt | 100 | 10,000 |
| 15G100 | Galvanized Steel | Sharp | 100 | 10,000 |
| 15G100B | Galvanized Steel | Blunt | 100 | 10,000 |
| 15SS100 | Stainless Steel | Sharp | 100 | 10,000 |
| 15SS100B | SS304 Stainless Steel | Blunt | 100 | 10,000 |
| Point Type | Selection Guidance |
|---|---|
| Blunt Point | Suitable when the ring closes around wire, springs, cord, mesh or other components and intentional piercing is not required. |
| Sharp Point | Useful when the fastening operation requires the ring to pierce fabric, webbing, insulation covering or another suitable material before closure. |
Choose the point type according to the materials being joined. A blunt-point ring should not automatically replace a sharp-point ring in a process that requires penetration.
Automotive seat upholstery
Furniture and domestic upholstery
Mattress and bedding assembly
Animal cages and wire enclosures
Wire mesh and netting
Bungee and shock cord assembly
Bag and liner closure
Silt-fence production
Oil-absorption socks
Insulation fastening
Plant and pot tagging
Selected industrial wire and cord fastening
The required ring size and finished closure depend on the combined diameter and compressibility of the materials being joined. Test the ring and tool combination on the actual assembly before high-volume production when closure dimensions are critical.
The 15 gauge C-ring family is widely used in automotive and furniture upholstery to connect seat-cover components, listing wires, springs and supporting structures. A blunt-point ring is particularly relevant where the ring is intended to close around existing components rather than pierce the upholstery material.
Seat construction varies between manufacturers. Confirm ring size, wire gauge, tool nose and required closure before replacing an existing automotive hog ring.
C-rings can be formed around intersecting wire, netting, rope or cord to create a compact mechanical connection. SS304 is useful where the finished assembly requires more corrosion resistance than an uncoated carbon-steel ring.
For load-sensitive cages, traps, marine products or other critical assemblies, verify the wire combination, ring closure and joint requirements before production.
The 15SS100B belongs to a well-established 15 gauge 3/4-inch C-ring system. KYA currently lists C7-series tools for this fastener family, while independent distributors also list compatible BeA and Bostitch systems.
| Reference Tool / System | Published Fastener Reference | Buying Guidance |
|---|---|---|
| KYA C-7CA52 | KYA lists the 15100 / 15G100 / 15SS100B family in its compatible ring table | Relevant KYA pneumatic tool reference; confirm required closure and nose configuration |
| KYA C-7EA | 15GA 3/4-inch C-ring family | Relevant KYA tool platform; confirm application and finished closure requirement |
| Bostitch SC7-B | RING15SS100B listed as compatible | Established 15GA 3/4-inch C-ring tool reference |
| Bostitch / Salco SC7C-Type Tool | 15SS100B listed within the 3/4-inch 15GA C-ring family | Uses a tighter published closure range than standard SC7-type tools; choose according to required finished ring size |
| BeA CL24-HR | 15SS100B / 10004723 reference | Relevant BeA tool reference; verify current tool and ring specification before substitution |
| Other 15GA C-Ring Tools | Varies by manufacturer | Must match the 15SS100B / 15100 family, strip geometry, wire diameter and closure requirement |
Do not assume that every 15 gauge hog ring gun uses 15SS100B. Some 15 gauge tools are designed for different ring widths, strip geometries or closure diameters.
The 3/4-inch dimension describes the open ring size class. After installation, the tool jaws form the C ring around the joined materials, and different nose configurations can produce different finished inside diameters.
For example, published SC7-type tools can close 15 gauge 3/4-inch rings to approximately 5/16"–27/64" / 7.9–10.7mm, while SC7C-type tools can form a tighter approximately 3/16"–11/32" / 4.8–8.7mm closure.
This is why a single fixed closure dimension should not be assigned to the 15SS100B fastener without also identifying the tool and application.
| Material / Finish | General Selection Guidance |
|---|---|
| Bright Steel | Used primarily for dry, protected applications where additional corrosion protection is not required |
| Galvanized Steel | Zinc-coated option where more corrosion protection than bright steel is required |
| SS304 Stainless Steel | Featured 15SS100B material; suitable where stainless steel corrosion resistance is required by the assembly or service environment |
The featured product is SS304. Bright and galvanized variants are separate part numbers and should not be represented as finishes of the same exact 15SS100B SKU.
| Part Number | 15SS100B |
| Gauge | 15 Gauge |
| Wire Diameter | Approximately 1.8mm |
| Open Ring Size | 3/4" / approximately 19mm class |
| Ring Height | Approximately 12mm |
| Material | SS304 Stainless Steel |
| Point Type | Blunt |
| Strip Size | 100 rings |
| Carton Quantity | 10,000 rings |
| Tool Information | Provide the exact hog ring gun manufacturer, model and desired closure range |
For accurate product matching and quotation, provide the required quantity, hog ring tool manufacturer and model, materials being joined, application and required finished closure.
For the exact product shown on this page, specify KYA-15SS100B, 15 gauge, SS304 stainless steel, 3/4-inch open C-ring, approximately 1.8mm wire, 12mm height and blunt point.
| KYA Code | KYA-15SS100B |
| Size Class | 15GA / 3/4" C Ring |
| Wire | Approximately 1.8mm |
| Height | Approximately 12mm |
| Material | SS304 Stainless Steel |
| Point | Blunt |
| Strip | 100 rings |
| Packing | 10,000 rings / carton |
| Inquiry Information | Quantity, tool model, application, joined materials, required closure and delivery destination |
It is a 15 gauge C-style hog ring with an approximately 3/4-inch open size, 1.8mm wire diameter and 12mm ring height.
The featured KYA configuration is manufactured from SS304 stainless steel.
No. The 3/4-inch dimension describes the open ring size class. Final closure depends on the hog ring tool nose, forming jaws and material thickness.
The B suffix identifies the blunt-point version. The related 15SS100 uses a sharp point.
Blunt points are useful when the ring is intended to close around wire, springs, cord, mesh or upholstery components without intentionally piercing the surrounding material.
Both are stainless steel 15 gauge 3/4-inch C rings. The 15SS100 has sharp points, while 15SS100B has blunt points.
Both are blunt-point 15 gauge 3/4-inch C-ring configurations. The 15G100B is galvanized steel, while 15SS100B is stainless steel.
KYA currently lists 100 rings per strip for the 15 gauge 3/4-inch 15100 family.
The current KYA packing specification lists 10,000 rings per carton.
KYA currently includes the stainless blunt-point 15SS100B within the compatible 15 gauge 3/4-inch ring family for the C-7CA52 platform. Confirm the required closure configuration for the application.
Published SC7-series references list RING15SS100B as a compatible 15 gauge 3/4-inch C ring. Confirm the exact SC7 nose configuration because different versions produce different closure ranges.
Current distribution references list BeA CL24-HR with 15SS100B-type 15 gauge stainless C rings. Verify the current tool specification when cross-referencing brands.
No. Other 15 gauge hog ring systems can use different open widths, heights, strip formats and closure geometries. Match the exact 15SS100B / 15100 ring family.
Yes. Automotive seating is an established application for 15 gauge 3/4-inch C rings. Confirm that the seat design and hog ring tool call for the same ring size and closure.
Yes. Bedding and mattress assembly are established applications for this C-ring family when the component dimensions and tool configuration match the 15SS100B system.
Yes, 15 gauge C rings are used for selected wire cage, mesh and fencing assemblies. Confirm that the combined wire diameter fits the closure produced by the selected tool.
No. SS304 provides good corrosion resistance for many applications, but corrosion performance depends on salt, chemicals, moisture, temperature and service conditions.
Provide the required quantity, exact hog ring tool manufacturer and model, materials being joined, application, required finished closure and delivery destination. Reference KYA-15SS100B for this SS304 blunt-point configuration.
