| Surface Treatment: | |
|---|---|
| Quantity: | |
 Twist Tie Wire 19 Gauge TW1061T for MAX ● TW1061T is used exclusively for tying rebar with a MAX TwinTier RB441T. ● Double the speed, Cost savings, shorter tie Height, save time and tying wire length. ● Wire length: 33-34m double wire. ● Wire diameter: 1.0mm. ● Weight per roll: 0.45 kgs. ● Ties per Coil: 170-260 ● It is ideal for precast or pre-stressed concrete used in marine or other harsh environment applications |
| Model No.: | Twist Tie Wire 19 Gauge TW1061T for MAX |
| Diameter: | 1.0MM |
| Length: | 33-34m double wire. |
| Net weight: | 0.45kg/ reel |
| Material Code: | Galvanized Wire, Black Annealed Wire,olyester Coated Wire |
| Applicable machine: | Max RB441T. |
| Wraps per Tie: | 1 |
| Tensile Strength: | 55,800-81,300(lb/in⊃2;) |
| Carbon | Mangan | Phosphorus | Sulfur |
| 0.13-0.18% | 0.60-0.90% | less than 0.03% | less than 0.035% |
KYA rebar tie wire is made of the ideal grades of carbon steel and stainless steel to suit the environment they must endure.
The rebar tie wire is drawn and dead soft annealed to create the greatest possible ductility which provides a tough but pliable wire which is easy to twist but hard to break.
BLACK ANNEALED
This low carbon steel, dead soft annealed wire is coated with a black oxide finish to provide a thin, mildly corrosion-resistant finish. This commonly used wire meets most construction, precast, and pre-stressed concrete industry applications.
ELECTRO-GALVANIZED
This low carbon steel, dead soft annealed wire is finished with a 5-micron zinc coating to provide greater corrosion resistance. It is ideal for precast or pre-stressed concrete used in marine or other harsh environment applications, or where length of service is important.
PLASTIC COATED
This low carbon steel, dead soft annealed wire is powder-coated with .05mm thickness of yellow polymer (polyester). It is used when tying epoxy coated rebar or other DOT mandated uses, or anywhere a cushioned wire with added protection against corrosion or abrasives is needed.

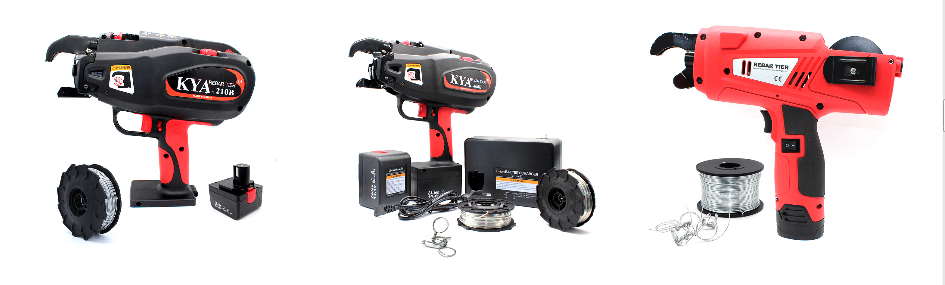

Rebar Tie Wire TW1061T For Max Binding Machine RB441T
Wire Diameter 1.0MM.
Also Called Doule tie wire for Max tool, and tying wire with two head.
Advantage: Double the speed, Cost savings, shorter tie Height, save time and tying wire length.
Faster, stronger, and easier to handle.
It helps reduce costs and shortens the time required for construction.
The wire height has been reduced by 50%.
Rebar Tie Wire - 21 Gauge Galvanized
| Model No.: | Rebar Tying Wire Spool for Max Rb 397 398 399 |
| Diameter: | 0.8MM |
| Length: | 100M |
| Net weight: | 0.4kg/ reel |
| Material Code: | Q195, Galvanized Wire |
| Applicable machine: | MAX RB392,395,397 and 213 |
| Wire Tensile Strength | 420m/Pa |
| Wire Yield Strength: | 330m/Pa |
| Resistance against rust: | It should be no rust by 4cycles times under instructed test conditions |
| Tensile Strength: | 42-47 KG/CM2 |
| Elongation: | 21% |
| Wire length for one knot: | 50-40cm.One reel can tie 120 to 190knots |
1) Precast concrete products,
2) building foundations,
3) road and bridge construction,
4) floors and walls,
5) retaining walls,
6) swimming pool walls,
7) radiant heating tubes,
8) electrical conduits
