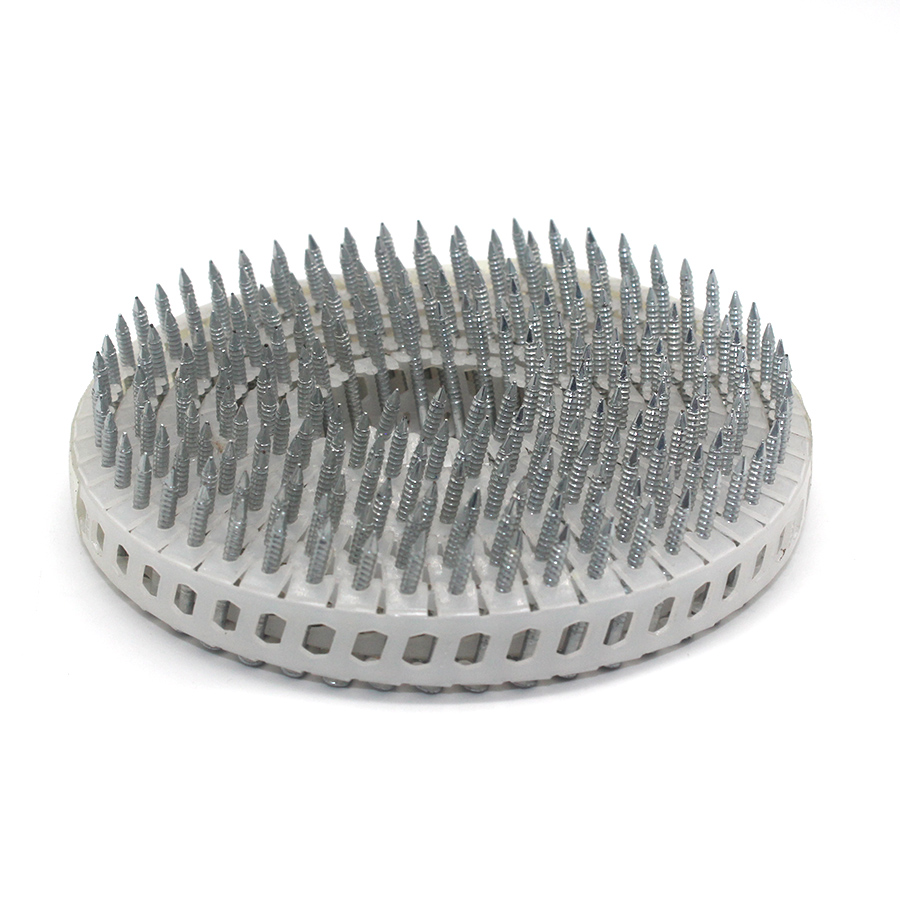

15 Degree Electro Galvanized Plastic Sheet Coil Nails Ring Shank 1.80x22mm

Plastic Sheet Coil Nails

Plastic collated coil nails, also known as plastic sheet coil nails, are most commonly used for outdoor work such as siding, subfloors, and roof sheathing. During nailing, the nails are easily detached from the plastic strip connecting them, so the direction of nailing remains unchanged. Working with such nails becomes much simpler and cleaner because there are no extra scraps of plastic left. Such a coil can typically hold from 50 to 300 nails.

Plastic sheet collated nails can be angled at 0° or 15°, counterclockwise or clockwise, upon customer request.These nails redefine durability. Collated with a strong, flexible plastic, they effortlessly adapt to the demands of your projects, ensuring every nailing operation is a success. With on-center nail heads that reduce jamming and amplify drivability, these nails are built to keep you productive.

15 Degree Plastic Sheet Coil Nails

NAIL LENGTH

7/8” to 4” (22mm-100mm)

WIRE DIAMETER

0.071” to 0.157” (1.80mm-4.0mm)

HEAD DIAMETER

• 0.195” to 0.362” (5.0mm-9.2mm)

• Full round head, smooth, checkered or customized.

15 Degree Electro Galvanized Plastic Sheet Coil Nails Ring Shank 1.80x22mm

NAIL POINT

NAIL SHANK

NAIL HEAD

Nail Point:

- Diamond 34°~66°

- Clinch

- Round

- Chisel Blunt

- Blunt

Nail Shank:

- Smooth

- Screw

- Ring

Nail Degree

- 0 degree in plastic coils

- 15 degree in plastic coils

Materials & Surface:

Stainless Steel Nails

• The highest durable nail in all climate conditions, especially in humid environments;

• Available in 304 and 316 grades and in many collated formats.

Hot Dip Galvanized Nails

• Highly resistant to corrosion from the zinc immersion, high temperature molten process

Electro Galvanized Nails

• Electro Galvanized have a layer of Zinc that offers some corrosion protection.

Aluminum Nails

• High grade corrosion resistant nail to use in soft wood and non-treated applications;

• Virgin plastic sheet collation process.

Bright Nails

• Bright fasteners have no coating to protect the steel and are susceptible to corrosion if exposed to high humidity or water.

• They are not recommended for exterior use or in treated lumber, and only for interior applications where no corrosion

protection is needed.

#45 steel electro galvanized

• The nails have high hardness and can penetrate 2mm steel plate.

• Electro galvanized finish helps resist corrosion and rust.

Bright Finish

Bright fasteners have no coating to protect the steel and are susceptible to corrosion if exposed to high humidity or water. They are not recommended for exterior use or in treated lumber, and only for interior applications where no corrosion protection is needed. Bright fasteners are often used for interior framing, trim and finish applications.

Hot Dip Galvanized (HDG)

Hot dip galvanized fasteners are coated with a layer of Zinc to help protect the steel from corroding. Although hot dip galvanized fasteners will corrode over time as the coating wears, they are generally good for the lifetime of the application. Hot dip galvanized fasteners are generally used for outdoor applications where the fastener is exposed to daily weather conditions such as rain and snow. Areas near the coasts where the salt content in rain water is much higher, should consider Stainless Steel fasteners as salt accelerates the deterioration of the galvanization and will accelerate corrosion.

Electro Galvanized (EG)

Electro Galvanized fasteners have a very thin layer of Zinc that offers some corrosion protection. They are generally used in areas where minimal corrosion protection is needed such as bathrooms, kitchens and other areas that are susceptible to some water or humidity. Roofing nails are electro galvanized because they are generally replaced before the fastener begins to wear and are not exposed to harsh weather conditions if installed properly. Areas near the coasts where salt content in rain water is higher should consider a Hot Dip Galvanized or Stainless Steel fastener.

Stainless Steel (SS)

Stainless steel fasteners offer the best corrosion protection available. The steel may oxidize or rust over time but it will never lose its strength from corrosion. Stainless Steel fasteners can be used for exterior or interior applications and generally come in 304 or 316 stainless steel.
