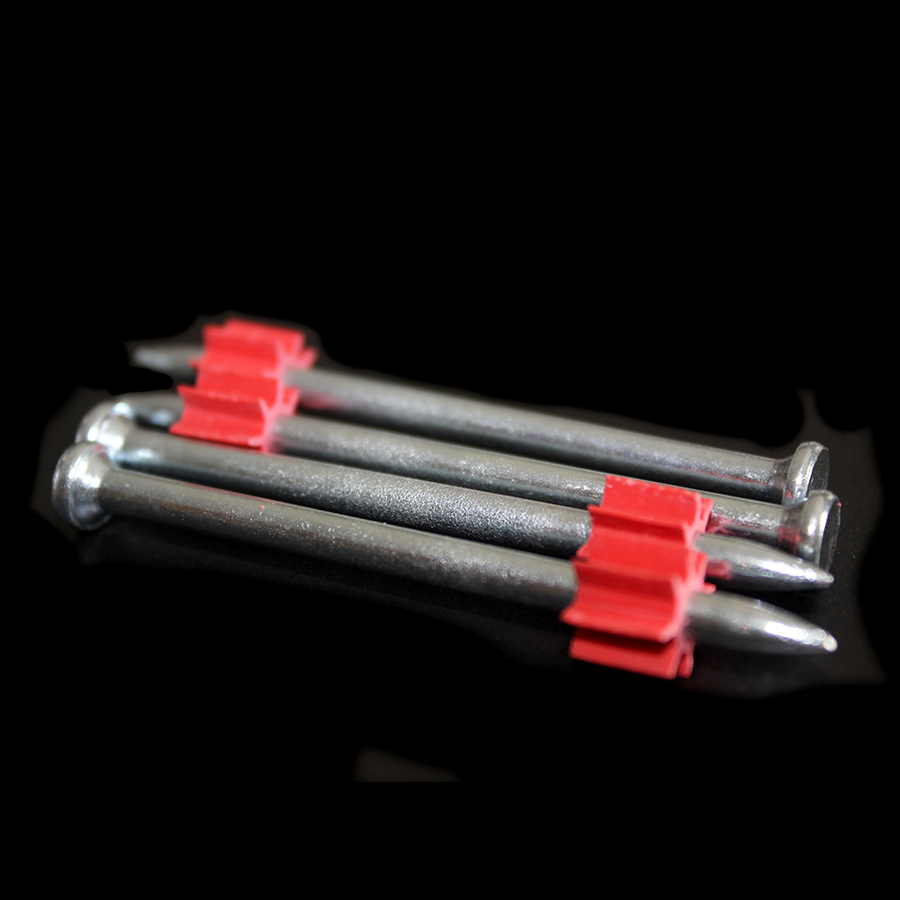

Powder Actuated Fasteners are high-strength drive pins designed for fastening wood, thin metal, fixtures, clips, and construction components to concrete, masonry, and steel base materials. KYA powder actuated pins are made from heat-treated carbon steel with zinc-plated surface treatment, helping provide reliable penetration, holding performance, and corrosion resistance for professional construction fastening.

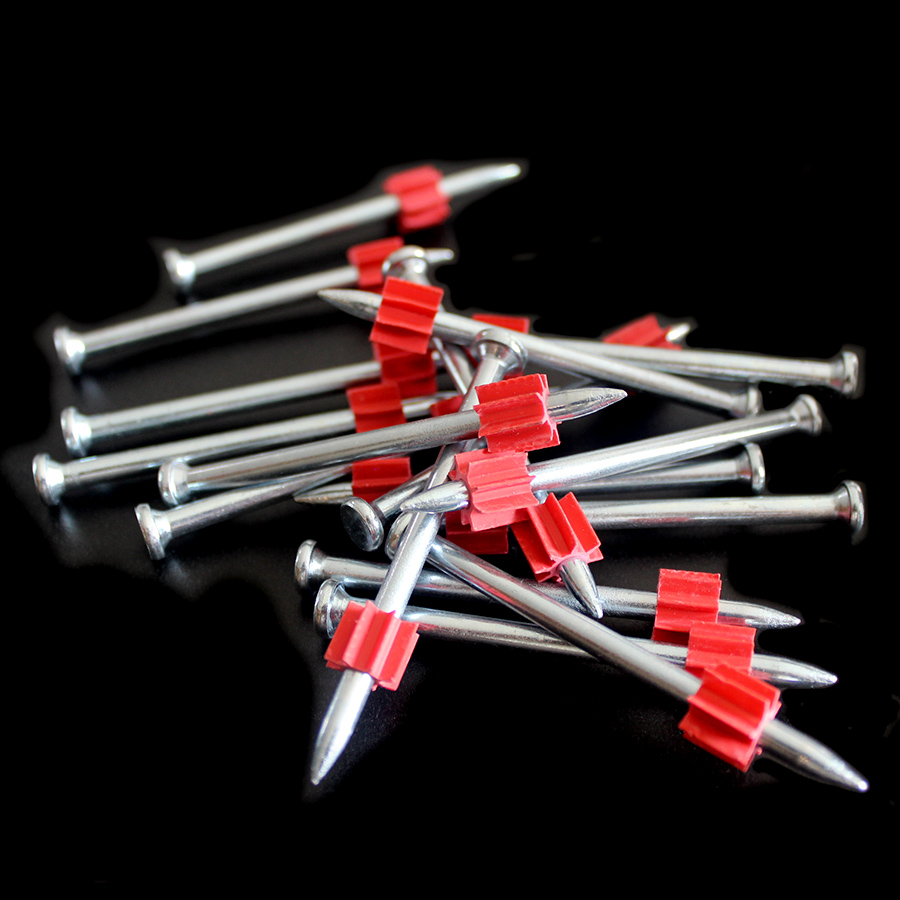

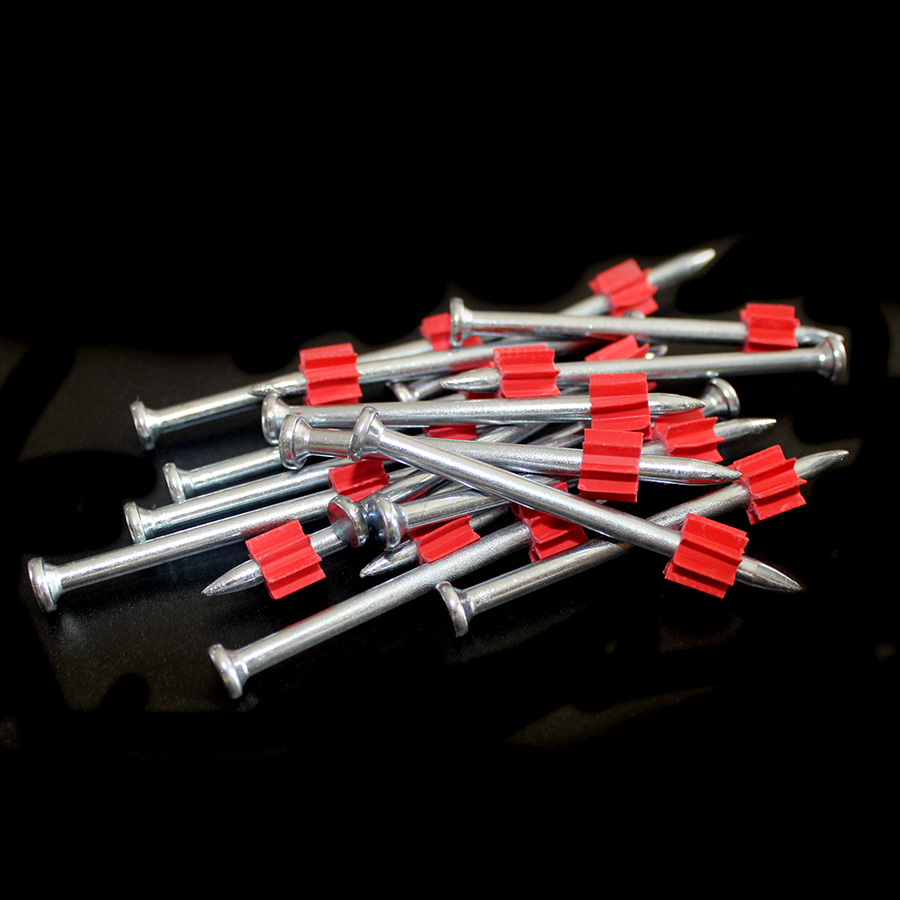

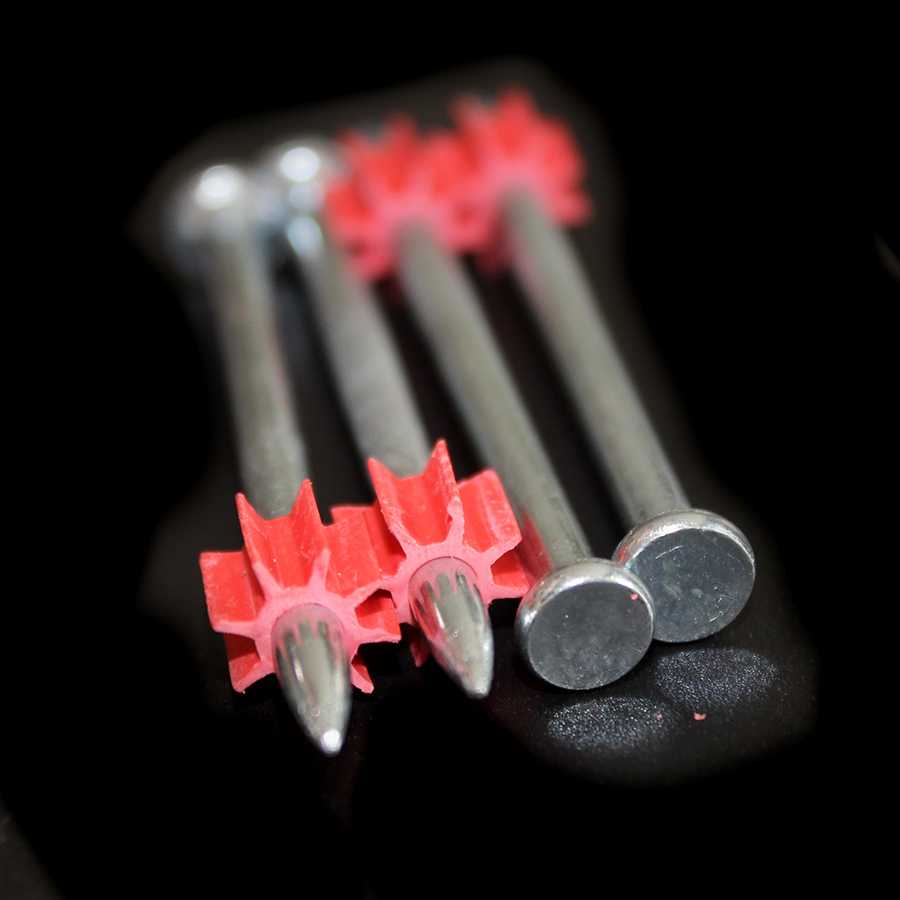

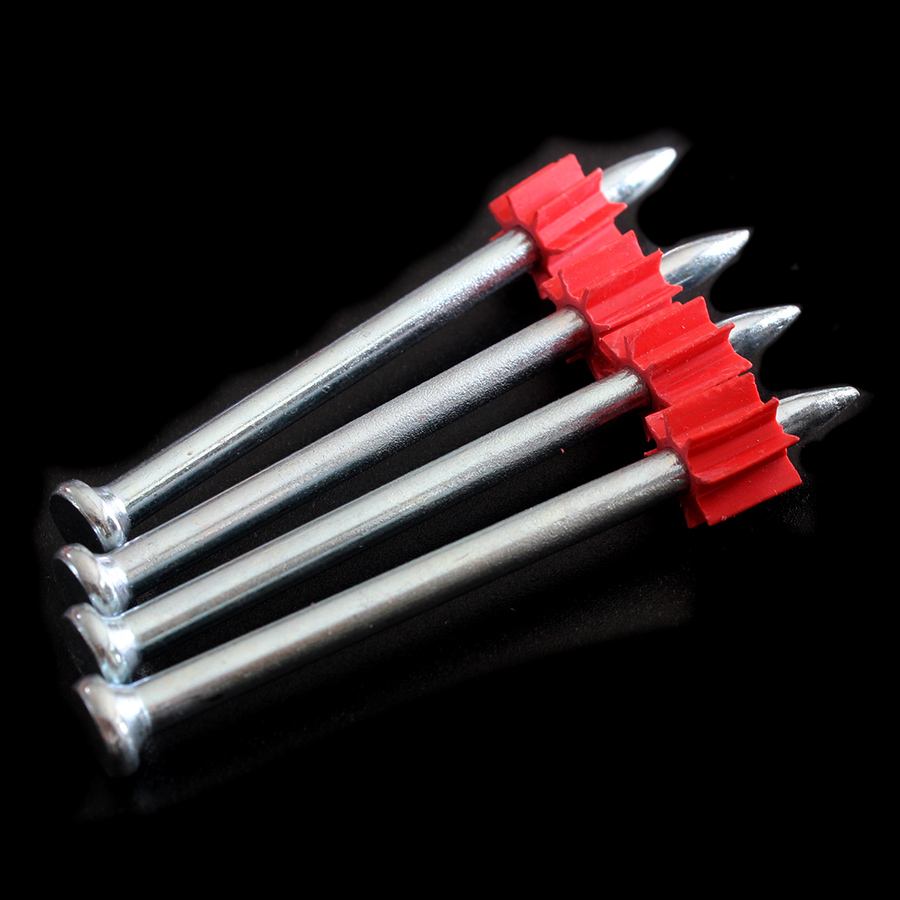

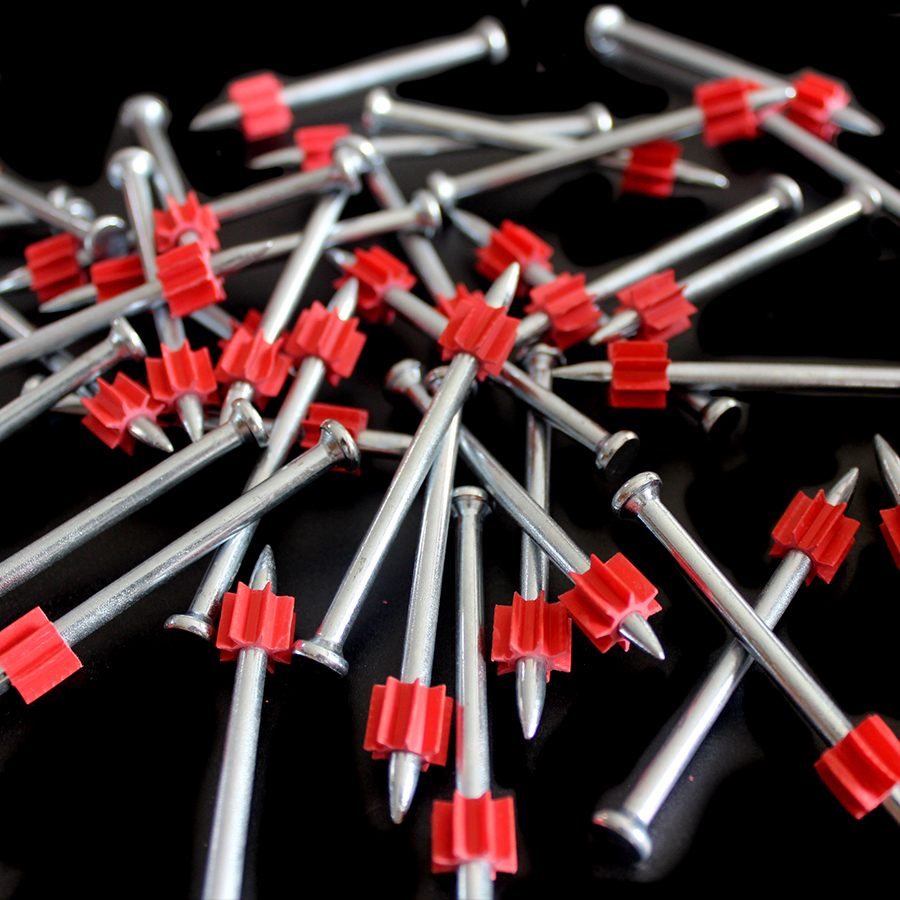

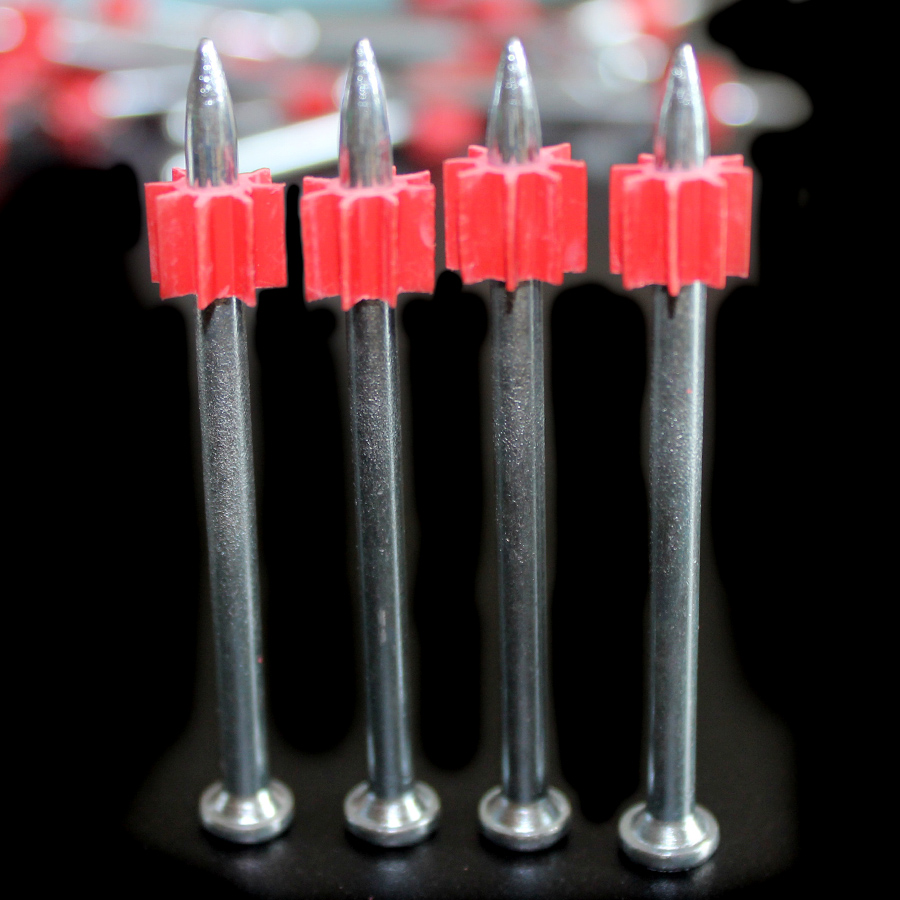

These powder actuated drive pins feature a 0.300" head diameter, 0.145" shank diameter, smooth shank, ballistic point, and plastic flute for tool alignment. They are available from 3/4" to 3" / 19mm to 75mm, with or without a 1" washer, and are suitable for popular powder fastening systems and single-pin concrete nailers.
Concrete and steel fastening: Designed for fastening wood to concrete, wood to steel, thin metal to concrete or masonry, and steel to steel.
Heat-treated carbon steel: HRC 52–57 hardness supports strength, durability, and reliable penetration into dense base materials.
Standard drive pin dimensions: 0.300" / 7.6mm head diameter and 0.145" / 3.7mm shank diameter for common powder fastening systems.
Ballistic point design: Helps improve penetration performance and reduce fastening defects in concrete and steel applications.
With or without washer: Optional 1" washer increases bearing surface for selected fastening applications.
Bulk construction supply: 100 pcs per box, suitable for contractors, distributors, hardware suppliers, and construction fastener brands.
| Specification | Details |
|---|---|
| Product Name | Powder Actuated Fasteners |
| Fastener Type | Powder Actuated Drive Pins / Concrete and Steel Drive Pins |
| Material | Carbon Steel |
| Surface Treatment | Zinc Plated |
| Heat Treatment | HRC 52–57 |
| Length Range | 19mm–75mm / 3/4"–3" |
| Head Diameter | 0.300" / 7.6mm |
| Shank Diameter | 0.145" / 3.7mm |
| Flute Diameter | 0.315" / 8.0mm |
| Shank Type | Smooth Shank |
| Point Type | Ballistic Point |
| Accessory | With or Without 1" Washer |
| Packing | 100 pcs per box |
| Compatible Tools | Popular powder fastening systems and single-pin concrete nailers |
| Main Applications | Wood to concrete, wood to steel, thin metal to concrete or masonry, steel to steel, drywall track, sill plate, ceiling wire, clips, fixtures, and construction components |
| Item | Series | Length (mm) | Length (inch) | Package |
|---|---|---|---|---|
| PD250/19 | PD250 Series | 19 | 3/4" | 100 pcs |
| PD250/25 | PD250 Series | 25 | 1" | 100 pcs |
| PD250/32 | PD250 Series | 32 | 1-1/4" | 100 pcs |
| PD250/38 | PD250 Series | 38 | 1-1/2" | 100 pcs |
| PD250/50 | PD250 Series | 50 | 2" | 100 pcs |
| PD250/64 | PD250 Series | 64 | 2-1/2" | 100 pcs |
| PD250/75 | PD250 Series | 75 | 3" | 100 pcs |

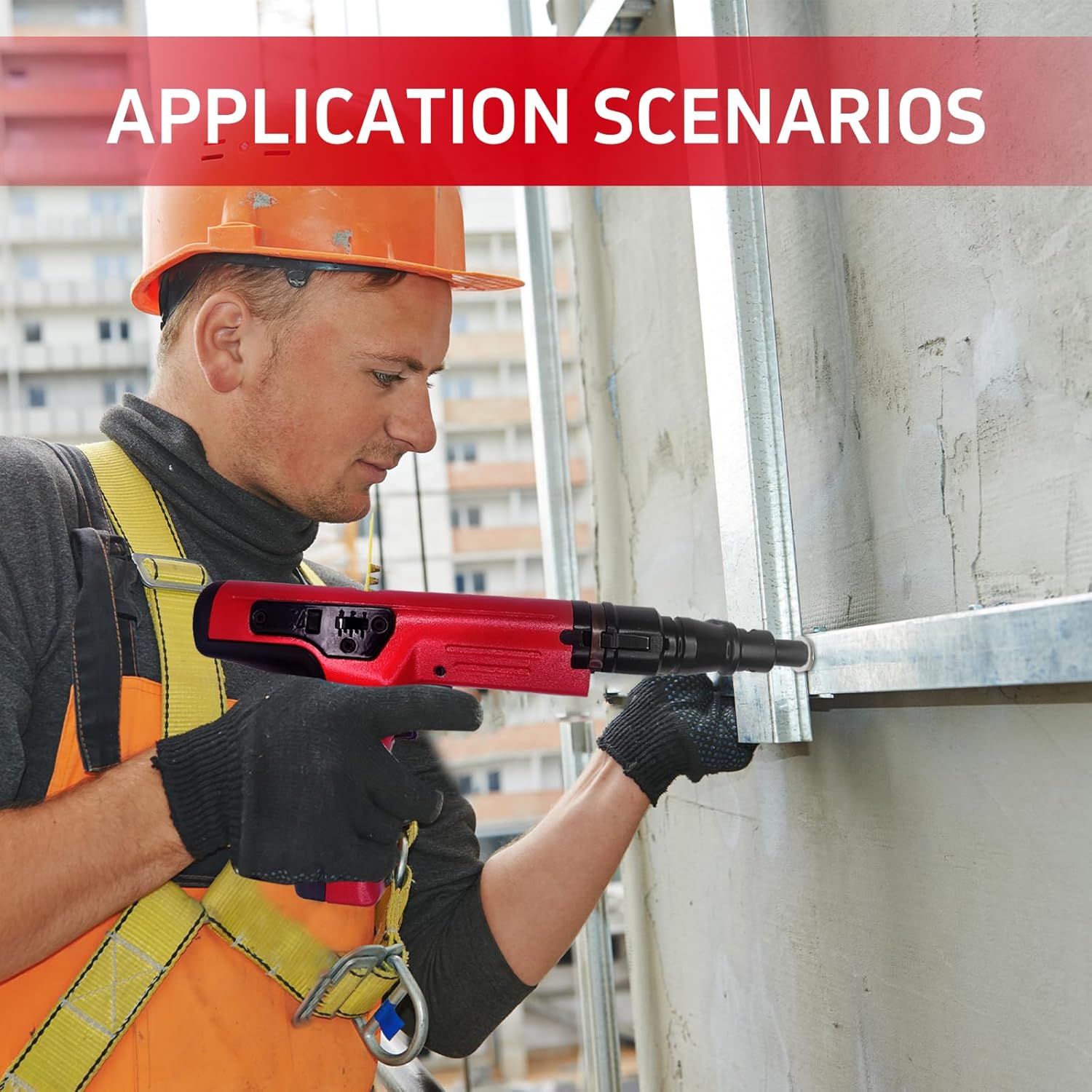

Powder actuated fasteners are used in direct fastening work where contractors need to attach materials to concrete, masonry, and steel quickly without conventional drilling in every fixing point. They are commonly used in commercial construction, interior fit-out, MEP support, drywall track fastening, sill plate installation, and light-duty fixture attachment.
Wood to concrete: Used for attaching wood members, battens, and selected framing components to concrete or masonry.
Wood to steel: Used for fastening wood components to compatible steel base materials.
Thin metal to concrete or masonry: Used for drywall track, metal clips, brackets, and light-gauge metal components.
Steel to steel: Used for selected steel fastening applications where pin type, base material, tool, and load requirements are suitable.
MEP and ceiling support: Used with compatible clips, hangers, wire supports, and construction accessories.
Explore Related Powder Actuated Fasteners
| Selection Factor | What to Check |
|---|---|
| Base Material | Confirm whether the fastening is into concrete, masonry, concrete over steel deck, structural steel, or light-gauge steel. |
| Fixture Thickness | Choose pin length according to the thickness of the material being fastened and the required embedment or steel penetration specified by the project. |
| Tool Compatibility | Check the powder actuated tool model, barrel size, pin length range, shank diameter, head type, flute requirement, and washer requirement. |
| Washer Requirement | Use washered pins when a larger bearing surface is required for the attached material or fixture. |
| Corrosion Environment | Zinc-plated pins are suitable for many standard applications. For treated lumber, humid areas, or special projects, confirm coating requirements before ordering. |
| Jobsite Safety | Powder actuated fastening should be performed only by trained operators following the tool manual, local regulations, PPE requirements, and project engineering specifications. |
Compared with many conventional fastening methods, powder actuated fastening can improve installation speed for suitable concrete, masonry, and steel applications. For B2B buyers, the key purchasing factors are pin hardness, dimensional consistency, head and shank accuracy, flute stability, coating quality, packaging reliability, and compatibility with common powder fastening systems.
Helps reduce fastening time in suitable direct fastening applications.
Ballistic point and smooth shank support efficient penetration into dense materials.
Standard 0.300" head and 0.145" shank dimensions support broad market compatibility.
Optional washered pins support applications requiring larger bearing surface.
100 pcs per box packaging is suitable for retail, wholesale, contractor, and distributor channels.
This video shows the general application of powder actuated fastening. Always select the correct fastener, tool, load level, and installation method according to the tool manufacturer’s manual, the base material, and project requirements.
KYA Fasteners supplies powder actuated fasteners, concrete pins, framing nails, staples, hog rings, clips, nailers, staplers, and industrial fastening products for global B2B customers. For construction fastener distributors and contractors, stable pin quality, reliable packaging, compatible sizing, and fast supply are critical for repeat purchasing and jobsite performance.
Complete size range: 3/4" to 3" / 19mm to 75mm powder actuated pins for different applications.
Stable specifications: 0.300" head, 0.145" shank, smooth shank, ballistic point, and plastic flute design.
Bulk supply support: Suitable for importers, wholesalers, hardware stores, contractors, and construction fastener distributors.
OEM packaging: Private label, box design, barcode labels, carton marks, and export packaging can be discussed.
Application matching: Pin size, washer option, packaging, and coating can be recommended according to project and market requirements.
Powder actuated fasteners are used for fastening wood, thin metal, fixtures, clips, and construction components to concrete, masonry, and steel. Typical applications include drywall track, sill plates, ceiling wire supports, brackets, and selected steel fastening work.
These pins are designed for popular powder fastening systems and single-pin concrete nailers. Buyers should confirm tool model, accepted pin length, barrel diameter, head size, shank diameter, and washer requirement before ordering.
KYA supplies PD250 series powder actuated fasteners from 19mm to 75mm, equivalent to 3/4", 1", 1-1/4", 1-1/2", 2", 2-1/2", and 3" lengths.
The ballistic point helps improve penetration into dense concrete and steel base materials, supporting more consistent fastening performance and reducing pin failure in suitable applications.
Yes. These fasteners can be supplied with or without a 1" washer. Washered pins are useful when the attached material needs a larger bearing surface.
Zinc-plated pins can be used in many standard fastening applications, including selected treated lumber projects. For ACQ-treated lumber, humid environments, or code-controlled projects, confirm coating requirements and project specifications before ordering.
Standard packaging is 100 pcs per box. Carton packing, barcode labels, private label boxes, and export packaging can be customized for distributors and hardware supply channels.
Yes. KYA can support OEM packaging, private label, carton design, barcode labeling, fastener size matching, washer options, and bulk export supply for powder actuated fasteners.
Powder actuated tools should only be used by trained operators. Users must follow the tool manufacturer’s manual, local safety regulations, PPE requirements, project engineering specifications, and jobsite safety procedures.
