| Finish: | |
|---|---|
| Leg Length: | |
| Quantity: | |

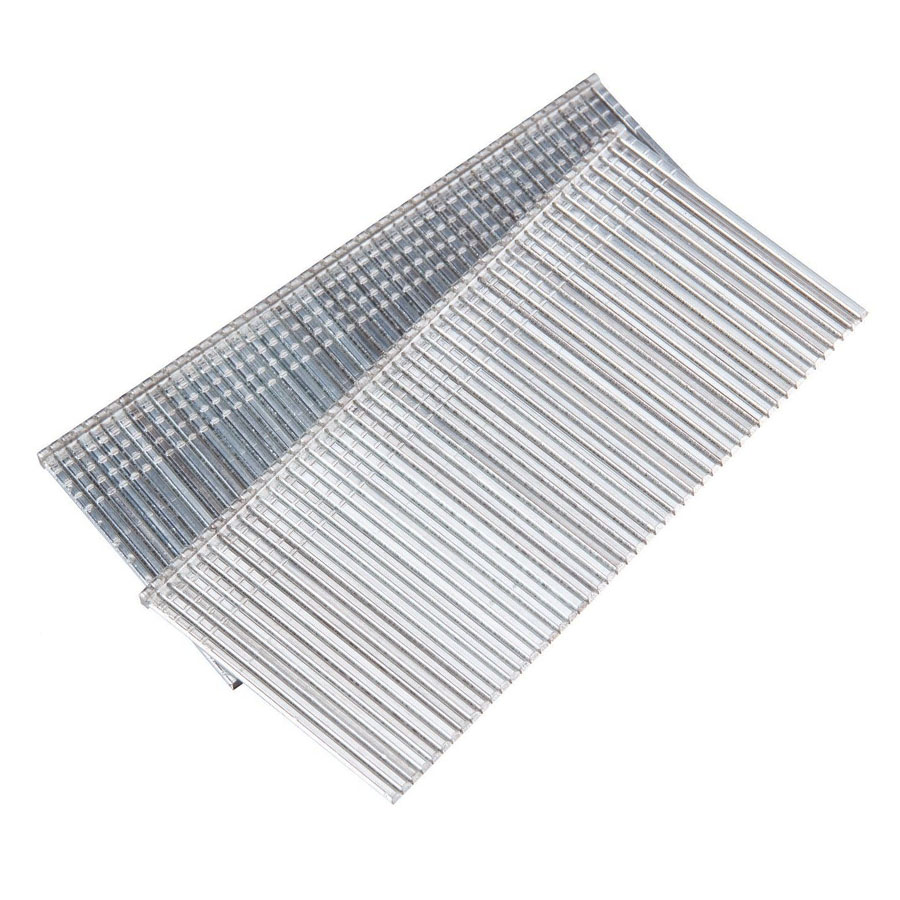

KYA 16 Gauge T Brad Nails, also used as straight 16GA finish nails, are designed for compatible straight finish and brad nailers used in molding, baseboards, cabinetry, furniture, door and window trim, paneling and other finish-carpentry applications.
The KYA T Series uses a nominal 2.90mm head width, 1.60mm wire width, 1.40mm wire thickness, galvanized steel construction, adhesive collation and a chisel point. Available lengths range from 15mm / 5/8" to 64mm / 2-1/2".
Tool compatibility should be checked by the complete fastener specification rather than brand name alone. The nailer must accept 16 gauge straight T-style / finish nails with the selected length and corresponding 1.40 × 1.60mm wire format.
| Specification | Details |
|---|---|
| Product Type | 16 Gauge T Brad / Straight Finish Nail |
| Series | T Series |
| Gauge | 16 Gauge |
| Head Width | 2.90mm |
| Wire Width | 1.60mm |
| Wire Thickness | 1.40mm |
| Length Range | 15–64mm / 5/8"–2-1/2" |
| Material | Steel |
| Finish | Galvanized |
| Point | Chisel Point |
| Collation | Glue / Adhesive Collated Straight Strip |
| Nails per Strip | 50 pcs |
| Nails per Box | 2,500 pcs |
| Tool Type | Compatible 16GA Straight Finish / Brad Nailer |
| Typical Applications | Molding, Baseboard, Cabinetry, Furniture, Door & Window Trim, Paneling |
Request 16GA T Brad Nail Pricing
The heavier 16 gauge wire provides more holding capacity than thinner 18 gauge brads, making T brads suitable for substantial trim, molding, cabinetry, furniture components and other finish work where additional holding strength is required.
The slight 2.90mm head provides useful holding area while keeping the fastener head relatively small for finish-carpentry applications where the driven nail may be filled or concealed.
The chisel point supports controlled penetration into suitable wood. Correct nailer orientation, pressure and depth adjustment remain important when working close to edges or with dense hardwood.
The galvanized surface provides basic corrosion protection for suitable interior and protected applications. For permanently wet, coastal, exterior or chemically aggressive environments, confirm whether a more corrosion-resistant fastener specification is required.
| Model | Length mm | Length inch | Pcs / Strip | Pcs / Box | Boxes / Carton |
|---|---|---|---|---|---|
| T15 | 15 | 5/8" | 50 | 2,500 | 20 |
| T16 | 16 | 5/8" | 50 | 2,500 | 20 |
| T19 | 19 | 3/4" | 50 | 2,500 | 20 |
| T22 | 22 | 7/8" | 50 | 2,500 | 20 |
| T25 | 25 | 1" | 50 | 2,500 | 20 |
| T28 | 28 | 1-1/8" | 50 | 2,500 | 20 |
| T30 | 30 | 1-3/16" | 50 | 2,500 | 20 |
| T32 | 32 | 1-1/4" | 50 | 2,500 | 20 |
| T35 | 35 | 1-3/8" | 50 | 2,500 | 10 |
| T38 | 38 | 1-1/2" | 50 | 2,500 | 10 |
| T40 | 40 | 1-9/16" | 50 | 2,500 | 10 |
| T45 | 45 | 1-3/4" | 50 | 2,500 | 10 |
| T50 | 50 | 2" | 50 | 2,500 | 10 |
| T57 | 57 | 2-1/4" | 50 | 2,500 | 10 |
| T64 | 64 | 2-1/2" | 50 | 2,500 | 10 |
All sizes in the KYA T Series use the same nominal 16GA, 2.90mm head width and 1.60 × 1.40mm wire format. Always confirm that the selected nail length falls within the operating range of the intended nailer.
| Length Range | General Selection Guidance |
|---|---|
| 15–25mm | Thinner trim, beading, smaller furniture components and light finish work where the nailer accepts short T brads |
| 28–38mm | Medium trim, paneling, cabinetry and general woodworking components |
| 40–50mm | Baseboard, molding, door and window casing, furniture and thicker finish components |
| 57–64mm | Thicker trim and assemblies requiring greater penetration, provided the nailer and workpiece support the selected length |
Select the nail according to workpiece thickness, receiving substrate and required penetration. Longer nails are not automatically better because excessive length can increase the risk of breakthrough, deflection or splitting.
16GA T brads provide useful holding strength for baseboard, crown molding and decorative trim where a straight finish nailer is suitable.
Cabinet shops and furniture manufacturers can use appropriate T Series lengths for face frames, decorative components, drawer assemblies and furniture trim.
Straight 16GA finish nails can be used for suitable door casing, window casing, jamb extensions and other interior trim when the selected length provides sufficient penetration.
Shorter and medium T Series sizes can be considered for paneling, wainscoting and decorative wood panels according to panel thickness and substrate.
T brads can also be used for suitable picture frames, mirror frames, drawers and other woodworking assemblies where a 16 gauge straight fastener is appropriate.
| Feature | 16 Gauge T Brad | 18 Gauge Brad |
|---|---|---|
| Wire Size | Heavier 16GA fastener; KYA T Series uses 1.60 × 1.40mm wire | Thinner fastener with a smaller cross-section |
| Holding Strength | Greater holding capacity for substantial finish work | Suitable for lighter and more delicate trim |
| Typical Applications | Baseboard, molding, cabinetry, casing, furniture | Small molding, decorative trim and lighter components |
| Interchangeable? | No. Use the fastener gauge specified for the nailer. | |
KYA T Series nails are intended for compatible 16 gauge straight finish and brad nailers. Gauge alone is not enough to establish compatibility.
| Compatibility Item | KYA T Series |
|---|---|
| Gauge | 16 Gauge |
| Wire Section | 1.60 × 1.40mm |
| Head Width | 2.90mm |
| Strip Format | Straight adhesive-collated strip |
| Length | Select only a length accepted by the exact nailer |
Do not use a 15 gauge angled finish nailer or an 18 gauge brad nailer simply because the brand also manufactures 16 gauge tools. Verify the exact nailer model and fastener specification before use.
They are straight 16 gauge finish fasteners used in compatible straight finish and brad nailers. KYA T Series nails use a 2.90mm head width and nominal 1.60 × 1.40mm wire section.
Use a compatible 16 gauge straight finish or brad nailer designed for the T-series fastener geometry and selected nail length. Check the nailer manual for gauge, wire dimensions, strip type and minimum/maximum fastener length before ordering.
No. The DEWALT DCN680 is an 18 gauge brad nailer, while KYA T Series nails are 16 gauge fasteners.
No. SENCO FinishPro 42XP is a 15 gauge angled finish nailer, not a straight 16 gauge T-brad nailer.
KYA T Series sizes range from 15mm / 5/8" to 64mm / 2-1/2", including T15, T16, T19, T22, T25, T28, T30, T32, T35, T38, T40, T45, T50, T57 and T64.
The nominal KYA T Series wire section is 1.60mm wide × 1.40mm thick, with an approximately 2.90mm head width.
Yes. The featured T Series uses galvanized steel for suitable interior and protected finish-carpentry applications.
Do not assume standard galvanized T brads are suitable for every exterior application. Select the required corrosion-resistant material or coating according to moisture exposure, treated wood and project requirements.
The correct length depends on the molding thickness, wall construction and required penetration into framing or backing. T45, T50, T57 or T64 may be relevant for thicker profiles, but the actual assembly and nailer range should determine the final size.
Baseboard thickness and the receiving wall structure determine the required nail length. Medium and longer T Series sizes are commonly used, provided sufficient penetration is available and the nailer accepts the selected length.
They can be used in suitable hardwood applications, but dense species increase the risk of deflection or splitting. Test the selected length and adjust nailer pressure and depth according to the actual material.
KYA T Series packaging uses 50 nails per strip.
KYA T Series packaging uses 2,500 nails per box.
16 gauge fasteners are heavier and generally provide greater holding strength, while 18 gauge brads are thinner and leave a smaller fastening mark. They require different nailers and are not interchangeable.
Contact KYA Fasteners to confirm sample availability. Test the selected length in the intended 16GA nailer and actual workpiece before placing a large-volume order.
Ask About 16 Gauge T Brad Nails
KYA supplies 16 gauge straight T brad nails for fastener distributors, pneumatic-tool distributors, furniture factories, cabinet manufacturers, woodworking suppliers and professional finish-carpentry buyers.
For quotations, provide the required T Series length, exact nailer manufacturer and model, application, quantity, packaging requirement and destination market.
