516SS100
KYA
KYA-516SS100
Material: | |
---|---|
Finish: | |
Point: | |
Availability: | |
Quantity: | |

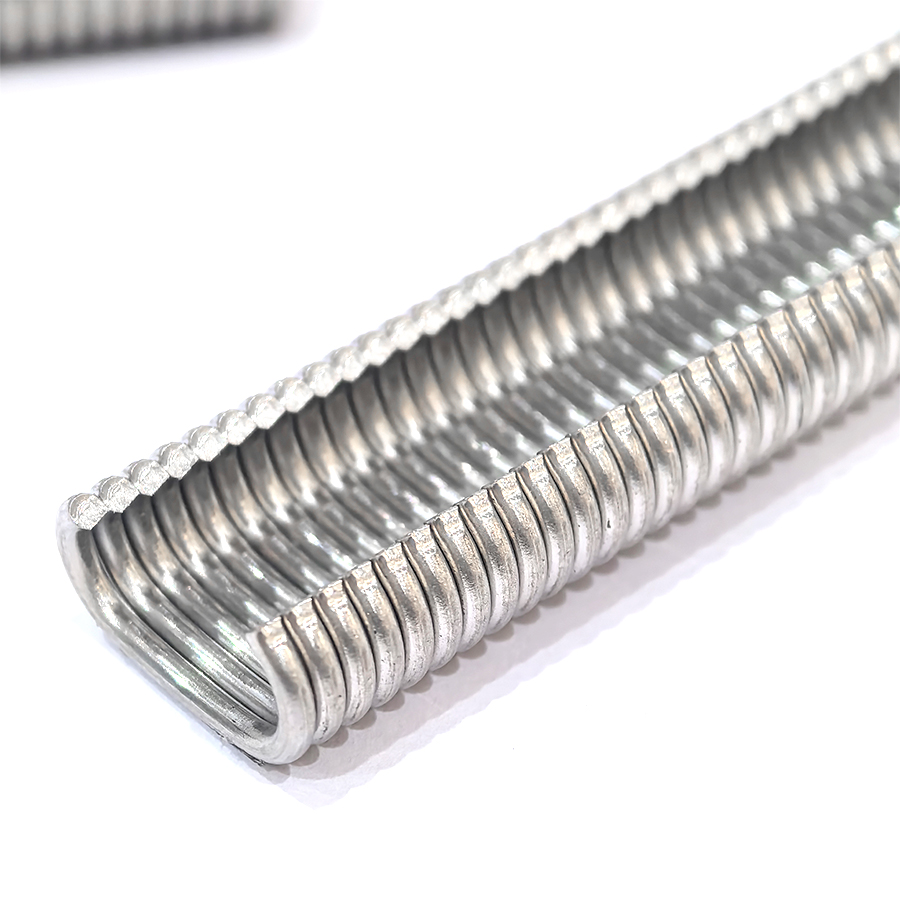

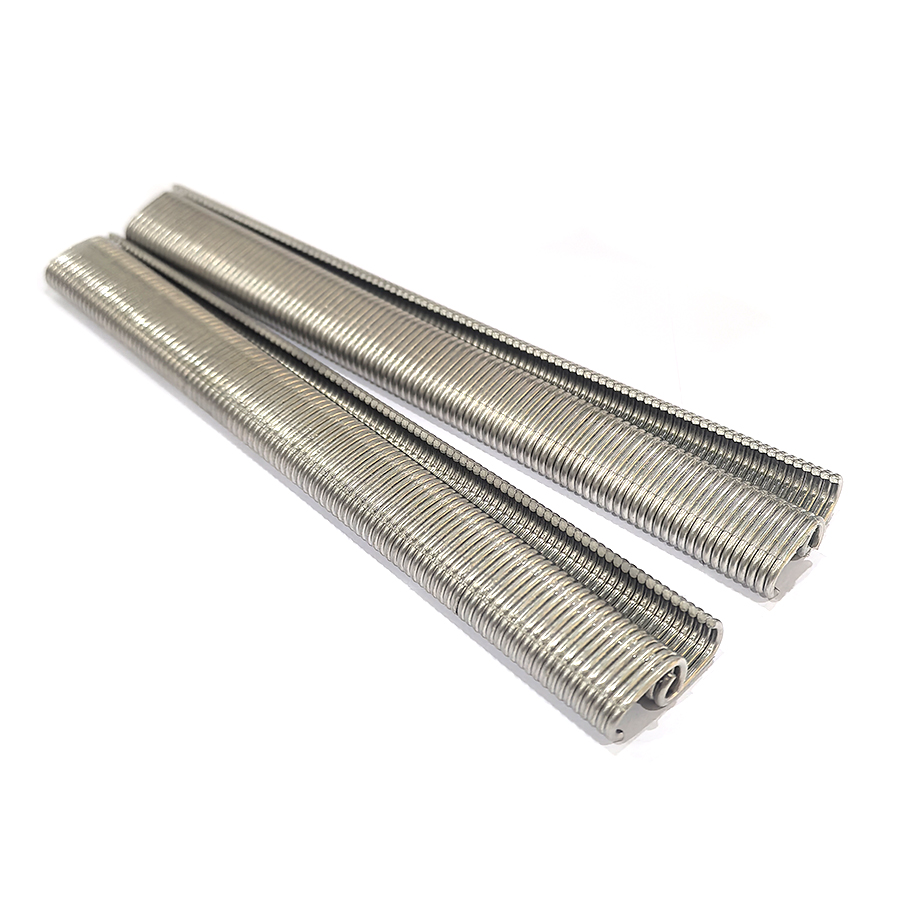

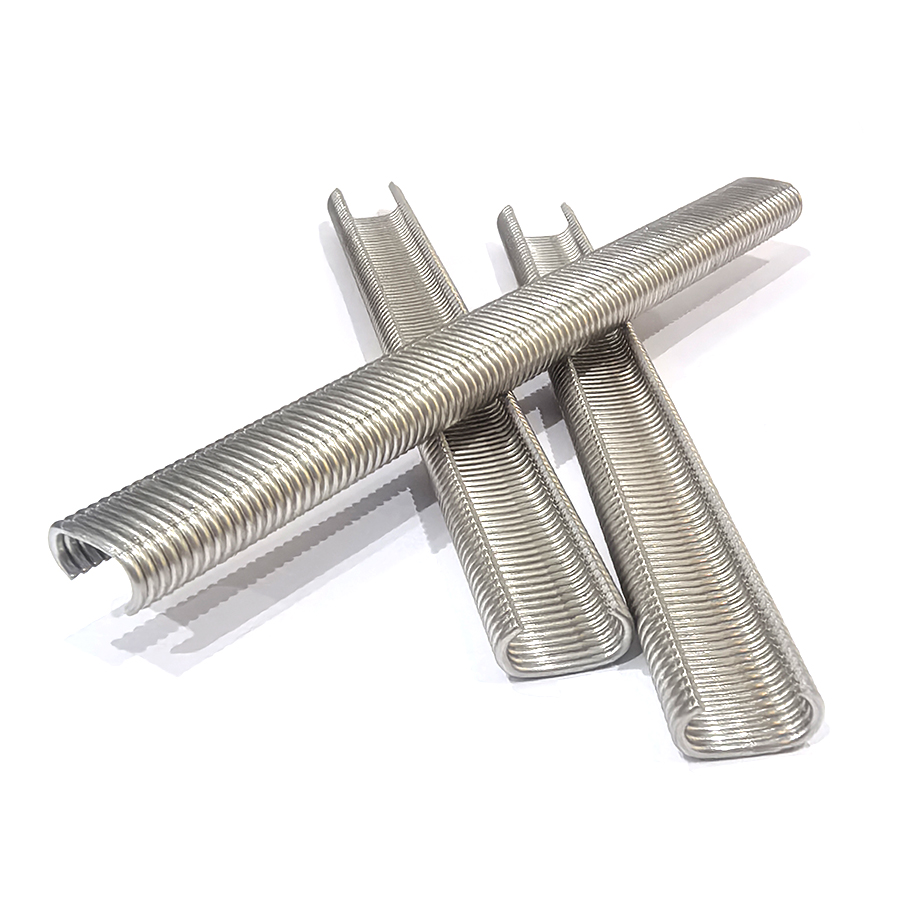

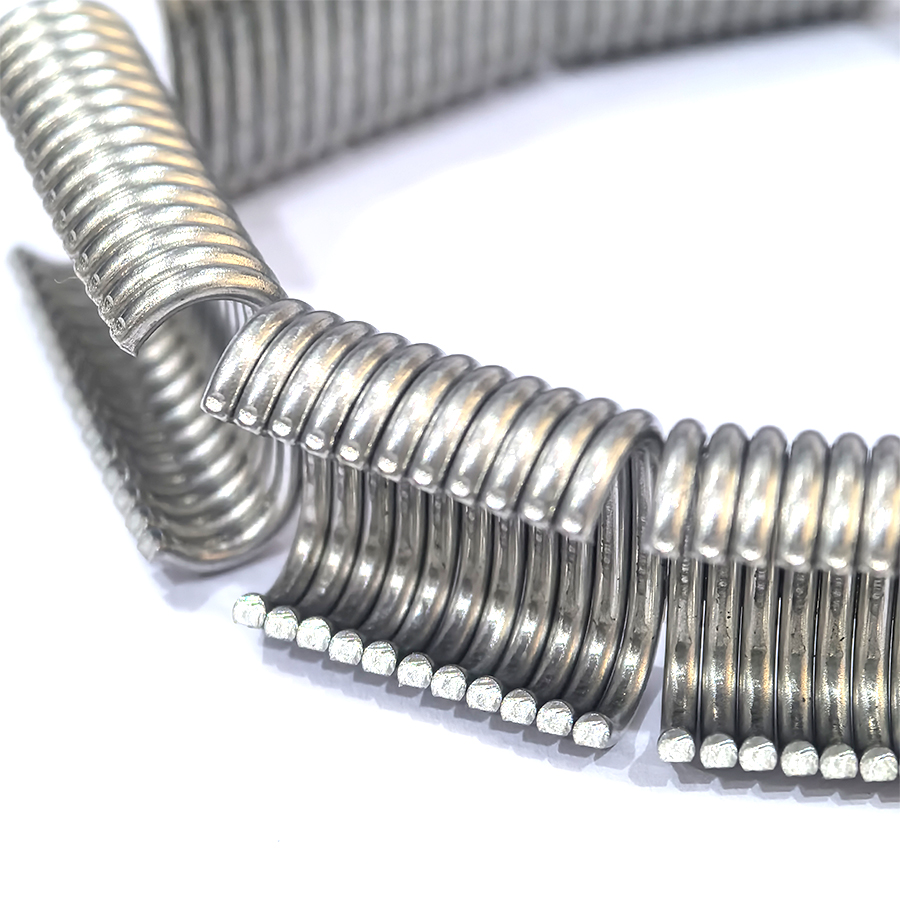

16GA 516SS100 Stainless Steel Hog Rings ● 16 Gauge 1/2'' crown c ring staples. ● Made of 304 stainless steel. ● No corrosion happens. ● Made of high quality metal, better corrosion resistance. ● Sharp points offer good piercing capabilities and consistent ring closure. ● Metallic luster never dim. |
Item: | 16GA 516SS100 Stainless Steel Hog Rings |
Gauge: | 16 Gauge |
Fastener Type: | Hog rings |
Material: | 304 stainless steel. |
Surface Finishing: | Stainless steel |
Point: | Sharp |
Outside Diameter: | 1/2 inch |
Thickness: | 1.60mm |
Height | 8.5mm |
Packing: | 10000 pcs/ctn |
Fitting Tools: | C760, SC760 |
Stainless Steel Hog Ring Specification | ||||||
Style | Crown | Closed I.D. | Wire Gauge | Points | PCs per Box | Boxes per skid |
C | 1/2" | 1/8" | 16 (1.60mm) | Blunt or Sharp | 10,000 | 100 boxes |
11/16" | 9/32" | 16 (1.60mm) | Blunt or Sharp | 2,500 | 750 boxes | |
3/4" | 3/16" | 16 (1.60mm) | Blunt or Sharp | 11,000 | 100 boxes | |
1 1/2" | 9/16" | 11 (3.0mm) | Blunt or Sharp | 1,600 | 96 boxes | |
D | 9/16 inch | 1/4 inch | 16 (1.60mm) 15 (1.80mm) 14 (2.00mm) | Blunt or Sharp | 5,000 | 375 |
3/4 inch | 1/4 inch | 16 (1.60mm) 15 (1.80mm) 14 (2.00mm) | Blunt or Sharp | 10,000 | 100 | |
1-3/16 inch | 7/16 inch | 9 (3.66mm) | Blunt or Sharp | 2,500 | 100 |
Description | Part # | Strip Size | Box Count | Box Weight | Box Per Skid | Skid Weight | ||||||||||||||||||||||||||
Glavanized Sharp Point | 516G100 | 100 rings | 10,000 rings | 9 lbs. | 100 boxes | 900 lbs. | ||||||||||||||||||||||||||
Galvanized Blunt Point | 516G100B | 100 rings | 10,000 rings | 9 lbs. | 100 boxes | 900 lbs. | ||||||||||||||||||||||||||
Galfan Sharp Point | 516GF100 | 100 rings | 10,000 rings | 9 lbs. | 100 boxes | 900 lbs. | ||||||||||||||||||||||||||
Stainless Steel Sharp Point | 516SS100 | 100 rings | 10,000 rings | 9 lbs. | 100 boxes | 900 lbs. | ||||||||||||||||||||||||||
Stainless Steel Blunt Point | 516SS100B | 100 rings | 10,000 rings | 9 lbs. | 100 boxes | 900 lbs. | ||||||||||||||||||||||||||
Aluminum Sharp Point | 516AL100 | 100 rings | 10,000 rings | 4 lbs. | 100 boxes | 400 lbs. | ||||||||||||||||||||||||||
Aluminum Blunt Point | 516AL100B | 100 rings | 10,000 rings | 4 lbs. | 100 boxes | 400 lbs. |
1. Wire fencing: chain link fence, welded wire mesh, chicken wire mesh, plastic mesh;
2. Wire cage: lobster & crab pots, rabbit cage, dog kennel, other animal cages;
3. Upholstery: automobile and domestic;
4. Gardening: bird netting, trellises;
5. Note: special specifications are customized on request.
● Good corrosion resistance.
● Good price.
● Durable & sturdy.
● Copper coating or vinyl coating available.
Bright Finish
Bright fasteners have no coating to protect the steel and are susceptible to corrosion if exposed to high humidity or water. They are not recommended for exterior use or in treated lumber, and only for interior applications where no corrosion protection is needed. Bright fasteners are often used for interior framing, trim and finish applications.
Electro Galvanized (EG)
Electro Galvanized fasteners have a very thin layer of Zinc that offers some corrosion protection. They are generally used in areas where minimal corrosion protection is needed such as bathrooms, kitchens and other areas that are susceptible to some water or humidity. Roofing nails are electro galvanized because they are generally replaced before the fastener begins to wear and are not exposed to harsh weather conditions if installed properly. Areas near the coasts where salt content in rain water is higher should consider a Hot Dip Galvanized or Stainless Steel fastener.
Stainless Steel (SS)
Stainless steel fasteners offer the best corrosion protection available. The steel may oxidize or rust over time but it will never lose its strength from corrosion. Stainless Steel fasteners can be used for exterior or interior applications and generally come in 304 or 316 stainless steel.
