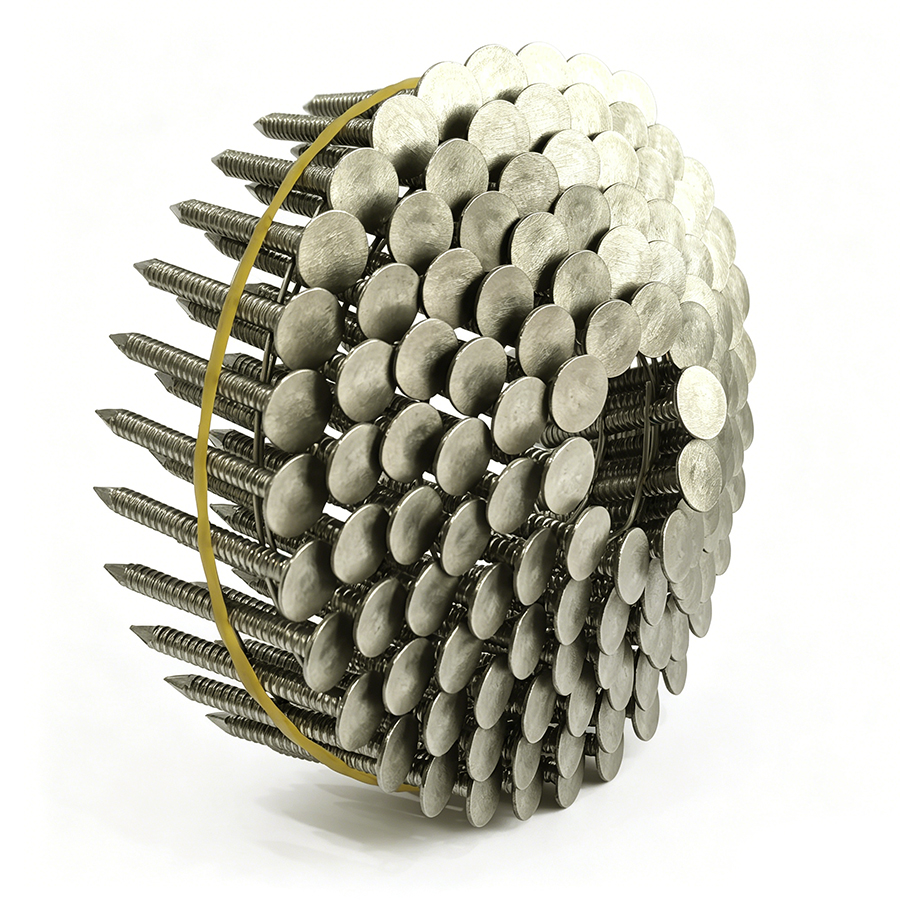

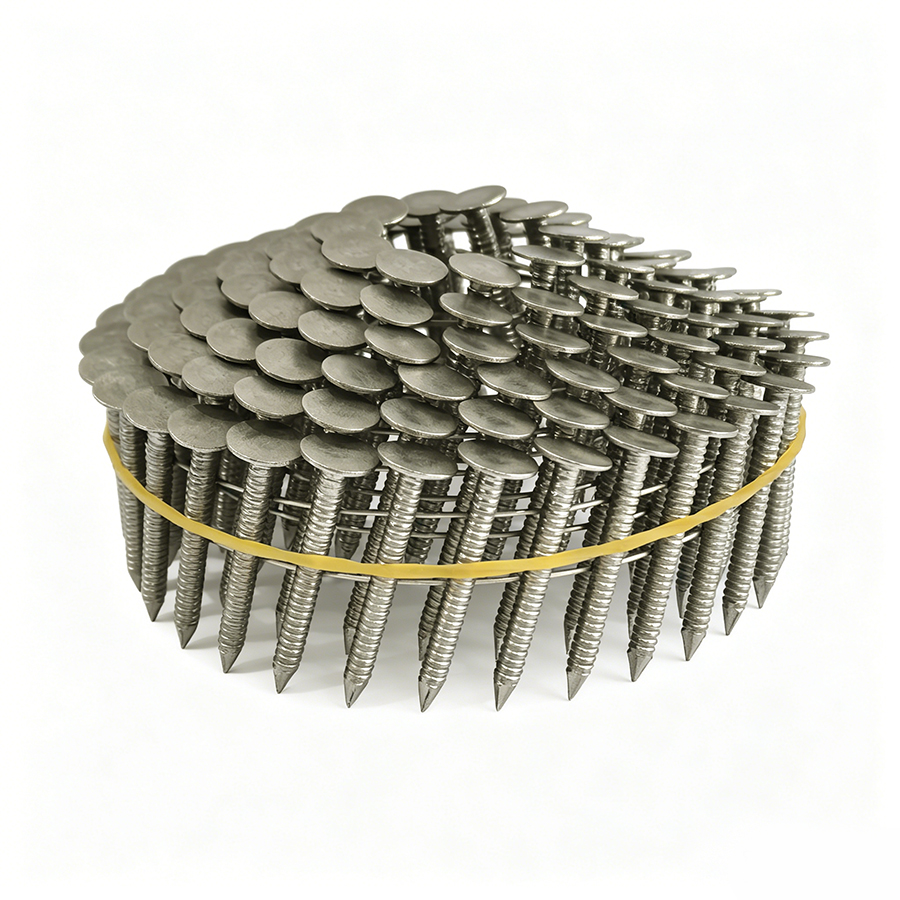

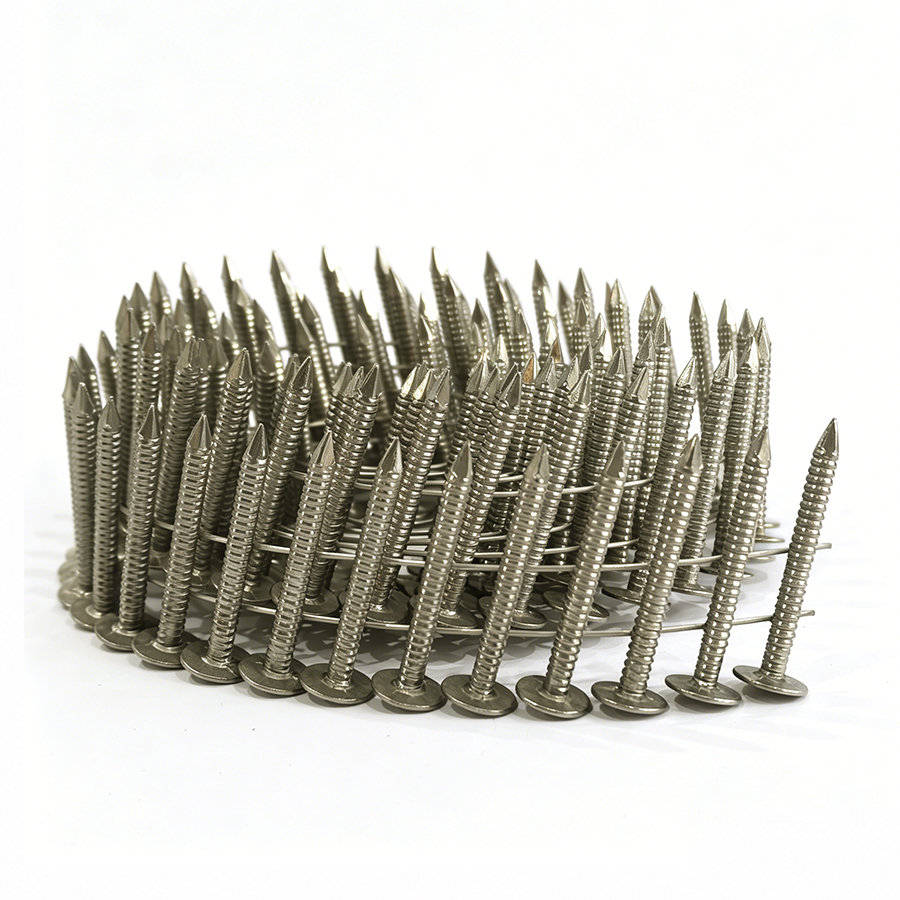

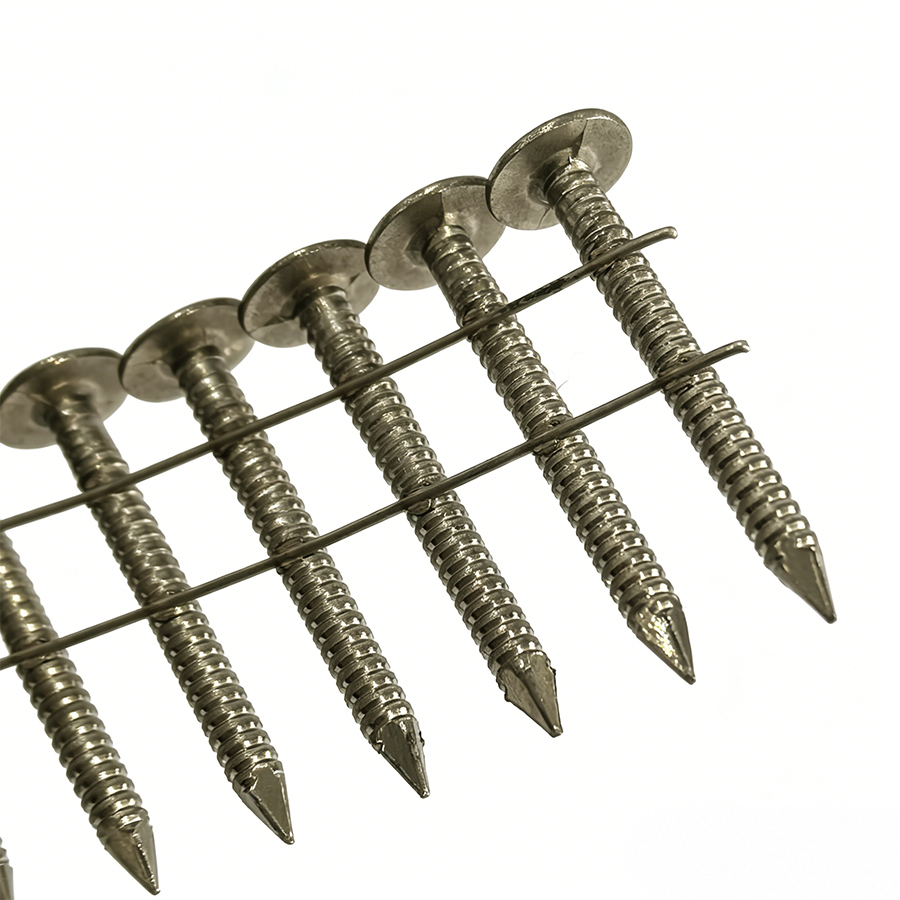

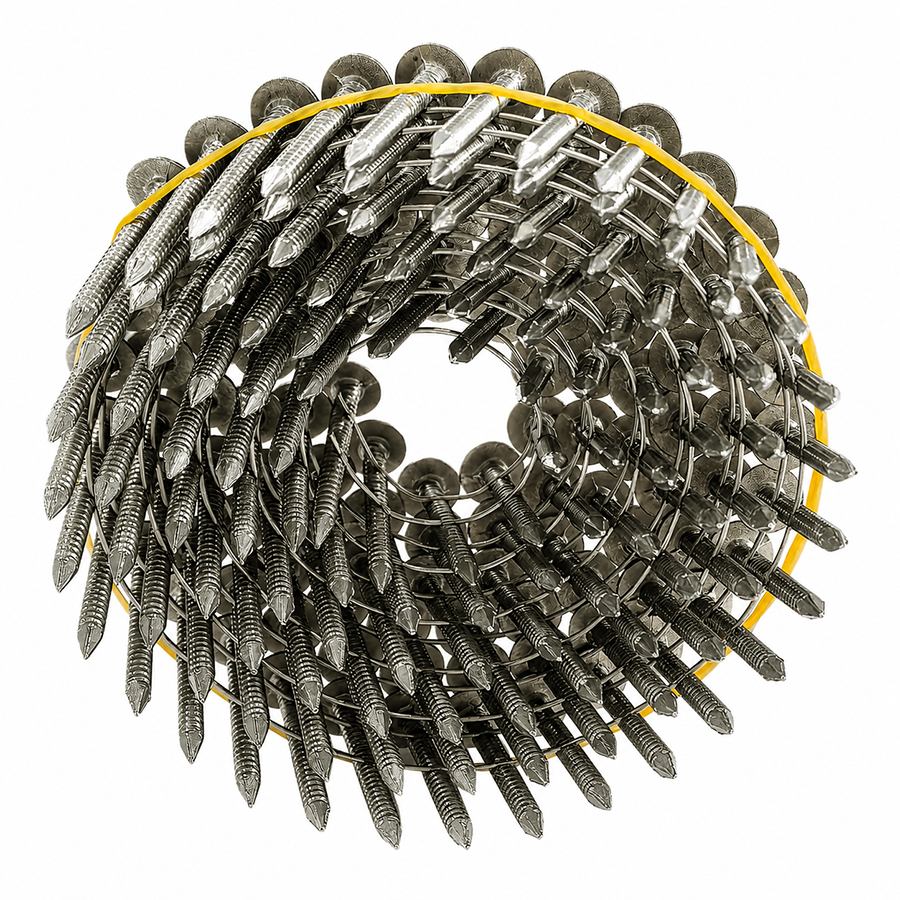

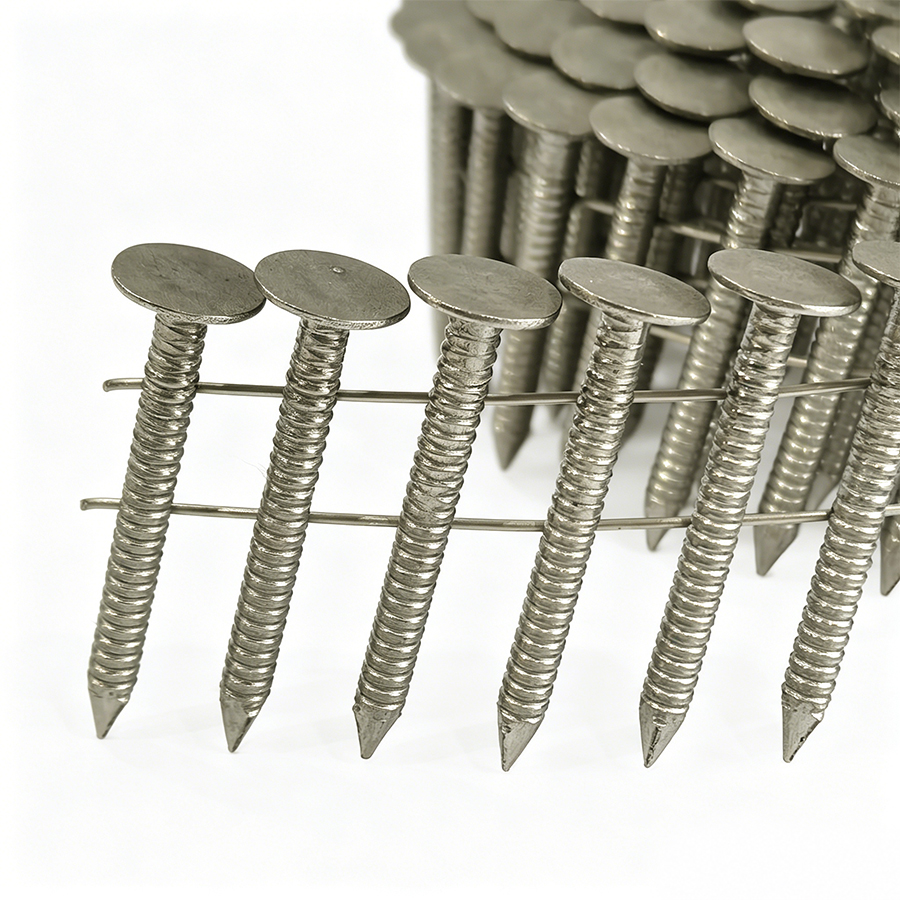

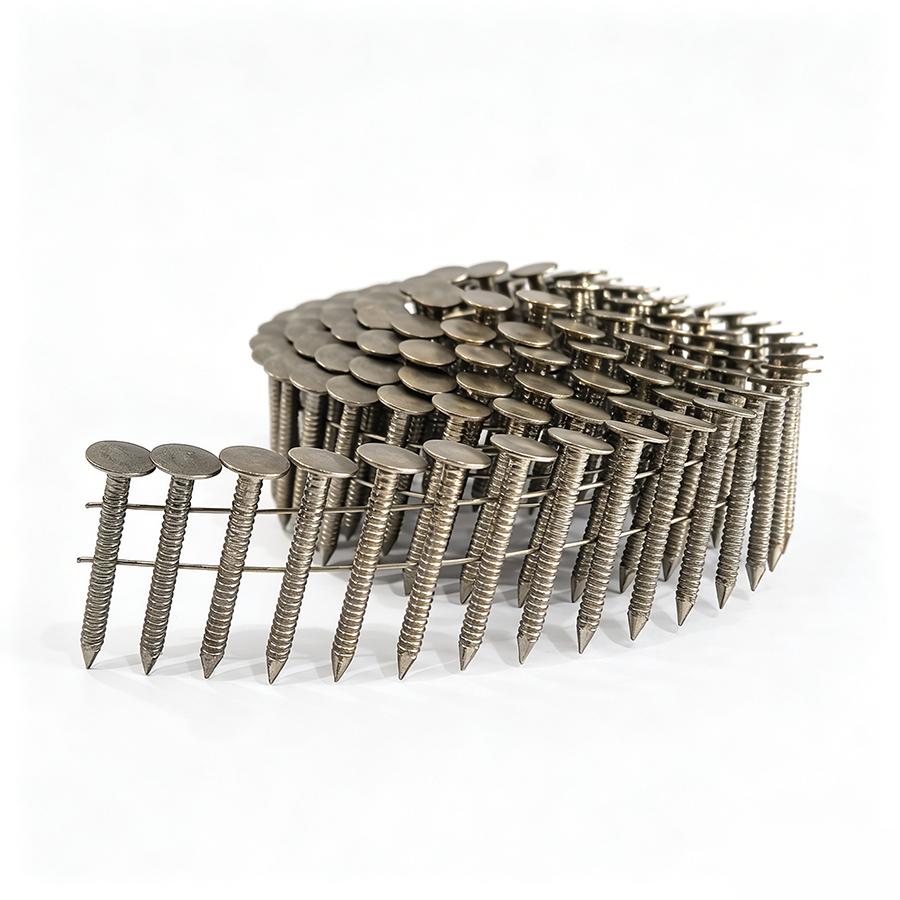

1-1/4 In. X 0.120 In. Ring Shank Stainless Steel Roofing Coil Nails

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button
These ring shank stainless steel roofing coil nails are engineered for superior holding power and long-lasting corrosion resistance in demanding outdoor applications. Manufactured from high-quality stainless steel, they are ideal for roofing projects exposed to moisture, salt air, and harsh weather conditions.

With a 1-1/4 inch length and 0.120 inch shank diameter, these coil nails are designed for compatibility with most standard pneumatic roofing nailers, ensuring smooth feeding and efficient installation. The ring shank design provides enhanced grip in wood substrates, significantly reducing pull-out under wind uplift or structural movement.
  • 1-1/4 In. x 0.120 In.

  • KYA

  • KYA-3.05X32SSR

Availability:
Quantity:

1-1/4" × .120" Stainless Steel Ring Shank Roofing Coil Nails

Stainless Steel Roofing Coil Nail Video

KYA 1-1/4" × .120" stainless steel roofing coil nails are 15-degree wire-collated fasteners with a 32mm length, 3.05mm shank diameter and ring-shank profile. The featured product is identified by KYA as KYA-3.05X32SSR.

The ring shank provides additional mechanical engagement in suitable wood substrates, while stainless steel is selected where the project requires higher corrosion resistance than conventional carbon-steel roofing nails.

KYA currently lists both #304 and #316 stainless steel ring-shank configurations within this roofing nail range. The required stainless grade should be specified when ordering because #304 and #316 are different materials and should not be treated as interchangeable for every exposure environment.

1-1/4" Stainless Ring Shank Roofing Nail Specifications

Product Type Stainless Steel Roofing Coil Nail
Model 1-1/4" × .120"
KYA Code KYA-3.05X32SSR
Nail Length 1-1/4" / 32mm
Shank Diameter .120" / approximately 3.05mm
Shank Type Ring Shank
Material Stainless Steel
KYA Listed Stainless Options #304 / #316 Stainless Steel
Collation 15° Wire-Collated Coil
Nails per Coil 120 pcs according to the current KYA roofing coil nail range
Listed Stainless Ring Packing 3,600 pcs for the 1-1/4" stainless ring-shank configuration; confirm final carton packing when ordering
Head Diameter Not stated on the current exact product page; confirm for cross-brand nailer compatibility
Point Type Confirm exact production specification if required
Primary Use Roofing applications requiring a .120" stainless steel ring-shank coil nail

Stainless Steel Ring Shank Roofing Nail Details

This KYA roofing nail combines the common .120" roofing-nail shank diameter with a 1-1/4" length and ring-shank profile. The nails are wire welded into coils for use in compatible pneumatic roofing nailers.

KYA 1-1/4 inch x .120 stainless steel ring shank roofing coil nails 15 degree wire collated roofing coil nails stainless steel coil roofing nails in roofing application

Key Features of KYA-3.05X32SSR Roofing Nails

1-1/4" / 32mm Roofing Nail Length

The featured nail is 32mm / 1-1/4" long. The correct nail length depends on the roofing material, substrate thickness and penetration requirement specified by the roofing system manufacturer or project documents.

.120" / 3.05mm Shank Diameter

The .120" shank diameter is widely used in pneumatic roofing coil nail systems. Tool selection should still be based on the complete nail specification rather than diameter alone.

Ring Shank

The annular ring profile provides additional mechanical engagement with suitable wood substrates compared with a smooth shank of the same dimensions.

Final withdrawal performance depends on ring geometry, wood species, wood density, moisture condition, penetration depth and the complete roofing assembly. Ring shank should therefore be specified as part of the complete fastening system rather than as a universal substitute for a smooth roofing nail.

Stainless Steel Construction

Stainless steel roofing nails are selected for projects requiring higher corrosion resistance than conventional carbon-steel fasteners. KYA currently lists #304 and #316 stainless ring-shank options in this size range.

Specify the required stainless grade when ordering. Material selection should consider moisture, salt exposure, roofing material, treated wood and other materials that will contact the fastener.

15° Wire Coil Collation

The nails are assembled into a wire-welded coil for high-capacity pneumatic roofing nailers. The tool must accept the .120" shank diameter, 1-1/4" length, head diameter and corresponding wire-coil geometry.

120-Nail Coil Format

KYA's current roofing coil nail range lists 120 nails per coil for the 3.05×32mm size. The current stainless ring-shank table lists 3,600 pieces for this configuration, so carton quantity should be confirmed when placing an order.

#304 vs. #316 Stainless Steel Roofing Nails

KYA lists both #304 and #316 stainless steel ring-shank roofing nails in the 1-1/4" × .120" size. Buyers should identify the required material grade in the purchase specification.

Material General Selection Guidance
#304 Stainless Steel Common stainless fastener material for exterior applications where stainless steel is specified and the exposure conditions are suitable for #304.
#316 Stainless Steel Often selected where the project requires a higher level of corrosion resistance, particularly in more aggressive environments.

The correct stainless grade should follow the roofing manufacturer, project specification, building requirements and expected exposure environment. Do not substitute one stainless grade for another solely because both are described as stainless steel.

Applications for 1-1/4" Stainless Roofing Coil Nails

These nails are intended for roofing and related exterior fastening applications where the roofing system permits a 1-1/4" × .120" stainless steel ring-shank coil nail.

  • Asphalt roofing shingles where stainless ring-shank nails are permitted

  • Fiberglass shingles where the roofing manufacturer permits this fastener specification

  • Roofing felt and underlayment systems requiring coil roofing nails

  • Insulation board fastening where .120" roofing nails are specified

  • Metal drip-edge attachment where permitted by the roofing system

  • Exterior roofing work where stainless steel fasteners are required

  • Selected siding applications where the siding manufacturer specifies compatible roofing-style coil nails

Do not use the product as a generic framing, decking or structural nail solely because it is stainless steel. Roofing coil nails have their own head geometry, shank dimensions and intended fastening systems.

Stainless Roofing Nails for Coastal and Corrosive Environments

Stainless steel is commonly considered when roofing fasteners will be exposed to moisture or environments where conventional galvanized steel may not provide the required corrosion resistance.

For coastal, salt-air or chemically aggressive environments, specify the exact stainless grade required by the roofing system or project. Do not assume that every stainless steel grade provides the same corrosion performance.

Stainless Steel vs. Galvanized Roofing Nails

Fastener Material / Finish General Selection Guidance
Electro-Galvanized Steel Thin zinc-coated steel option. Select only where the roofing system and exposure conditions permit this coating.
Hot-Dip Galvanized Steel Uses a heavier galvanized coating than typical electro-galvanized fasteners. Exact coating requirements should be verified for the project.
#304 Stainless Steel Stainless option for projects where #304 is permitted by the roofing or construction specification.
#316 Stainless Steel Higher-alloy stainless option where more demanding corrosion resistance is specified.

The featured KYA product is a stainless steel configuration. Electro-galvanized and hot-dip galvanized products are separate roofing nail configurations and should not be presented as finishes of the same exact SKU.

Roofing Nailer Compatibility

A 15-degree roofing nailer must match more than the nominal coil angle. Length, shank diameter, head diameter, wire collation and coil geometry all affect compatibility.

Reference Nailer Published Fastener Range KYA 1-1/4" × .120" Ring Nail
MAX CN445R3 15° wire coil, .120" shank, 3/4"–1-3/4", smooth or ring shank Length, shank diameter, ring profile and collation are within published range; confirm KYA head diameter before use.
Metabo HPT NV45AB2 Wire-collated roofing nails, .120" diameter, 7/8"–1-3/4", published as 16° magazine angle Length and diameter are within published range; verify head diameter and collation geometry before substitution.
SENCO RoofPro 445XP 15° wire coil, .120", 3/4"–1-3/4" Dimensions fall within the general tool range, but SENCO's current listed compatible roofing fasteners are smooth-shank; confirm ring-shank compatibility before use.
Other Roofing Coil Nailers Varies by model Must accept 1-1/4" length, .120" shank, ring profile, wire coil and the exact KYA head diameter.

The strongest current dimensional reference is the MAX CN445R3 because MAX explicitly publishes both smooth and ring-shank .120" roofing nails from 3/4" through 1-3/4". Final compatibility still requires the KYA head diameter to fall within the tool specification.

Why Head Diameter Matters

Roofing nails use a comparatively wide head to hold roofing materials against the substrate. Head diameter also affects whether the nail feeds correctly through a roofing nailer's magazine and nose assembly.

The current KYA exact product page does not publish the head diameter for KYA-3.05X32SSR. Buyers replacing another brand should provide the existing nail drawing, head measurement or nailer model so this dimension can be checked before ordering.

As an industry reference, comparable 1-1/4" × .120" stainless ring-shank roofing nails can use a head around .375", while some roofing nailers publish other maximum or required head dimensions. Do not assume that a competitor's head dimension is automatically the KYA dimension.

Ring Shank vs. Smooth Shank Roofing Nails

Feature Ring Shank Smooth Shank
Shank Geometry Annular rings around the shank Straight cylindrical shank
Featured SKU KYA-3.05X32SSR Separate configuration
Wood Engagement Provides additional mechanical engagement with suitable wood fibers Conventional roofing nail profile with lower insertion resistance
Selection Use where the roofing or construction system permits or requires ring-shank nails Use where smooth-shank roofing nails are specified

How to Specify Stainless Roofing Coil Nails

For professional purchasing, specify the complete fastener rather than simply requesting "stainless roofing nails."

Length 1-1/4" / 32mm
Shank Diameter .120" / 3.05mm
Shank Ring Shank
Material Specify #304 or #316 Stainless Steel
Collation 15° Wire Coil
Head Diameter Confirm against the nailer and project specification
Point Confirm when required by the purchasing specification
Packaging Confirm coils per carton; KYA currently lists 3,600 pcs for the stainless ring configuration
Tool Provide exact roofing nailer manufacturer and model

Ordering KYA 1-1/4" Stainless Roofing Coil Nails

For accurate quotation and compatibility checking, provide the required stainless grade, quantity, roofing nailer manufacturer and model, roofing material, substrate, exposure environment and delivery destination.

For the exact product shown on this page, reference KYA-3.05X32SSR, 1-1/4" × .120", stainless steel, ring shank and 15-degree wire-coil collation.

KYA Code KYA-3.05X32SSR
Size 1-1/4" × .120" / 32 × 3.05mm
Shank Ring Shank
Material Stainless Steel; specify #304 or #316
Collation 15° Wire-Collated Coil
Nails per Coil 120 pcs according to current KYA roofing coil range
Current Listed Stainless Ring Quantity 3,600 pcs; confirm final carton configuration when ordering
Required Compatibility Information Nailer model, head diameter requirement, wire-coil geometry and nail length range
Application Information Roofing material, substrate, exposure environment and required stainless grade

Frequently Asked Questions About Stainless Roofing Coil Nails

What size is KYA-3.05X32SSR?

The nail is 1-1/4" / 32mm long with a .120" / approximately 3.05mm shank diameter.

What shank type does this roofing nail use?

The featured stainless steel configuration uses a ring shank.

Is the nail #304 or #316 stainless steel?

KYA currently lists both #304 and #316 stainless steel ring-shank options in the 1-1/4" × .120" size. Specify the required grade when requesting a quotation.

How many nails are in one coil?

KYA's current roofing coil nail range lists 120 nails per coil for the 3.05×32mm size.

How many stainless ring-shank nails are packed in one carton?

The current KYA exact product table lists 3,600 pieces for the 1-1/4" #304 and #316 stainless ring-shank configurations. Confirm the final coils-per-carton arrangement when ordering.

Is 7,200 the number of nails in one coil?

No. A roofing coil typically contains a much smaller number of nails. KYA's current roofing coil range lists 120 nails per coil. Quantities such as 3,600 or 7,200 refer to larger package or carton quantities rather than one individual coil.

Will these nails fit a MAX CN445R3?

The MAX CN445R3 accepts 15-degree wire-collated .120" roofing nails from 3/4" to 1-3/4" and its published fastener specification includes both smooth and ring shanks. The KYA nail therefore falls within the published length, diameter and shank ranges. Confirm the KYA head diameter before use.

Will these nails fit a Metabo HPT NV45AB2?

The NV45AB2 accepts .120" wire-collated roofing nails from 7/8" to 1-3/4", so the KYA nail falls within its published length and diameter range. Confirm the exact head and coil geometry before substitution.

Will these nails fit a SENCO RoofPro 445XP?

The RoofPro 445XP accepts .120", 15-degree wire-coil roofing nails from 3/4" to 1-3/4". SENCO's currently listed compatible roofing fasteners are smooth-shank models, so ring-shank compatibility should be confirmed before using this KYA nail.

Will these nails fit every 15-degree roofing nailer?

No. The nailer must accept the 1-1/4" length, .120" diameter, ring shank, wire collation and exact head and coil geometry.

What is the head diameter?

The current KYA exact product page does not publish the head diameter for KYA-3.05X32SSR. Confirm this dimension when cross-referencing the nail with another manufacturer's roofing nailer.

Are stainless roofing nails suitable for coastal projects?

Stainless steel is commonly considered for more corrosive exterior environments, but the required stainless grade should follow the roofing manufacturer and project specification. Specify #304 or #316 according to the actual exposure requirements.

Can these nails be used with treated lumber?

Use the stainless grade required by the treated-lumber manufacturer and project specification. Different preservative systems can have different fastener requirements.

Can these nails be used for asphalt shingles?

They can be used where the shingle manufacturer and applicable roofing specification permit a 1-1/4" × .120" stainless ring-shank roofing nail.

Are these nails suitable for framing or decking?

This product is designed as a roofing coil nail. Do not substitute it for a framing or decking fastener unless the relevant assembly specifically permits this nail size, head geometry, shank and material.

Does 15-degree wire collation guarantee jam-free operation?

No. Reliable feeding depends on the complete fastener dimensions, weld quality, coil geometry, nailer condition, loading and maintenance. Collation angle alone cannot guarantee jam-free operation.

What information should I provide when requesting a quotation?

Provide the required quantity, #304 or #316 stainless grade, roofing nailer manufacturer and model, roofing material, substrate, exposure conditions and delivery destination. Reference KYA-3.05X32SSR for the featured size.
