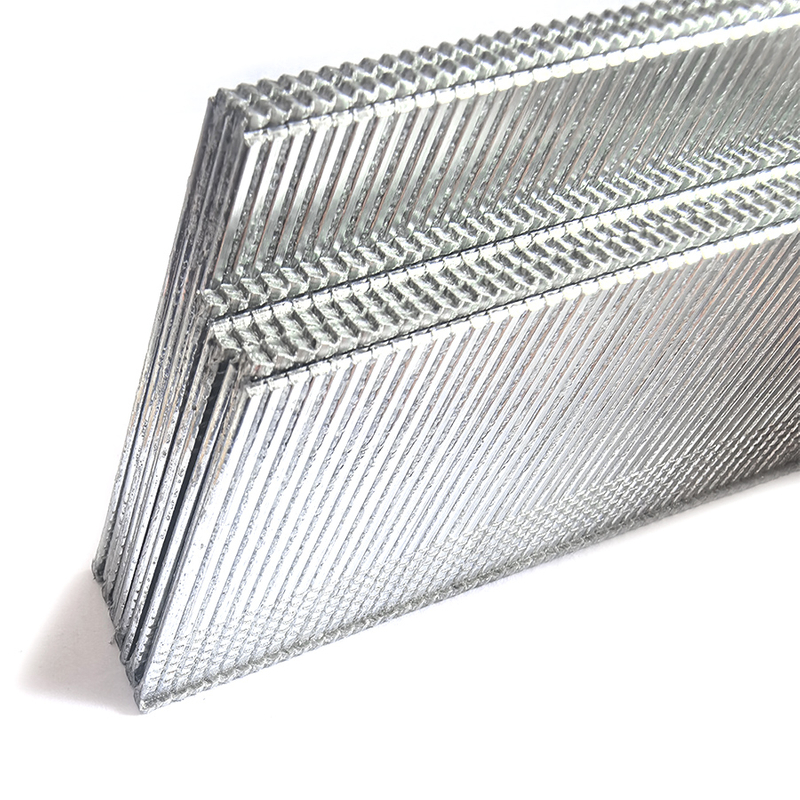

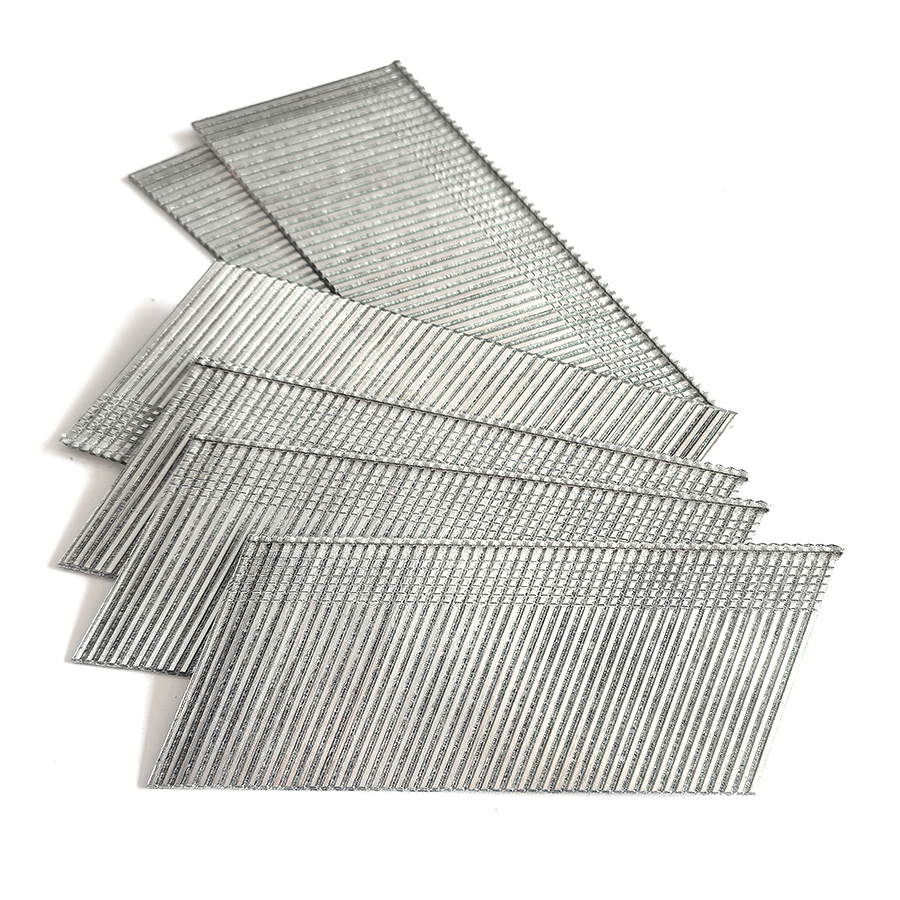

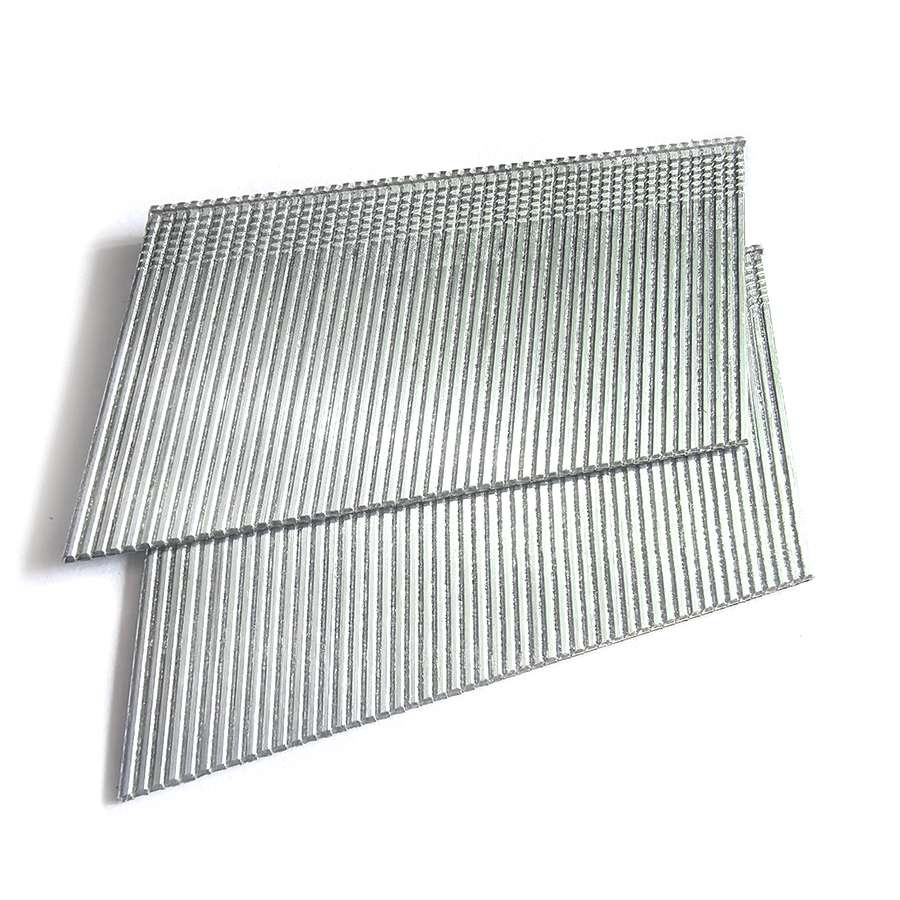

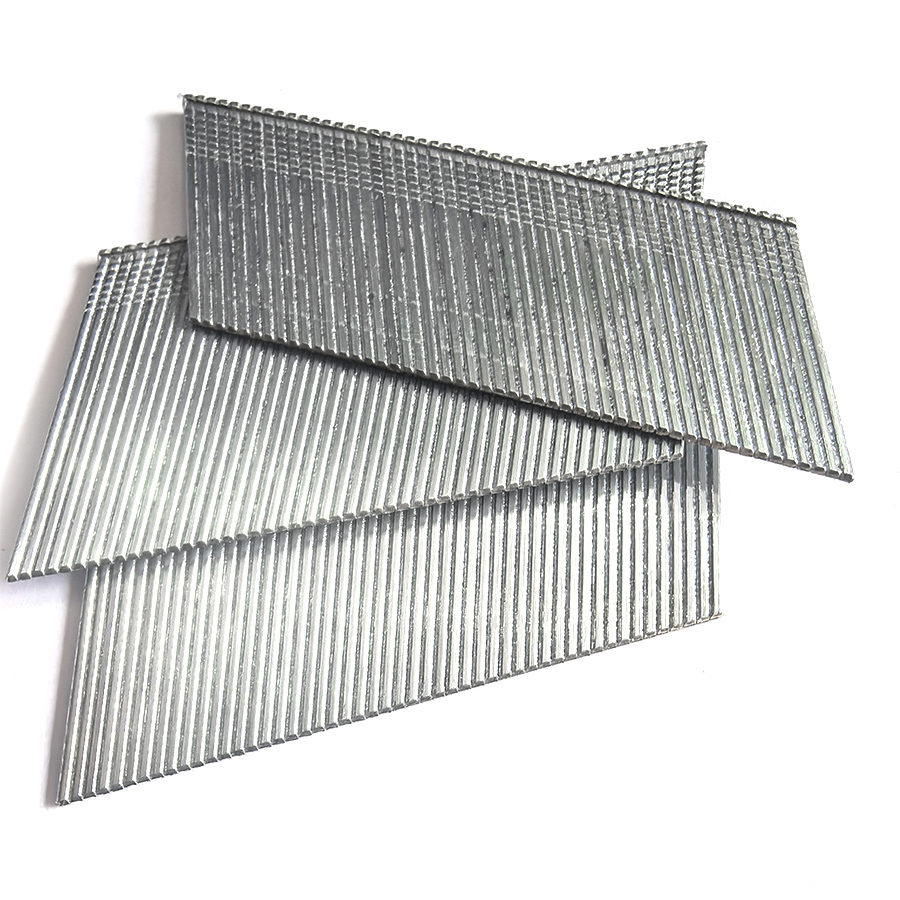

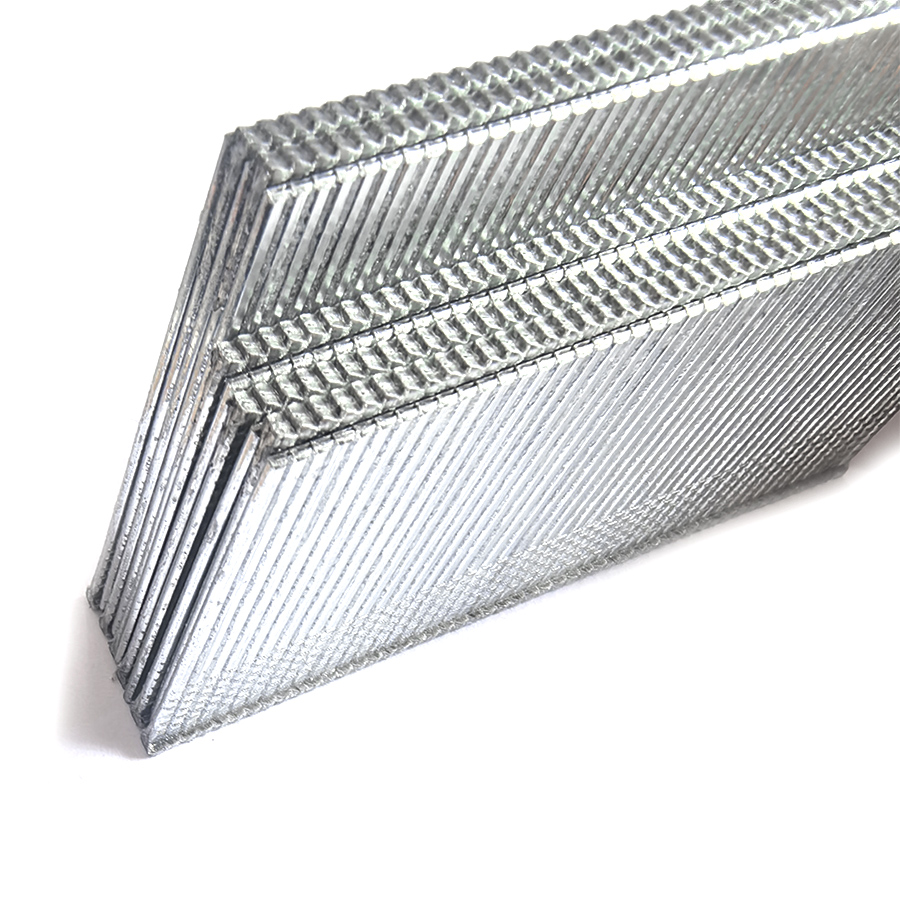

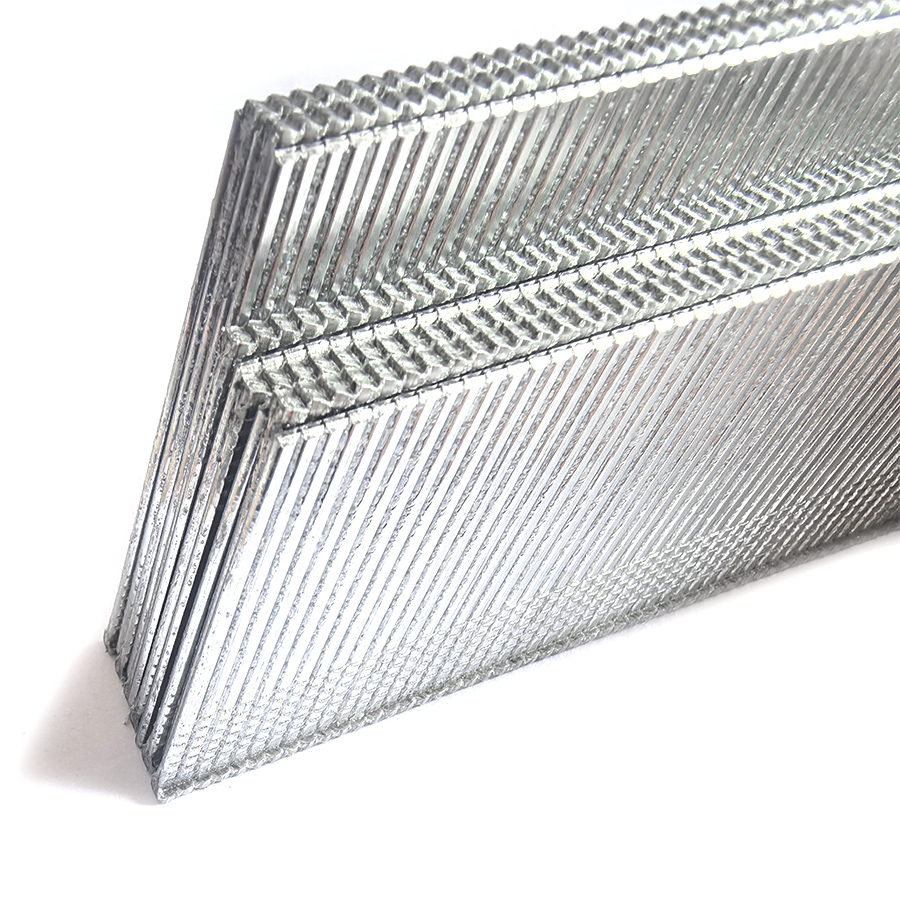

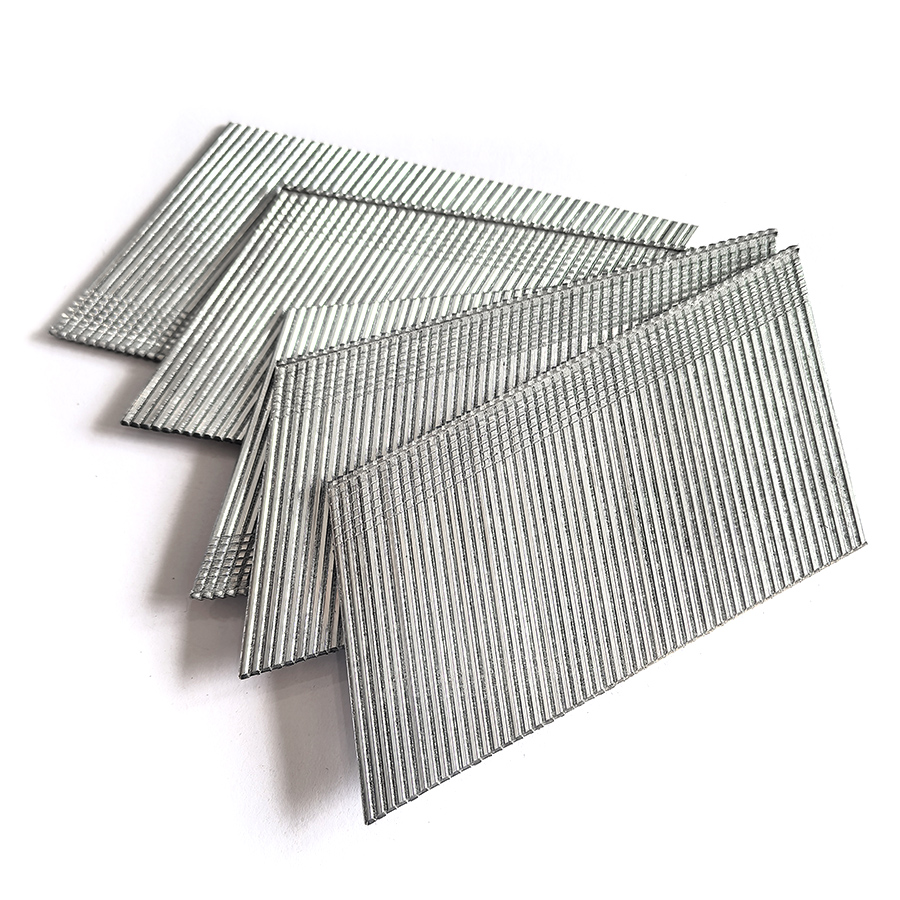

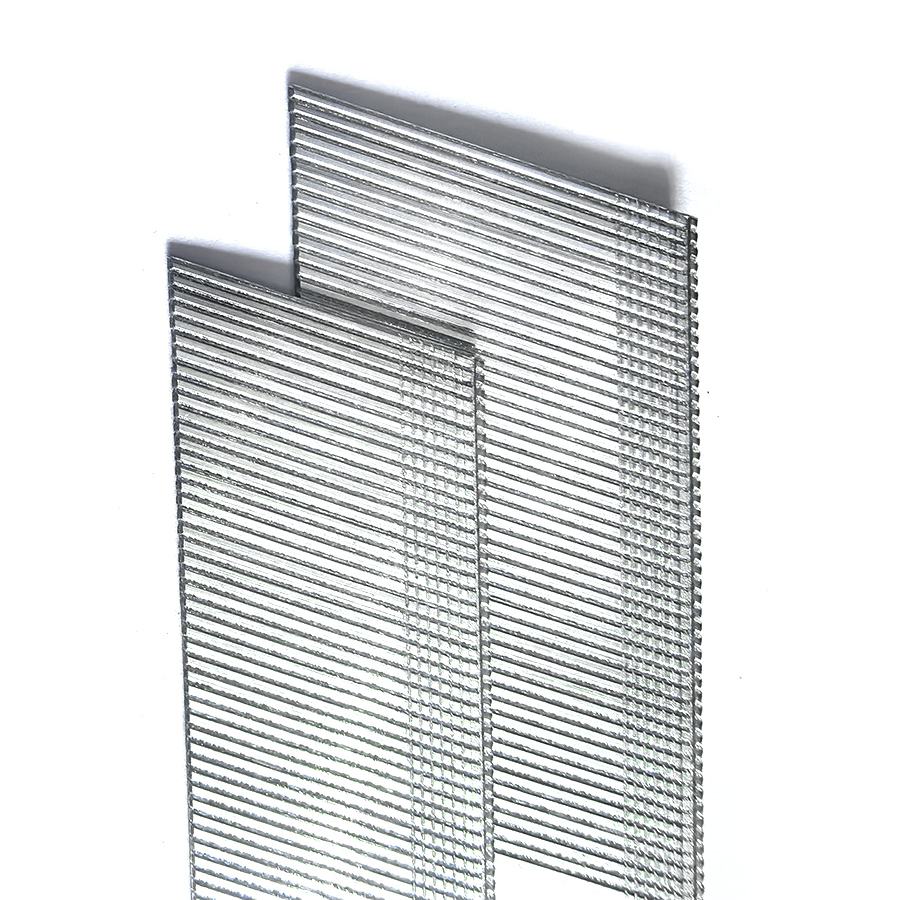

16 Gauge 20 Degree Angled Finish Nail T50 is a glue-collated angled finish nail designed for 16 gauge finish nailers. It is widely used for trim carpentry, cabinets, molding, door jambs, window casings, paneling, furniture trim and other fine woodworking applications where clean appearance and dependable holding power are required.
KYA T50 angled finish nails are available in 15mm to 64mm lengths, with 2.9mm head width, 1.58mm width, 1.35mm thickness, chisel point, and galvanized or stainless steel finish. The 20 degree angled collation helps users reach tight corners and improve installation efficiency in finish carpentry.
The T50 16 gauge angled finish nail is made for professional finish carpentry and woodworking. Compared with straight finish nails, the 20 degree angled design provides better access in corners, around trim profiles, and inside cabinets. The chisel point helps reduce wood splitting, while the glue collation supports stable feeding and fewer tool jams during continuous fastening.
16 gauge medium wire for strong fastening with a clean finish.
20 degree angled collation for better access in tight spaces.
Glue collated strips for smooth feeding in compatible finish nailers.
Chisel point helps reduce splitting in wood, MDF and trim materials.
Smooth or serrated shank options support different holding-power requirements.
Galvanized and stainless steel finishes are available for different working environments.
2,000 pcs per box for contractor, distributor and wholesale supply.
| Specification | Details |
|---|---|
| Product Name | 16 Gauge 20 Degree Angled Finish Nail T50 |
| Brand | KYA |
| Code | KYA-Angle Finish Nails T50 |
| Gauge | 16 Gauge |
| Angle | 20 Degree |
| Head Width | 2.9mm |
| Width x Thickness | 1.58mm x 1.35mm |
| Length Range | 15mm to 64mm, 5/8 inch to 2-1/2 inch |
| Shank Type | Smooth / Serrated |
| Point Type | Chisel Point |
| Finish | Galvanized / Stainless Steel |
| Collation | Glue Collated |
| Compatible Tool Type | 16 Gauge 20 Degree Angled Finish Nailer |
| Item | Length mm | Length inch | Pcs/Stick | Pcs/Box | Boxes/Carton | Cartons/Pallet |
|---|---|---|---|---|---|---|
| T15 | 15 | 5/8 inch | 50 | 2,000 | 20 | 50 |
| T16 | 16 | 5/8 inch | 50 | 2,000 | 20 | 50 |
| T19 | 19 | 3/4 inch | 50 | 2,000 | 20 | 50 |
| T22 | 22 | 7/8 inch | 50 | 2,000 | 20 | 50 |
| T25 | 25 | 1 inch | 50 | 2,000 | 20 | 50 |
| T28 | 28 | 1-1/8 inch | 50 | 2,000 | 20 | 50 |
| T30 | 30 | 1-3/16 inch | 50 | 2,000 | 20 | 50 |
| T32 | 32 | 1-1/4 inch | 50 | 2,000 | 20 | 50 |
| T35 | 35 | 1-3/8 inch | 50 | 2,000 | 10 | 50 |
| T38 | 38 | 1-1/2 inch | 50 | 2,000 | 10 | 50 |
| T40 | 40 | 1-9/16 inch | 50 | 2,000 | 10 | 50 |
| T45 | 45 | 1-3/4 inch | 50 | 2,000 | 10 | 50 |
| T50 | 50 | 2 inch | 50 | 2,000 | 10 | 50 |
| T57 | 57 | 2-1/4 inch | 50 | 2,000 | 10 | 50 |
| T64 | 64 | 2-1/2 inch | 50 | 2,000 | 10 | 50 |
KYA 16 gauge 20 degree angled finish nails are ideal for finish carpentry and decorative woodworking where a strong hold and clean surface are important. They are especially useful for professionals working on interior trim, cabinets and fine wood assemblies.
Baseboards and crown molding installation
Door jambs and window casings
Cabinet assembly and drawer fronts
Furniture trim and decorative woodwork
Paneling and wainscoting
Picture frames and mirror frames
Interior finish carpentry
Molding making and decoration strips
Floor strips and cladding floor boards
| Finish | Recommended Use | Benefit |
|---|---|---|
| Galvanized | Interior trim, furniture, cabinet work and general finish carpentry | Good rust resistance and clean appearance |
| Stainless Steel | Exterior trim, humid areas and higher-corrosion environments | Higher corrosion resistance for demanding applications |
These T50 finish nails are designed for 16 gauge 20 degree angled finish nailers. They can be used with many compatible 16 gauge angled finish nailer models, depending on the tool’s accepted nail length, angle and collation requirements.
Bostitch GFN1664K
Senco FinishPro 41XP
Hitachi / Metabo HPT NT65MA4
Other compatible 16 gauge 20 degree angled finish nailers
Always check your nailer manual before ordering to confirm the accepted gauge, nail length, angle, head size and collation type.
Choose shorter lengths such as 15mm, 16mm, 19mm and 25mm for light trim, molding and decorative strips. Choose longer lengths such as 38mm, 45mm, 50mm, 57mm and 64mm for thicker trim, cabinets, frames and finish carpentry applications requiring deeper penetration.
For standard interior trim, galvanized finish nails are commonly used. For humid, exterior or corrosion-sensitive applications, stainless steel finish nails are a better option. For high-volume purchasing, KYA can support carton packing, pallet shipment and factory-direct supply for wholesalers, distributors and tool accessory brands.
They are used for trim carpentry, baseboards, crown molding, door casings, window casings, cabinets, furniture trim, decorative woodwork, paneling and other finish carpentry applications.
Choose the length according to material thickness and fastening depth. Shorter nails are suitable for light trim and molding, while longer nails such as 50mm, 57mm and 64mm are better for thicker trim, cabinets and stronger fastening requirements.
20 degree angled finish nails allow better access in tight spaces, inside corners and around trim profiles. Straight finish nails are suitable for open areas, while angled finish nails are preferred when tool access is limited.
They are compatible with many 16 gauge 20 degree angled finish nailers. Before ordering, check your tool manual to confirm the accepted gauge, angle, collation type, head size and nail length range.
Yes. KYA supplies galvanized and stainless steel options. Stainless steel finish nails are recommended for humid, exterior or corrosion-sensitive environments.
Standard packaging is 50 pieces per stick and 2,000 pieces per box. Depending on length, each carton contains 10 or 20 boxes, and each pallet contains 50 cartons.
Contact KYA Fasteners with the required nail length, finish, quantity, packaging requirement and destination. The sales team can provide quotation, sample details, lead time and shipping information.
KYA Fasteners supplies nails, staples, screws, hog rings, wire products and fastening tools for global customers. For finish nail buyers, KYA provides 16 gauge angled finish nails in multiple lengths and finish options for contractors, distributors, cabinet makers, furniture manufacturers and woodworking suppliers.
Contact KYA to get factory-direct pricing for 16 Gauge 20 Degree Angled Finish Nail T50, including product specifications, packaging details, pallet quantity, sample availability and delivery schedule.
