21 Gauge Black Glue Staples Band Wire For 80 Wire Staples

The high-quality wire band is derived from high-quality raw materials and superb drawing technology, Reinforcement method upgrade-each roll of wire band is separated by the corrugated cardboard, to increase the pressure bearing capacity of the wire band. The staple wire band is a kind of steel wire band for manufacturing staples, brads nails and pins nails etc. Material : with ga anized steel wire or with the coppered steel wire or the stainless steel

Model:
0.65*0.95*150
Brand:
KYA
Code:
KYA-80 Wire Band

WidthThicknessPcs:	0.580.75167 0.650.95125 1.001.25100 1.371.5972 0.410.51209 0.901.9050 0.650.95150
Availability:

Quantity:



Inquire Add to Basket

Overview

21 Gauge Staples Band Wire For 80 Wire Staples
The high-quality wire band is derived from high-quality raw materials and superb drawing technology, Reinforcement method upgrade-each roll of wire band is separated by the corrugated cardboard, to increase the pressure bearing capacity of the wire band.

The staple wire band is a kind of steel wire band for manufacturing staples, brads nails and pins nails etc.
Material : with ga anized steel wire or with the coppered steel wire or the stainless steel

Function :
1) More sofe,and power saving ,high effciency..
2) More firm ,our staples are the best choice.

Video:

Product Description

Staples Band Wire Size:

Wire Dia.	For Staples	Gauge	Material Type	Our Spec.		Pcs/Strip	Finishing	Tensile Strength
Wire Dia.	For Staples	Gauge	Material Type	Width(mm)	Thickness(mm)	Pcs/Strip	Finishing	Tensile Strength
0.89	A11	20	QYL2	1.25	0.5	84	Galvanized	1000-1100N/MM⊃2;
0.83	380 Staples	21	QYL2	0.91	0.7	150	Galvanized	1000-1100N/MM⊃2;
1.19	90/92	18	QYL2	1.27	1.05	100	Galvanized	1000-1100N/MM⊃2;
1.19	90/92	18	45C	1.27	1.05	100	Galvanized	1350-1400N/MM⊃2;
0.67	71 Staples	22	QYL2	0.75	0.57	182	Galvanized	1000-1100N/MM⊃2;
1.52	16 Staples	16	QYL2	1.58	1.38	70	Galvanized	950-1050N/MM⊃2;
1.4	14 Staples	17	QYL2	1.45	1.3	75	Galvanized	950-1050N/MM⊃2;
1.8	180 Staples	15	QYL2	1.84	1.63	60	Galvanized	950-1050N/MM⊃2;
1.52	35 Carton Staples	16	Q195	2.21-2.25	0.82-0.84	50	Copper coated or Galvanized	450-550N/MM⊃2;
1.52	35 Carton Staples	16	Q195	2.23-2.27	0.77-0.79	50	Copper coated or Galvanized	450-550N/MM⊃2;
1.47	35/32 Carton Staples	17	Q195	2.19-2.23	0.72-0.74	50	Copper coated or Galvanized	450-550N/MM⊃2;
1.63	35 Carton Staples	16	Q195	2.22-2.27	0.89-0.91	50	Copper coated or Galvanized	450-550N/MM⊃2;

Wire Technical Parameter:

carton staple wire band

18 Gauge Staples Band Wire For 90/92 Staples Wire Material:

Wire Material
Wire Dia	Material	Tensile Strength(N/mm2)	Coating Thickness(g/mm2)
0.83-0.84	C1018	1050-1100	Zn 13-15

Description:

Description : Flattened wires glued into bands for production of industrial and office stapples.
Steel : 0,06 to 0,50 % carbon.
Tensite strenght : 450 to 1 400 N/mm2 .
Coating : Bright, galvanised, coppered.
Aspect : Neutral ou coloried.

Feature

1. Bands wire surface: Electrogalvanized

2. Flattening degree: The staple wire band can be made with any degree of flattening, technically possible to be done using wire of .0.70 -1.80 mm;

3. Bands' color: Translucent, golden (The color may be different as per customer request.)

4. The average weight of empty spool: 35kgs

5. Packing: The outside layer of band is protected by thin layer of removable plastic foam and adhesive tape.

Packing: according the customer's LOGO or the normal packaging.

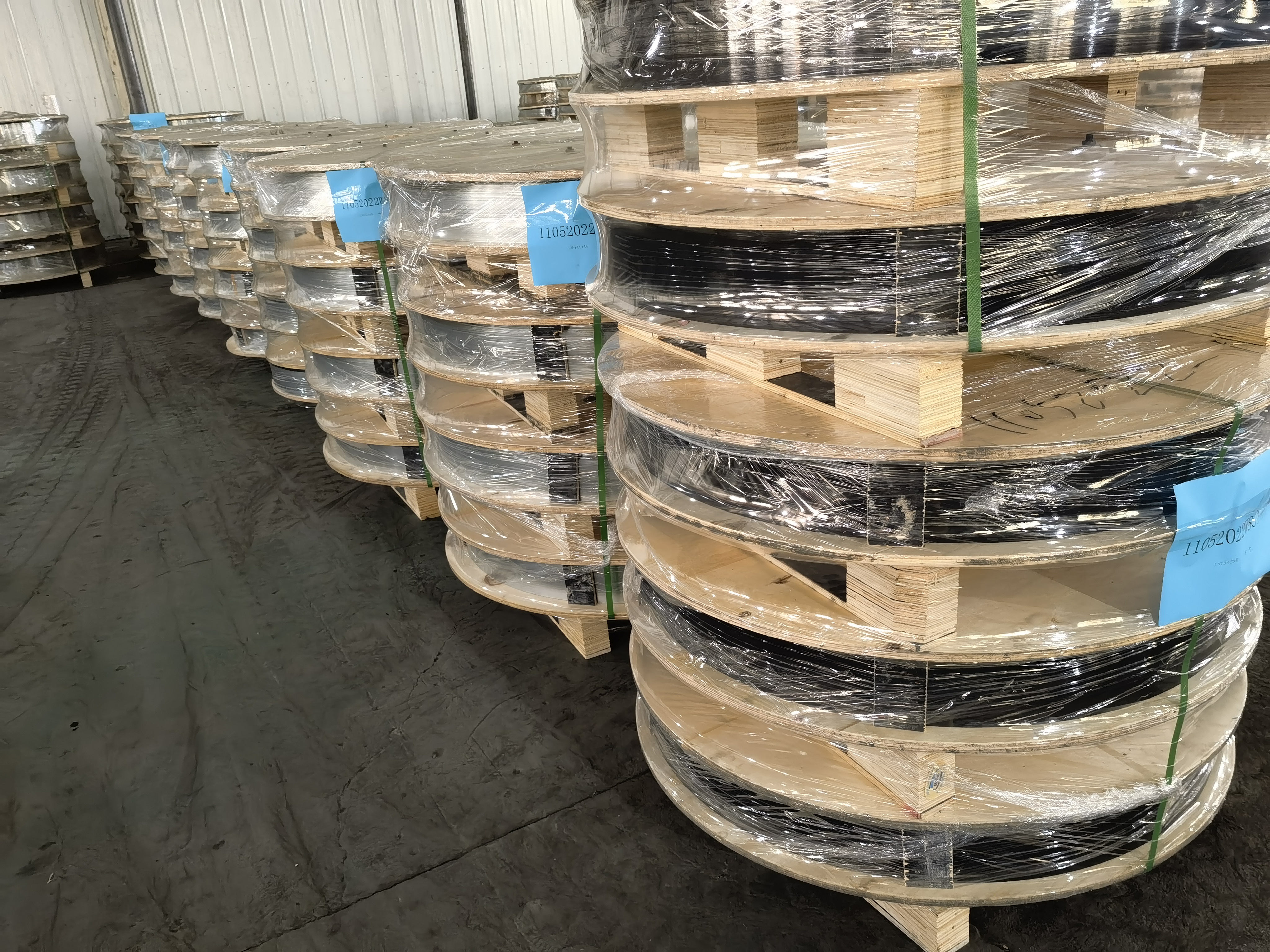

Staple wire band staple wire bands factory

FAQs About 21 Gauge Black Glue Staples Band Wire for 80 Wire Staples

Q1: What is 21 Gauge Black Glue Staples Band Wire?

A: It is a high-quality galvanized steel wire coated with black adhesive glue, specifically designed for manufacturing and collating 80 Series staples into strips for pneumatic staplers.

Q2: What is the wire gauge?

A: The wire is 21 Gauge, typically measuring approximately 0.81 mm in diameter, ensuring consistent staple collation and reliable performance.

Q3: What is the purpose of the black glue coating?

A: The black glue securely bonds individual staples into strips, allowing smooth feeding through automatic staple-making machines and pneumatic staplers.

Q4: What staple series is this wire used for?

A: It is primarily used for producing and collating 80 Series wire staples commonly used in upholstery, furniture, packaging, and woodworking applications.
