Clinch Clip Tool Eclipser 2800-6181 is a hand-held pneumatic clip gun designed for bedding, mattress assembly, furniture frame construction, housing panels, cages, traps and industrial fastening applications. It uses 80F23R clinch clips for 9ga / 4mm border frame fastening and delivers stable clip closure for high-volume production environments.
The EA2800-6181 Eclipser clinch clip tool features a lightweight composite body, steel straight magazine, 6,667 clips per coil capacity, 80–90 PSI / 5.5–6.2 BAR air supply and 7.0 lbs / 3.2kg balanced construction. Its quick-release front plate, auxiliary air valve and contoured handle help reduce downtime, improve comfort and increase productivity in bedding and furniture manufacturing.
Pneumatic clinch clip tools are used to fasten clips around border wire, springs, frames and mesh structures. The Eclipser 2800-6181 is engineered for users who need fast clip feeding, consistent closure, easy maintenance and ergonomic handling in repetitive production work.
80F23R clip compatibility: Designed for 80F23R clips, 9ga / 4mm border frame applications.
High-capacity coil feeding: Magazine capacity reaches 6,667 clips per coil for fewer reloads and longer production runs.
Quick-release front plate: Allows tool-free driver blade replacement to reduce maintenance downtime.
Auxiliary air valve: BJR Kit helps clear a jammed driver blade quickly and efficiently.
Light and balanced design: 7.0 lbs tool weight supports easier handling in bedding and furniture assembly.
Right- or left-handed operation: Included hanger can be switched for different operator preferences.
| Specification | Details |
|---|---|
| Product Name | Clinch Clip Tool Eclipser 2800-6181 |
| Model | EA2800-6181 |
| Brand | ENCORE |
| Code | EA2800-6181 |
| Air Tool Type | Pneumatic Clip Gun / Clinch Clip Tool |
| Dimensions | 203mm x 190mm x 381mm |
| Body Material | Composite Plastic, Green |
| Magazine Material | Steel, Black |
| Magazine Format | Straight Magazine |
| Magazine Capacity | 6,667 clips per coil |
| Clip Feeding Method | Single Acting Spring Extended Cylinder |
| Primary Power Unit | Main Cylinder, Bore 3.06 inch / 78mm, Spring Return |
| Air Supply | 80–90 PSI / 5.5–6.2 BAR |
| Weight | 7.0 lbs / 3.2kg |
| Included Options | Hanger and Auxiliary Air Valve Included |
| Compatible Clips | 80F23R, 9ga or 4mm Border Frame |
| Equivalent Model | Hartco CCP-71 Equivalent |
| Main Applications | Bedding, mattress assembly, furniture frame construction, housing construction panels, cages and traps |
| Item | Specification | Application Note |
|---|---|---|
| Compatible Clip | 80F23R | Used for clinch clip fastening in bedding, furniture and frame assembly applications. |
| Wire / Frame Size | 9ga or 4mm Border Frame | Confirm border wire, frame size and clip compatibility before production use. |
| Coil Capacity | 6,667 clips per coil | High-capacity feeding supports continuous fastening and reduces reloading frequency. |
| Equivalent Tool System | Hartco CCP-71 Equivalent | Useful when replacing or matching existing clinch clip tooling systems. |
Quick-release front plate: Supports tool-free driver blade replacement and helps reduce maintenance downtime.
Auxiliary air valve: BJR Kit assists with clearing jammed driver blades and improving production efficiency.
Lightweight balanced structure: 7.0 lbs design provides easier handling during extended bedding or furniture production.
Fast main valve: Trouble-free main valve design supports reliable cycle performance.
Contoured handle: Reduces operator fatigue and improves comfort during repetitive fastening.
Switchable hanger: Hanger can be changed from right-handed to left-handed operation.
Eclipser 2800-6181 clinch clip tool is suitable for manufacturers that require secure clip fastening around border wire, springs, panels, frames and mesh components. It is commonly used in bedding factories, furniture frame workshops, housing panel production and wire structure assembly.
Bedding and mattress assembly
Furniture frame construction

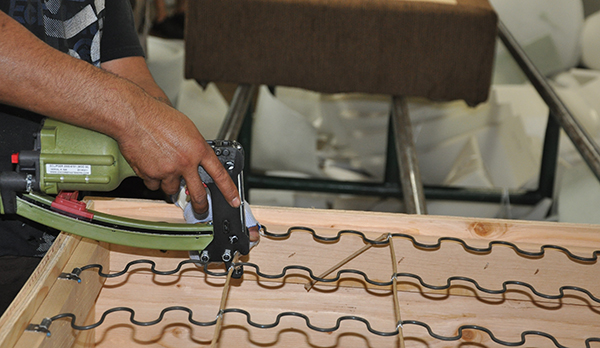

Sinuous spring fastening and border frame fastening
Housing construction panels
Cages, traps and wire frame structures
Industrial clip fastening where high-capacity coil feeding is required
| Item | Guideline | Benefit |
|---|---|---|
| Air Pressure | Operate at 80–90 PSI / 5.5–6.2 BAR with stable compressed air. | Supports consistent clip driving and stable tool performance. |
| Clip Compatibility | Use 80F23R clips for 9ga or 4mm border frame applications. | Helps prevent feeding issues, weak closure and incorrect fastening. |
| Driver Blade Service | Use the quick-release front plate for tool-free driver blade replacement. | Reduces downtime during routine maintenance and repairs. |
| Jam Clearing | Use the auxiliary air valve / BJR Kit to assist with clearing a jammed driver blade. | Improves service speed and minimizes production interruption. |
| Operator Setup | Switch the hanger for right- or left-handed operation as needed. | Improves comfort and handling for different operators. |
| Selection Point | Eclipser 2800-6181 Requirement | Recommendation |
|---|---|---|
| Clip Type | 80F23R clips | Confirm clip model before ordering clips or replacing an existing tool. |
| Frame Size | 9ga or 4mm border frame | Match tool, clip and border frame size to avoid closure problems. |
| Air Supply | 80–90 PSI / 5.5–6.2 BAR | Use clean and stable compressed air for consistent clip forming. |
| Production Volume | 6,667 clips per coil | Suitable for high-volume bedding, furniture and wire frame production lines. |
| Operator Comfort | 7.0 lbs balanced body, contoured handle and switchable hanger | Recommended for long work shifts where tool balance and fatigue reduction are important. |
It is used for fastening clips in bedding, mattress assembly, furniture frame construction, housing construction panels, cages and traps. It is designed for 80F23R clips in 9ga or 4mm border frame applications.
The tool is compatible with 80F23R clinch clips for 9ga or 4mm border frame fastening. It is also listed as equivalent to Hartco CCP-71.
The recommended air supply is 80–90 PSI / 5.5–6.2 BAR. Stable compressed air helps the tool deliver consistent clip closure and reliable performance.
The quick-release front plate allows tool-free driver blade replacement. This helps reduce downtime and makes maintenance faster during production.
The auxiliary air valve, also called the BJR Kit, assists with clearing a jammed driver blade. It helps improve maintenance speed and production efficiency.
The magazine capacity is 6,667 clips per coil, which supports high-volume fastening and reduces reload frequency in bedding and furniture production.
Yes. The 7.0 lbs balanced body, contoured handle and switchable hanger are designed to reduce fatigue and improve handling during prolonged use.
Yes. KYA can discuss sample tools, 80F23R clips, spare parts, bulk order quantity, packaging, shipping schedule and factory-direct pricing according to your bedding or furniture production needs.
KYA Fasteners supplies clinch clip tools, pneumatic clip guns, hog ring tools, 80F23R clips, pneumatic staplers, coil nailers, industrial staples, mattress fasteners, furniture fasteners and industrial fastening solutions for global customers. For bedding, furniture frame, housing panel and cage assembly applications, KYA provides tool selection, compatible clips and bulk supply support.
Contact KYA to get factory-direct pricing for Clinch Clip Tool Eclipser 2800-6181, including 80F23R clips, spare parts, samples, bulk order quantity, carton packing and delivery schedule.
