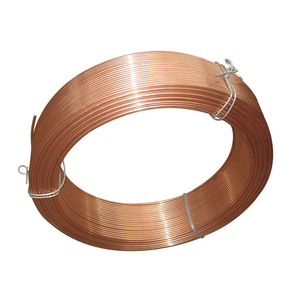

KYA Fasteners supplies copper-coated welding wire for collated coil nails, used in automatic wire-collated nail manufacturing. This welding wire connects individual nails through resistance welding to form continuous nail coils for pneumatic coil nailers. It is intended for nail manufacturers, coil nail production facilities, and industrial fastener distributors.
Available diameters include 0.60 mm, 0.65 mm, 0.70 mm, and 0.80 mm, with 0.70 mm listed as the main size. The product specifications include a tensile strength of 375 MPa, minimum elongation of 15%, and packaging on 15 kg or 18 kg plastic spools.
The copper-coated surface supports electrical contact during resistance welding and helps provide a consistent wire surface for feeding through compatible coil nail collating equipment. Wire diameter, spool dimensions, machine settings, and nail specifications should be checked before production.
Copper-Coated Surface: Provides a conductive surface for resistance welding applications in wire-collated nail production.
Multiple Wire Diameters: Available in 0.60 mm, 0.65 mm, 0.70 mm, and 0.80 mm for different nail production requirements.
Specified Mechanical Properties: Listed tensile strength of 375 MPa and elongation of at least 15%.
Production Spool Options: Supplied on 15 kg or 18 kg plastic spools.
Industrial Application: Intended for compatible automatic coil nail collating and resistance welding equipment.
Fastener Manufacturing: Used for producing wire-collated nail coils for roofing, siding, pallets, framing, and other applications where appropriate.
The following specifications describe the welding wire options listed for this product. Buyers should confirm the selected diameter, mechanical properties, and spool compatibility when placing an order.
| Parameter | Specification |
|---|---|
| Product Name | Welding Wire for Collated Coil Nails |
| Product Type | Copper-Coated Welding Wire |
| Listed Standard | ASTM A510 |
| Tensile Strength | 375 MPa |
| Elongation | ≥15% |
| Available Diameters | 0.60 mm / 0.65 mm / 0.70 mm / 0.80 mm |
| Main Diameter | 0.70 mm |
| Surface Finish | Copper-Coated |
| Spool Material | Plastic |
| Packing | 15 kg or 18 kg per Plastic Spool |
| Primary Application | Wire-Collated Coil Nail Manufacturing |
| Welding Process | Resistance Welding in Coil Nail Collating Equipment |
For equipment-specific requirements, please provide the required wire diameter, spool dimensions, nail specifications, and machine information when requesting a quotation.
Request Welding Wire Specifications and Pricing
Copper-coated coil nail welding wire is used to connect nails into wire-collated coils during automated manufacturing. Two supporting wires are commonly welded across the nail shanks to hold the nails in a continuous strip before the strip is formed into a coil.
Depending on the nail design, wire diameter, and production equipment, this type of welding wire can be used in manufacturing the following products:
Roofing Coil Nails: Wire-collated nails used in compatible roofing nailers.
Siding Coil Nails: Wire-welded coil nails used for siding and exterior fastening applications.
Pallet Coil Nails: Wire-collated nails used in pallet and wooden packaging production.
Framing Coil Nails: Wire-collated nails manufactured for compatible framing nailers.
Industrial Coil Nails: Wire-collated fastening products used in industrial assembly and wood-product manufacturing.
Not all coil nail designs use wire welding. Plastic-collated and other non-wire-collated nail designs require different manufacturing processes.
In a typical wire-collated coil nail production process, nails are fed into an automatic collating machine and arranged at the required spacing and angle. Welding wires are then positioned along the nail shanks and attached by resistance welding.
The connected nail strip is formed into a coil for subsequent handling and packaging. Consistent wire feeding and appropriate welding conditions are important for maintaining the integrity of the nail strip.
The copper-coated surface provides an electrically conductive interface and is commonly used in welding wire applications. In coil nail manufacturing, the final welding performance depends on the wire surface, nail material, electrical settings, welding pressure, and machine configuration.
Before selecting a welding wire diameter, manufacturers should review their nail dimensions, machine wire-feeding system, welding requirements, and spool mounting specifications. Production trials may be needed when changing wire specifications or equipment settings.
KYA Fasteners welcomes inquiries from coil nail manufacturers, fastener importers, industrial distributors, and purchasing teams. To help identify a suitable welding wire specification, please include the following information in your inquiry:
Required welding wire diameter: 0.60, 0.65, 0.70, or 0.80 mm.
Preferred spool weight: 15 kg or 18 kg.
Spool dimensions or machine mounting requirements.
Coil nail type and relevant nail dimensions.
Automatic collating or welding machine model, if available.
Estimated purchasing quantity and delivery destination.
Our team can review your inquiry and confirm the applicable product specifications, packing requirements, commercial terms, and order arrangements.
Coil nail welding wire is used in automatic nail collating equipment to join individual nails into wire-collated strips. These strips are subsequently formed into coils for use in compatible pneumatic coil nailers.
KYA lists four welding wire diameters: 0.60 mm, 0.65 mm, 0.70 mm, and 0.80 mm. The main listed diameter is 0.70 mm. Select the diameter according to the nail design and welding equipment requirements.
The listed product specification gives a tensile strength of 375 MPa and an elongation of at least 15%. Buyers should confirm these requirements for the selected wire diameter and order specification.
The listed packaging options are 15 kg and 18 kg per plastic spool. Buyers should provide spool dimensions and mounting requirements to confirm suitability for their wire-feeding system.
This product is intended for automatic wire-collated coil nail manufacturing. Compatibility depends on the machine design, wire diameter, spool configuration, welding parameters, and nail specifications. Please confirm these details before ordering.
Yes, copper-coated welding wire is used in the production of wire-collated roofing nails, pallet nails, siding nails, and other compatible coil nail products. The correct wire specification depends on the nail dimensions and production equipment.
No. Coil nail welding wire is used as a connecting wire in the resistance welding process of wire-collated nail production. MIG welding wire is a consumable electrode used in gas metal arc welding. These products serve different manufacturing applications and should not be considered interchangeable without technical evaluation.
Review the nail diameter, nail spacing, machine specifications, welding conditions, and finished coil requirements. The 0.60–0.80 mm options provide different diameter choices, but there is no single wire diameter suitable for every nail size or production machine.
Please provide the required wire diameter, spool weight and dimensions, machine model, estimated order quantity, and delivery destination. These details help KYA review your requirements and prepare a relevant quotation.
Please contact KYA Fasteners to discuss sample requirements, packaging preferences, and any special spool specifications. Availability and arrangements should be confirmed for the requested product.
Looking for copper-coated welding wire for your coil nail manufacturing operation? Send KYA Fasteners your technical requirements and purchasing details to discuss available diameters, spool packaging, and quotation arrangements.
