21 Gauge Staples Band Wire For 80 Wire Staples

Share to:
sharethis sharing button
The high-quality wire band is derived from high-quality raw materials and superb drawing technology, Reinforcement method upgrade-each roll of wire band is separated by the corrugated cardboard, to increase the pressure bearing capacity of the wire band. The staple wire band is a kind of steel wire band for manufacturing staples, brads nails and pins nails etc. Material : with ga anized steel wire or with the coppered steel wire or the stainless steel
  • 0.65*0.95*150

  • KYA

  • KYA-80 Wire Band

Width*Thickness*Pcs:
Availability:
Quantity:
Overview
galvanized staple wire

21 Gauge Staples Band Wire For 80 Wire Staples
The high-quality wire band is derived from high-quality raw materials and superb drawing technology, Reinforcement method upgrade-each roll of wire band is separated by the corrugated cardboard, to increase the pressure bearing capacity of the wire band.

The staple wire band is a kind of steel wire band for manufacturing staples, brads nails and pins nails etc.
Material : with ga anized steel wire or with the coppered steel wire or the stainless steel

Function :
1) More sofe,and power saving ,high effciency..
2) More firm ,our staples are the best choice.

Product Description


Staples Band Wire Size:

Wire   Dia. For Staples Gauge Material Type Our   Spec. Pcs/Strip Finishing Tensile Strength
Width(mm) Thickness(mm)
0.89 A11 20 QYL2 1.25 0.5 84 Galvanized 1000-1100N/MM⊃2;
0.83 380   Staples 21 QYL2 0.91 0.7 150 Galvanized 1000-1100N/MM⊃2;
1.19 90/92 18 QYL2 1.27 1.05 100 Galvanized 1000-1100N/MM⊃2;
1.19 90/92 18 45C 1.27 1.05 100 Galvanized 1350-1400N/MM⊃2;
0.67 71   Staples 22 QYL2 0.75 0.57 182 Galvanized 1000-1100N/MM⊃2;
1.52 16   Staples 16 QYL2 1.58 1.38 70 Galvanized 950-1050N/MM⊃2;
1.4 14   Staples 17 QYL2 1.45 1.3 75 Galvanized 950-1050N/MM⊃2;
1.8 180   Staples 15 QYL2 1.84 1.63 60 Galvanized 950-1050N/MM⊃2;
1.52 35   Carton Staples 16 Q195 2.21-2.25 0.82-0.84 50 Copper   coated or Galvanized 450-550N/MM⊃2;
1.52 35   Carton Staples 16 Q195 2.23-2.27 0.77-0.79 50 Copper   coated or Galvanized 450-550N/MM⊃2;
1.47 35/32   Carton Staples 17 Q195 2.19-2.23 0.72-0.74 50 Copper   coated or Galvanized 450-550N/MM⊃2;
1.63 35   Carton Staples 16 Q195 2.22-2.27 0.89-0.91 50 Copper   coated or Galvanized 450-550N/MM⊃2;


Wire Technical Parameter:

carton staple wire band


90 wire band
80 wire band


18 Gauge Staples Band Wire For 90/92 Staples Wire Material:


Wire Material
Wire Dia Material Tensile Strength(N/mm2) Coating Thickness(g/mm2)
0.83-0.84 C1018 1050-1100 Zn 13-15



Description:

Description : Flattened wires glued into bands for production of industrial and office stapples.
Steel : 0,06 to 0,50 % carbon.
Tensite strenght : 450 to 1 400 N/mm2 .
Coating : Bright, galvanised, coppered.
Aspect : Neutral ou coloried.


china staple wire
Feature

1. Bands wire surface: Electrogalvanized

2. Flattening degree: The staple wire band can be made with any degree of flattening, technically possible to be done using wire of .0.70 -1.80 mm;

3. Bands' color: Translucent, golden (The color may be different as per customer request.)

4. The average weight of empty spool: 35kgs

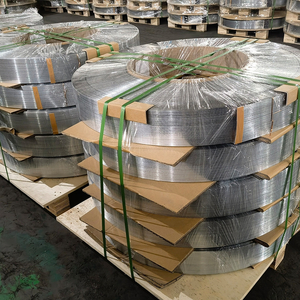

5. Packing: The outside layer of band is protected by thin layer of removable plastic foam and adhesive tape.

Packing: according the customer's LOGO or the normal packaging.

Staple wire bandstaple wire bands factory

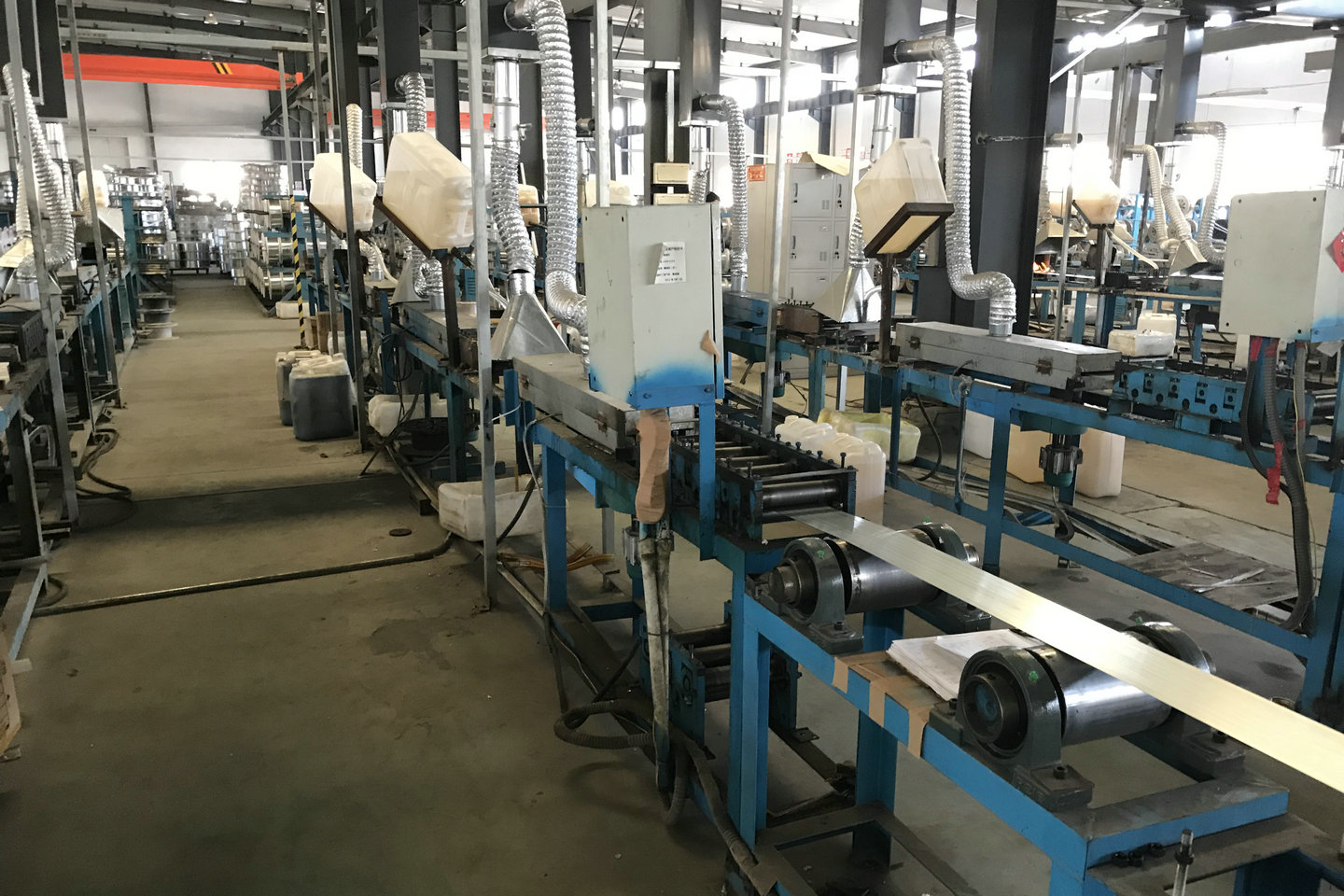

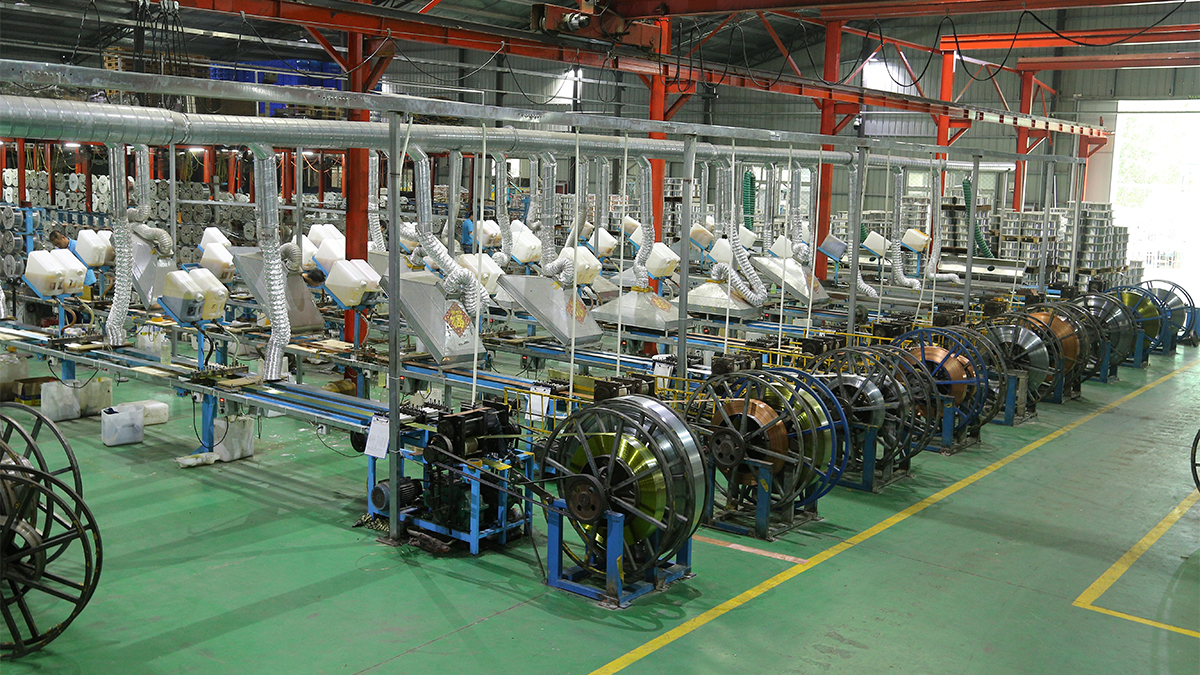

Production Process
