   Product Overview: KYA-58 Automatic Rebar Tier Tying Machine The KYA-58 rebar tying tool is lightweight and has a compact, easy to hold grip. The tool is well balanced and is designed to tie rebars as fast as you can pull the trigger. Included with the tool are two lithium-ion batteries. The tool comes with three spools of 21 gauge tie wire. ● Lightweight and compact body. ● Li-Ion higher capacity battery. ● Brushless twisting motor. ● Reduced tying time. ● Reduce the risk of health problems. ● Simple one-handed operation. Similar Tool:MAX RB398 Rebar Tier, MAX RB397 Rebar Tier, etc. |
| Model: | KYA-58 Automatic Rebar Tier Machine |
| Air Tool Type: | Rebar Tier |
| Tool Diamensions: | 295mmx120mmx275mm |
| Net Tool Weight: | 1.80kgs |
| Tying Rebar Diameter: | 6-58mm |
| Voltage & Capacity: | DC14.4V(4.4AH) |
| Charge Time: | Approx.90mins |
| Tying Speed Per Knot: | 0.80 seconds |
| Ties Per Charge: | Over 2500knots |
| Length Of Wire Coil: | 100M |
| Diamater Of Wire: | 0.80mm |
| Wraps Per Tie: | 3 wraps /4 wraps |

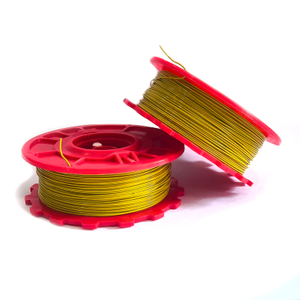

Length:100m
Tying Strength:0.50KG/CM⊃2;
Tensile Strength:42-47KG/CM⊃2;
Wire Tensile Strength:480m/Pa
Wire Yield Strength:330m/Pa
Elongation:17%
Material Code:Q195 Galvanized Wire
Net weight:0.4kg/reel
Ergonomic rubberized soft handle for increased comfort.
Make ties in under 1 second 2-mode operation provides 3 or 4 wraps.
Fast and easy-load wire reel loading with protective cover.
Brushless Motor eliminates carbon brushes, enabling run cooler , efficiently for longer life.
Trigger power switch with lock-off feature requires two actions to power the tool.
Ergonomic rubberized soft handle for increased comfort Weighs only 4.19 lbs.
With battery for reduced operator fatigue.
Delivered a cordless tying solution for rebar and steel rod.
| No | Normal | Common faults | Warning voice | Possible reason | Inspecting items | Solution | |||||||
| 1 | Power ON→ The Tip Axis is initialized and the wire-cutter operates automatically. | No operation takes place | No sound emitted | Battery completely empty | Confirm the battery is charged. | Perform normal charge. | |||||||
| Electrode plate has been oxidized | Take out the battery and see if the electrode has been brown. | Polish terminal part of battery pack with dry cloth, etc | |||||||||||
| Continuous short beeps(Pi,pi,pi…) | Curl guide is open | Open/close curl guide. | Fully close curl guide. | ||||||||||
| Binding wire has been entangled around Twist section. | Turn off power and take out the battery to confirm if binding wire has been entangled inside curl guide. | Turn off power, remove binding wire inside curl guide | |||||||||||
| Two long beeps | Battery Is empty | Confirm the battery is charged | Perform normal charge | ||||||||||
| 2 | Trigger ON→ Wire is sent out. | No wire is sent out | Continuous short | Curl guide is open | Open/close curl guide | Fully close curl guide | |||||||
| Three short beeps repeated(Pi,pi,pi,Pi,pi,pi, …) | Tie-wire has been run out | Check if the Tie-wire has been run | Set the new tie wire | ||||||||||
| Wire caught inside reel | Check if wire inside reel has been loosened and caught | Remove fray on reel | |||||||||||
| Cutter section is blocked with foreign substance | Confirm functioning of Cutter section | Either wipe Cutter section with dry cloth or blow it with air | |||||||||||
| A wire is caught in the cutter section or Wire guide A | Check if any wire is caught. | Diassemble the cutter section and remove the caught wire | |||||||||||
| 3 | Binding wire draws a circle. | Curl is disordered and steps out of curl | No sound emitted | Wire, by hitting reinforcing bars, was repelled | check if wire hits reinforcing bars at binding | Pay attention so that wire does not hit reinforcing bars at binding | |||||||
| 4 | Wire is subject to cutting | No wire cutting takes place. | No sound emitted | Cutter section is blocked with foreign substance | Confirm function of Cutter section. | Either wipe Cutter section with dry cloth or blow it with air | |||||||
| 5 | Wire twisting takes place | Wire gets entangled | No sound emitted | Wire, by hitting reinforcing bars,was repelled | Check if wire hits reinforcing bars at binding | Pay attention so that wire does not hit reinforcing bars at binding. | |||||||
| Binding power is week | No sound emitted | Reinforcing bars is not of designated size. | Confirm size of reinforcing bars to be bound | Use approriate diameter scope | |||||||||
| Erroneous handling such as improper application of machine | Confirm how to apply machine to reinforcing bars | Adjust the Torque to a higher lever and insert in vertical direction. Use as tilting at45° | |||||||||||
| Twisting-off takes place | No sound emitted | Reinforcing bars is not of designated size | Confirm size of reinforcing bars to be bound | Use approriate diameter scope | |||||||||
| Erroneous handling such as improper application of machine | Confirm how to apply machine to reinforcing bars | Adjust the Torque to a lower lever and insert in vertical direction. Use as tilting at45° | |||||||||||
| Works properly | Two long beeps repeated(Pi-pi, pi-pi,...) | Low power remains in the battery pack | Confirm the battery is fully charged. | Perform normal charge | |||||||||
| Four short beeps repeated(Pipipipi, Pipipipi,…) | The tool is used at high temperature. | Check the temperature at the job site. | Leave the tool and the battery pack at normal temperature in the room for some time. and then continue the operation. | ||||||||||
