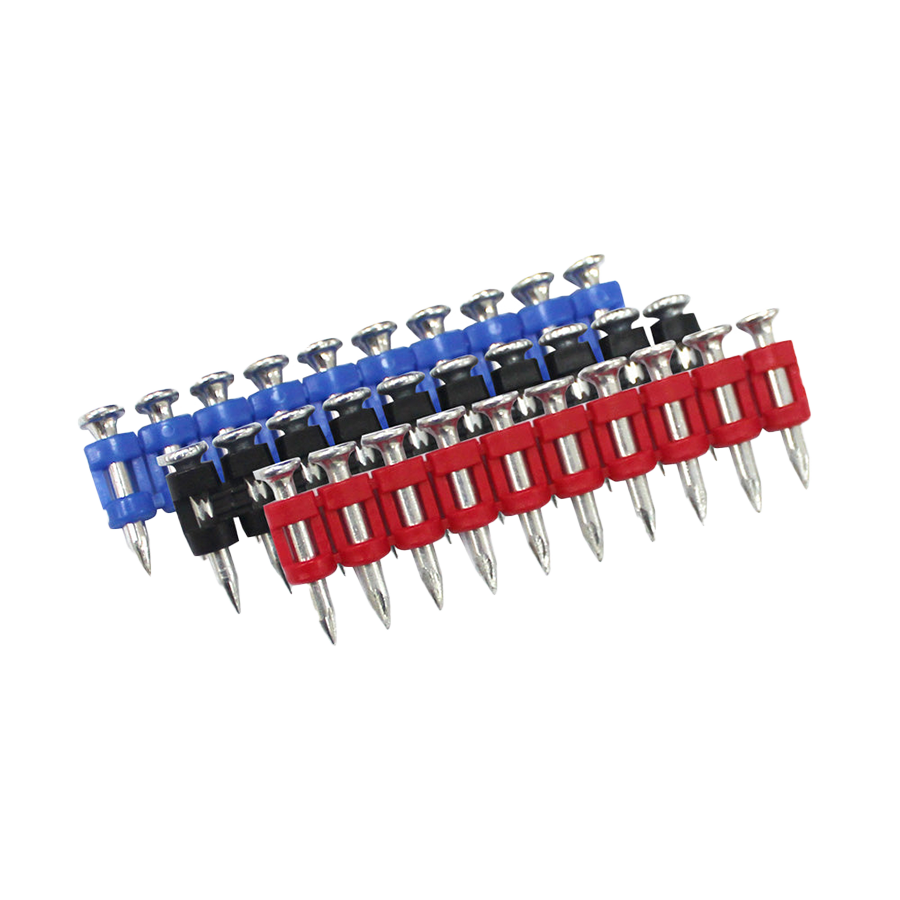

2-1
2-3

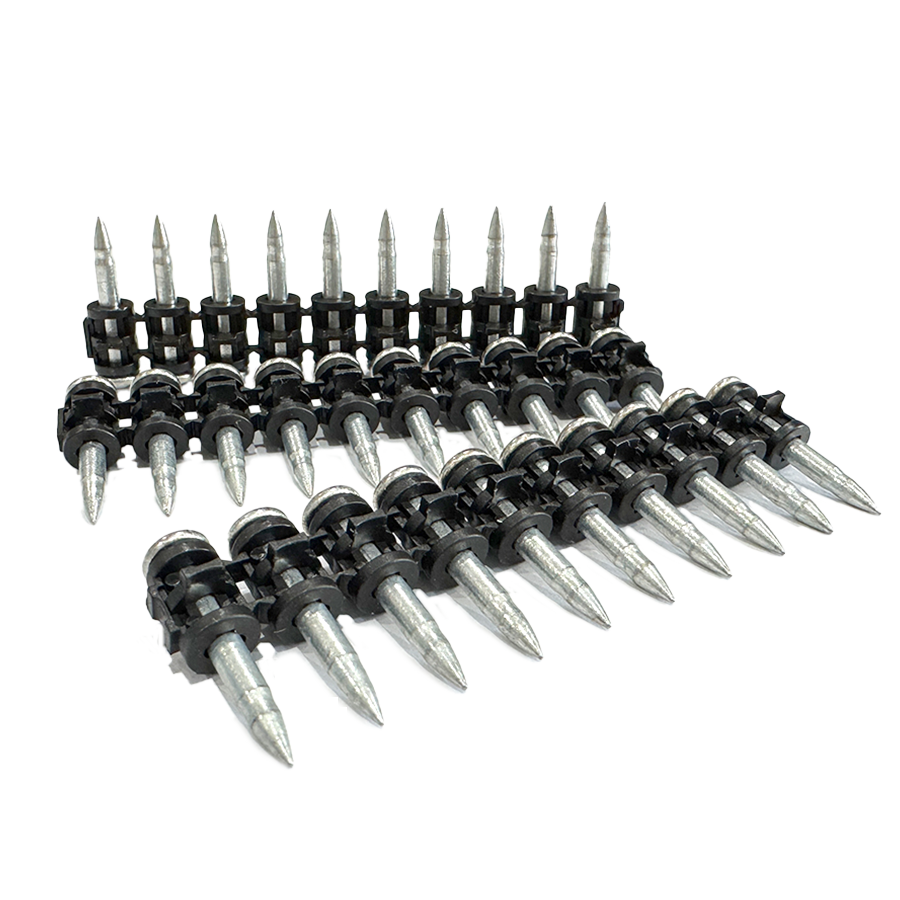

2-4
2-5
2-6
2-2

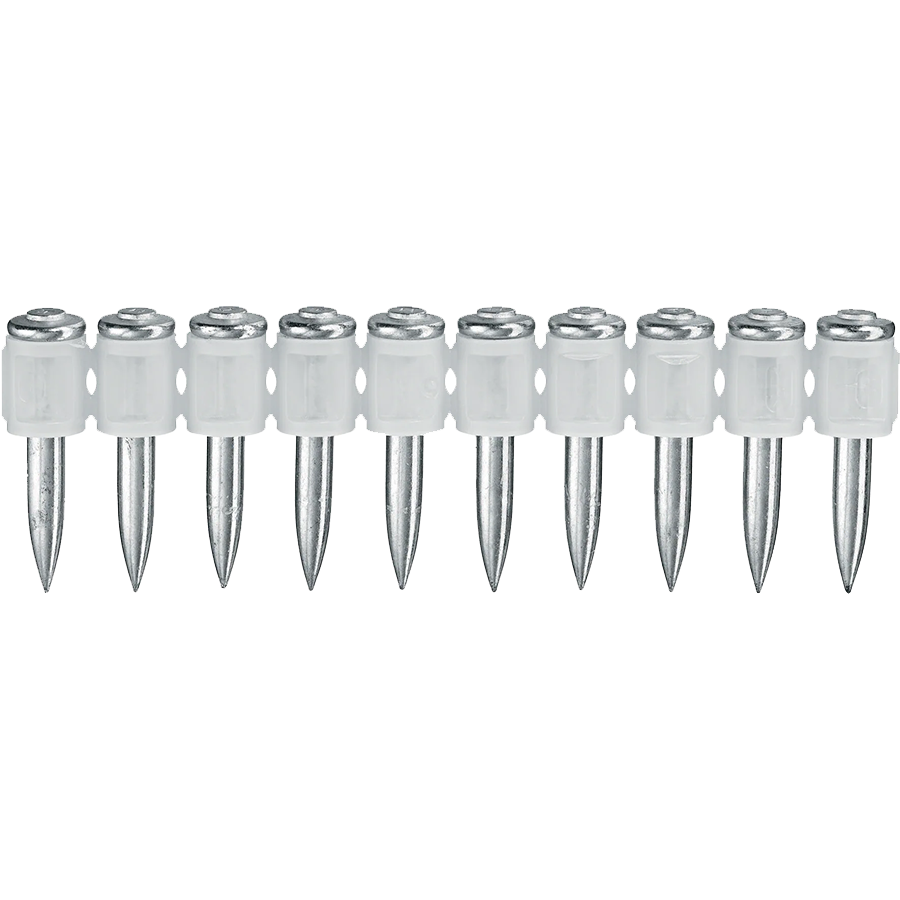

2-7
You are here: Home » kya concrete nails[copy]

Sourcing Concrete Nails From KYA FASTENERS

 For Amazon Shop Owners

We have worked with different business taking their ideas from conception to fulfilling their desired framing nails solutions. We offer quality framing nails to meet shop owners’ demand.

 For Wholesalers

Being one of the most equipped framing nails manufacturing companies, we offer the best quality products at a significantly low cost. This allows us to work with you to ensure that you get to also extend great prices to your customers.

 For Manufacturers & Suppliers

Our in-house modern production plant allows us to offer great quality options to appeal to your target customers. As a manufacturer or supplier, you can trust that our streamlined manufacturing processes are here to provide you with the best products in the market.

Surface Treatment of Concrete Nails

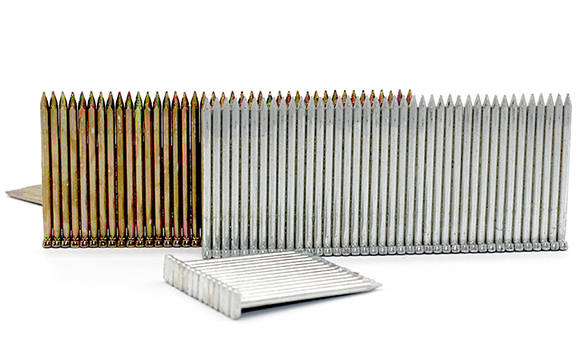

galvanized concrete nails

Electro Galvanized (EG)

Electro Galvanized finish have a very thin layer of Zinc that offers some corrosion protection. They are generally used in areas where minimal corrosion protection is needed such as bathrooms, kitchens and other areas that are susceptible to some water or humidity.Areas near the coasts where salt content in rain water is higher should consider a Hot Dip Galvanized or Stainless Steel fastener.

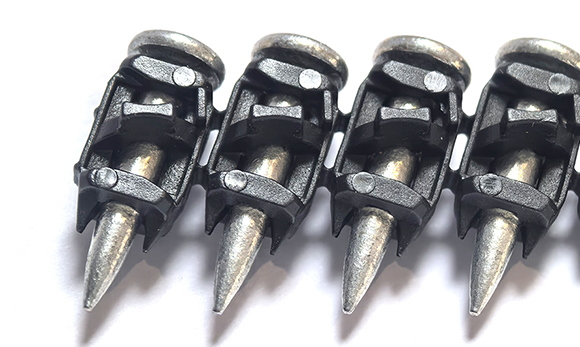

Mechanical Galvanized gas nails

Mechanical Galvanized (MG)

In Mechanical Galvanizing a thick coating of zinc provides sacrificial or cathodic protection to the steel fastener. Because zinc is more reactive than iron, the zinc coating "sacrifies" or corrodes first, protecting the steel substrate. The rate of corrosion of zinc is atleast 10 times slower than that of steel, thus a thin coating of zinc can protect the steel for a long time.

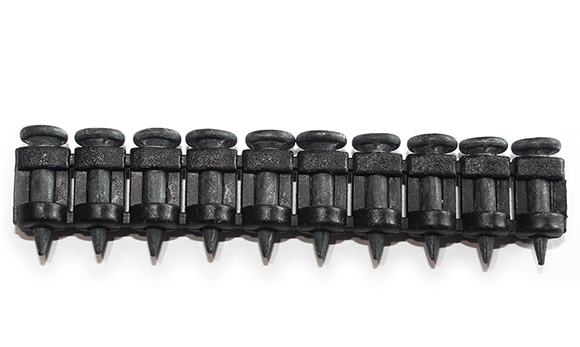

Black Phosphated

Black Phosphated

Black phosphating is a surface treatment where a phosphate coating is applied to metals like steel, creating a crystalline conversion layer that provides excellent adhesion for subsequent coatings or oils, enhancing corrosion and wear resistance.

Head of Concrete Nails

1-4

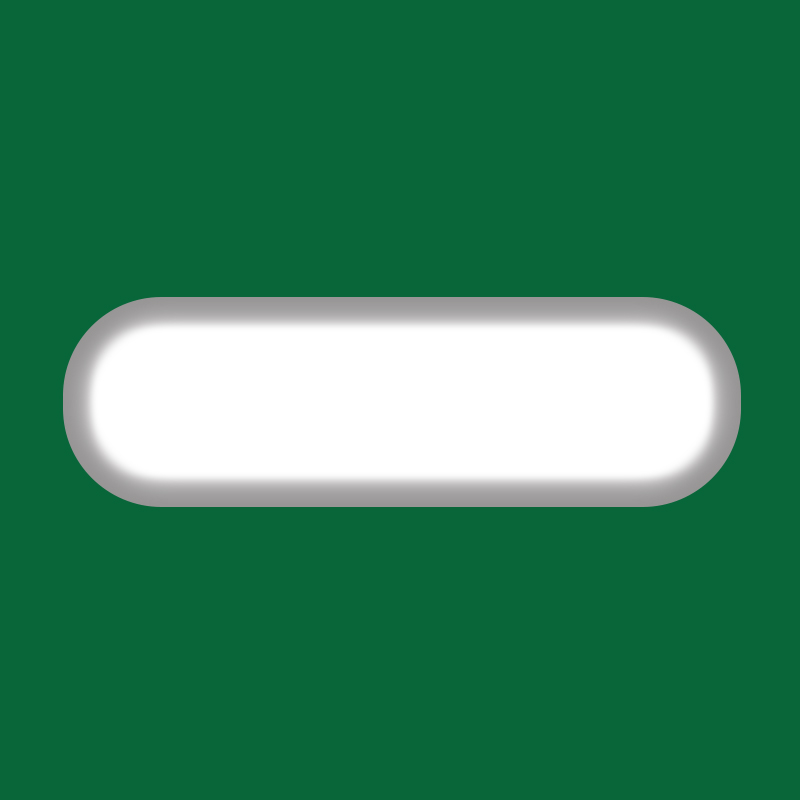

Oval Head

1-5

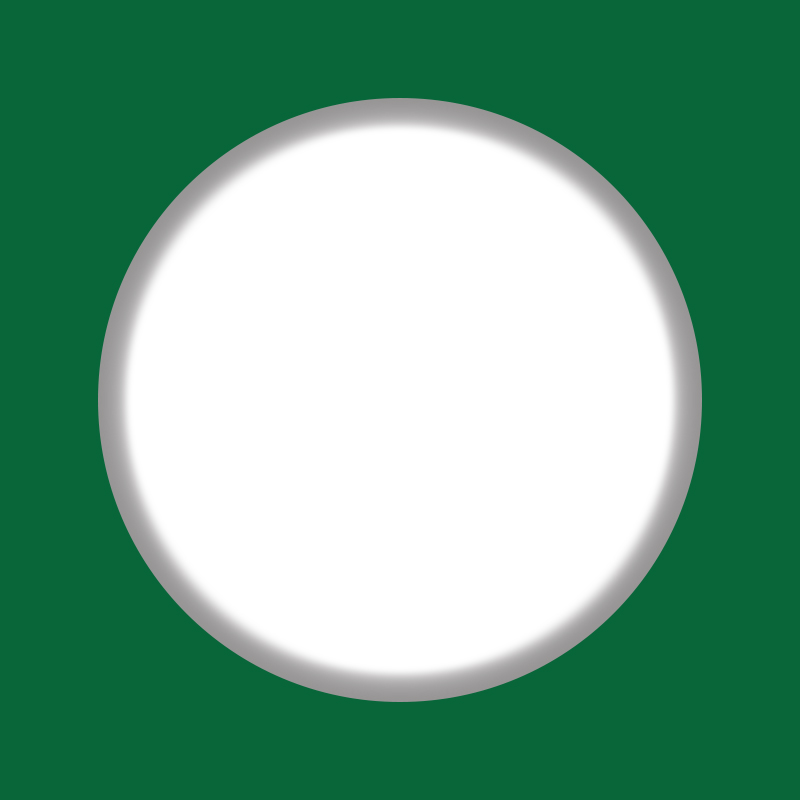

Roud Head

1-6

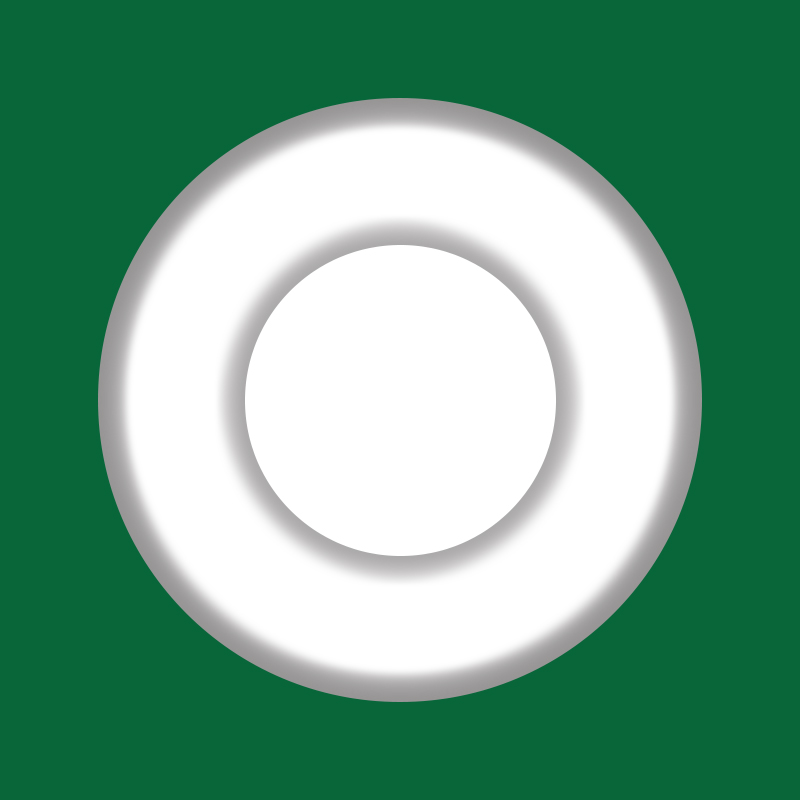

Flat Head

Point of Concrete Nails

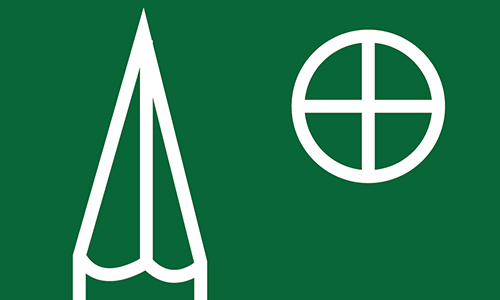

Diamond point

Diamond point on a nail is its pointed tip, which is shaped like a diamond. This design allows for excellent penetration into materials like hardwoods and dense wood, with the sharp edges making it easier to drive the nail.
Characteristics and Benefits
Penetration: The diamond shape and sharp edges facilitate easier driving into dense materials and harder woods.
Holding Power: It provides good holding power within the material.
Preventing Bending: The sharp, strong point helps the nail remain straight and prevents bending during installation.
Versatility: It's a common and versatile point type used in general construction, woodworking, framing, and heavy-duty applications.

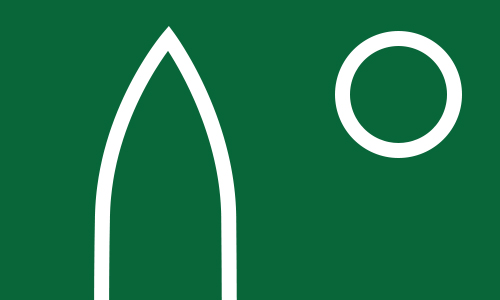

Ballistic Point

Ballistic point on a gas nail is a specially designed, long, and conical tip that provides enhanced penetration into hard materials like concrete and steel, offering better load-bearing capacity and reducing the chance of nail failure or damage to the base material. This point type increases the nail's ability to enter tough surfaces efficiently when used with a gas-powered nailer.
Characteristics and Benefits
Design: The point is long and conical.
Performance: It increases penetration into hard base materials.
Application: Ideal for fastening to hard concrete, (sand-lime) stone, and even steel.

Bullet Point

Bullet point concrete nails are heavy-duty fasteners made of high-quality, hardened steel with a specific point design to penetrate hard materials like concrete and steel. They are commonly used with gas or powder-actuated nail guns in general construction.
Characteristics and Benefits
Design: The nail's shank tapers from the head to the tip, providing a larger surface area for better holding power.
Performance: The blunt, tapered point works by creating a blunt surface area rather than a single point, which minimizes the tendency to split the concrete.



Concrete Nails Shank

Smooth Shank

Smooth Shank Concrete Nails: These have a smooth shank and are often used for light-duty applications.
Smooth shank concrete nails are nails specifically designed for use in concrete applications.
They have a smooth surface along the length of the nail, which helps them penetrate and secure into concrete more effectively.
These nails are typically made of hardened steel to ensure strength and durability.
The smooth shank design allows for easier insertion and reduces the risk of the nail getting stuck or bending during installation.

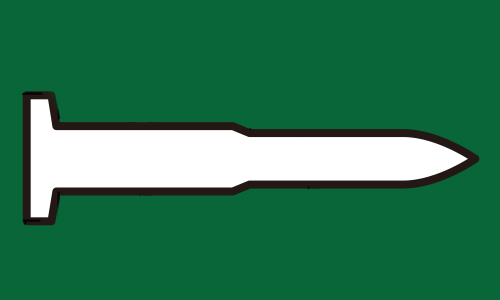

Stepped Shank

Stepped shank concrete nails, also known as step-shank pins, feature a unique shank design with varying diameters that provides greater pull-out resistance and holding power in hard materials like concrete compared to smooth-shank nails. They are primarily used with gas or powder-actuated concrete nailers for heavy-duty construction.
Applications and Benefits
Stepped shank concrete nails are ideal for secure, heavy-duty fastening applications where superior holding power is required.
Increased Holding Power: The step design creates a mechanical lock within the concrete, which significantly reduces the chance of the nail pulling out under stress.

Knurled Shank

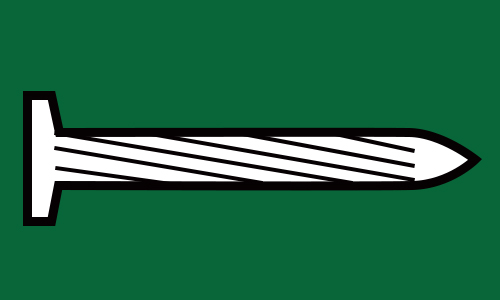

Knurled shank concrete nails are specialized, high-strength fasteners with linear or spiral grooves that provide superior pull-out resistance and enhanced grip in concrete and masonry applications. The knurling helps create a mechanical interlock, preventing the nail from loosening over time.


Type of Concrete Nails

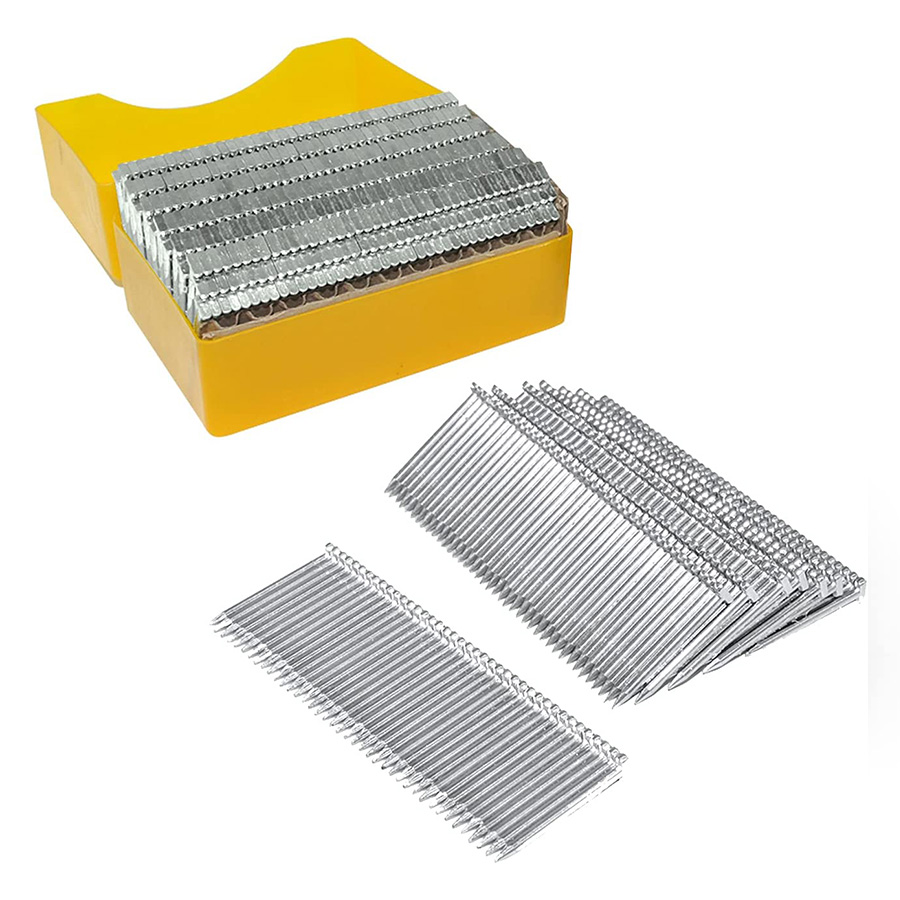

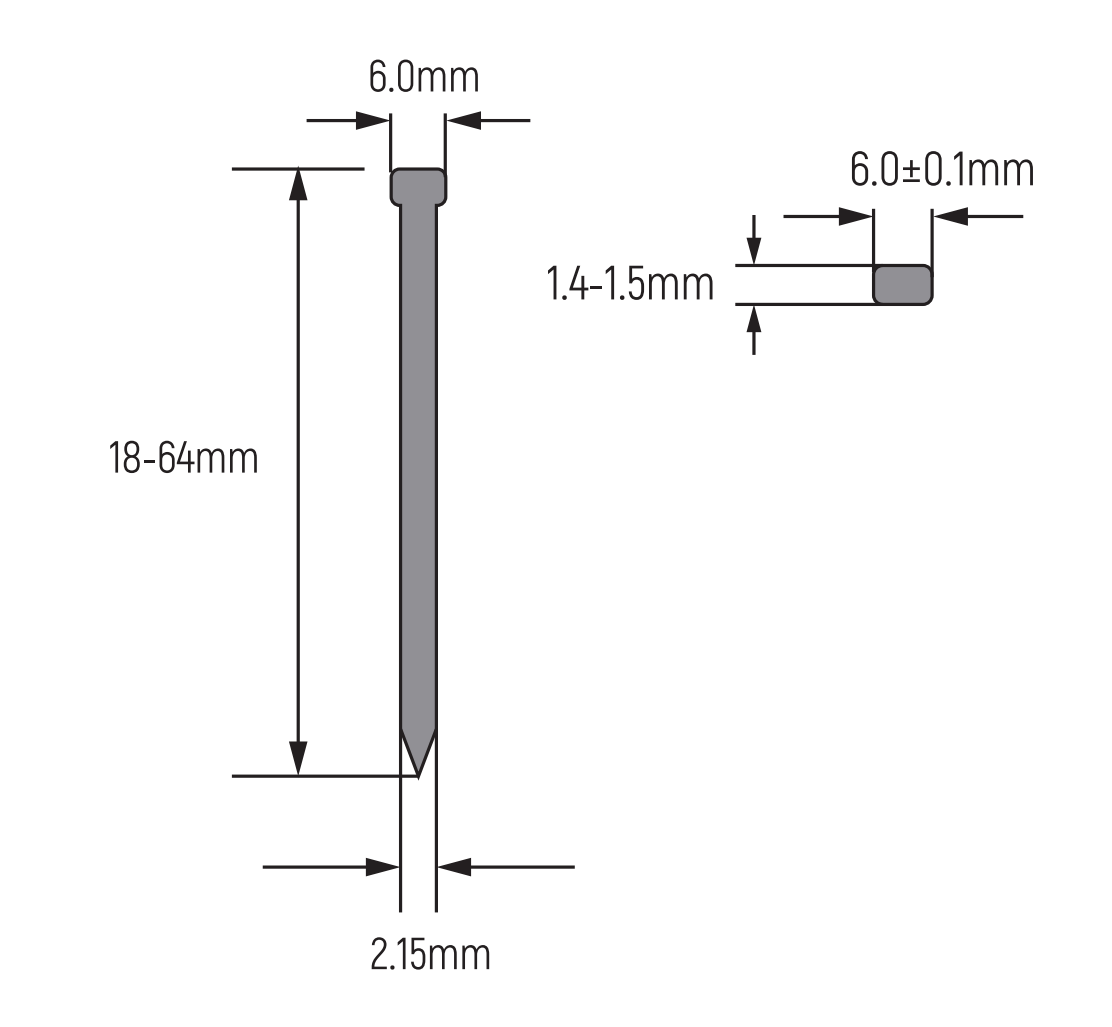

14 Gauge ST Concrete nails

  • Nail Gauge: 14 gauge
  • Shank Diameter: 0.085"(2.15mm)
  • Head Diameter: 1/4" (6.0mm)
  • Multiple Length Sizes: 3/4"(18mm)~2-1/2"(64mm)
Quality Material: Made of type #55 carbon steel and surface galvanized, these 14 gauge concrete T-Nails are durable and resistant to corrosion.
Wide Applications: Ideal for concrete nailing, truss building, construction framing, trunking, skirting, decking, and more. These concrete T-Nails are perfect for attaching wooden boards to concrete or securing roofing materials to wood or concrete surfaces, making them ideal for a wide range of construction applications.


14 Gauge ST Concrete nails

LENGTH SHANK DIAMETER HEAD DIAMETER POINT SHANK COLLATION FINISH PCS/BOX
3/4'' 18mm 2.15mm 6.0mm Bullet Point Smooth/Indentations Glue Galvanized 1000
1'' 25mm 2.15mm 6.0mm Bullet Point Smooth/Indentations Glue Galvanized 1000
1-1/4" 32mm 2.15mm 6.0mm Bullet Point Smooth/Indentations Glue Galvanized 1000
1-1/2" 38mm 2.15mm 6.0mm Bullet Point Smooth/Indentations Glue Galvanized 1000
1-3/4" 45mm 2.15mm 6.0mm Bullet Point Smooth/Indentations Glue Galvanized 1000
2" 50mm 2.15mm 6.0mm Bullet Point Smooth/Indentations Glue Galvanized 1000
2-1/4" 57mm 2.15mm 6.0mm Bullet Point Smooth/Indentations Glue Galvanized 1000
2-1/2" 64mm 2.15mm 6.0mm Bullet Point Smooth/Indentations Glue Galvanized 1000

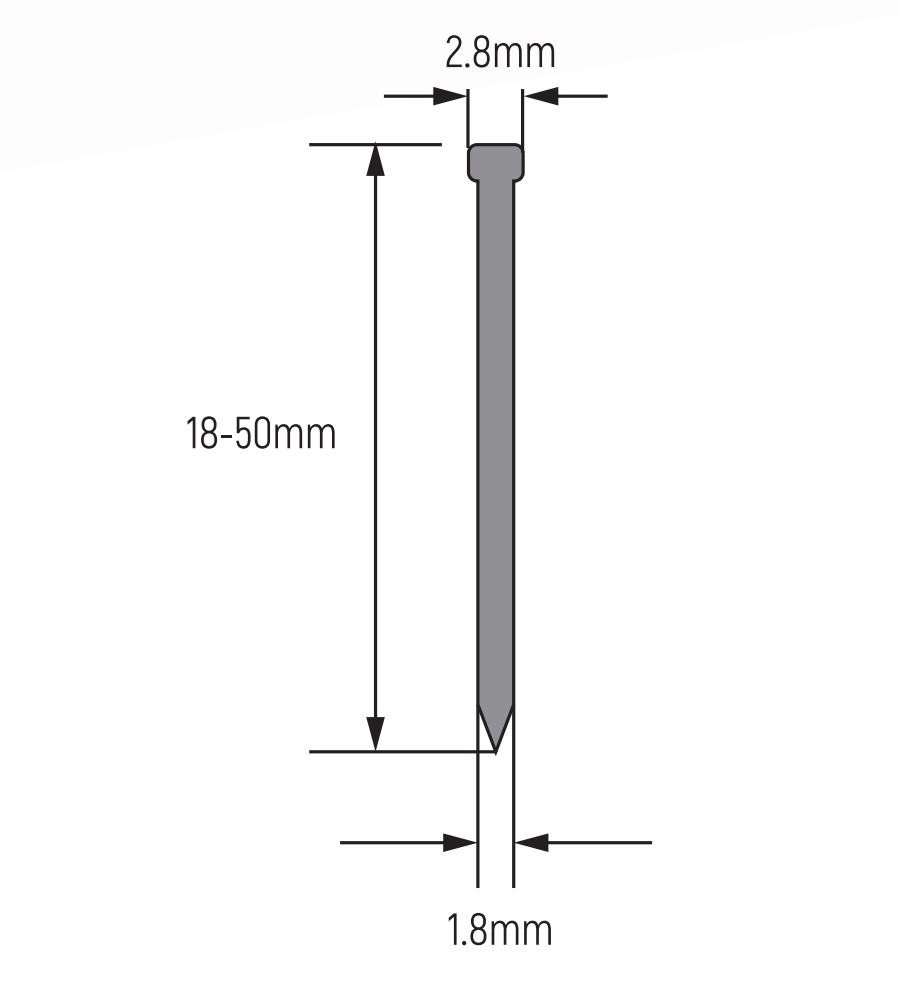

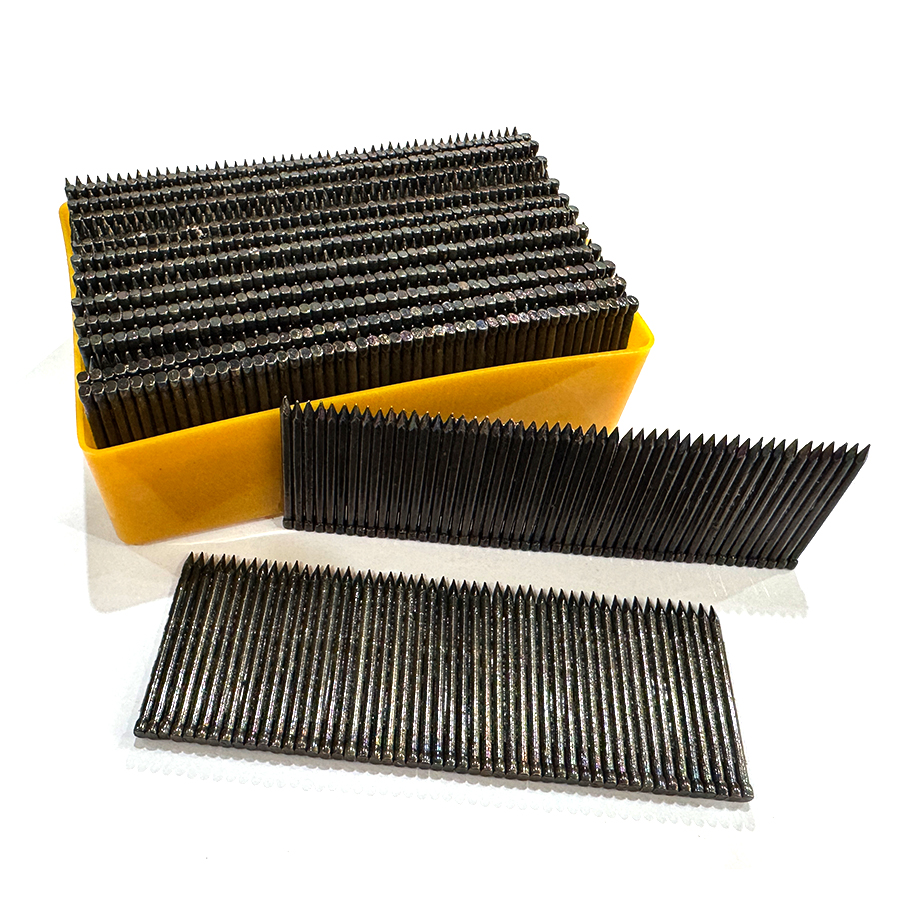

15 Gauge FST Concrete nails

  • Nail Gauge: 15 gauge
  • Shank Diameter: 0.071"(1.8mm)
  • Head Diameter: 0.110" (2.8mm)
  • Multiple Length Sizes: 3/4"(18mm)~2"(50mm)
Quality Material: Made of type 45 steel and surface galvanized, these 15 gauge concrete FSTT-Nails are durable and resistant to corrosion.
Wide Applications: Ideal for concrete nailing, truss building, construction framing, trunking, skirting, decking, and more. They offer high driving power to penetrate tough materials and are used in various construction and finishing applications.


15 Gauge FST Concrete nails

LENGTH SHANK DIAMETER HEAD DIAMETER POINT SHANK COLLATION FINISH PCS/BOX
3/4'' 18mm 1.80mm 2.8mm Bullet Point Smooth/Indentations Glue Galvanized 1500
1'' 25mm 1.80mm 2.8mm Bullet Point Smooth/Indentations Glue Galvanized 1500
1-1/4" 32mm 1.80mm 2.8mm Bullet Point Smooth/Indentations Glue Galvanized 1500
1-3/8" 35mm 1.80mm 2.8mm Bullet Point Smooth/Indentations Glue Galvanized 1500
1-1/2" 38mm 1.80mm 2.8mm Bullet Point Smooth/Indentations Glue Galvanized 1500
1-3/4" 45mm 1.80mm 2.8mm Bullet Point Smooth/Indentations Glue Galvanized 1500
2" 50mm 1.80mm 2.8mm Bullet Point Smooth/Indentations Glue Galvanized 1500
2-1/4" 57mm 1.80mm 2.8mm Bullet Point Smooth/Indentations Glue Galvanized 1500
2-1/2" 64mm 1.80mm 2.8mm Bullet Point Smooth/Indentations Glue Galvanized 1500

Framing Nails Application

Framing Nails

21° Plastic Collated Framing Nails

LENGTH SHANK DIAMETER HEAD POINT SHANK COLLATION FINISH PCS./BOX
2'' .113'' Full Round Head Diamond Smooth/Ring/Screw 21° Angled Strip Yello Coating/EG/HDG 6000
2-3/8" .113'' Full Round Head Diamond Smooth/Ring/Screw 21° Angled Strip Yello Coating/EG/HDG 5000
2-3/8" .120'' Full Round Head Diamond Smooth/Ring/Screw 21° Angled Strip Yello Coating/EG/HDG 4000
3" .120'' Full Round Head Diamond Smooth/Ring/Screw 21° Angled Strip Yello Coating/EG/HDG 4000
3-1/4" .120'' Full Round Head Diamond Smooth/Ring/Screw 21° Angled Strip Yello Coating/EG/HDG 4000
2-1/2" .131'' Full Round Head Diamond Smooth/Ring/Screw 21° Angled Strip Yello Coating/EG/HDG 5000
3" .131'' Full Round Head Diamond Smooth/Ring/Screw 21° Angled Strip Yello Coating/EG/HDG 4000
3-1/4" .131'' Full Round Head Diamond Smooth/Ring/Screw 21° Angled Strip Yello Coating/EG/HDG 4000
3-1/2" .131'' Full Round Head Diamond Smooth/Ring/Screw 21° Angled Strip Yello Coating/EG/HDG 4000
3-1/2" .135'' Full Round Head Diamond Smooth/Ring/Screw 21° Angled Strip Yello Coating/EG/HDG 2000
1-1/2'' .148'' Full Round Head Diamond Smooth 21° Angled Strip Yello Coating/EG/HDG 6000
2-1/8" .148'' Full Round Head Diamond Smooth 21° Angled Strip Yello Coating/EG/HDG 4000
2-1/4" .148'' Full Round Head Diamond Smooth 21° Angled Strip Yello Coating/EG/HDG 4000
2-3/8" .148'' Full Round Head Diamond Smooth 21° Angled Strip Yello Coating/EG/HDG 4000
2-1/2" .148'' Full Round Head Diamond Smooth 21° Angled Strip Yello Coating/EG/HDG 4000
3" .148'' Full Round Head Diamond Smooth 21° Angled Strip Yello Coating/EG/HDG 3000
3-1/4" .148'' Full Round Head Diamond Smooth 21° Angled Strip Yello Coating/EG/HDG 3000
4'' .150'' Full Round Head Diamond Smooth 21° Angled Strip Yello Coating/EG/HDG 1500
4-1/2" .150'' Full Round Head Diamond Smooth 21° Angled Strip Yello Coating/EG/HDG 1500
5-1/8" .150'' Full Round Head Diamond Smooth 21° Angled Strip Yello Coating/EG/HDG 1500
3-1/4" .162'' Full Round Head Diamond Smooth 21° Angled Strip Yello Coating/EG/HDG 1012
3-1/2" .162'' Full Round Head Diamond Smooth 21° Angled Strip Yello Coating/EG/HDG 1012
5-1/8" .165'' Full Round Head Diamond Smooth 21° Angled Strip Yello Coating/EG/HDG 1012
6-1/4" .165'' Full Round Head Diamond Smooth 21° Angled Strip Yello Coating/EG/HDG 1012
5-4/5'' .181'' Full Round Head Diamond Smooth 21° Angled Strip Yello Coating/EG/HDG 660
6-1/4" .181'' Full Round Head Diamond Smooth 21° Angled Strip Yello Coating/EG/HDG 660

34° Paper Collated Framing Nails

LENGTH SHANK DIAMETER HEAD POINT SHANK COLLATION FINISH PCS./BOX
2'' .113'' D Type Diamond Ring 34° Angled Strip Yello Coating/EG/HDG 5000
2-1/4'' .113'' D Type Diamond Ring 34° Angled Strip Yello Coating/EG/HDG 5000
2-3/8" .113'' D Type Diamond Ring 34° Angled Strip Yello Coating/EG/HDG 5000
2-1/2" .113'' D Type Diamond Smooth/Ring/Screw 34° Angled Strip Yello Coating/EG/HDG 5000
3" .120'' D Type Diamond Smooth/Ring/Screw 34° Angled Strip Yello Coating/EG/HDG 5000
3-1/4" .120'' D Type Diamond Smooth/Ring/Screw 34° Angled Strip Yello Coating/EG/HDG 3000
3-1/2" .120'' D Type Diamond Smooth/Ring/Screw 34° Angled Strip Yello Coating/EG/HDG 3000
3" .131'' D Type Diamond Smooth 34° Angled Strip Yello Coating/EG/HDG 3000
3-1/4" .131'' D Type Diamond Smooth 34° Angled Strip Yello Coating/EG/HDG 3000
3-1/2" .131'' D Type Diamond Smooth 34° Angled Strip Yello Coating/EG/HDG 3000
1-1/2" .148" D Type Diamond Smooth 34° Angled Strip Yello Coating/EG/HDG 2000
2-1/2" .148" D Type Diamond Smooth 34° Angled Strip Yello Coating/EG/HDG 2000
2-1/2" .162" D Type Diamond Smooth 34° Angled Strip Yello Coating/EG/HDG 1000

28°-34° Joist Hanger Nails

LENGTH SHANK DIAMETER HEAD POINT SHANK COLLATION FINISH PCS./BOX
1-3/8'' .130'' Full Round Head Diamond Smooth/Ring/Screw 28°-34° Angled Strip BRIGHT/EG/HDG/SS304 3000
1-1/2'' .130'' Full Round Head Diamond Smooth/Ring/Screw 28°-34° Angled Strip BRIGHT/EG/HDG/SS304 3000
1-3/8'' .134'' Full Round Head Diamond Smooth/Ring/Screw 28°-34° Angled Strip BRIGHT/EG/HDG/SS304 3000
1-1/2" .134'' Full Round Head Diamond Smooth/Ring/Screw 28°-34° Angled Strip BRIGHT/EG/HDG/SS304 3000
1-3/8'' .148'' Full Round Head Diamond Smooth/Ring/Screw 28°-34° Angled Strip BRIGHT/EG/HDG/SS304 3000
1-1/2" .148'' Full Round Head Diamond Smooth/Ring/Screw 28°-34° Angled Strip BRIGHT/EG/HDG/SS304 3000
1-9/16” .148'' Full Round Head Diamond Smooth/Ring/Screw 28°-34° Angled Strip BRIGHT/EG/HDG/SS304 3000
1-3/4” .148'' Full Round Head Diamond Smooth/Ring/Screw 28°-34° Angled Strip BRIGHT/EG/HDG/SS304 3000
2" .148'' Full Round Head Diamond Smooth/Ring/Screw 28°-34° Angled Strip BRIGHT/EG/HDG/SS304 3000
2-1/2" .148'' Full Round Head Diamond Smooth/Ring/Screw 28°-34° Angled Strip BRIGHT/EG/HDG/SS304 3000
