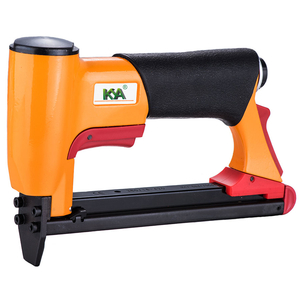

KYA 1013F is a pneumatic 22 gauge fine wire stapler designed for furniture upholstery, sofa and chair production, automotive interior trim, picture frame backing, decorative trim and other professional light-duty fastening applications. It drives compatible 10F Series staples from approximately 5mm to 13mm long with an 11.2mm / 7/16 inch crown.
The tool weighs approximately 0.88kg, measures 146 × 44 × 229mm and holds up to 100 staples. KYA lists an operating pressure of 60–100 PSI / approximately 4–7 bar, together with an extended thin nose, 360° adjustable exhaust, open nose design and tool-free depth adjustment.
The 1013F should be matched by staple series, crown width, wire dimensions, leg length and strip geometry. KYA's current 10F fastener family is available in a broader 4–16mm range, but the 1013F tool itself is listed for 5–13mm staples.
| Specification | Details |
| Model | 1013F |
| Tool Type | Pneumatic Fine Wire Stapler |
| Staple Gauge | 22 Gauge |
| Staple Series | 10F Series Fine Wire Staples |
| Crown Width | Approx. 11.2mm / 7/16" |
| Tool Staple Length Range | 5–13mm / Approx. 3/16"–1/2" |
| Tool-Page Wire Reference | Approx. 0.75 × 0.50mm |
| Current KYA 10F Fastener Reference | Approx. 0.75 × 0.55mm |
| Magazine Capacity | Approx. 100 Staples |
| Operating Pressure | 60–100 PSI / Approx. 4–7 bar |
| Net Weight | Approx. 0.88kg / 1.94lbs |
| Tool Dimensions | Approx. 146 × 44 × 229mm |
| Nose Design | Extended Thin Nose |
| Exhaust | 360° Adjustable Exhaust |
| Depth Control | Tool-Free Depth Adjustment |
| Nose Access | Open Nose Design for Jam Access |
| Typical Applications | Upholstery, Furniture, Automotive Interiors, Picture Frames, Trim and Light-Duty Fastening |
The tool page and the current KYA 10F staple page list slightly different wire thicknesses. For bulk replacement fastener orders, confirm the current production drawing and actual tool magazine specification before changing staple brands or batches.
The 1013F is designed around the 22GA 10F Series fine wire staple format with an approximately 11.2mm / 7/16 inch crown.
KYA's current 10F fastener family is available from 4mm to 16mm, while the 1013F tool is specifically listed for 5–13mm staples. Always stay within the tool's stated working range unless an updated tool specification confirms otherwise.
Compatible staples use an approximately 11.2mm / 7/16 inch crown. This crown width is commonly used in fine-wire upholstery stapling where fabric, vinyl, felt, trim or light material must be secured without using a heavy-wire fastener.
Crown width must be checked together with the wire section because other 22GA staples can have different crowns and are not automatically interchangeable.
The 1013F tool is listed for staple legs from approximately 5mm to 13mm. Shorter staples can be selected for thin fabric and light trim, while longer staples provide additional penetration into compatible furniture frames and softwood substrates.
Select staple length according to covering thickness, substrate density and required penetration. Excessive leg length can break through thin materials or mark the opposite surface.
22 gauge fine wire staples produce a smaller fastening footprint than medium or heavy wire staples, making them suitable for upholstery fabric, vinyl, felt and decorative work.
Fine wire staples are intended primarily for coverings, trim and light-duty assemblies rather than structural wood-to-wood connections.
The 1013F holds approximately 100 compatible staples per load. This capacity supports repetitive upholstery, picture-frame and trim fastening while keeping the tool compact.
Use straight, undamaged staple strips and keep the feed channel clean. Incorrect fastener dimensions, bent strips or debris can cause feed interruptions.
The extended thin nose improves access around furniture frames, recessed channels, corners, grooves and other restricted fastening positions.
The narrow nose also improves visibility around the contact point, helping operators position staples along fabric edges and trim components.
Tool-free depth adjustment allows the operator to change staple drive depth without disassembling the tool when moving between materials of different thicknesses or densities.
Final staple depth also depends on air pressure, staple length and substrate density. Test the setting on scrap material before fastening visible finished upholstery or trim.
The open nose design provides access to the driver area if a staple becomes jammed, helping simplify routine clearing and maintenance.
Disconnect the compressed-air supply before opening the nose, clearing a jam or servicing the tool.
The 360° adjustable exhaust allows discharged air to be directed away from the operator or finished work surface.
Adjustable exhaust direction can improve comfort during repetitive bench work but does not replace normal workplace ventilation or protective equipment where required.
The 1013F weighs approximately 0.88kg and measures approximately 146 × 44 × 229mm. Its compact format is suited to handheld upholstery and trim work.
Operator comfort during continuous use also depends on air-hose routing, workstation height, fastening frequency and work posture.
KYA lists an operating pressure range of approximately 60–100 PSI / 4–7 bar for the 1013F.
Start at lower pressure and increase only as necessary to achieve the required staple depth. Excessive pressure can overdrive staples or mark soft materials, while insufficient pressure can leave the staple crown above the surface.
Furniture upholstery is a primary application for the 1013F. Compatible fine wire staples can be used to attach fabric, vinyl, felt and related covering materials to suitable wood furniture frames.
Select staple length according to covering thickness and the receiving material. Test staple depth before working on visible finished upholstery.
The 1013F can be used for selected automotive vinyl, fabric and interior trim operations where the component and substrate are suitable for fine-wire pneumatic stapling.
Automotive trim assemblies vary by manufacturer, so staple length, material and fastening position should be confirmed for the individual component.
The compact tool and fine-wire format can be used for selected picture-frame backing, decorative assembly and other light-duty fastening where the staple provides sufficient holding performance.
Maintain adequate edge distance on thin or narrow wooden components to reduce the risk of splitting.
The extended thin nose can be useful for selected cabinet trim, beading, light molding and decorative woodwork where access around narrow edges is important.
For heavier cabinet joints or structural connections, use a fastener system sized for the required load rather than relying on fine-wire staples.
Furniture upholstery
Sofa and chair production
Fabric and vinyl fastening
Automotive interior trim
Picture frame backing
Cabinet trim
Decorative molding
Felt attachment
Light paneling
Light-duty decorative assembly
| Buyer Check | 1013F Reference |
|---|---|
| Staple Series | 10F Series |
| Gauge | 22GA |
| Crown | Approx. 11.2mm / 7/16" |
| Tool Leg Range | 5–13mm |
| Tool-Page Wire Reference | Approx. 0.75 × 0.50mm |
| Current 10F Fastener Reference | Approx. 0.75 × 0.55mm |
| Fastener Family Range | KYA 10F Family Available 4–16mm; Use 5–13mm for This Tool Unless Otherwise Confirmed |
| Material | Galvanized Steel, Stainless Steel or Aluminum Depending on Fastener Specification |
| Parameter | KYA 1013F | Typical 1013F-Class Tool |
|---|---|---|
| Gauge | 22GA | 22GA |
| Crown | 11.2mm | Commonly about 11.2mm |
| Staple Length | 5–13mm | Commonly extends to around 13–16mm depending on tool |
| Magazine Capacity | 100 Staples | Varies by manufacturer and magazine design |
| Weight | Approx. 0.88kg | Varies by tool design |
| Primary Use | Upholstery, Trim, Frames and Automotive Interiors | Similar Fine-Wire Upholstery and Furniture Applications |
Market 22GA 11.2mm-crown staple systems include several cross-reference families. Equivalent names are useful for sourcing, but compatibility should be confirmed by actual crown, wire section, leg length and strip geometry.
Do not assume that every 22GA 7/16-inch staple will fit the 1013F simply because the nominal gauge and crown are similar.
| Issue | Possible Cause | Recommended Check |
|---|---|---|
| Air Leak at Cylinder Cap | Worn seal, O-ring or head-valve component | Disconnect air supply, inspect seals and replace damaged components according to the tool parts specification. |
| Air Leak at Trigger | Worn trigger seal, contaminated valve or damaged valve component | Disconnect air supply, clean the valve area and replace worn seals or valve components as required. |
| Driver Does Not Return | Damaged driver, worn nose component, seal problem or contamination | Disconnect air supply and inspect the driver assembly. Replace bent or damaged parts rather than forcing the tool to cycle. |
| Staples Jam Repeatedly | Incorrect staple dimensions, damaged strips or magazine contamination | Confirm 10F dimensions, use straight strips and clean the feed channel. |
| Staples Not Fully Driven | Low air pressure, material density, excessive staple length or worn driver | Check pressure within the specified range, staple length and driver condition. |
Always disconnect the compressed-air supply before clearing jams, opening the nose, inspecting internal parts or servicing the stapler.
KYA supplies pneumatic fine wire staplers and matching staples for furniture manufacturers, sofa factories, upholstery workshops, automotive interior suppliers, picture-frame manufacturers and industrial fastener distributors.
For bulk purchasing, provide the required tool quantity, staple series, leg length, fastener material, application and compressed-air conditions. If replacing another tool, provide the existing tool and staple models for compatibility checking.
KYA supplies pneumatic staplers for furniture, upholstery, cabinetry, trim, packaging and industrial fastening in multiple gauges, crown widths and staple-length ranges.
The 1013F uses compatible 22GA 10F Series fine wire staples with an approximately 11.2mm / 7/16-inch crown.
The current KYA 1013F tool specification lists approximately 5–13mm staple legs.
The broader KYA 10F staple family is available from 4mm to 16mm, but the 1013F tool itself is listed for 5–13mm. Use the tool's stated 5–13mm range unless an updated tool specification confirms otherwise.
The compatible crown is approximately 11.2mm / 7/16 inch.
The 1013F tool page lists approximately 0.75 × 0.50mm, while KYA's current 10F fastener page lists approximately 0.75 × 0.55mm. Confirm the current production drawing and tool fit when ordering replacement staples.
The magazine holds approximately 100 compatible staples.
KYA lists an operating range of approximately 60–100 PSI / 4–7 bar.
The listed tool weight is approximately 0.88kg / 1.94lbs.
The listed dimensions are approximately 146 × 44 × 229mm.
Yes. The extended thin nose improves access and visibility around furniture frames, grooves, corners and narrow trim areas.
Yes. KYA lists tool-free depth adjustment. Actual staple depth also depends on operating pressure, staple length and substrate density.
Yes. The tool includes a 360° adjustable exhaust so discharged air can be directed away from the operator or workpiece.
Yes. Furniture, sofa and chair upholstery are primary applications for this type of 22GA fine wire stapler when the staple length matches the covering material and frame.
It can be used for selected automotive vinyl, fabric and interior trim applications where pneumatic fine-wire fastening is appropriate for the component.
It can be used for selected frame backing and decorative assembly where the fine-wire staple provides sufficient holding performance.
No. Gauge and crown alone do not guarantee compatibility. Wire section, leg length, collation and strip geometry should also match the tool.
No. The 1013F is primarily intended for upholstery, trim and other light-duty fine wire fastening. Structural wood joints generally require heavier fasteners.
Common causes include incorrect staple geometry, bent staple strips, debris in the magazine, damaged collation, improper loading or worn driver components.
Provide the required tool quantity, staple series, staple length, fastener material, application and compressed-air conditions. If replacing another tool or fastener brand, include the existing model and staple dimensions.
